Topargee Surface Mount Water Gauge Package with 1.4m Sender Lead

Product Description

Topargee Surface Mount Water Gauge Package, 1 Year Warranty.

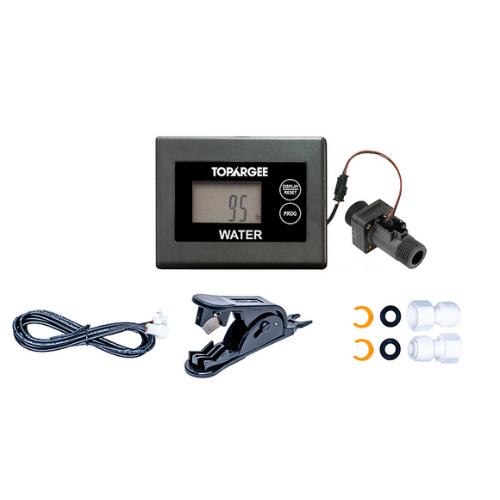

Bundle Includes:

• Topargee H2F-SM Surface Mount Water Tank Gauge, H2F-SM
• SHOWERMI$ER Hose Cutter, EF041-A
• Topargee 1/2" BSP Female to John Guest 12 mm, FITSET

Options:

• Topargee 1.4m 3 Pin Sender Extension Lead, H2F-L
• Topargee 3m 3 Pin Sender Extension Lead, H2F-L3
• Topargee 1.4m 3 Pin Sender Extension Lead, H2F-L + Topargee Digital Water Flow Meter, DWFM
• Topargee 3m 3 Pin Sender Extension Lead, H2F-L3 + Topargee Digital Water Flow Meter, DWFM

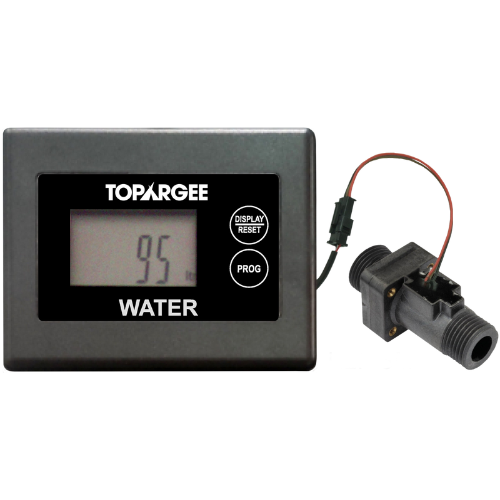

Topargee H2F-SM Surface Mount Water Tank Gauge

H2F-SM Surface Mount Water Tank Gauge - RV, Caravan & Marine model - is suited more to the DIY aftermarket.

Perfect if you have no space to install a display screen as screen does not need to be installed.

Topargee senders and electronics are compatible with all commonly available RV, Caravan & Marine water pumps and will even work with gravity fed systems.

Installation is very simple. The sender is fitted to the hose line and there is nothing fitted to the tank.  This solves the problem of having to remove the tank, drill holes, remove filings, seal sender holes, ongoing cleaning/maintenance, etc.

Ideal if you have multiple tanks or add more tanks at any stage you can simply change the programmed amount to suit your new capacity.

The Topargee Surface Mount Water Gauge is a MUST for those loving the adventure of bush, free camping and boondocking as you will always know your daily water usage.

Top Reasons you MUST have a Surface Mount

• Perfect if you have no space to install a display screen in your Caravan, Campervan or Motorhome as screen does not need to be installed
• Easy installation, fitted in water line, nothing is fitted or drilled to the tank
• Real time display as you use your water - takes the guess work out of your water supply
• Stores the pre-set water capacity in memory, which is displayed in Litres or Gallons
• Measures water flow as opposed to water volume
• Monitor water usage whether in the shower, washing, turning the tap on
• Lets you know how much water is left in your tank litre by litre from a pre-set amount, not full/half full/empty
• Most traditional water gauges will give an inaccurate reading if you park on an angle
• One unit for multiple tanks up to 99,999 litres
• Cost effective - stop wasting water by filling up unnecessarily
• You can plan your adventure more accurately

Includes: 1.4m Sender Lead & ​AA batteries (Aus Only)

Does not include: Hose connectors, see Connecting Sender Unit (pictures) noting sender leads cannot be cut and joined as this will void your warranty. Extension leads must be used

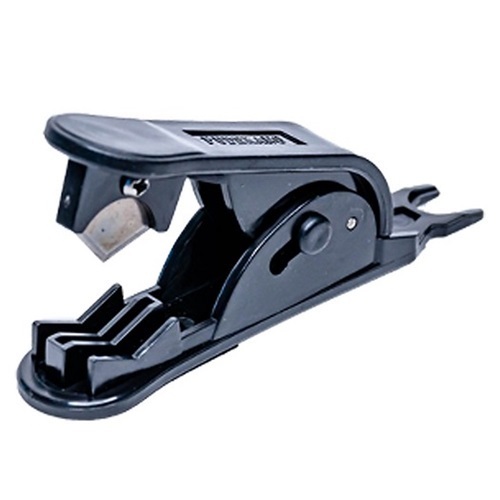

SHOWERMI$ER Hose Cutter

Hose cutter is used to get a straight clean leak connection with all John Guest and quick connect type hoses.

Please Note: Never cut John Guest type hoses with a hacksaw or any other cutting tool.

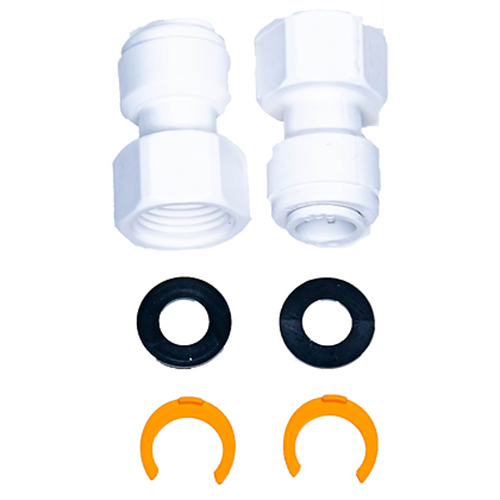

Topargee 1/2" BSP Female to John Guest 12 mm

• For use with the 1/2" sender that is supplied with the Topargee Water Tank Gauges.
• The other end is to connect your 12 mm blue or black John Guest hose.
•  ​Retaining clips should always be used and are included as part of the John Guest kit.
• The package contains two fittings, washers, and clips.
• Use John Guest quick-connect if you are using a harder-side tubing like polyethylene.

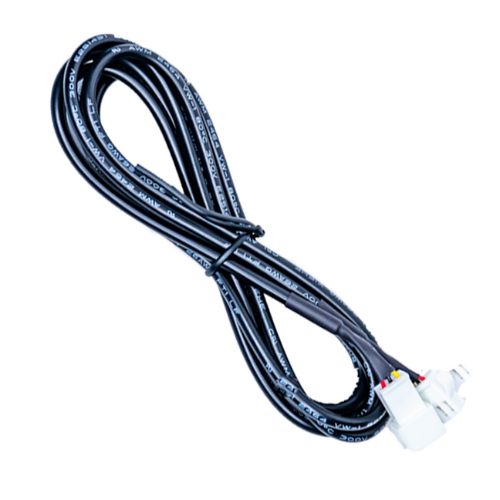

Topargee 1.4m 3 Pin Sender Extension Lead

Sender extension leads. Multiple leads can be joined together to make the desired length.



Topargee 3m 3 Pin Sender Extension Lead

Sender extension leads. Multiple leads can be joined together to make the desired length.



Topargee Digital Water Flow Meter

The Topargee Digital Water Flow Meter tells you to the litre exactly how much water your adding to your tank as you fill it.

Simply attach to your fill hose or tap, flip the screen for easy reading and get accurate, real-time data every time you top up.

Features:

• Accurate Fill Tracking - Measures water flow to the litre as you fill your tank, so you always know exactly how much you've added.
• Simple Attachment - Connects directly to your fill hose or tap. No permanent installation, no plumbing required.
• Flip Screen for Easy Reading - The built-in digital LCD screen flips for easy access and clear visibility wherever you're filling up.
• Hall-Type Sensor - The built-in hall-type sensor provides reliable, accurate measurement compared to standard flow meters.
• 4 Display Modes - Switch between real-time water flow rate, single use consumption,  daily water consumption and total water consumption.
• Low Battery Indicator - Alerts you when the battery needs replacing so you're never caught without a reading.
• Batteries Not Included - 2 x AAA batteries required
• Optional Bluetooth Capability - connect to your phone via the App
• Pairs Perfectly with Topargee Water Tank Gauges - Use alongside any Topargee Water Tank Gauge for complete water monitoring - track what goes in and what goes out.

Specifications:

• Suitable For: 12mm fittings
• Waterproof Rating: IP54
• Max Flow Rate: 41.9 L/min (11.0 GAL/min)
• Max Water Consumption: 9999 L & GAL
• Working Pressure: 0.5 bar - 8 bar (7.24–116 PSI)
• Operates With: 2 x AAA batteries (not included)
• Optional: Bluetooth capability
• Measurement Tolerance: ±5%
