TAG Adjustable Heavy Duty Tow Ball Mount

SKU: UNTTBM450 Learn More»
$253
$364

CALCULATE SHIPPING:

In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

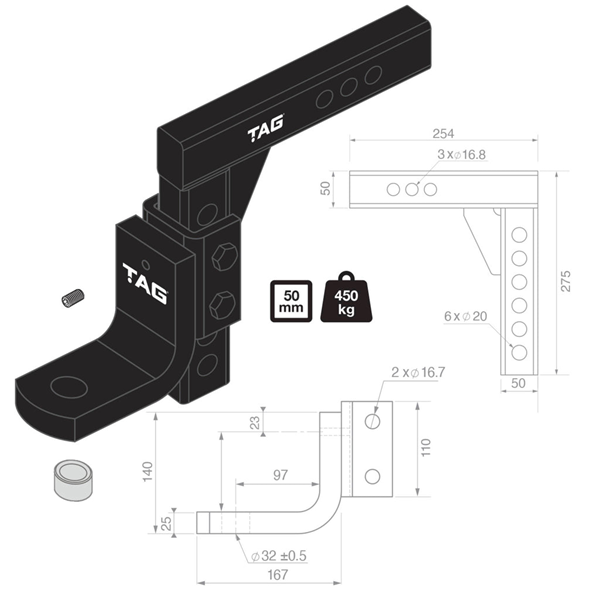

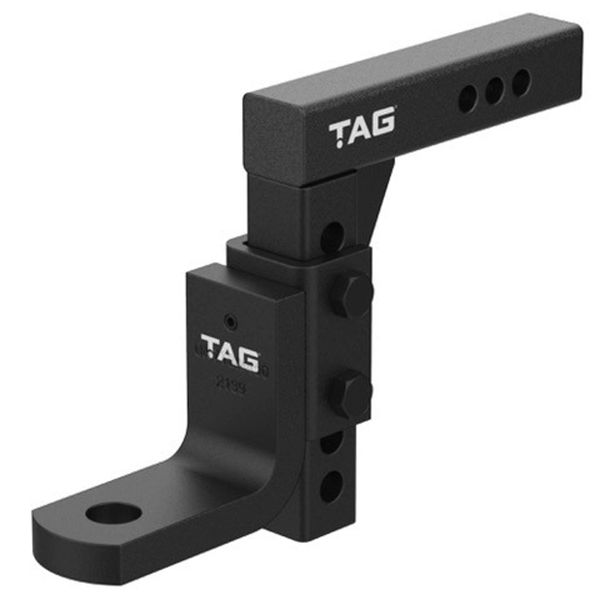

TAG Adjustable Heavy Duty Tow Ball Mount, Limited Lifetime Warranty. The TAG Adjustable Tow Ball Mount features a heavy-duty 50mm square shank with multiple pin holes for horizontal and vertical adjustment to suit your towing setup. For full compatibility, the unit includes a reducer allowing the use of a 70mm or 50mm tow ball. Made from solid steel with a durable powder-coated finish that resists rust, corrosion, and chipping.

  • 90° Separate Tongue Face with four adjustable positions.
  • Drop 115mm

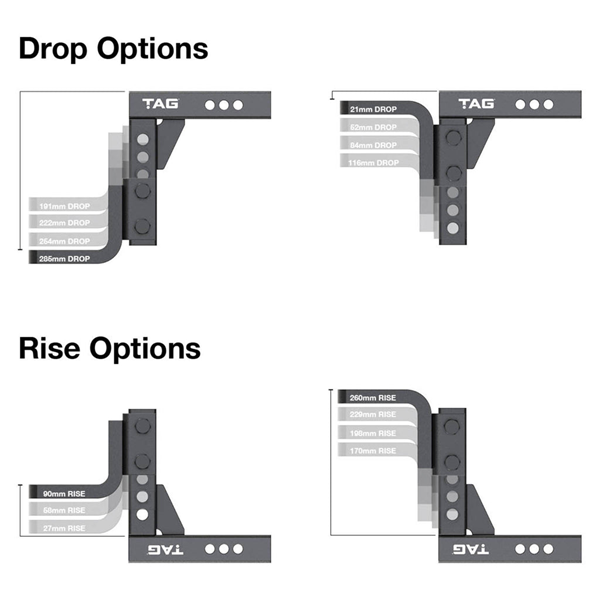

  • Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
  • Fits 70mm tow ball (or 50mm tow ball using included reducer)
  • Gross Trailer Weight 4500kg (70mm Tow Ball) / 3500kg (50mm Tow Ball)
  • Ball Weight 450kg (70mm Tow Ball) / 350kg (50mm Tow Ball)
  • Durable Powder Coated Finish
  • ADR 62/02 Compliant
  • TAG Limited Lifetime Warranty
  • Tow Ball, R-Clip & Hitch Pin are sold separately. Always check your vehicle and towbar's maximum towing capacity.
  • Ensure you tighten Allen key grub screw before main attachment bolts.
  • Torque spec on bolts that attach head to shank is 280nm.

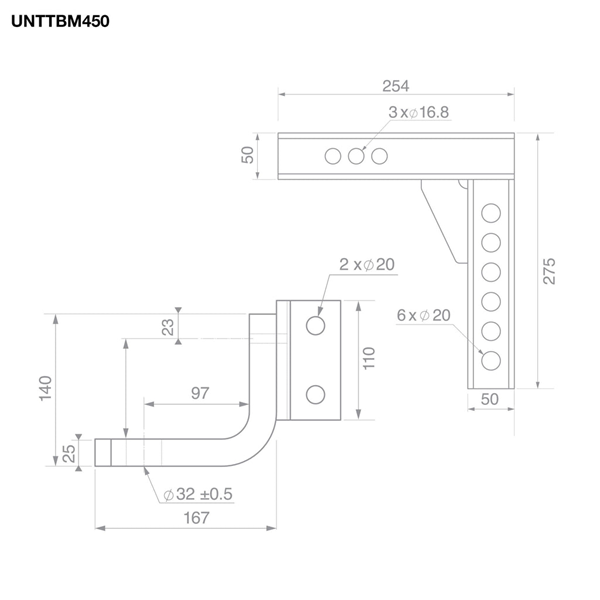

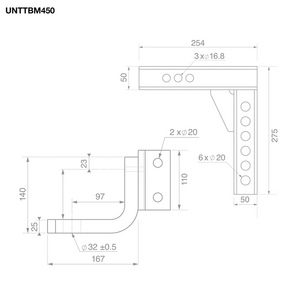

Specifications

SKU UNTTBM450

Brand TAG

GTIN 9340407045381

Warranty Period: Limited Lifetime

Product Category Towballs, Hitches and Couplings

Drop 115mm

Coating Powder Coating

Tow Ball Weight (kg) 450

Gross Trailer Weight 4500
