Sunman 9V 85W eArc Flexible Solar Panel | Junction Box Underneath w/ VGK

Product Description

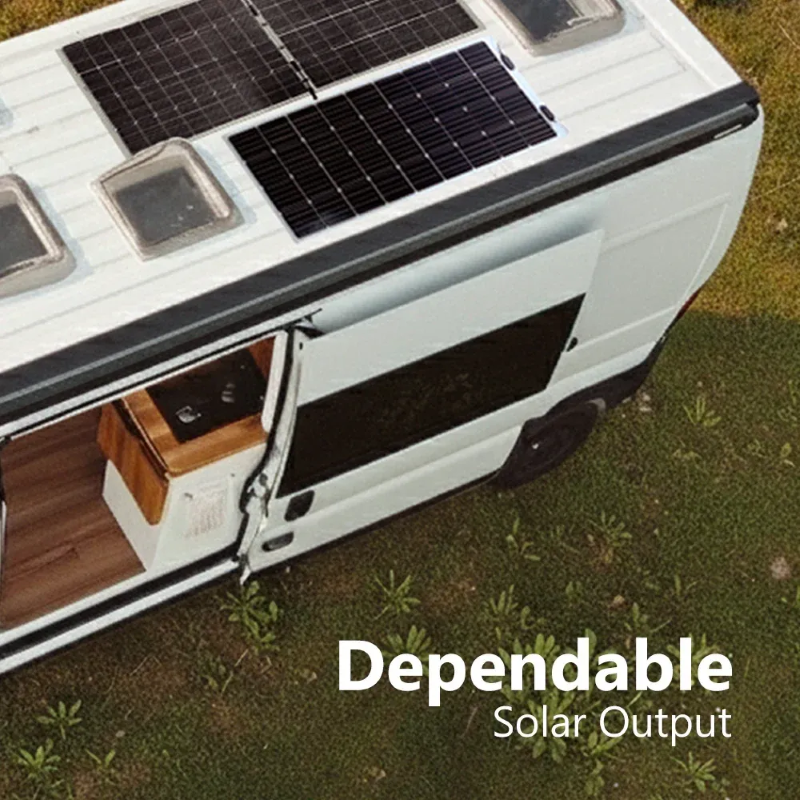

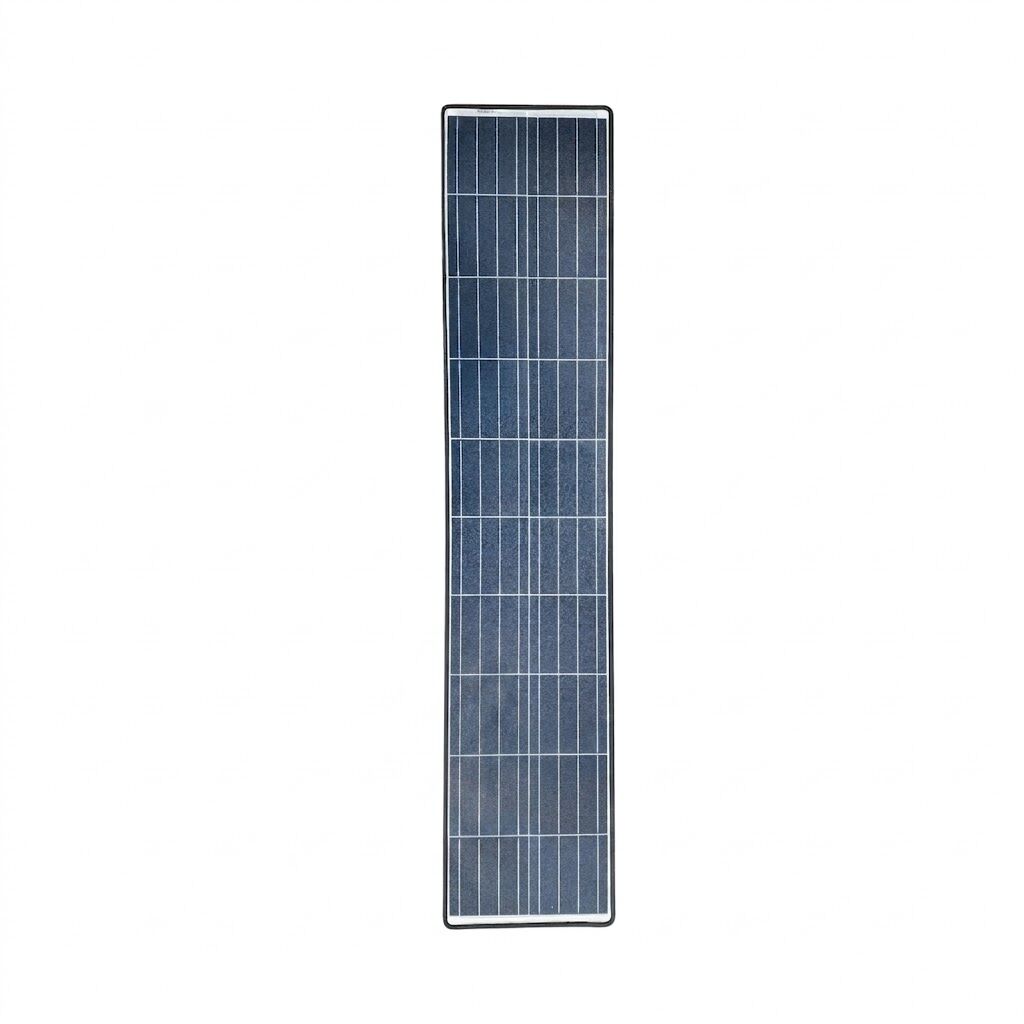

Sunman 9V 85W eArc Flexible Solar Panel | Junction Box Underneath w/ VGK, 5 Year Warranty. The Sunman eArc 9V 85W flexible solar panel is engineered for lightweight, low-profile solar on vehicles and surfaces where traditional framed glass modules are impractical. Designed with a flexible composite construction and a junction box underneath for a cleaner top-side finish, it’s well suited to caravans, motorhomes, yachts, buses, trains and other mobile or space-constrained applications.

This model is an 85W 9V solar panel. That 9V output is a key selection point: it can be an excellent match for certain charging systems, but it needs to be configured correctly when charging a 12V battery. The information below explains the common wiring and controller options so you can design a system that performs as expected under Australian conditions.

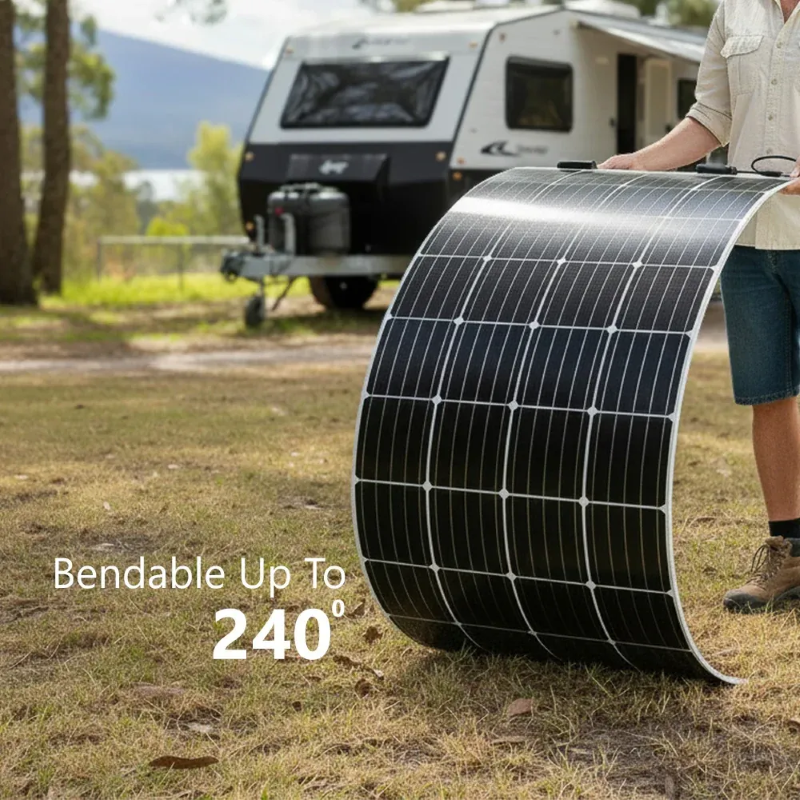

This new version of the Sunman eArc series uses monocrystalline Mono-PERC solar cells to support strong energy yield from a compact footprint. The flexible form factor makes it easier to mount on subtly curved surfaces and low-clearance rooftops, without the weight and profile of framed panels.

Built using a patent-pending composite material (often compared to aircraft window materials), Sunman eArc panels are designed to be tough without requiring heavy glass or a rigid aluminium frame. They are CEC-approved technology, supporting confidence for installers and customers looking for compliant solar components in Australia.

Key Features:

• 85W flexible solar panel (9V) for space-limited and curved mounting surfaces
• Junction box underneath to support a clean top-side profile

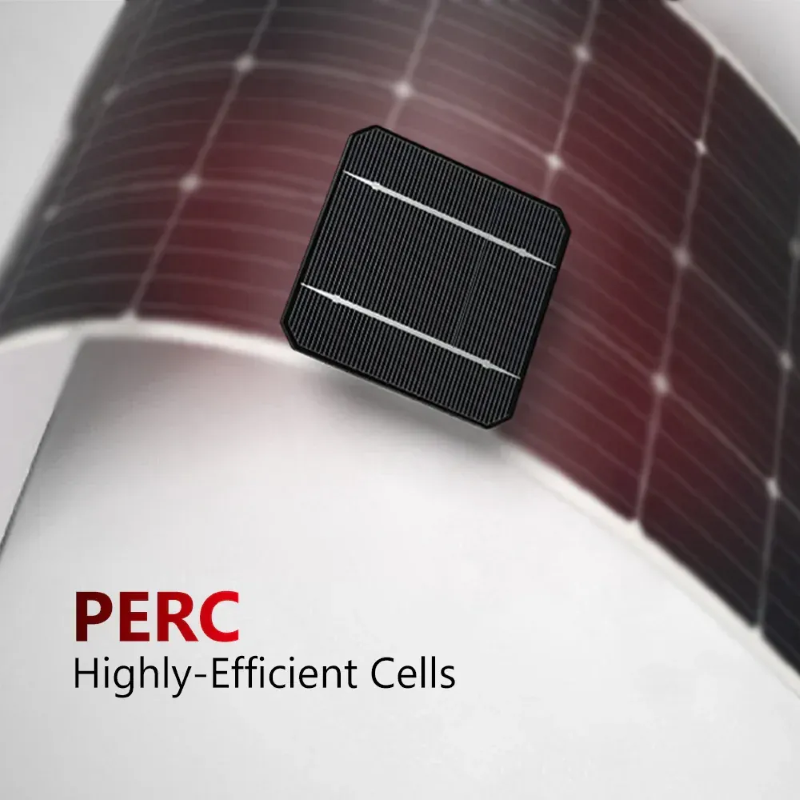

• Mono-PERC monocrystalline cells for efficient energy production in a compact format
• Lightweight, frame-free composite construction designed for mobile applications
• CEC-approved for residential and commercial use in Australia
• Free Vented Gap Kit included to support airflow, reduce heat build-up and improve mounting outcomes

Specifications:

• Solar cells: 20 (2x10)

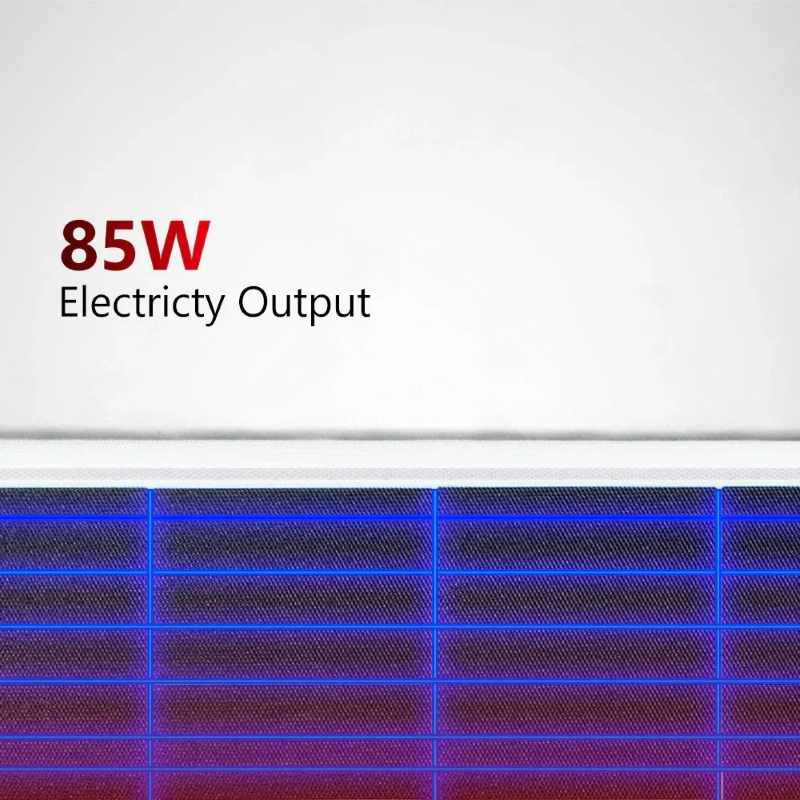

• Maximum Power (Pmax): 85
• Maximum Power Voltage (Vmp): 10.5
• Maximum Power Current (Imp): 8.1
• Open-circuit Voltage (Voc): 12.9
• Short-circuit Current (Isc): 8.55
• Operating Temperature (°C): -40 °C to 85 °C
• Maximum System Voltage: 600 V DC (IEC)
• Maximum Series Fuse Rating: 20 A
• Application Class: Class A
• Power Tolerance: 0/+5 W
• Backsheet: White

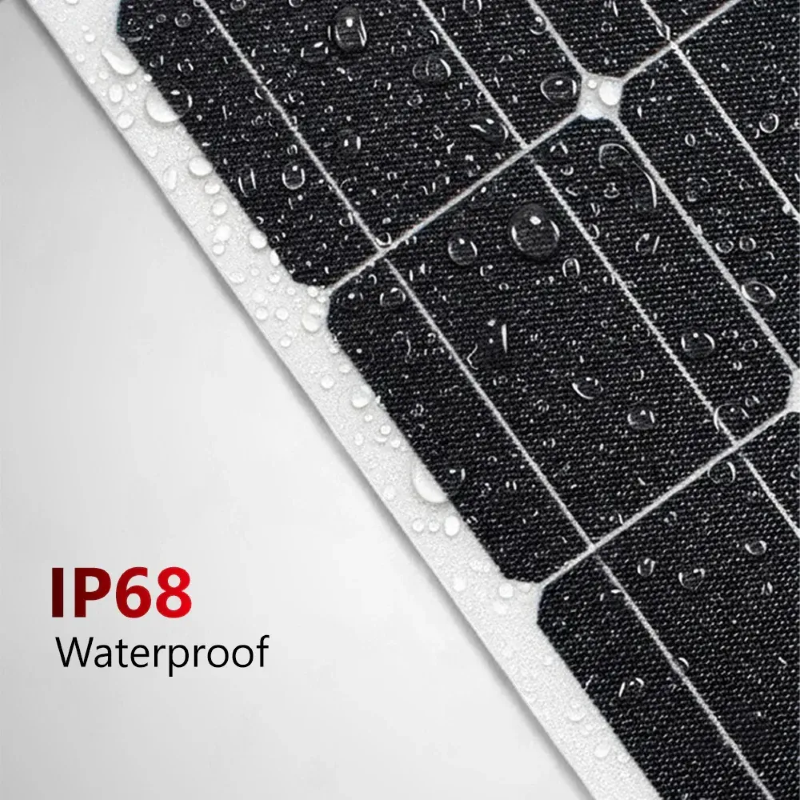

• Junction box: IP 68 rated (each j-box has one by-pass diode)
• Output Cables: Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm
• Connector: MC4 compatible
