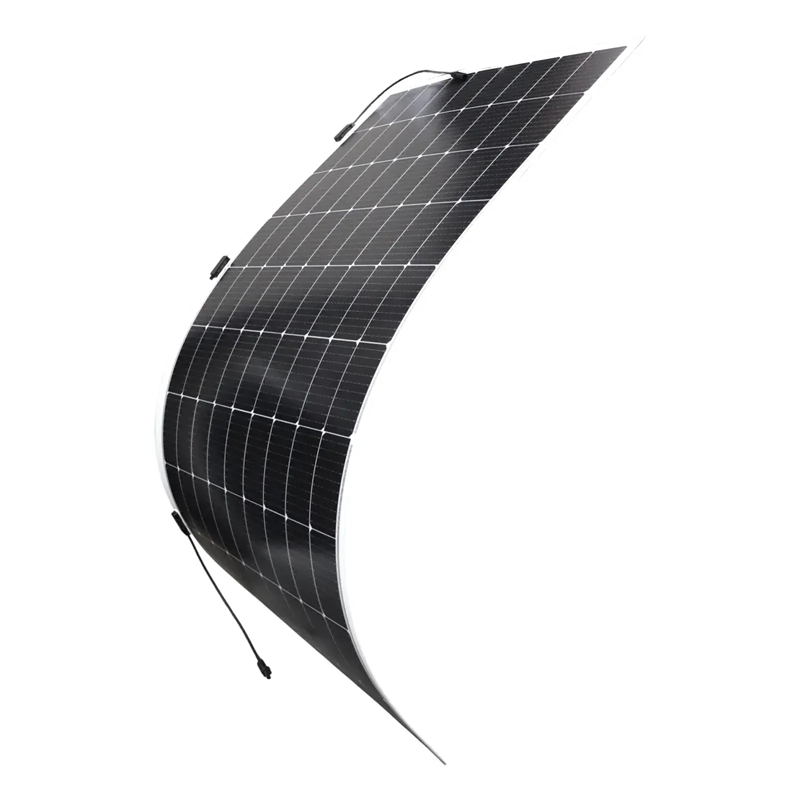

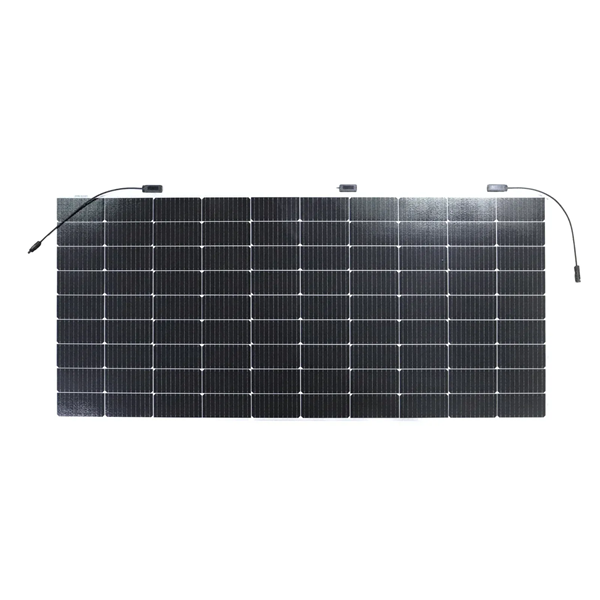

Sunman 320W eArc Flexible Solar Panel

Product Description

Sunman 320W eArc Flexible Solar Panel, 5 Year Warranty. Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.

Key Features:

• Lightweight and durable construction with cutting-edge technology
• Highly efficient monocrystalline cells for optimal energy production
• Flexible design for easy installation on various surfaces
• Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency
• CEC-approved for residential and commercial use
• 10-year product warranty for buildings and 5 years for mobile applications

Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass.

Specifications:

• Weight: 4.7 kg
• Maximum Power (Pmax): 320 W
• Maximum Power Voltage (Vmp): 26.22 V
• Current at Pmax (Imp): 12.31 A
• Short-Circuit Current (Isc): 13.56 A ±5%
• Open-Circuit Voltage (Voc): 30.86 V ±5%
• Operating Temperature (°C): 41 °C
• Maximum System Voltage: 1000 V DC (IEC)
• Power Tolerance: 0/+5 W
• Backsheet: White

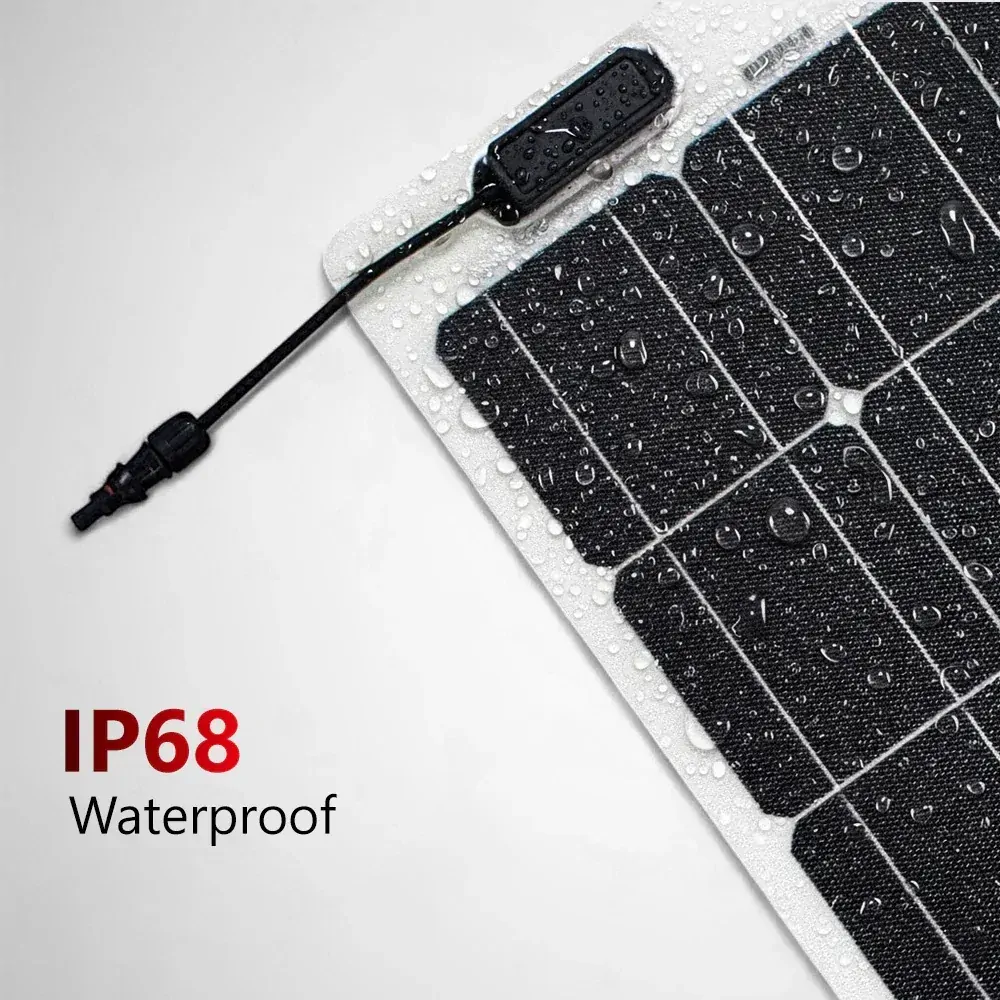

• Junction Box: IP68 rated (each junction box has one bypass diode)
• Output Cables: Photovoltaic technology cable 4.0 mm², (+)150 / (-)450 mm
• Connector: MC4 compatible

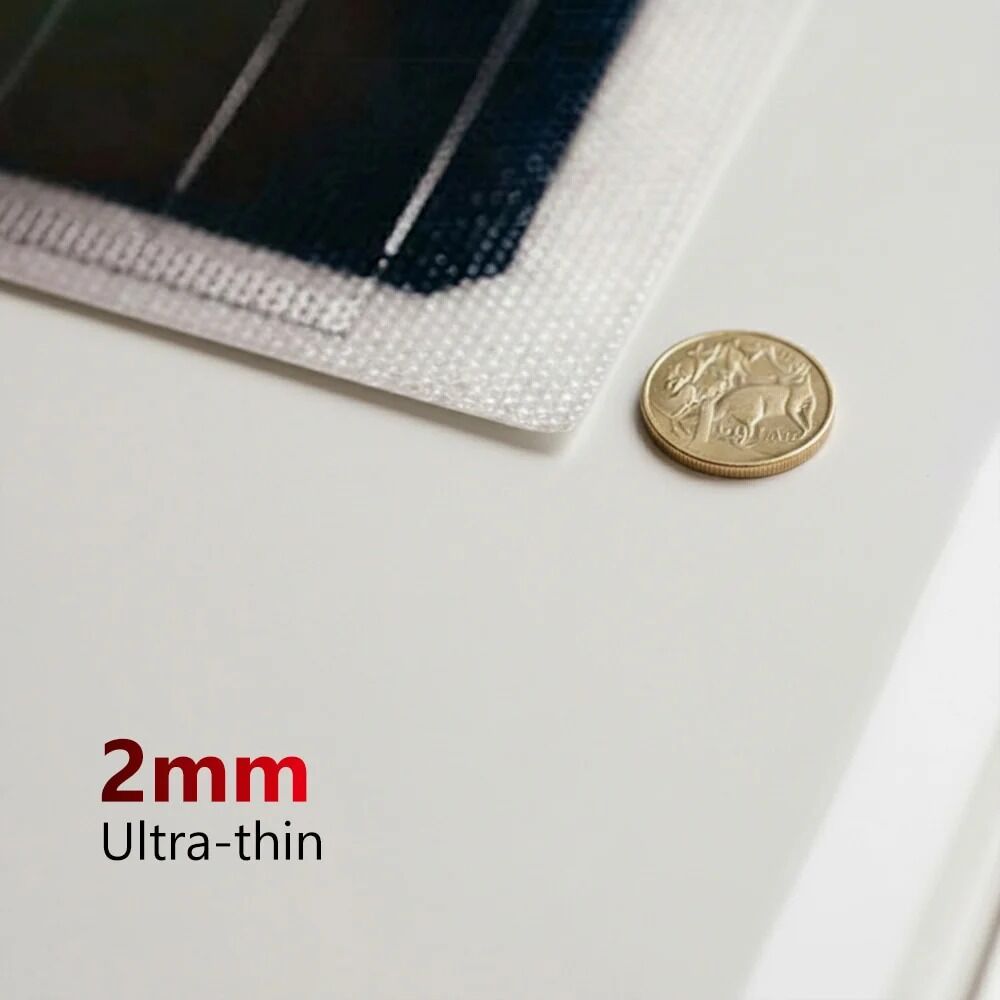

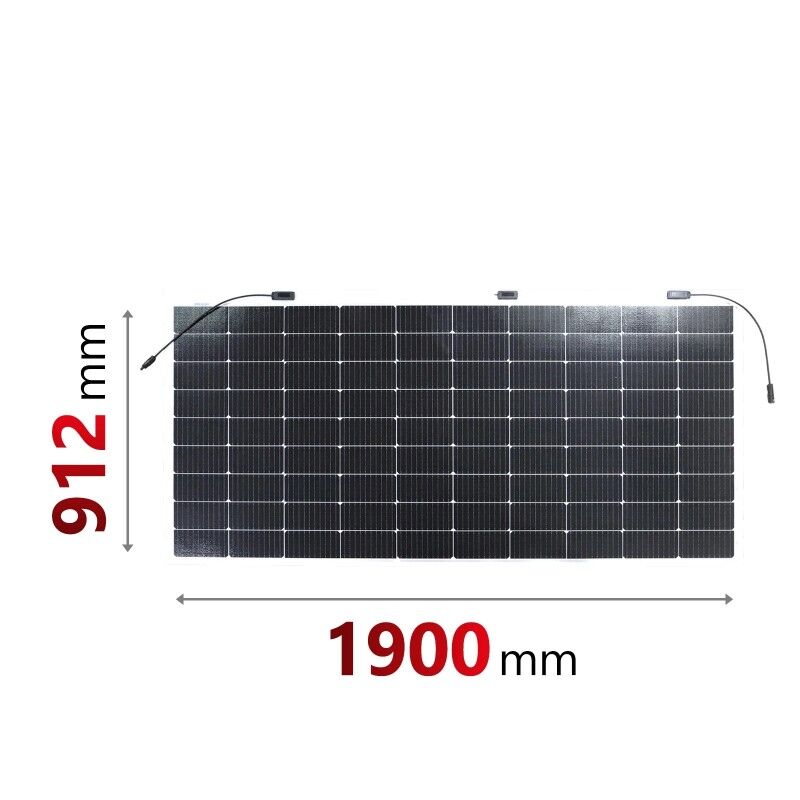

• Dimensions: 1900 mm × 912 mm × 2 mm
