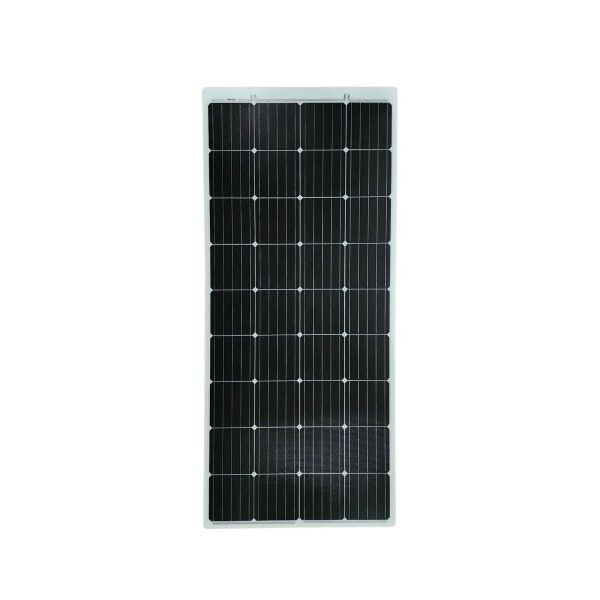

Sunman 175W eArc Flexible Solar Panel | Junction Box Underneath

Product Description

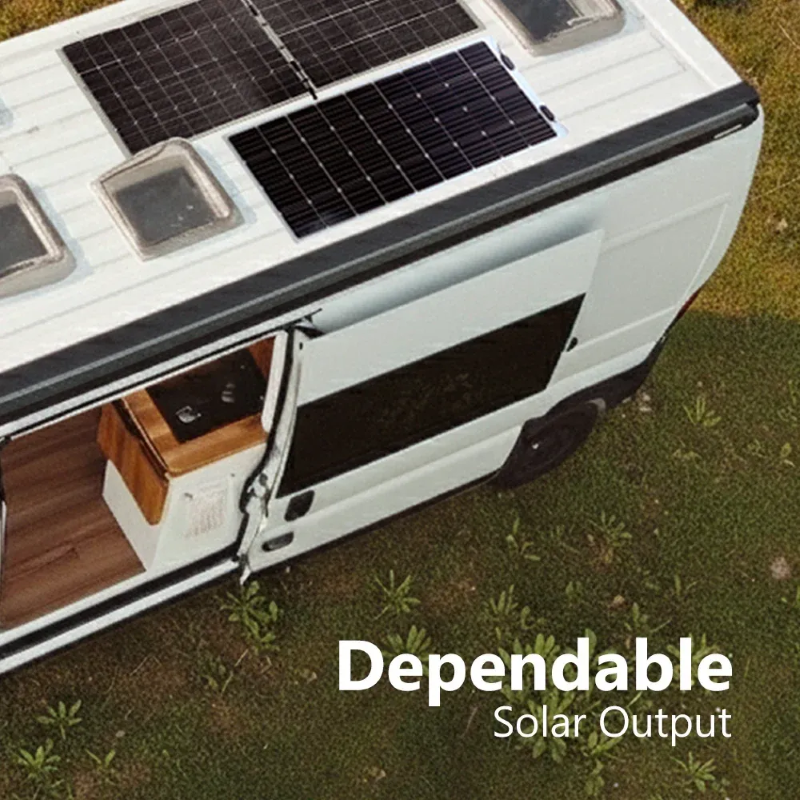

Sunman 175W eArc Flexible Solar Panel | Junction Box Underneath, 5 Year Warranty. Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.

Key Features:

• Lightweight and durable construction with cutting-edge technology

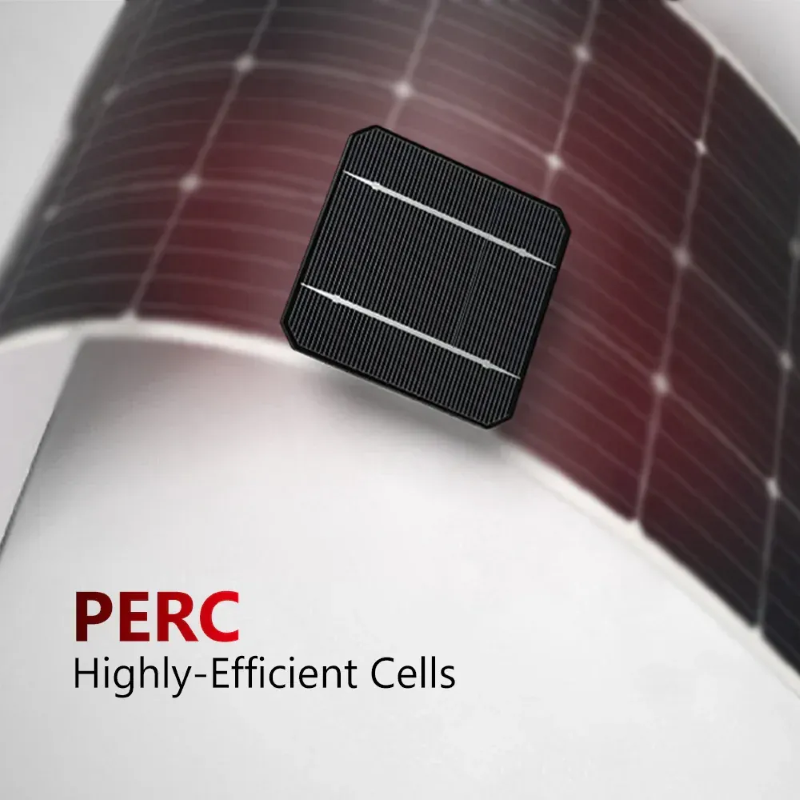

• Highly efficient monocrystalline cells for optimal energy production

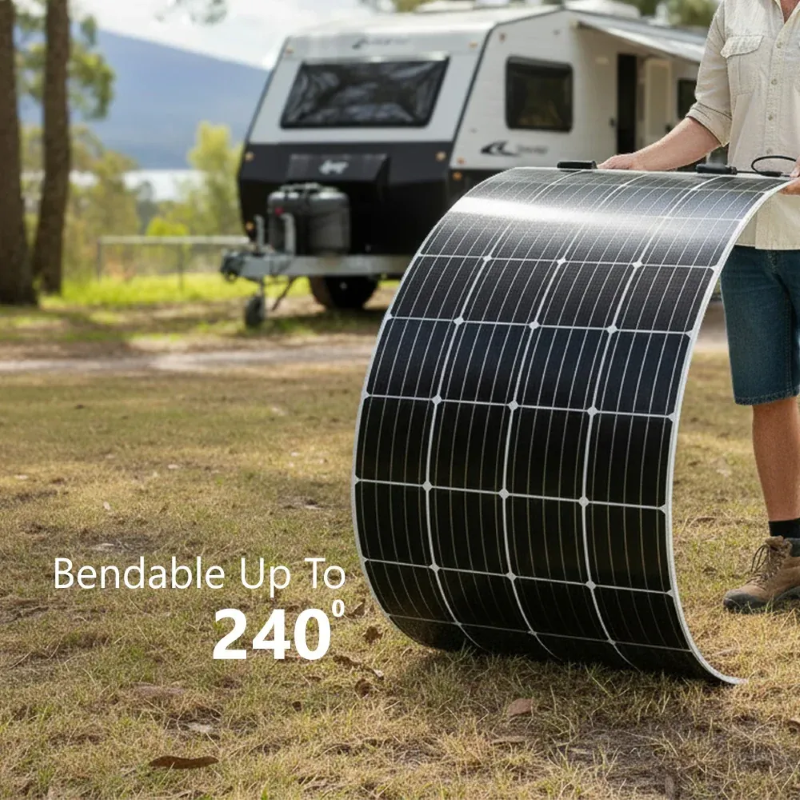

• Flexible design for easy installation on various surfaces
• Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency
• CEC-approved for residential and commercial use
• 10-year product warranty for buildings and 5 years for mobile applications

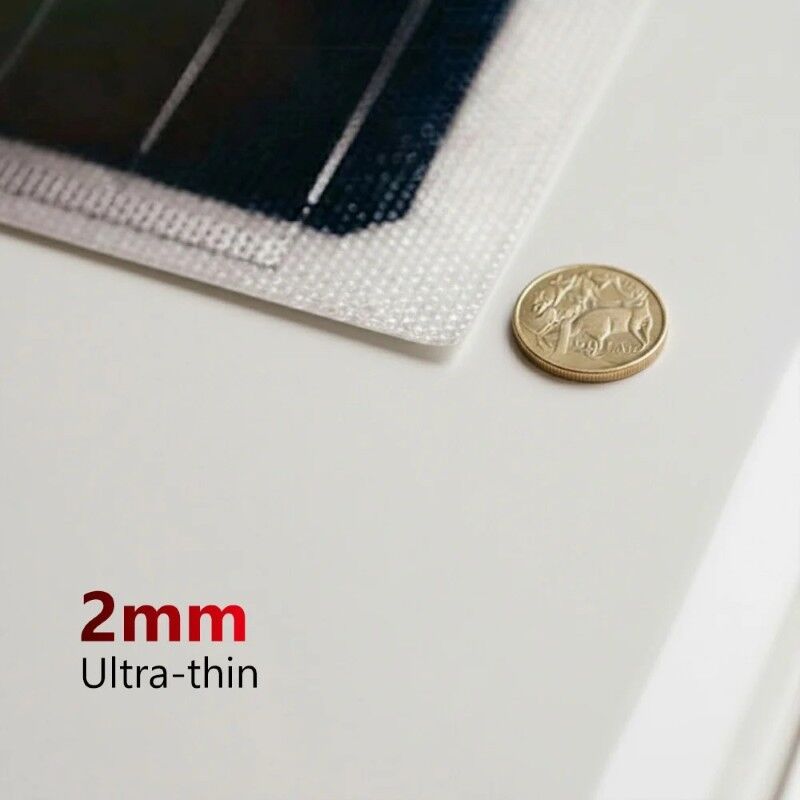

Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass.

Specifications:

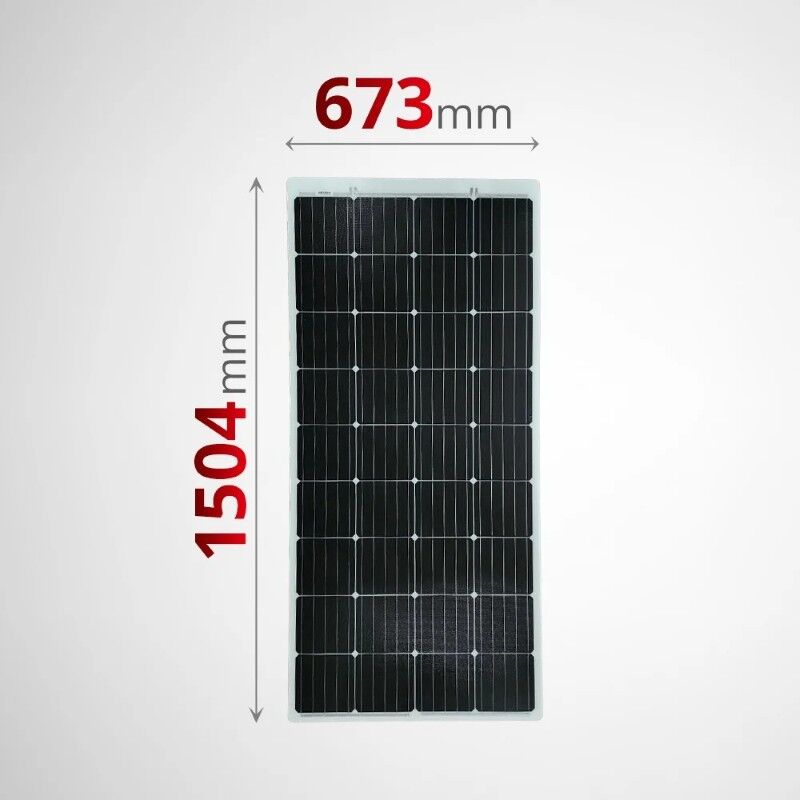

• Solar cells: 36 (4x9)
• Maximum Power (Pmax): 175
• Maximum Power Voltage (Vmp): 19.5
• Maximum Power Current (Imp): 8.98
• Open-circuit Voltage (Voc): 23.9
• Short-circuit Current (Isc): 9.5
• Operating Temperature (°C): -40 °C to 85 °C
• Maximum System Voltage: 1000 V DC (IEC)
• Maximum Series Fuse Rating: 20 A
• Application Class: Class A
• Power Tolerance: 0/+5 W
• Backsheet: White

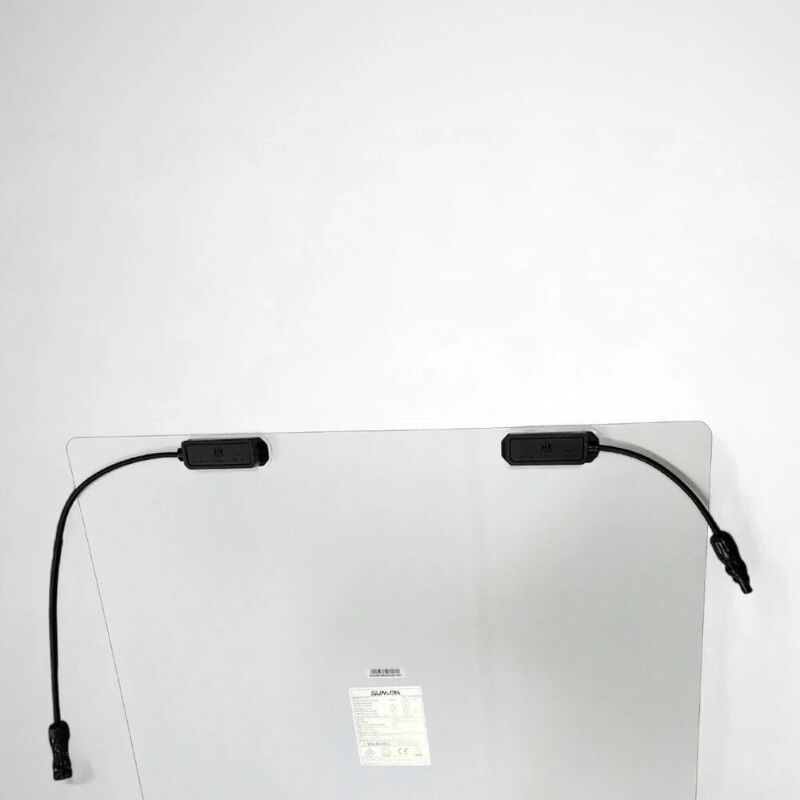

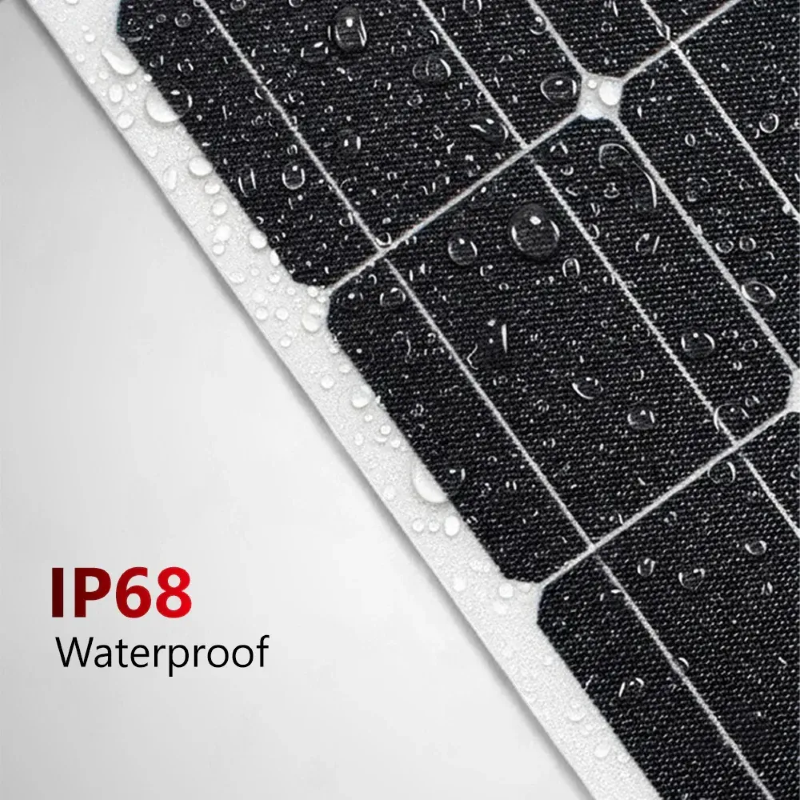

• Junction box: IP 68 rated (each j-box has one by-pass diode)
• Output Cables: Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm
• Connector: MC4 compatible
