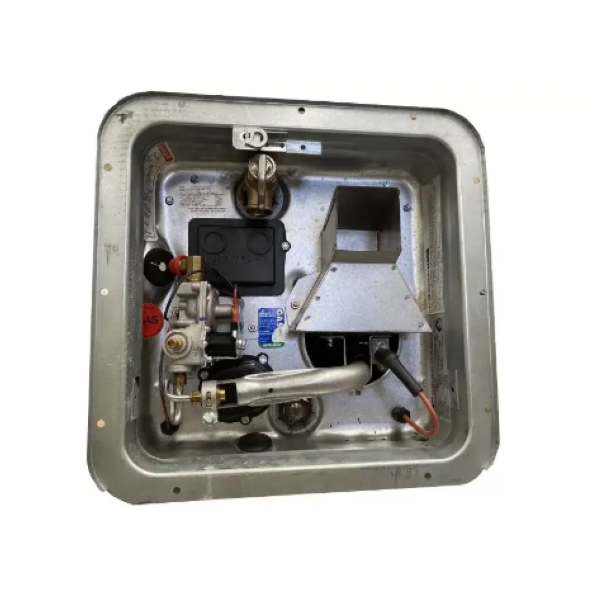

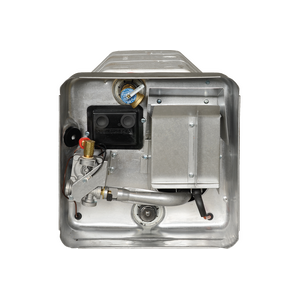

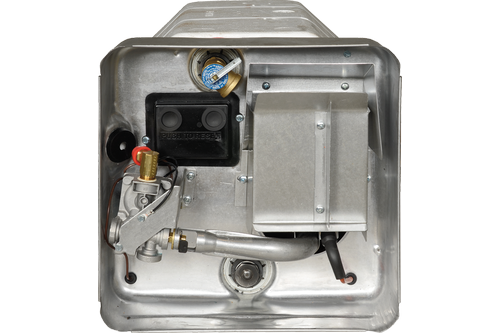

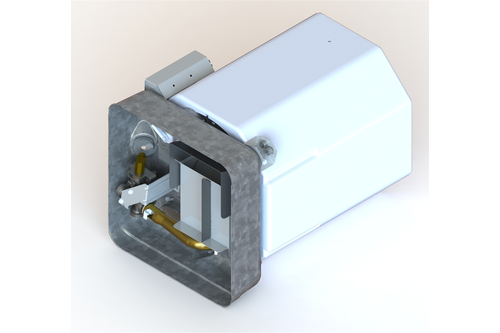

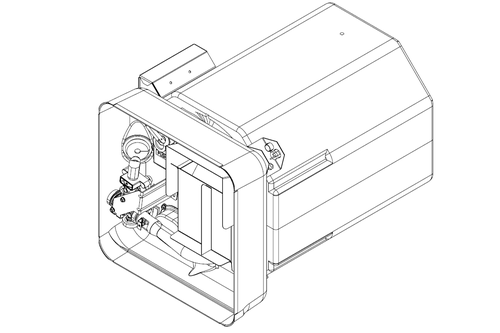

Suburban SW6DERA Hot Water System - 20.3L Capacity - 12V/240V/LPG, Black

Product Description

Suburban SW6DERA Hot Water System - 20.3L Capacity - 12V/240V/LPG, Black, 2 Year Warranty. This Suburban is a Gas/240V water heater and has been WaterMark certified for the Australian market.

This hot water systems fit under a seat or in the back of a cupboard, with a door and access from the outside of the RV.

Features:

• Easy to replace anode rod for corrosion protection.
• Pressure relief value has a compression fitting to suit 1/2 inch copper pipe.

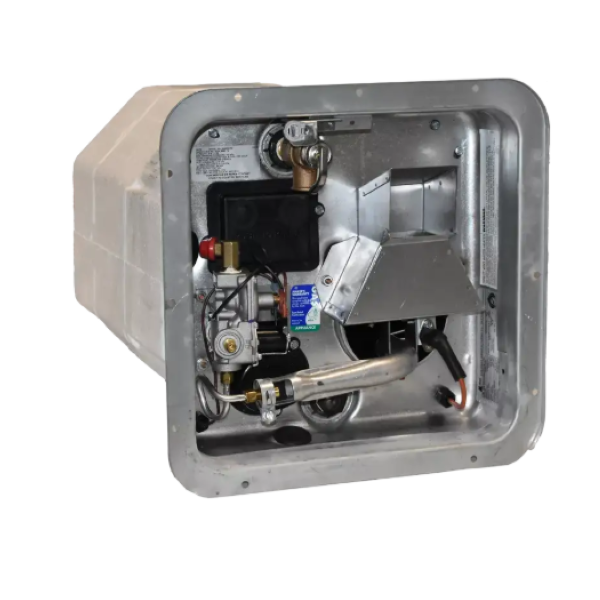

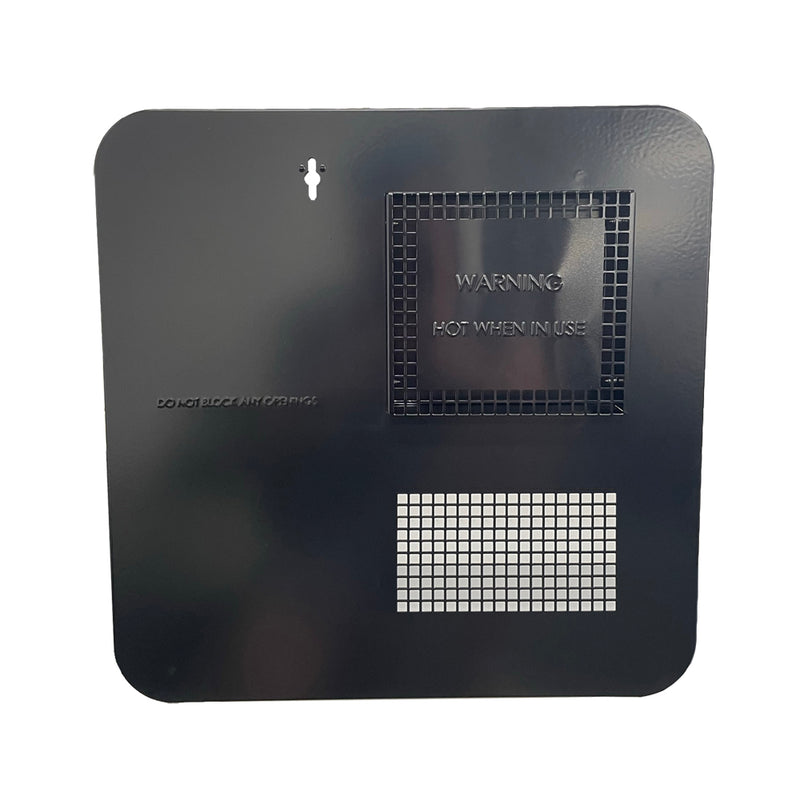

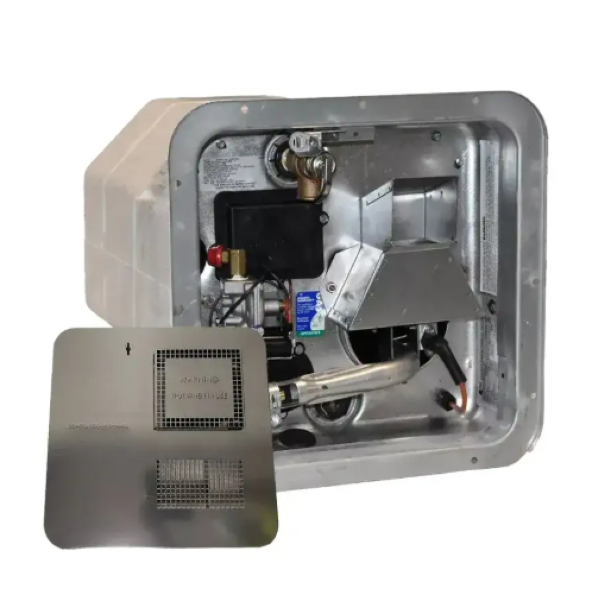

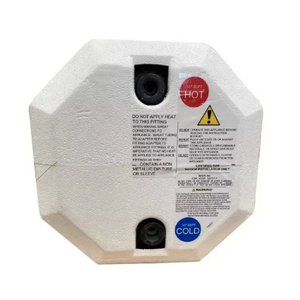

• The unit comes with the main tank as shown, plus a separate door.

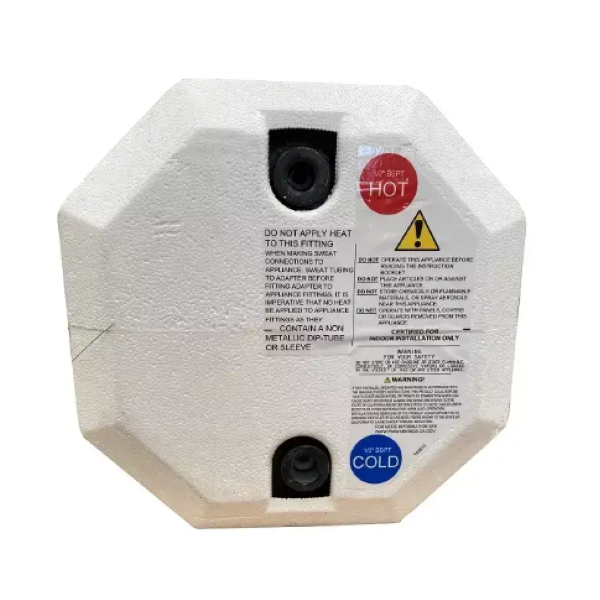

• Easy access, Foam tank insulation and high recovery rate.
• Range of spare parts available.

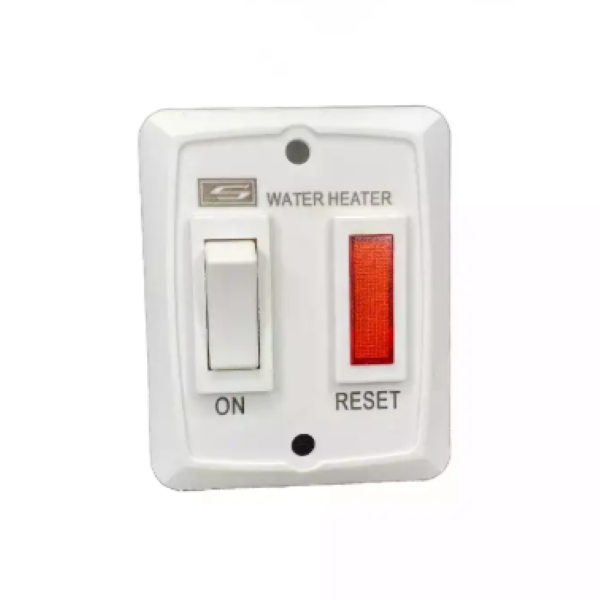

• Limit switch and reset button included.

Specifications:

• Capacity: 20.3L
• 12V Ignition/240V Element
• Max working pressure: 700Kpa
• Hourly gas consumption: 8.7 mj/hour
• Test point pressure: 2.63Kpa
• Jet orifice size: 0.84mm
• Type of heating medium: Universal Gas/240V
• Recovery: 40Lt/hr 45ºC rise

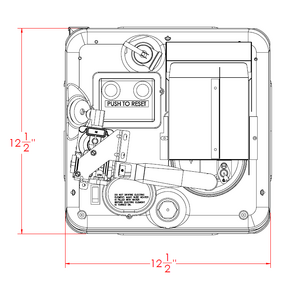

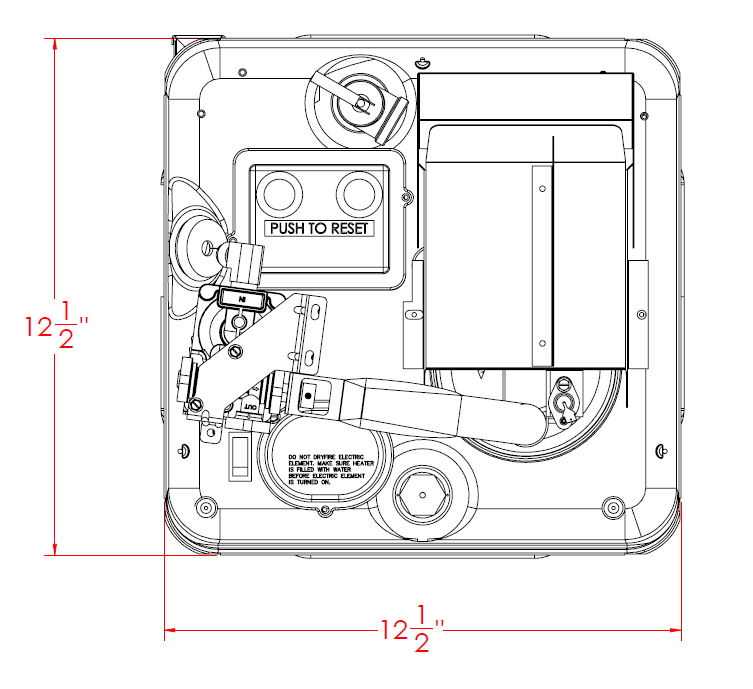

• Width: 320mm

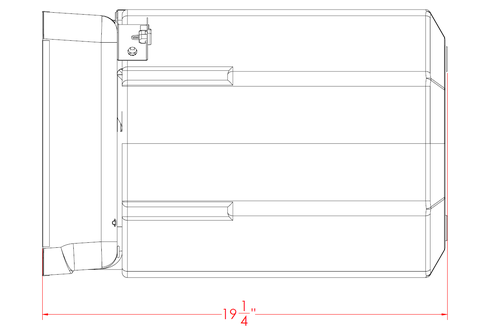

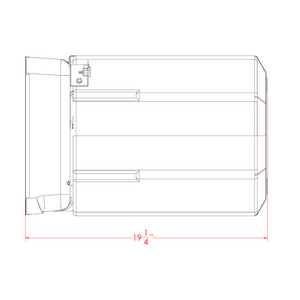

• Depth: 500mm
• Height: 320mm
