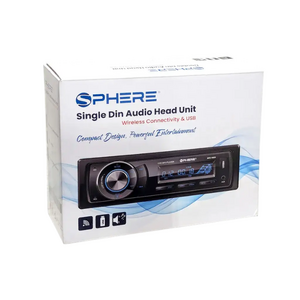

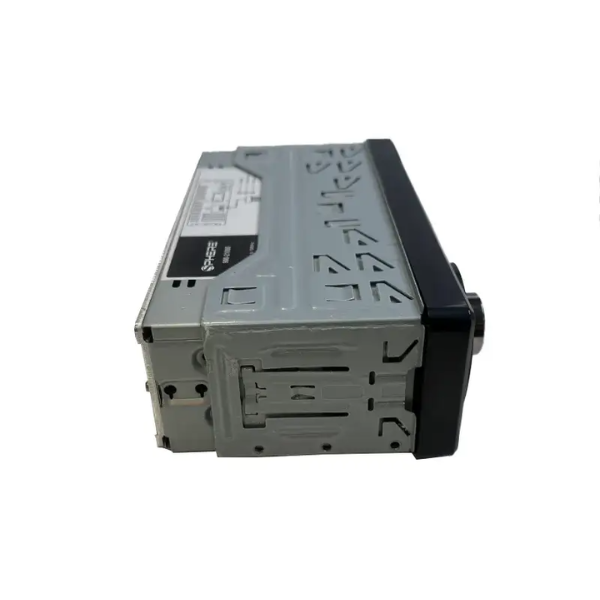

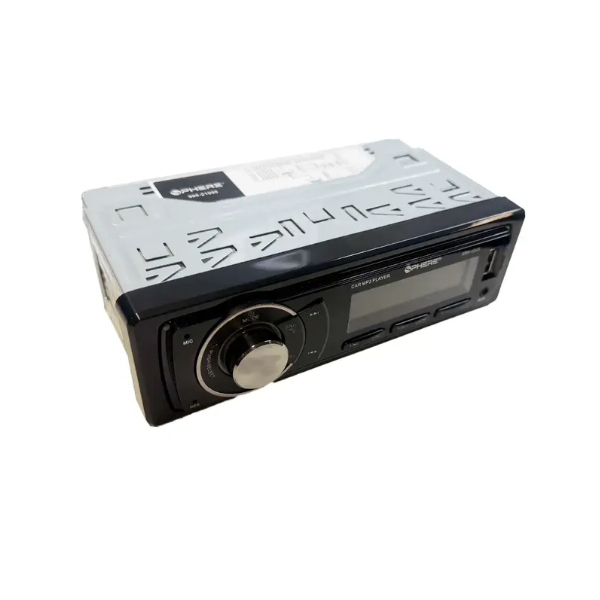

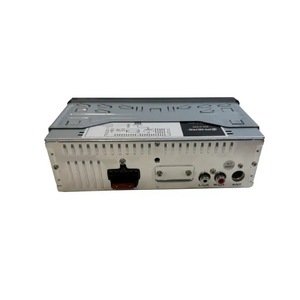

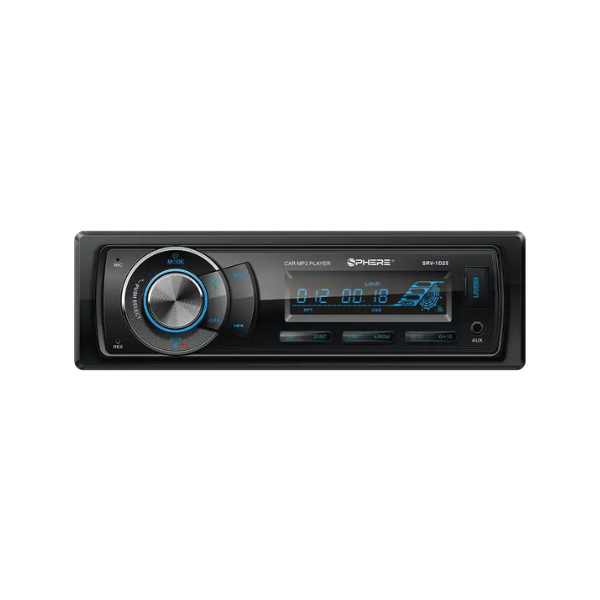

SPHERE Single Din Audio Head Unit | 25Wx4Ch - Wireless Connect & USB

Product Description

SPHERE Single Din Audio Head Unit | 25Wx4Ch - Wireless Connect & USB,1 Year Warranty. Experience Seamless Audio and Connectivity with This Compact Entertainment System

Enjoy powerful entertainment and crystal-clear sound in a sleek, compact design. Featuring wireless hands-free calling and audio streaming, this system keeps you connected on the go. With USB smartphone connectivity, it’s plug-and-play ready—making it easy to access your favourite music and apps.

The 4 x 25W power output delivers rich, room-filling sound, while convenient controls let you select tracks, fast forward/rewind, and activate random play mode with ease. The built-in clock display offers adjustable settings, and wireless call control ensures safer communication on the move.

Whether you’re upgrading your vehicle or setting up a portable sound system, this unit offers everything you need for a premium listening experience.

Features:

• Usb Smartphone Connectivity
• 4 x 25W power outlet
• Track selection and fast forward/rewind
• Random Play Mode
• Wireless Call Control
• Clock Display and Adjustments
• Compact design
• Powerful Entertainment
• Crystal Clear Sound
• Plug and Play
• 12 Month warranty

Specifications:

• Power Supply Requirements: DC 14.4V, Negative Ground
• Load Impedance: 4 ohms
• Maximum Output Power: 25W x4(CH)
• Current Drain: 10A
• Chassis Dimensions: 178x87x50mm

TONE CONTROLS

• Bass (at 100Hz): +10dB/-10dB
• Treble (at 10K): +10dB/-10dB

USB MUSIC PLAYER

• Signal to Noise Ratio: More than 60dB
• Channel Separation: More than 60dB
• Frequency Response: 20Hz-20KHz

FM RADIO

• Frequency Coverage (MHz): 87.5 - 108MHz
• IF: 10.7MHz
• Sensitivity (S/N-20dB): 12dBu
• Stereo Separation: >30dB


AM RADIO

• Frequency Coverage (KHz): 522 - 1620KHz
• IF : 450KHz
• Sensitivity (S/N-20dB): <42dBu
