Sphere 12V Automated Satellite System

Product Description

Sphere 12V Automated Satellite System, 1 Year Warranty. Does relaxing in the comfort of your own caravan or RV watching Live Fox Sports, local/world news, movies, documentary's or even your favourite TV shows tickle your fancy whilst on holiday?

The Sphere Automatic Satellite System (SASS) is a world class caravan accessory and certainly a welcome addition to any RV or caravan. Designed to receive crystal clear 'Free to air' or 'satellite pay TV' even in some of the most remote parts of Australia.

At the push of a button, your satellite dish will automatically manoeuver itself to lock onto the best satellite free to air or pay TV signals provided to your area. Never miss a live footy game again!!!

Features:

• Easy DIY installation
• Auto Skew
• Twin LNB (watch one channel, record another)
• Fast satellite acquisition of the Optus C1/D3 satellite
• Compatible with any Satellite receiver that use a 10.700GHz L.O.
• 1 Year Warranty

What's in the box:

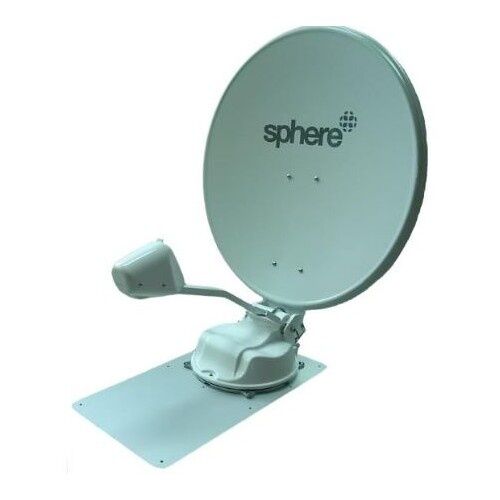

• Main Antenna Unit
• IDU (In Door Unit)
• Control Cable (7m)
• 2x Coaxial Cable (7m)
• Coaxial Cable (1m)
• Power Cable (1.5m)
• Roof top cable junction box
• Roof top cable entry plate
• Antenna Dish

Specifications:

• Mounting Base Dimensions: 700 x 400mm
• Dish Dimensions: 920 x 860 mm

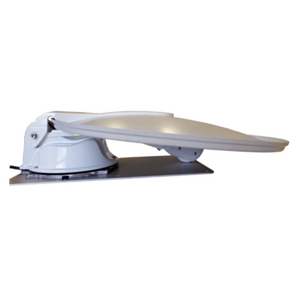

• Overall length (folded position): 1040mm
• Folded down height: 200mm.
• Recommended clearance (from centre of rotating head):
  • 600mm - surrounding items such as air cons or hatches must not be taller than 260mm. If surrounding items are taller than 260mm, additional clearance is needed
  • 450mm - surrounding items must not be taller than 190mm
  • 200mm - surrounding items must not be taller than 70mm
• LNB Local Oscillator: 10.700 GH
• Elevation range: 20 - 74 degrees to suit all Australian locations
• Tracking Rate: 50 degrees / second
• Power: 12 Volt DC
• Current Usage: Typically, 1.6A (2.5A Max)
• Cables: Up to 7m between Antenna and IDU
• Shipping Dimensions: 800 x 600 x 500 mm
• Weight: 19kg (includes cables and IDU), 16kg (dish and base plate only)

Please note:

• Satellite Receiver box and TV sold separately.
• A Foxtel subscription is required to access Pay TV with any mobile or home satellite system.
