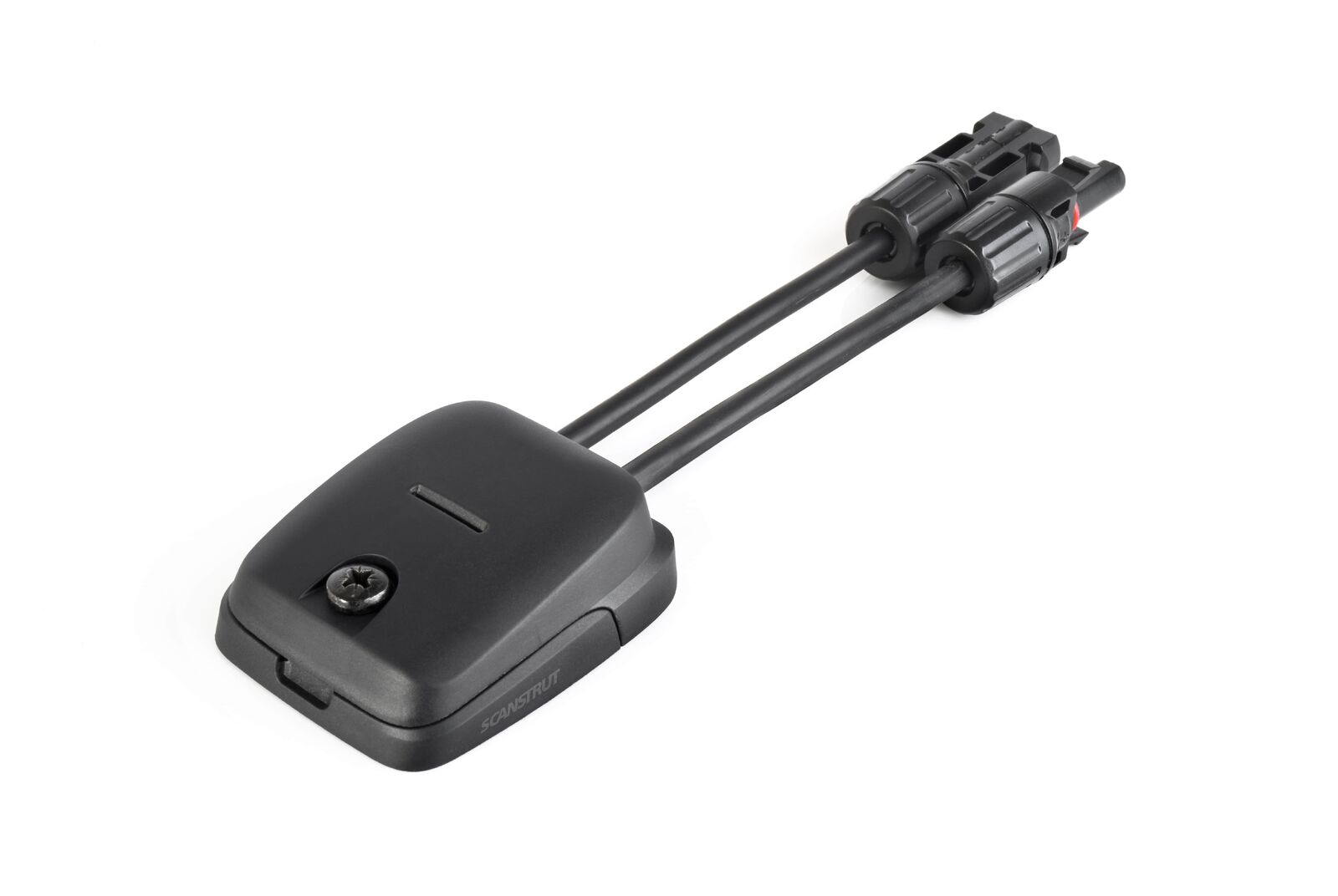

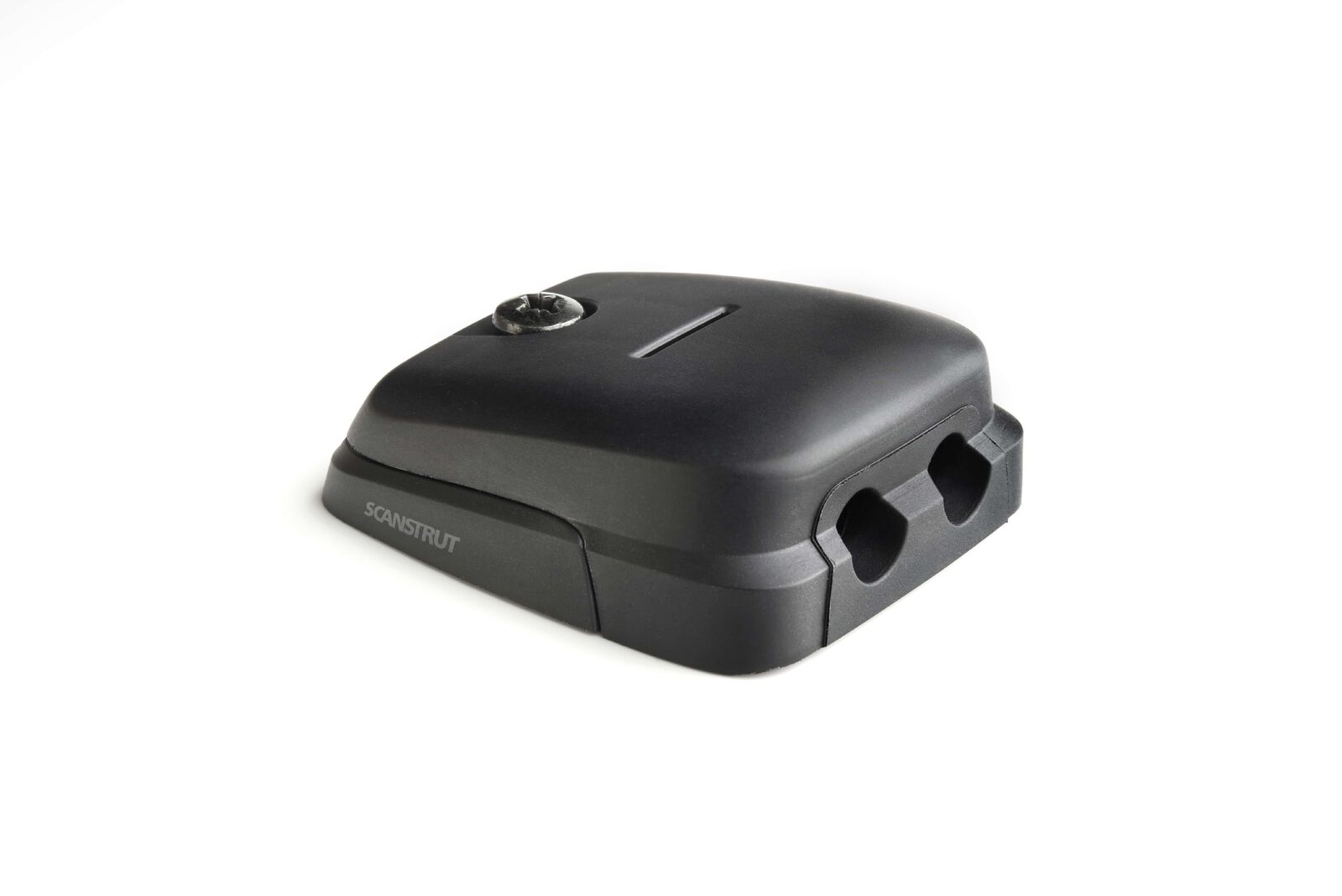

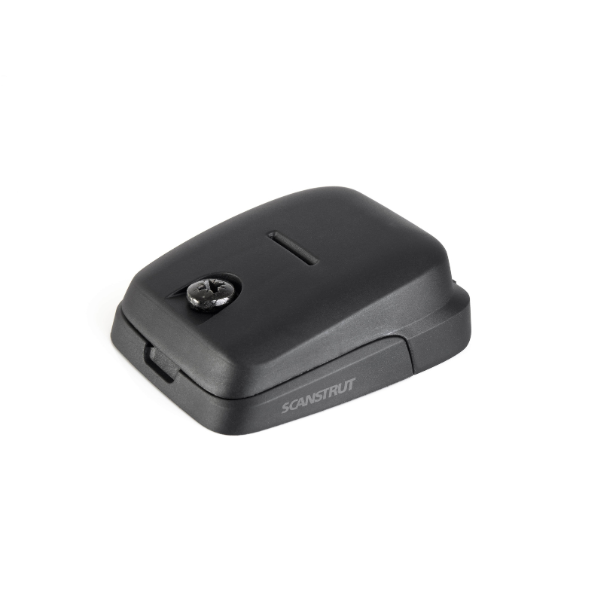

Scanstrut Horizontal Double Cable Seal, 5-6mm, Black

Product Description

Scanstrut Horizontal Double Cable Seal, 5-6mm, Black, 3 Year Warranty. The double horizontal cable seal was designed to eliminate the time-consuming and sub-standard routing of solar panel cables. Perfect for installing two cables of 5-6mm  (0.19-0.24") Our seal helps you achieve a sleek, easy-to-fit, and 100% watertight installation every time.

Design
The low-profile construction is impact-resistant and provides extra protection from water, creating a snug and secure IP68-rated watertight seal. It is ideal for routing two solar panel cables from the outside to the inside.

Marine Grade Materials
The cable seal body is made from marine-grade plastic, selected for its UV-stable and hard-wearing properties. Fixings are made from Marine Grade 316 stainless steel, for long-lasting performance.

Easy Installation
To speed up installation time, the cable seals are made with captive nuts, making the installation as simple and fast as possible.

Features:

• Achieve solar installation in small spaces
• IP68 watertight seal

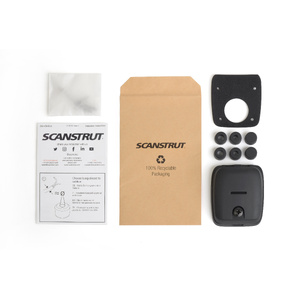

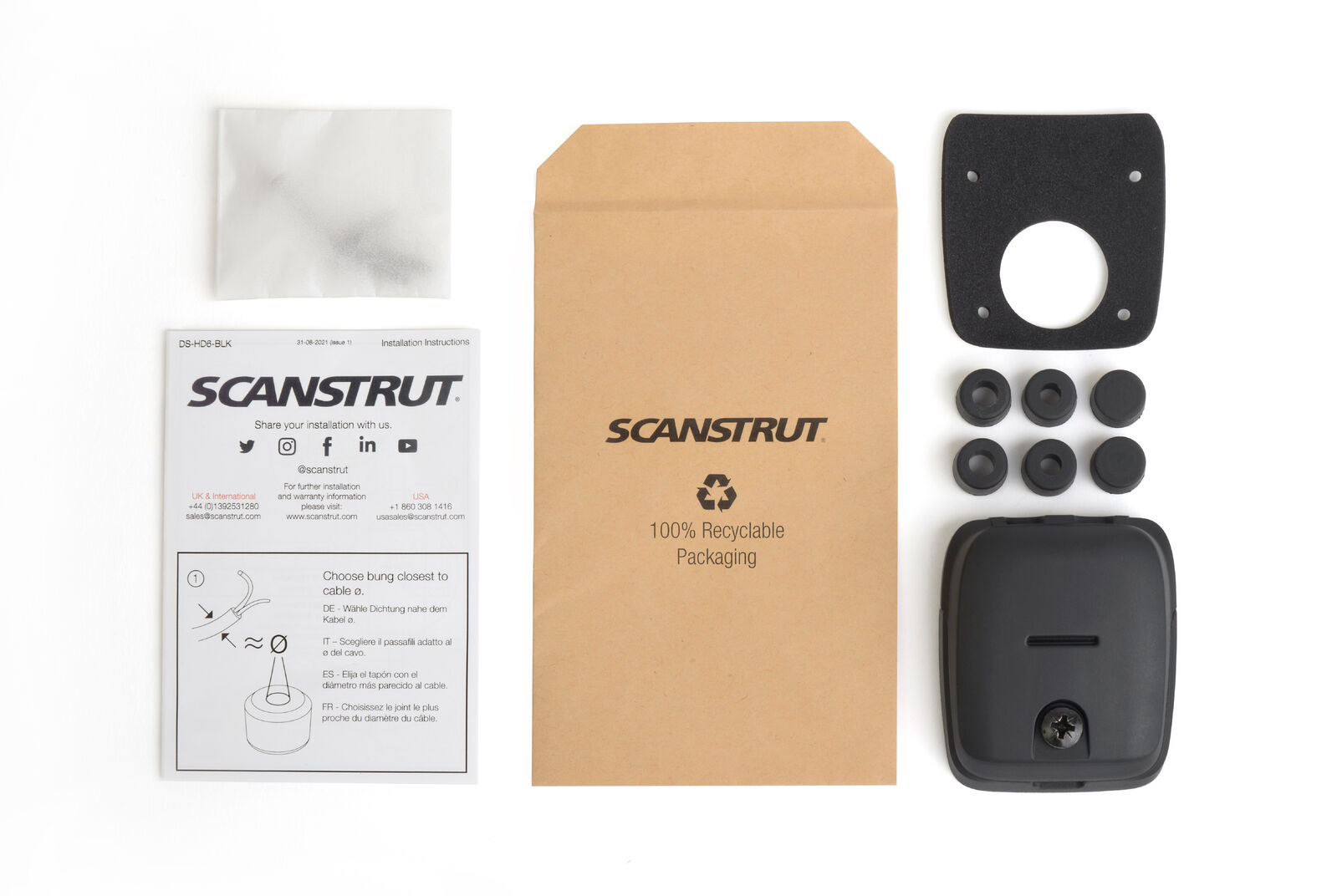

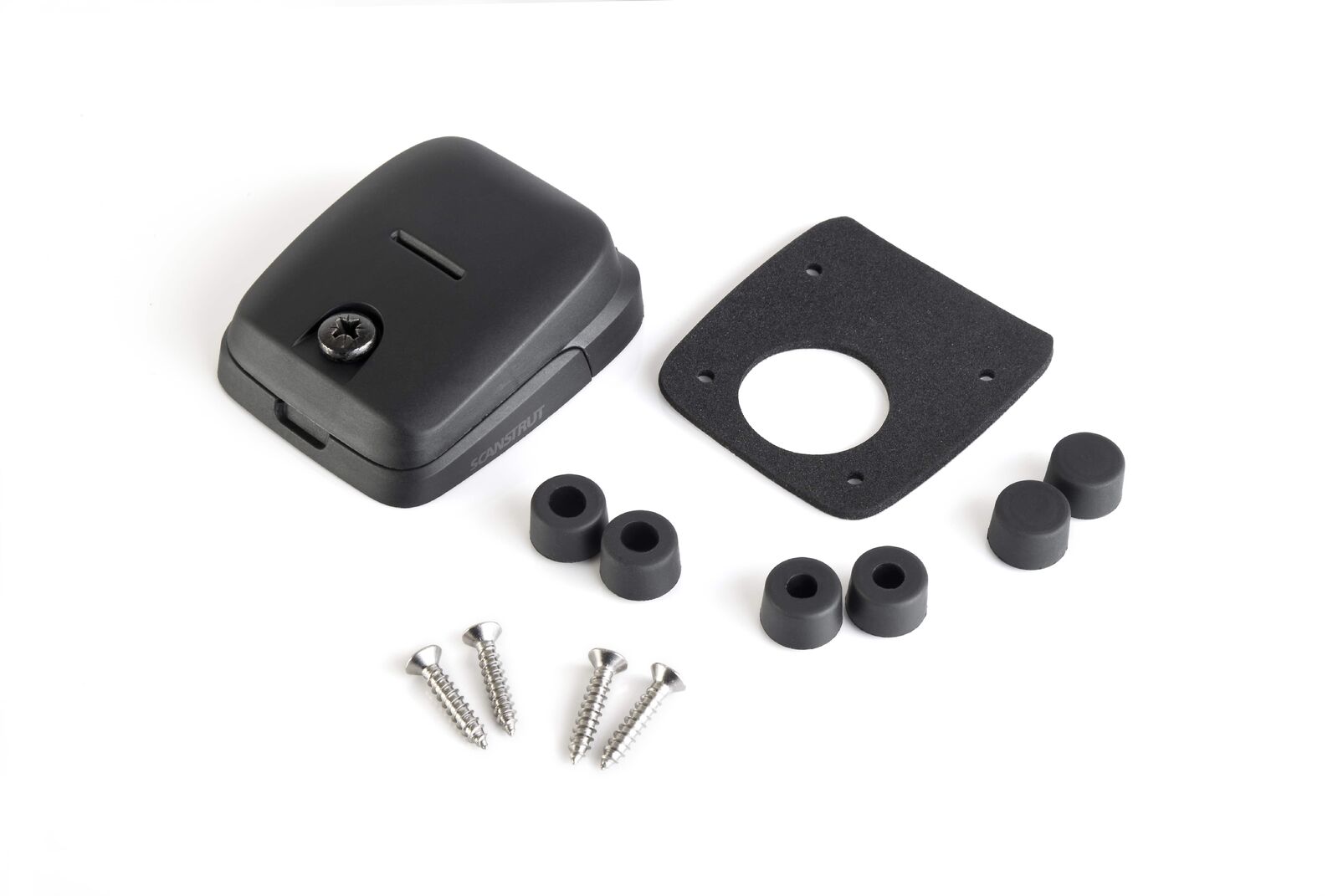

• Includes 316 stainless steel fixings and a waterproof 3M gasket
• Captive nuts make for easy assembly and also allow for reliable repeat installations
• Materials are UV-stable and hard-wearing
• No messy sealant on bungs

Specifications:

• Material: High Impact Plastic
• Height: 22mm
• Length: 63mm
• Colour: Black
• Cable Diameter:    2 x 5-6mm
• Bungs:
  • 2 x 5mm
  • 2 x 6mm
