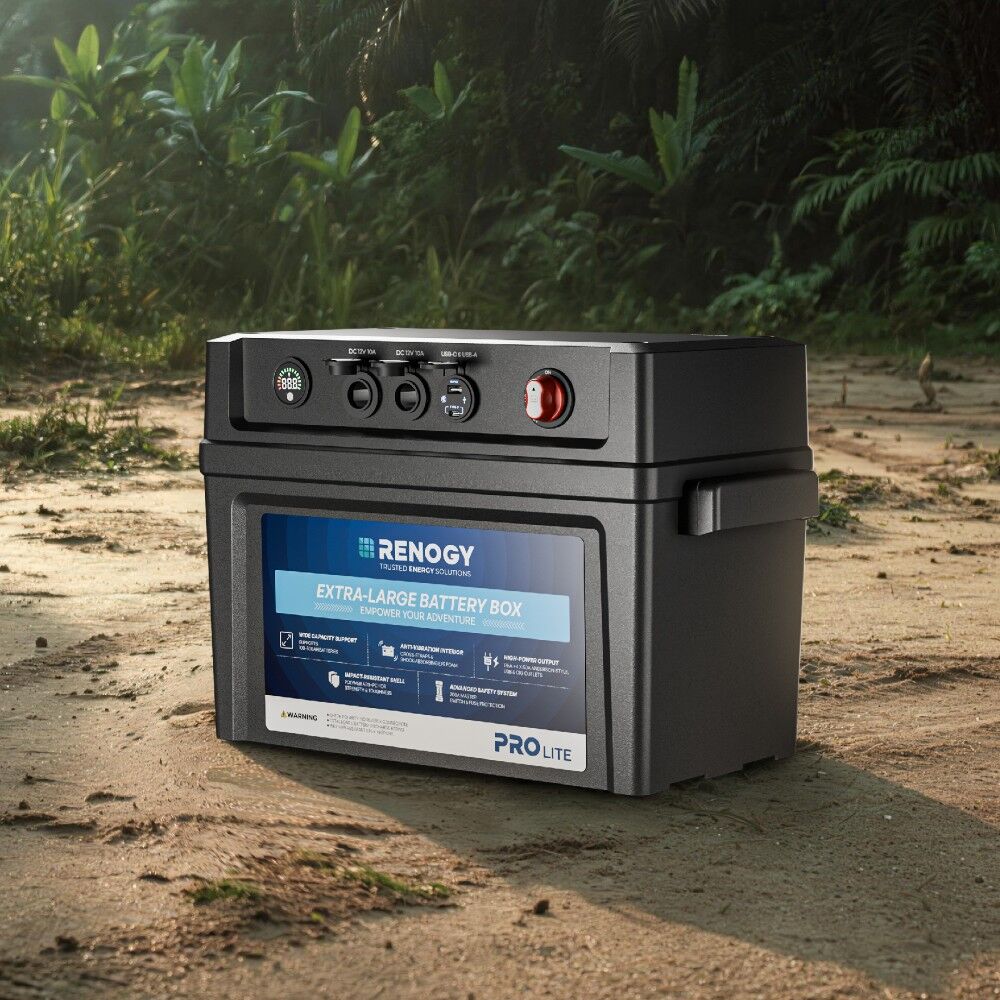

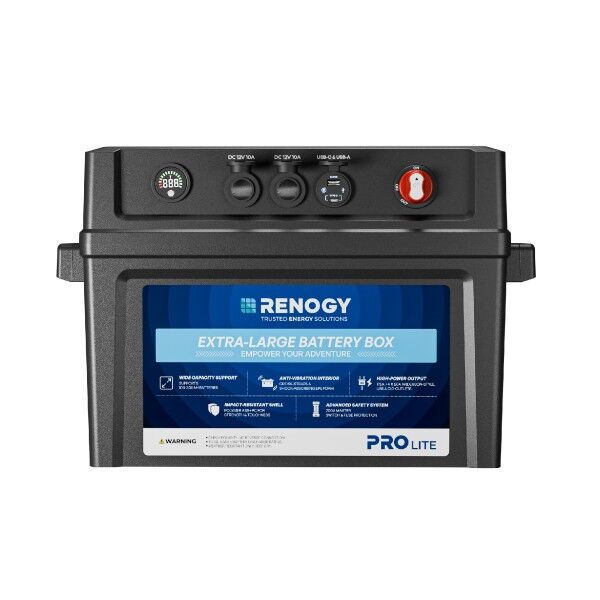

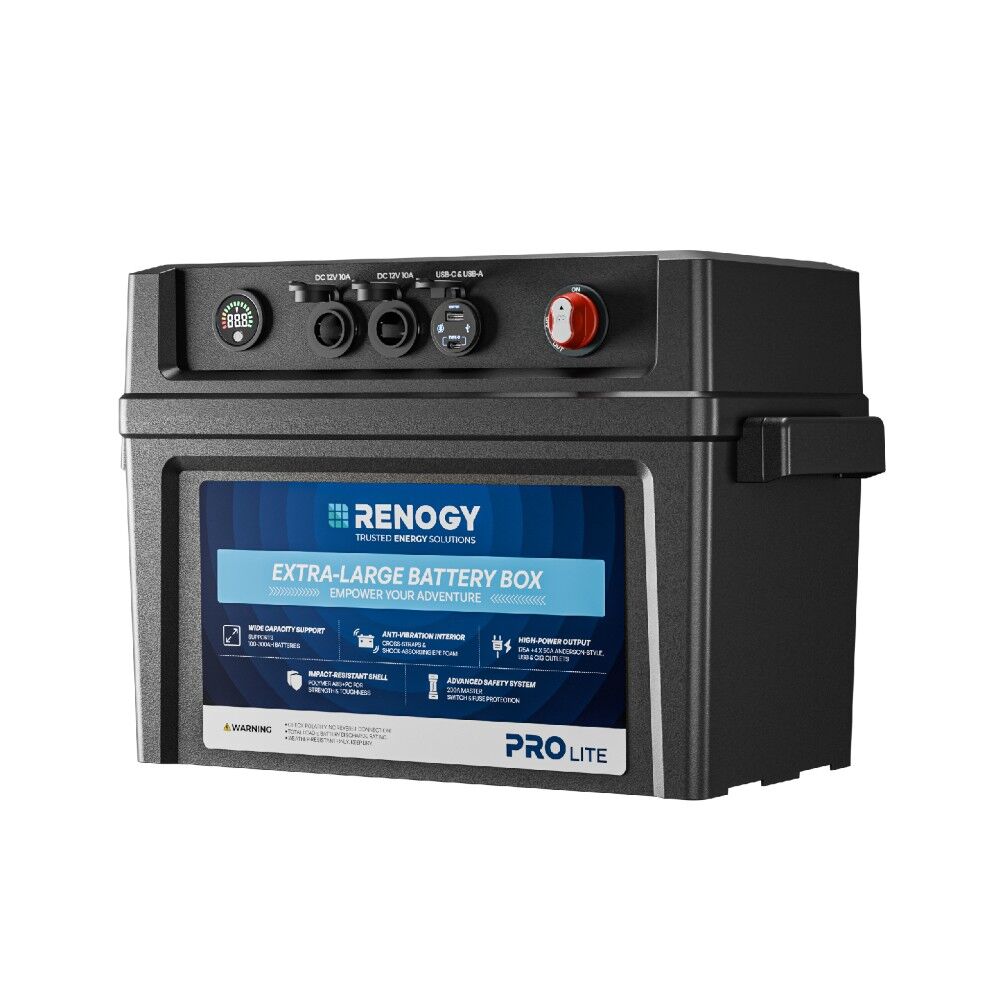

Renogy XL Smart Battery Box

Product Description

Renogy XL Smart Battery Box, 1 Year Warranty. The Renogy Extra-Large Battery Box delivers flexible, high-power energy storage for camping, 4WD, and off-grid adventures. It fits 100Ah–300Ah deep cycle batteries and protects them with a rugged, impact-resistant shell and anti-vibration interior.

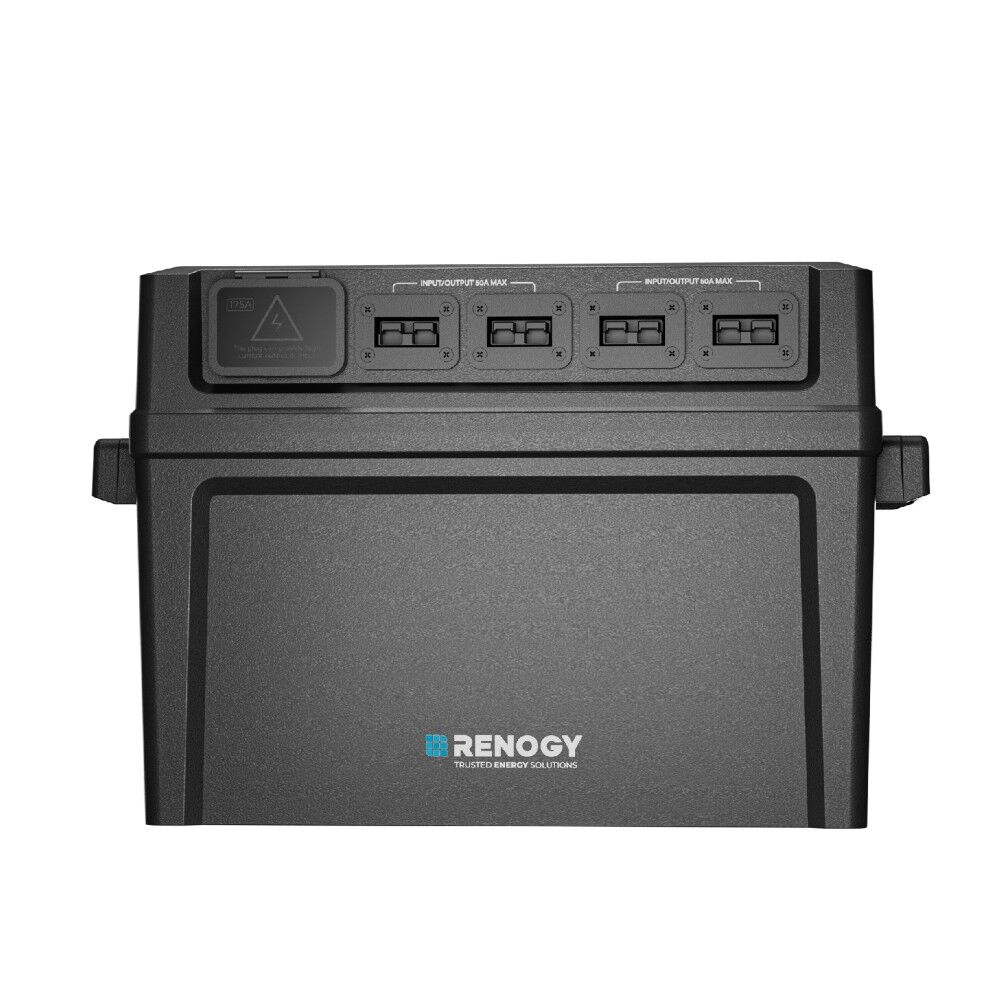

Equipped with pre-installed ports, including dual USB, CIG, a 175A Anderson connector, and four 50A Anderson connectors, it powers multiple devices reliably. A built-in 200A master switch and 50A auto-reset fuses ensure safe operation. The integrated display shows real-time voltage while the plug-and-play design allows quick and hassle-free setup anywhere.

Features:

• Fits 100–300Ah deep cycle batteries up to 339 x 185 x 248mm with extra-large capacity
• Provides high power via 175A and 50A Anderson-style ports, plus USB and CIG sockets
• Built-in 200A master switch and auto-reset fuses protect battery and devices
• Integrated display shows real-time voltage and system status
• Impact-resistant shell with anti-vibration interior for rugged conditions
• Pre-installed ports and plug-and-play design for quick setup

Specifications:

• Compatible System Voltage: 12V DC
• Materials: PC + ABS
• Suitable Battery Types: Deep Cycle Batteries (Lithium, AGM, Calcium, Wet, Gel)
• Max. Battery Dimensions: 339 x 185 x 248mm
• Ports" 1 x 175A + 4 x 50A Anderson-Style Ports, Dual USB&CIG
• Continuous Current: Total 135A
• Ratings: 200A Master Switch, 2 x 50A Auto-Reset Breakers (Anderson-Style Plugs), 1 x 30A Blade Fuse (USB and CIG Ports)
• Display: Voltage Display Screen
• Dimensions: 500 x 250 x 330mm
• Weight: 4.1kg
• Operating Temperature: -20°C to 65°C
• Storage Temperature: Within 7 days: -30°C to 65°C
• Long-term: -20°C to 50°C
• Operating Humidity: 0% to 95%, RH, no condensation

The compatibility of the battery box is 12V 100ah-300ah lithium battery, including Mini series, pro series and core series.

Compatible products:

• RBT12100LFP-M
• RBT12200LFP-M
• RBT12300LFP-M
• RBT12200LFP-B
• RBT12300LFPSH
• RBT12100LFP-TM-BT
• RBT12100LFP-BT
• RBT12200LFP-BT
