Renogy Tire Pressure Monitoring Sensor

Product Description

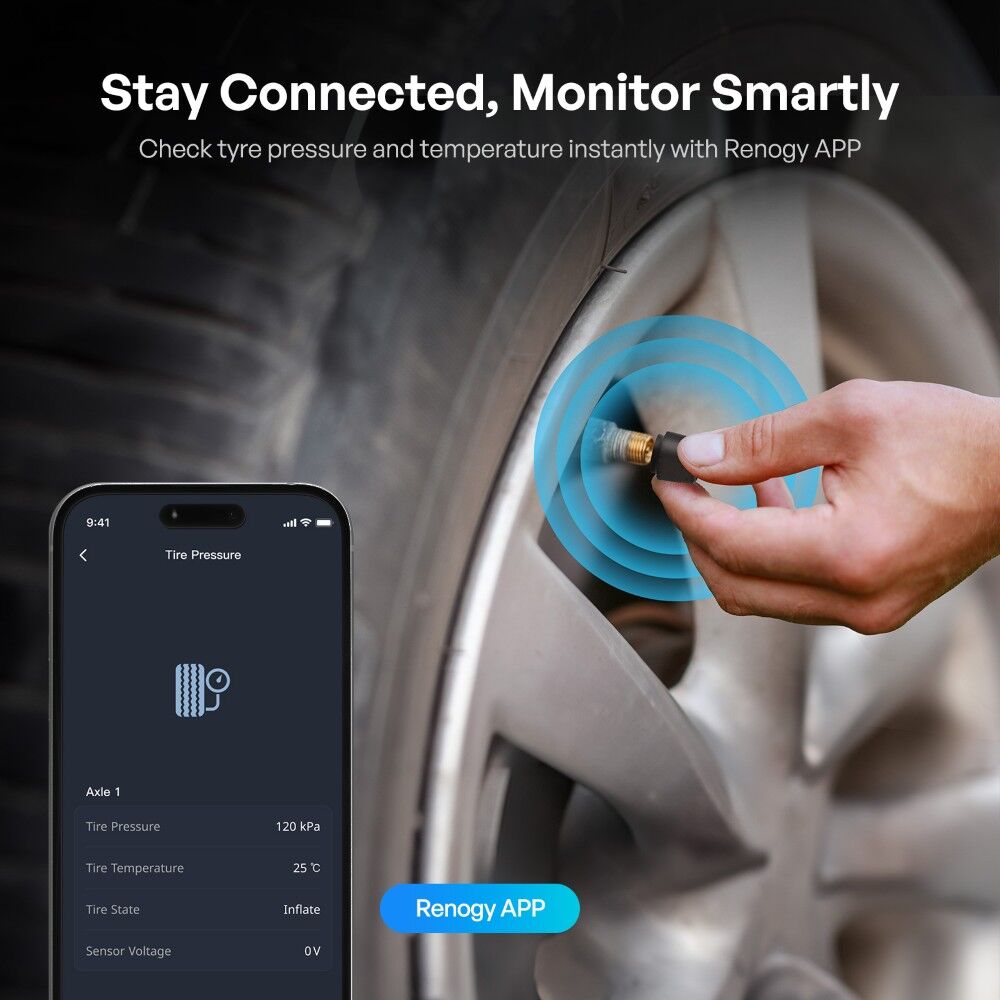

Renogy Tire Pressure Monitoring Sensor, 1 Year Warranty. Renogy Tyre Pressure Monitoring Sensor (TPMS) monitors tyre pressure and temperature for automobile tyres. Featuring a replaceable button cell battery, the sensor can be directly installed on the tyre valve. Once the sensor collects tyre pressure and temperature data, it transmits the information via the built in Bluetooth module to a monitoring device. You can then view tyre temperature, pressure, and other details through the Renogy app (free of charge), Renogy ONE Core (sold separately), and/or Renogy ONE Vision (sold separately). The sensor also supports customizable alert thresholds for abnormal pressure/temperature and provides low-battery warnings.

Features:

• Durable and Versatile Design. Designed for passenger cars, motorcycles, and electric vehicles, the sensor offers high stability, strong anti interference capabilities, and IP67-rated protection for reliable performance in various conditions.
• Real-Time Monitoring and Alerts. Simultaneously measures and monitors tyre pressure and temperature, with self-inspection and tyre leakage detection capabilities to ensure safety.
• Compact and Replaceable Power Source. Lightweight and compact with a replaceable battery, ensuring  convenience and extended usability.

Specifications:

• Operating Voltage: 3V
• Standby Current: 2.5A
• Operating Current: ≤5mA
• Pressure Measurement Range: 0-8bar(0-116PSI)
• Pressure Measurement Accuracy: ±10kPa
• Temperature Measurement Range: -40°C to 125°C
• Temperature Reading Accuracy: ±3°℃
• Operating Temperature: -20°C to 85°C
• Operating Humidity: 10% to 90%,no condensation
• Operating Altitude: ≤16,404ft（≤5,000m）
• Communication: 2.4GHz Bluetooth
• Maximum Bluetooth Transmit Power: 2.5dBm
• BatteryType: CR1632(3V)
• Battery Life: Up to 1 year depending on usage
• IP Rating: IP67
• Weight: 11g
• Dimensions: 21.5 x 18 mm
• Certifications: N38.3, RCM, FCC CE, and RoHS

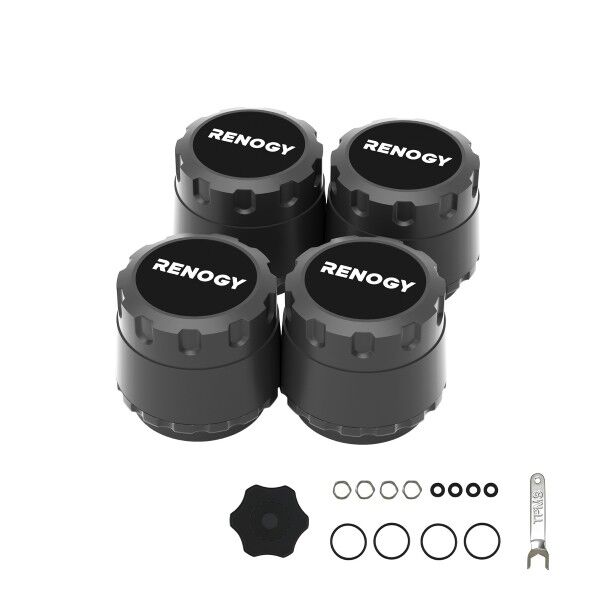

What is in the box:

• 4 x Renogy Tyre Pressure Monitoring Sensor
• 1 x User Manual
• 4 x O-Ring Seal
• 4 x Anti-theft Nut
• 4 x Sealing Gasket
• 1 x Metal Wrench
• 1 x PLastic Wrench
