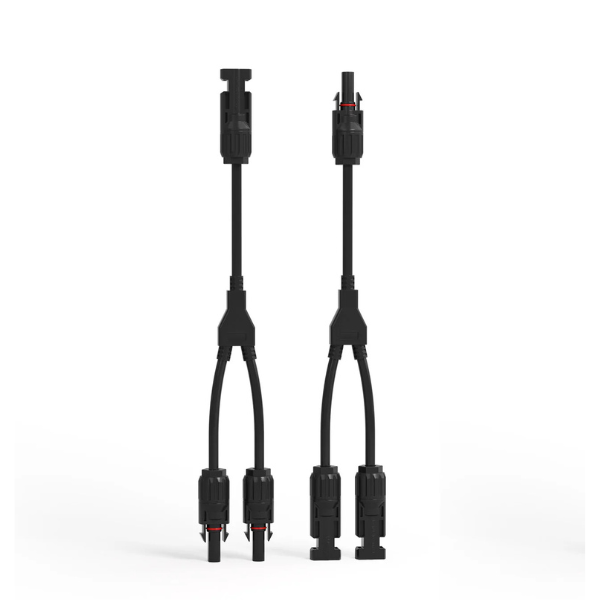

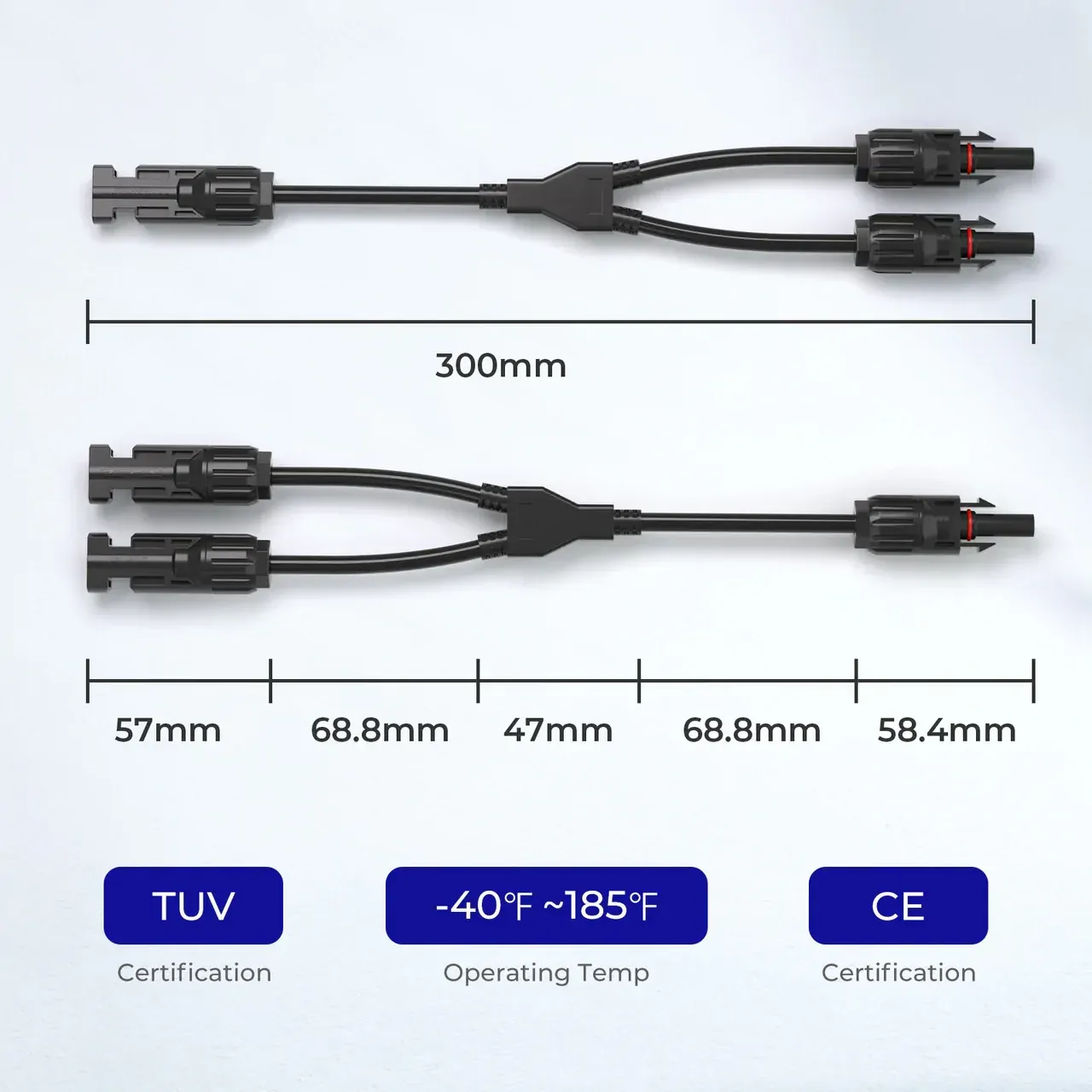

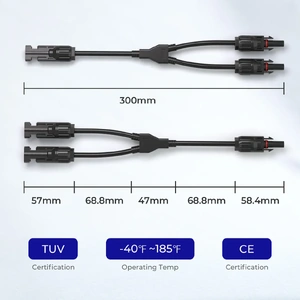

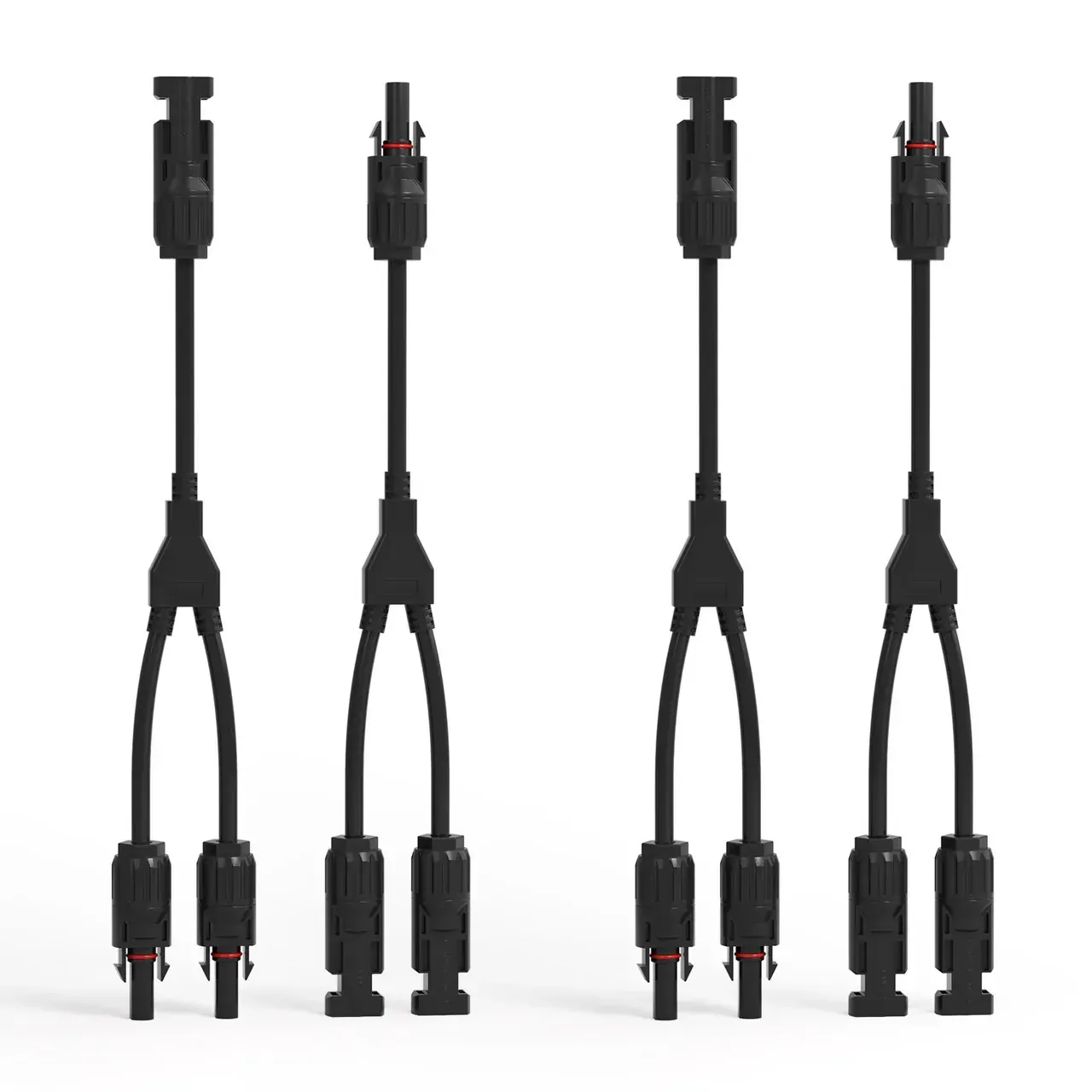

Renogy Solar Connectors Y Branch Parallel Adapter Cable MMF+FFM Pair
SKU: RPC0110EC-Y Learn More»
Product Description
Renogy Solar Connectors Y Branch Parallel Adapter Cable MMF+FFM Pair, 1 Year Warranty.
Features:

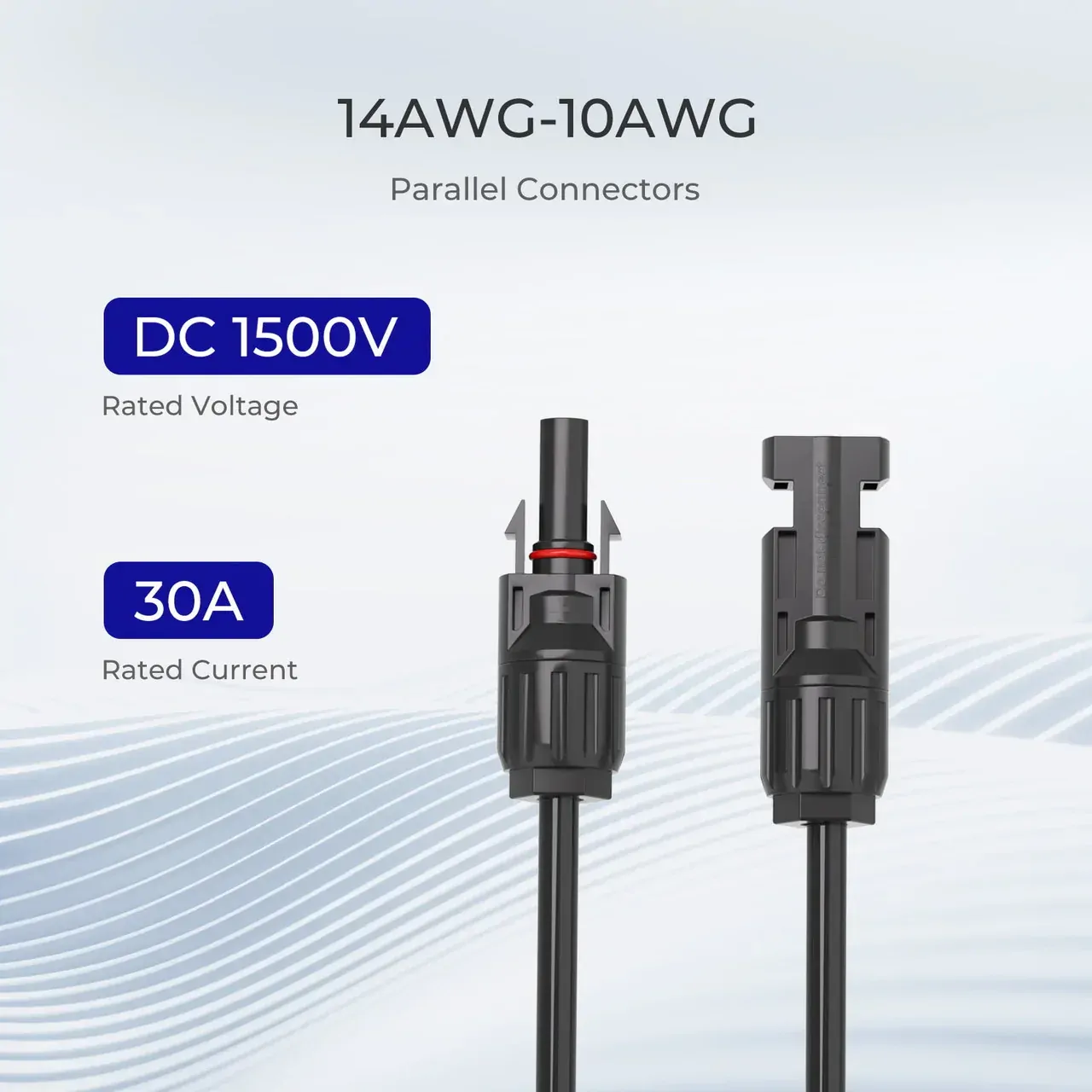

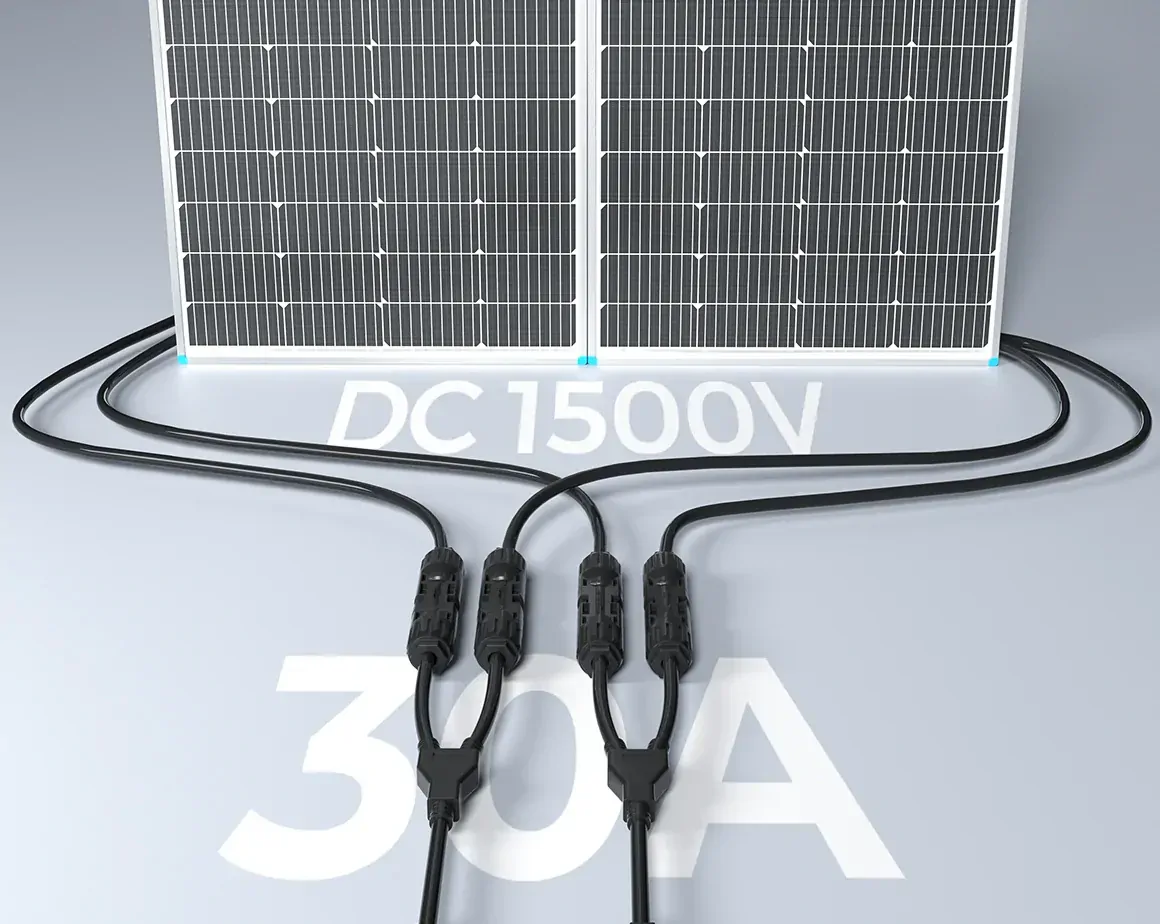

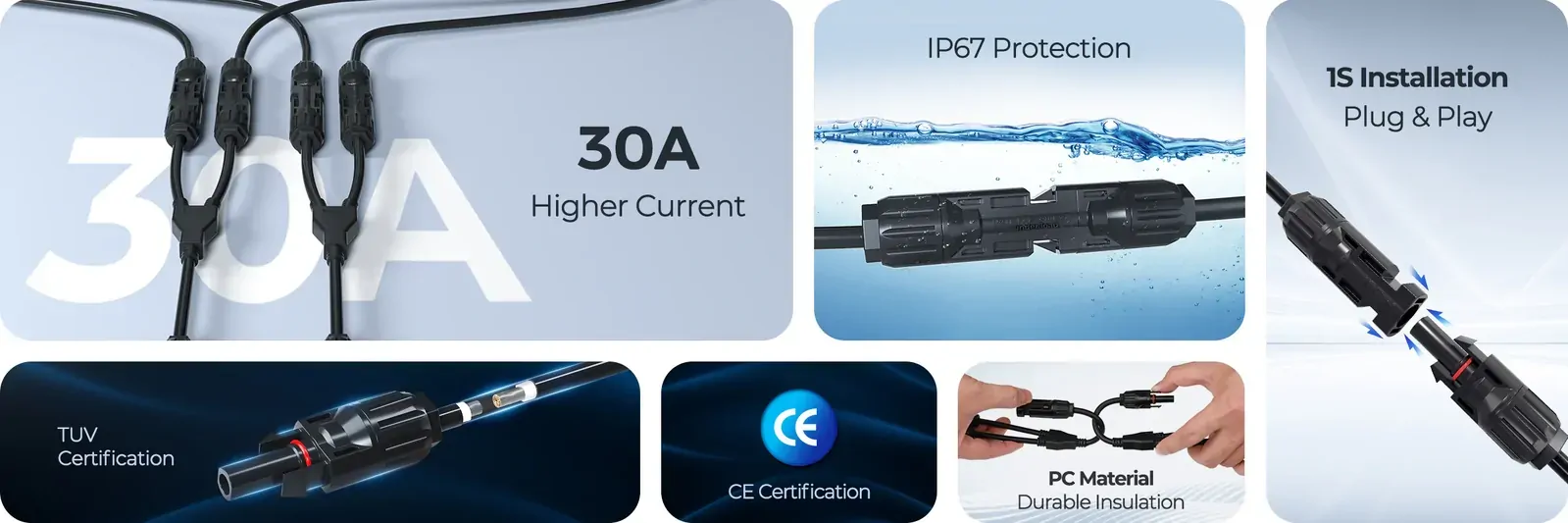

- Rated Current: 30A. Rated Voltage: 1500V DC.

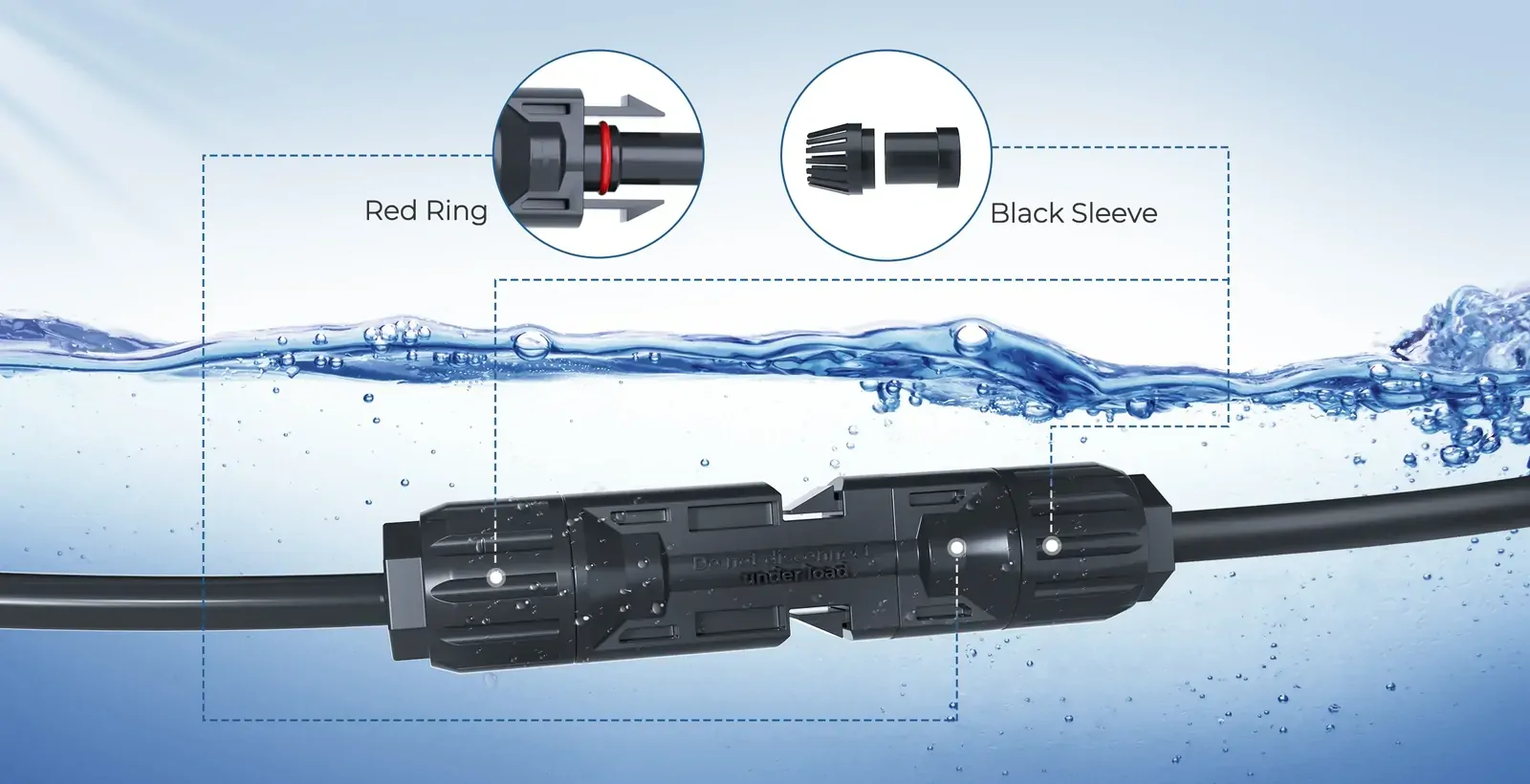

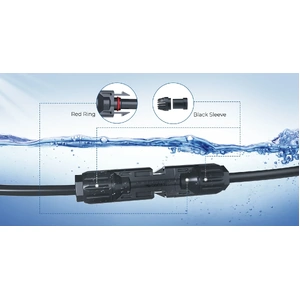

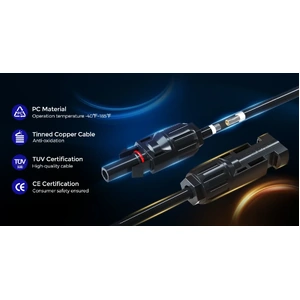

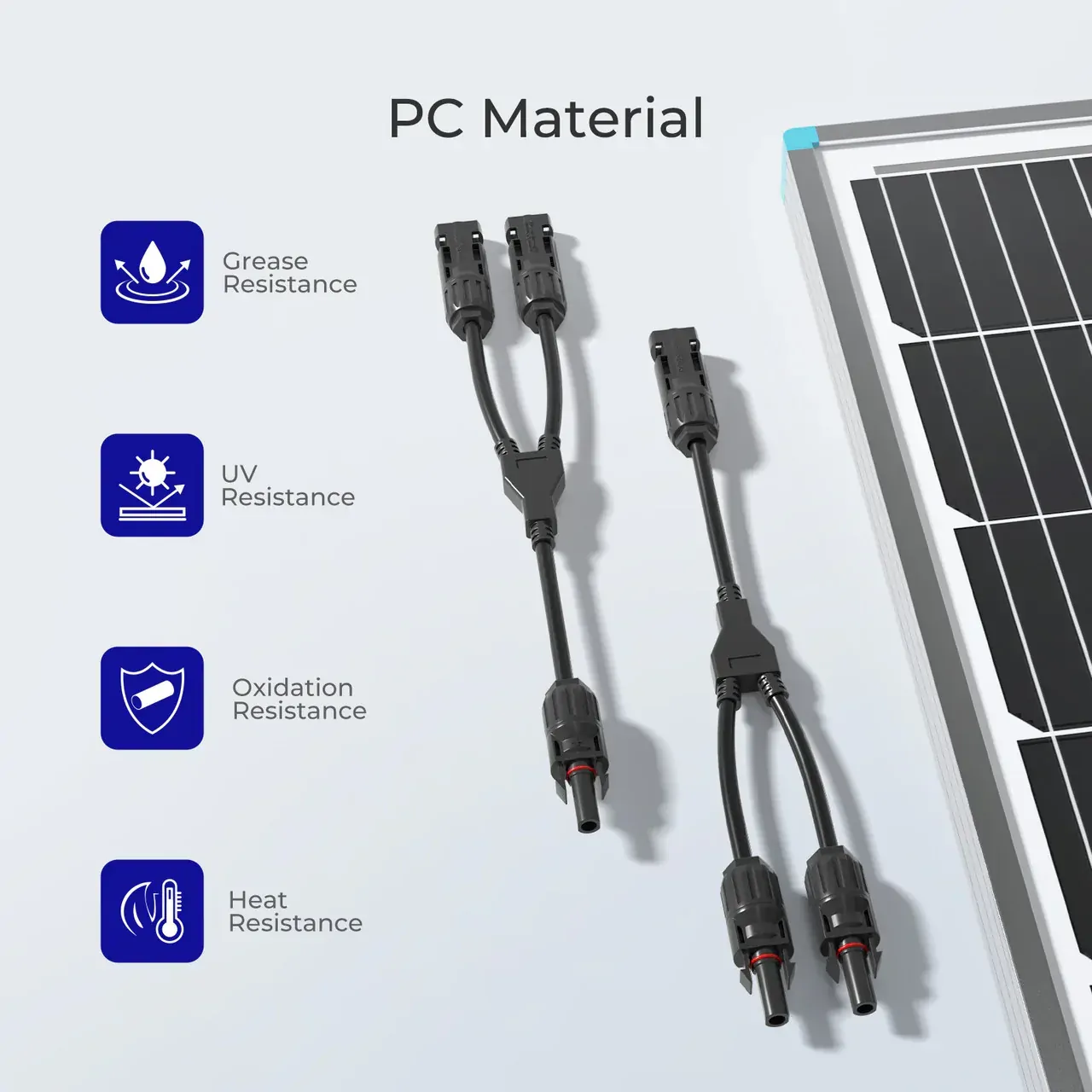

- TUV & CE certification. PC material with resistance to oils and high temperature. IP67 protection.
- Compatible with 14AWG - 10AWG (2.5mm² - 6mm²) solar cables.

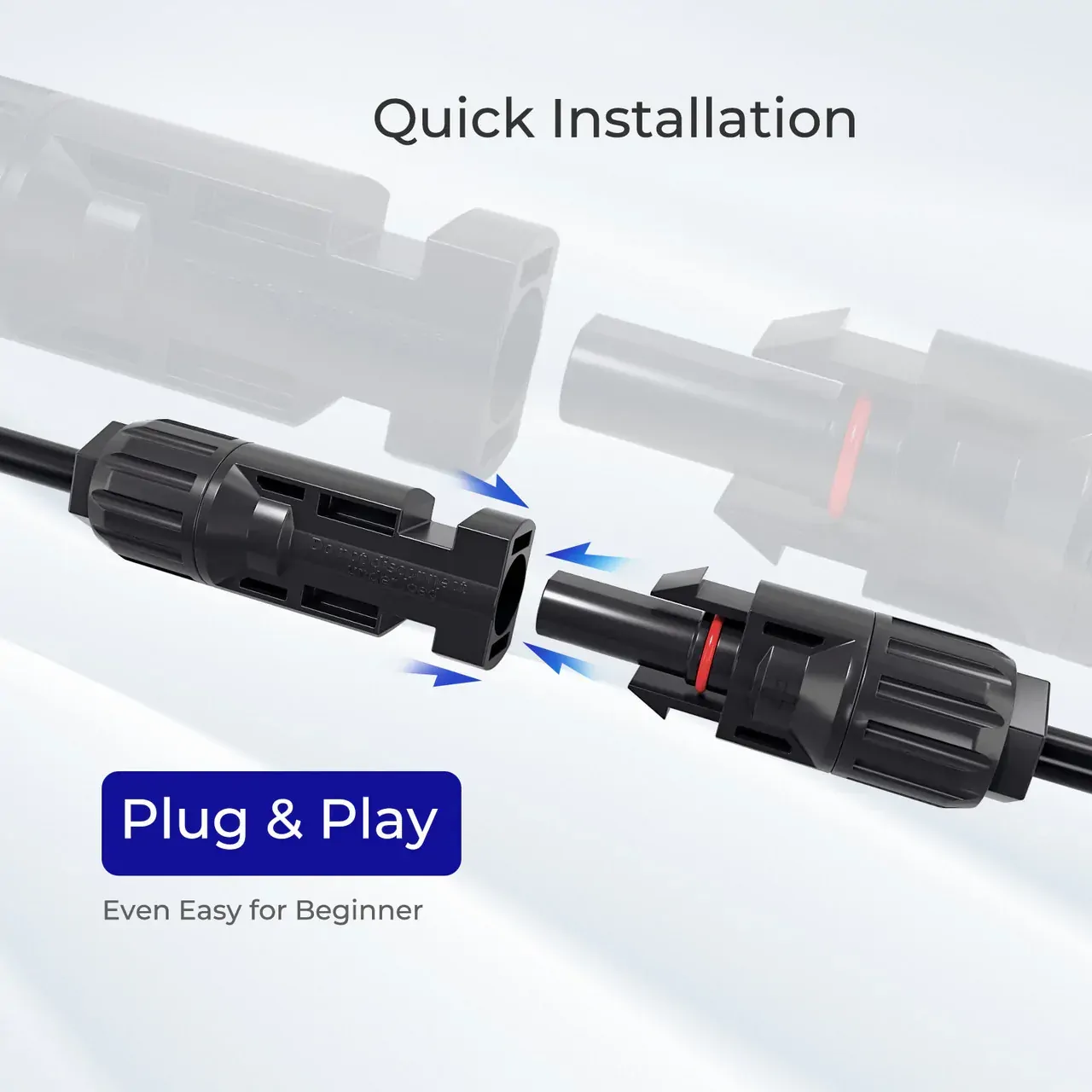

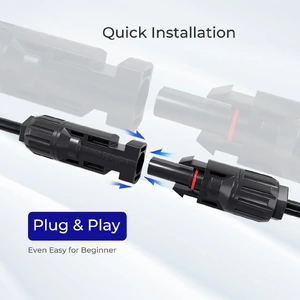

- Effortless setup by pressing the built-in lock on the male connector.
- Renogy 1-year material and workmanship warranty.
Specifications:
- Rated Voltage: 1500V DC(IEC)
- Contact Resistance: 0.5mΩ

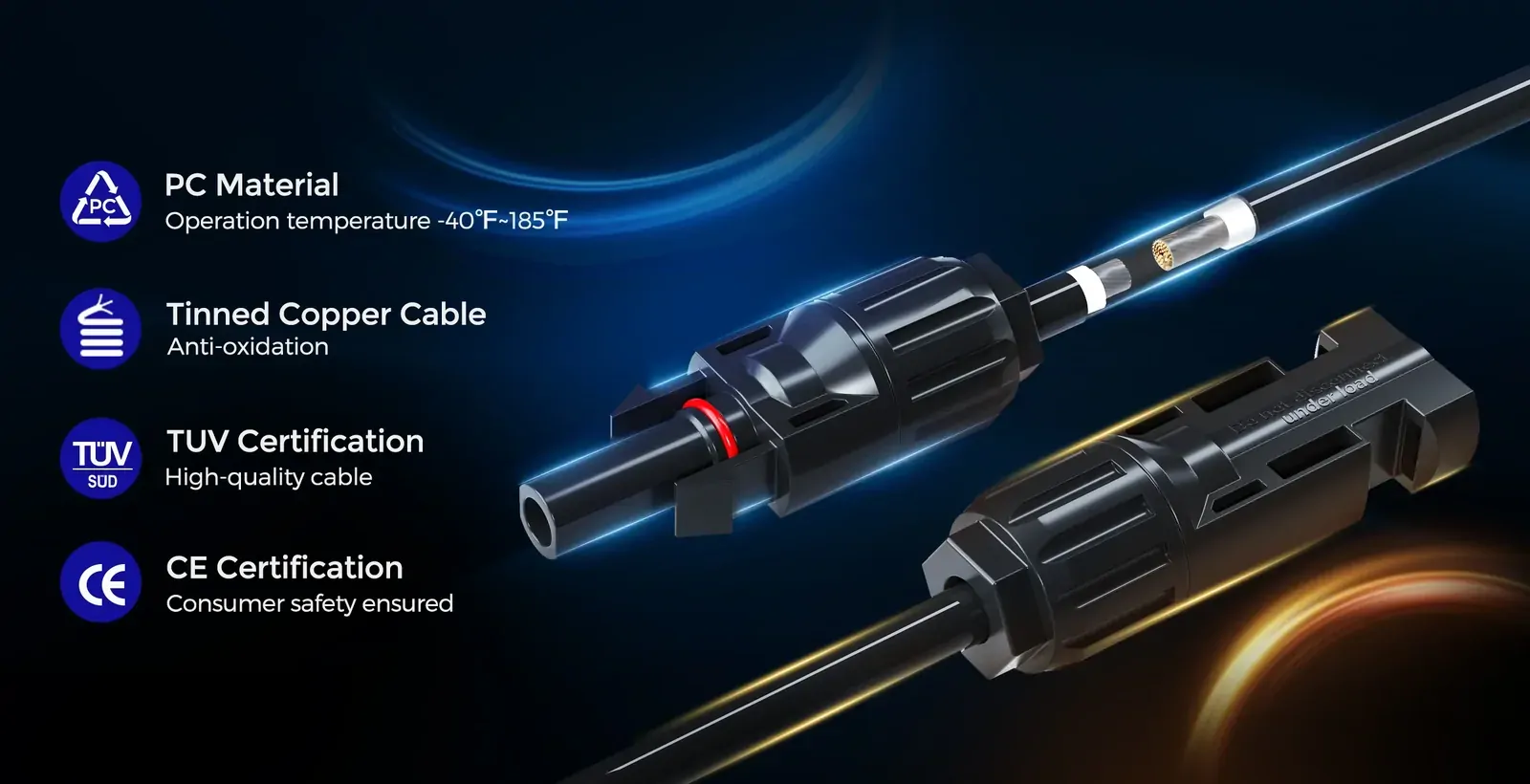

- Contact Material: Copper,tin plated

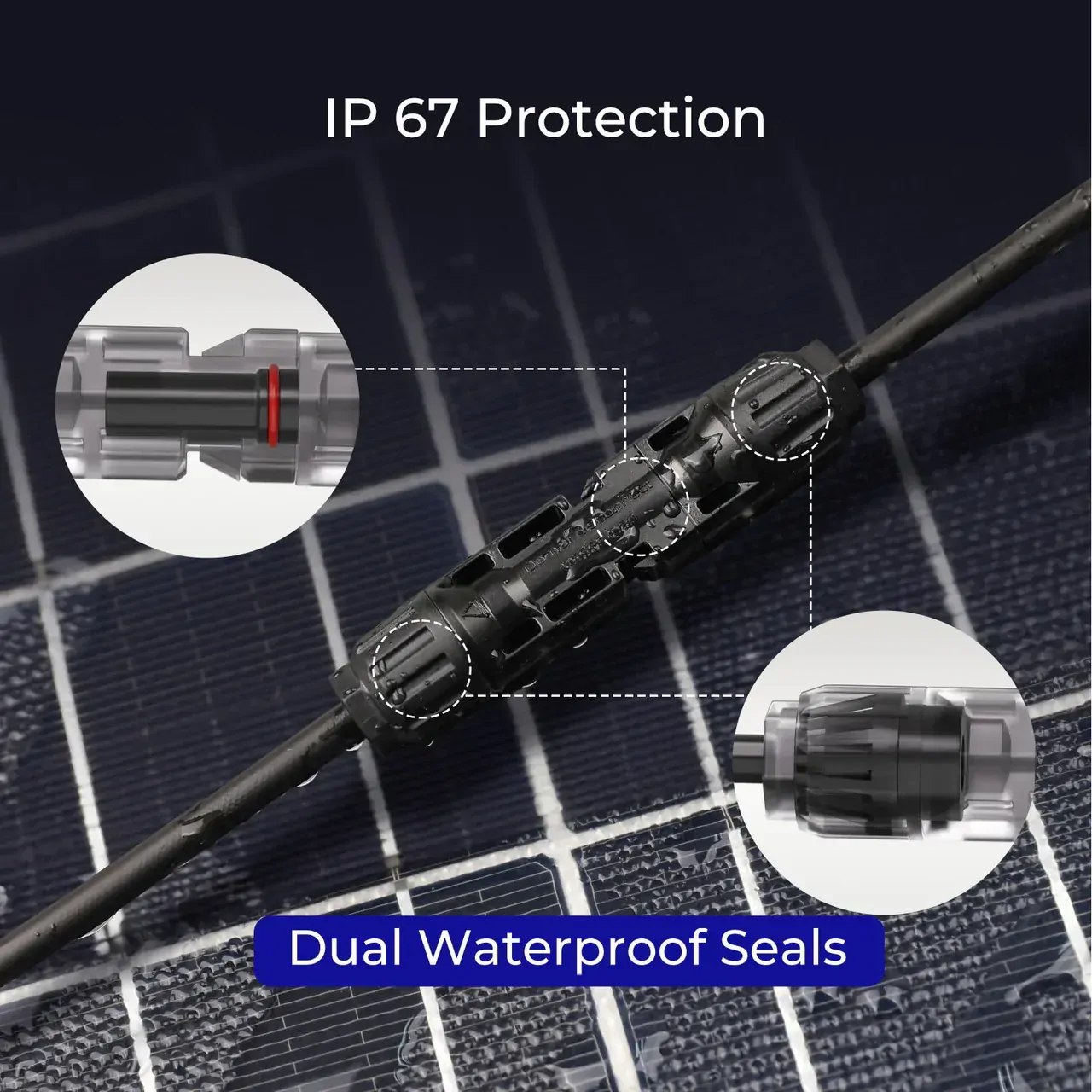

- Protection Degree: IP67 mated/IP2X unmated
- Flame Class: UL94-HB/UL94-V0
- Rated Current: 30A
- Insulation Material: PC
- Temperature: -40℃-90℃/-40°F-194°F
- Suitable Single Core Cable Section: 2.5mm²,4mm²,6mm²
Specifications
SKU RPC0110EC-Y
Brand Renogy
Warranty Period: 1 Year
Product Category Electrical Accessories
Protection Degree IP67 mated/IP2X unmated
Rated Voltage 1500V DC(IEC)
Temperature -40°C to 90°C
Rated Current 30A
Product Q&A
-

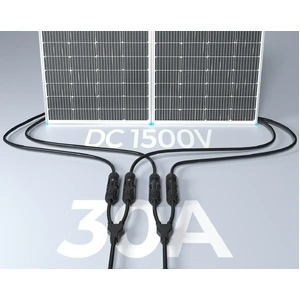

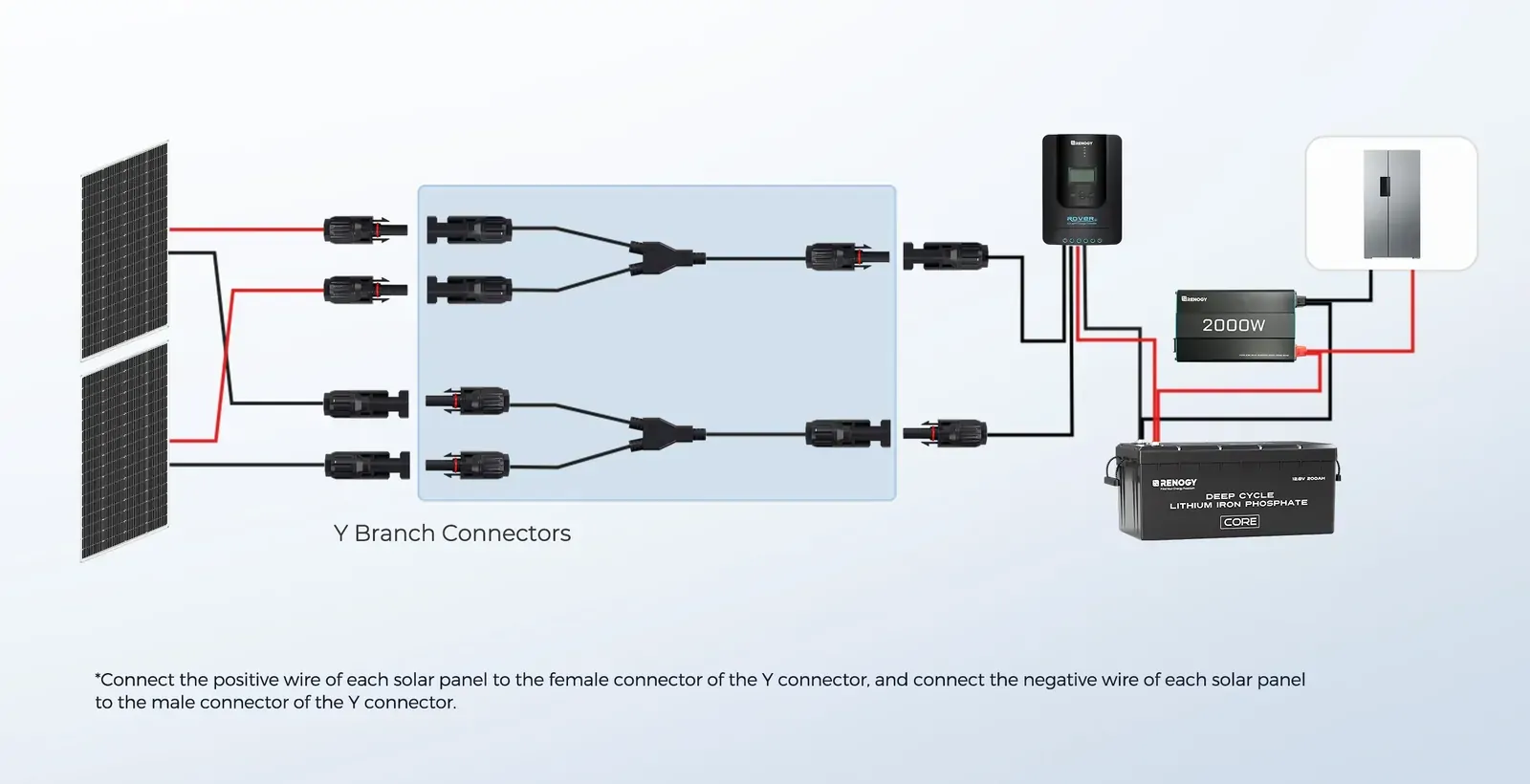

Is this what i would need to add a 5th 100 watt panel to my other 4 100 watt system?
Depending on the input capacity of your controller and the amperage capacity of the wire you use, this product might help.
-
For wire sizethe male/female connectors, what range of gauges of wire do these accept?
Normally for 14-10 awg solar wire.
-
Why these solar connectors are so tightly and can't remove from solar panels?
The tight design can prevent solar connectors from leaking by water. If you need to remove them from solar panels, you can use Renogy solar spanners.
