Renogy Shadowflux 200W Flexible Solar Panel

Product Description

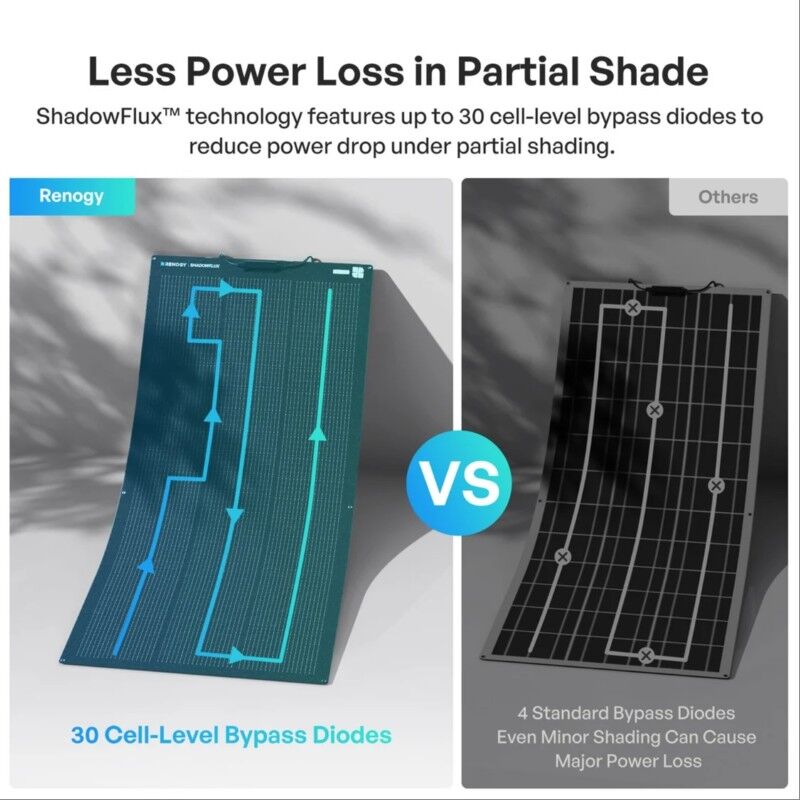

Renogy Shadowflux 200W Flexible Solar Panel, 3 Year Warranty. ShadowFlux™ cell-level anti-shading technology, powered by 30 high-density bypass diodes, helps quickly bypass shaded cells to reduce power loss and maintain up to 85% output under partial shade.

Flex ShadowFlux™ flexible solar panels helps maintain usable charging power when trees, antennas, masts, or snow partially shade the panel, enjoy more consistent charging in changing outdoor conditions.

IP68-rated protection, UV- and moisture-resistant TPO materials help prevent premature aging and dirt buildup, while dual glass-fiber reinforcement resists vibration, flexing, and repeated movement. Designed to deliver reliable performance through every journey with fewer maintenance concerns.

Features:

• ShadowFlux™ Anti-Shading Technology helps keep solar output more stable when part of the panel is shaded.
• Up to 18BB A+ Grade N-Type cells provide high conversation efficiency with reduced crack risk and lower degradation.
• TPO material helps resist UV-related aging, while glass-fiber reinforcement helps prevent cracking from vibration
• Ultra-Thin and Lightweight, as light as 3.5kg, easy for one person to carry and install while minimizing roof load and profile.
• Bends up to 270° to fit curved roofs, boat surfaces, teardrop trailers, and other space-limited installations.

Specifications:

• Maximum Power at STC: 200W
• Open-Circuit Voltage (Voc): 44.1V
• Short-Circuit Current (Isc): 5.57A
• Optimum Operating Voltage (Vmp): 37.8V
• Optimum Operating Current (Imp): 5.29A
• Maximum System Voltage: 600V
• Maximum Series Fuse Rating: 10A
• Operating Temperature Range: -40°C to 85°C

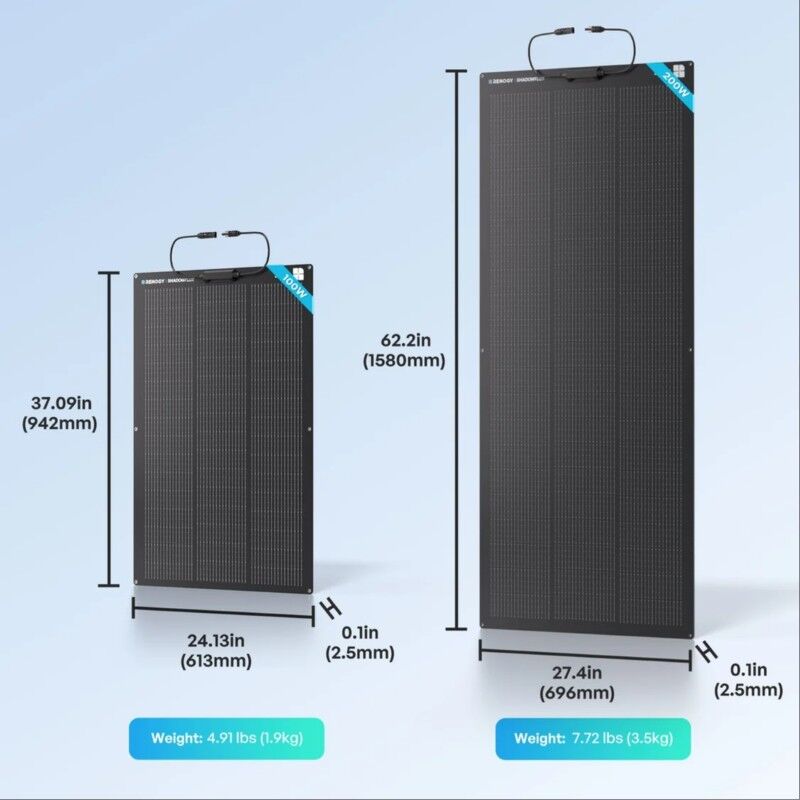

• Size (Unfolded): 1580 × 696 × 2.5mm
• Weight: 3.50kg
• Power Output Warranty: 3-Year
• Material and Workmanship Warranty: 3-Year
• Certification: CE, UKCA, CA65, TSCA, RCM
