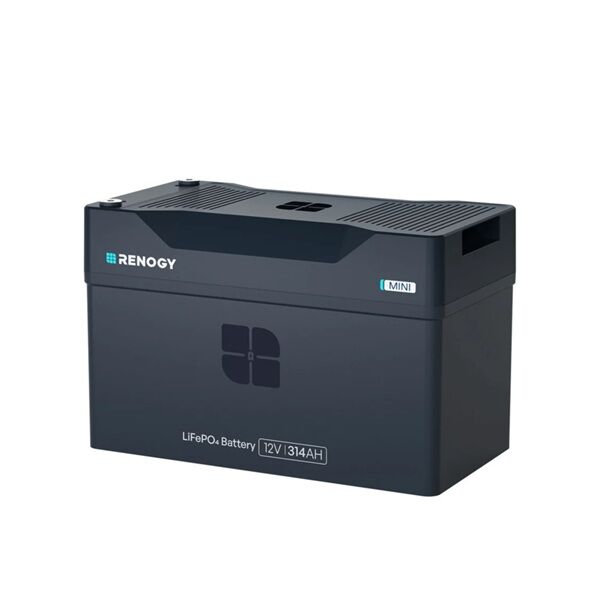

Renogy Reserve Mini Smart 12V 314Ah LiFePO4 Battery with Self Heating & Bluetooth
SKU: RBT-L12314-C1 Learn More»
Product Description
Renogy Reserve Mini Smart 12V 314Ah LiFePO4 Battery with Self Heating & Bluetooth, 5 Year Warranty. Renogy have stepped up the game in small, powerful and smart battery solutions. The Renogy Reserve Mini Smart Battery Range boasts a self heating function for cool climates, built in bluetooth and compact in size, keeping you powered with easy monitoring all year round Perfect for installations in 4wd's, campers and caravans its the ultimate to solution to reliable power on the road.
Features:

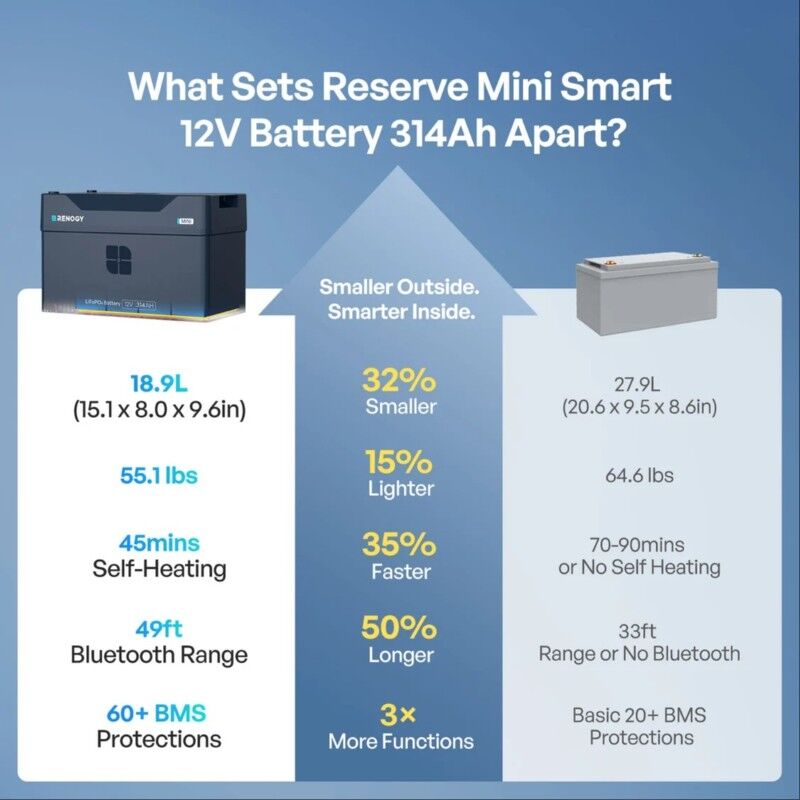

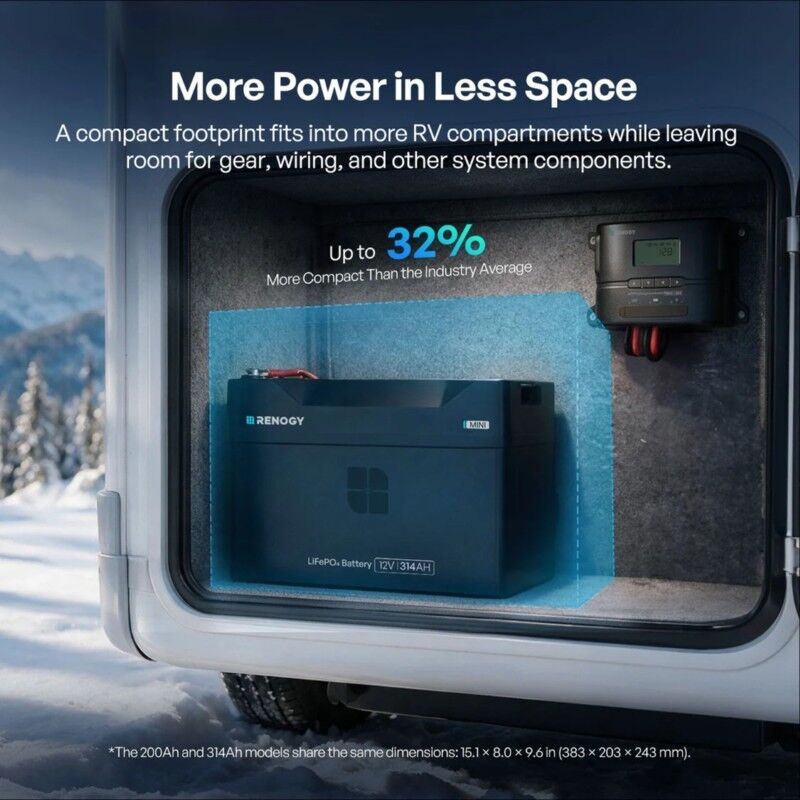

- Get more capacity in less space with compact 200Ah and 314Ah capacity options
- Get up to 35% faster self heating on the 314Ah model to resume charging sooner
- Built in Bluetooth enables app monitoring from up to 49 ft away
- Get smarter battery protection with 60+ multi level BMS protections

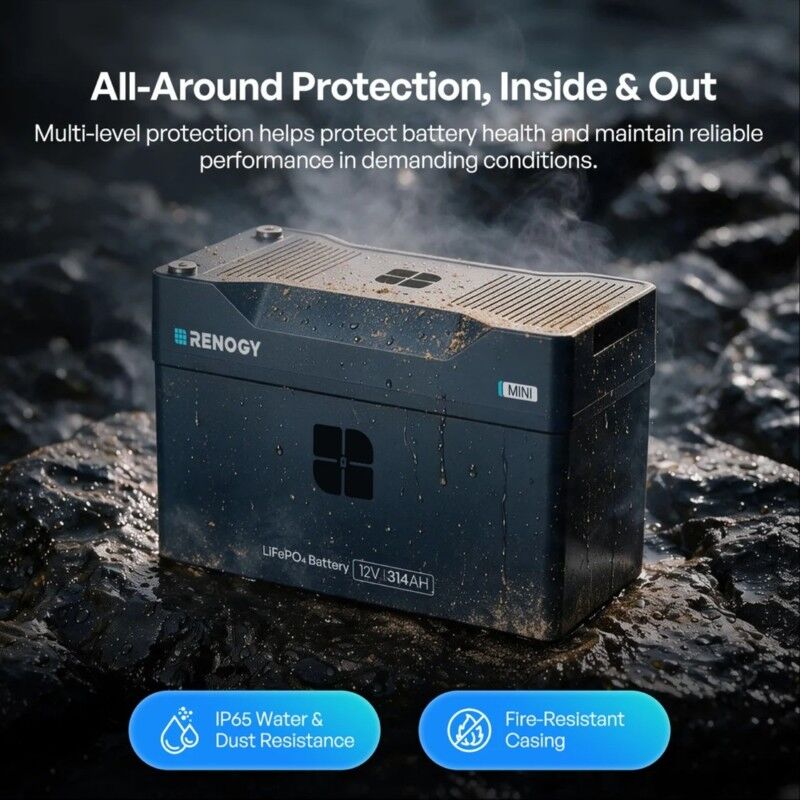

- Stay protected inside and out with IP65 exterior protection, a V0 casing, and flame retardant materials around the cells
Specifications:
- Cell Type: Lithium Iron Phosphate
- Warranty: 5-Year
- Cycle Life: >5,000 cycles @ 80% DOD
- Nominal Voltage: 12.8V
- Rated Capacity: 314Ah
- Energy: 4,019Wh
- Max. Expansion (Parallel & Series): Series & Parallel (4S & 4P)
- Certifications: MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
- Communication: Bluetooth
- Self-Heating Power: 140W

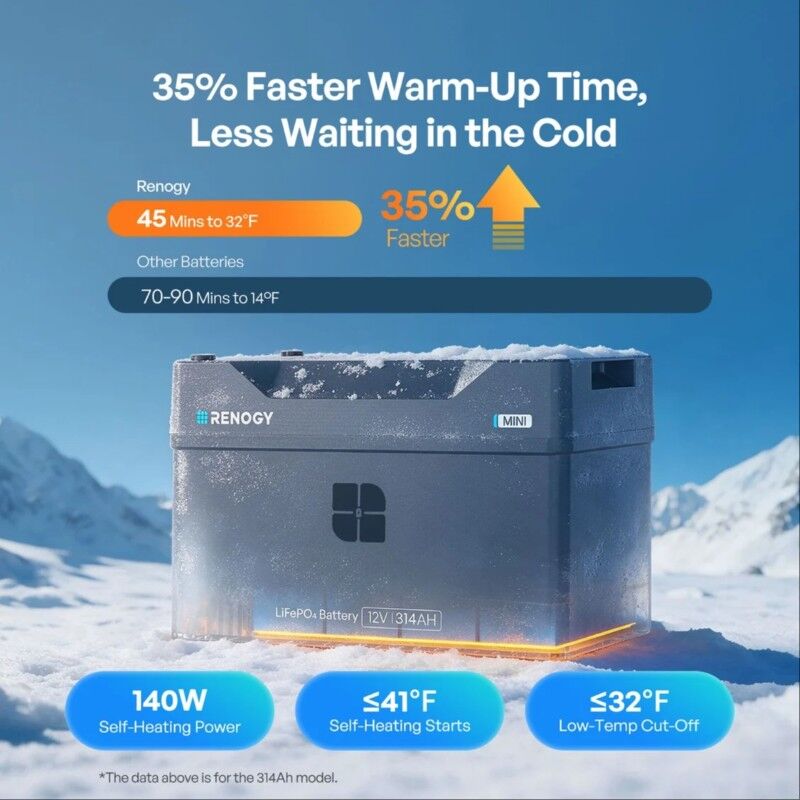

- Self-Heating Speed: 45min from -10°C to 0°C; 95min from -20°C to 0°C
- BMS: 220A
- Max. Continuous Output Power: 2,560W
- Max. Continuous Charge Current: 215A
- Max. Continuous Discharge Current: 220A
- Max. Discharge Current Peak: 1,000A @ 1s
- Charge Method: CC-CV (Constant Current-Constant Voltage)
- Charge Voltage: 14.4V
- Charge Temperature Range: -20°C to 50°C
- Discharge Temperature Range: -20°C to 50°C
- Terminals Bolt Size: M8
- Weight (Approx.): 25.0kg
- Dimensions: 383 × 203 × 243mm
- Protection Class: IP65
What's In The Box:
- 1 x Reserve Mini Smart 12V/314Ah LiFePO4 Battery
- 2 x Insulation Sleeves
- 2 x Long Terminal Bolts
- 2 x Terminal Bolts
Specifications
SKU RBT-L12314-C1
Brand Renogy
Warranty Period 5 Years
Product Category Batteries
Nominal Voltage 12.8V
Discharge Temperature Range -20°C to 50°C
Charge Temperature Range -20°C to 50°C
Self-heating Speed -20°C to 0°C
Self-heating Power 80W
Energy 2560Wh
Bluetooth Connectivity Yes
Storage Temperature Range -20°C to 60°C
Charge Voltage 14.4V
Cycle Life (dod - 80% Under Controlled Conditions) >5000
Weight (kg) 19.6
Dimension 383 x 203 x 243mm
Battery type Lithium Iron Phosphate
Certifications MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Rated Capacity 200Ah
IP Rating IP65
