Pre-Wired Victron Board A2 with 50A MPPT Smart Solar & Cerbo GX

SKU: PWB_A2 Learn MoreĀ»

PWB-Vic-A50X

$5,199
EXTRA $100 OFF! Add to cart to get an instant discount
SALE ENDS:

CALCULATE SHIPPING:

Learn MoreĀ»
Built to Order. Approx 2-3 Weeks Express Shipping Price Match Guarantee Customer Reviews

Product Description

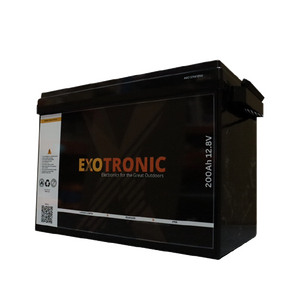

Pre-Wired Victron Board A2 with 50A MPPT Smart Solar & Cerbo GX & GX Touch & Exotronic Lithum Battery, 5 Year Warranty. Unlock the full potential of your van with our state-of-the-art, pre-wired Victron Energy Power Board. This all-in-one solution is not only premium in quality but is designed to save you effort, time, and costs associated with a custom build.

Perfectly designed for wall or floor mounting, it can be conveniently placed under a van bed or bench seat for maximum space utilization.

Bundle Included:

  • Pre-Wired Victron Board A2
  • Free parallel cable between batteries (When purchasing battery bundle)
  • Free 700mm battery cable - can be extended for a fee (When purchasing battery bundle)
  • Free install and testing of Ferrite beads to GX to ensure minimal electrical interruption (When purchasing GX50/70 touch screen)
  • Full testing and programming, for ease of installation (when purchasing Battery and GX touch screen bundles)

Optional configurations:

Note: Please advise our team of your size and type of battery bank at time of checkout. This will allow correct programming of the Victron products

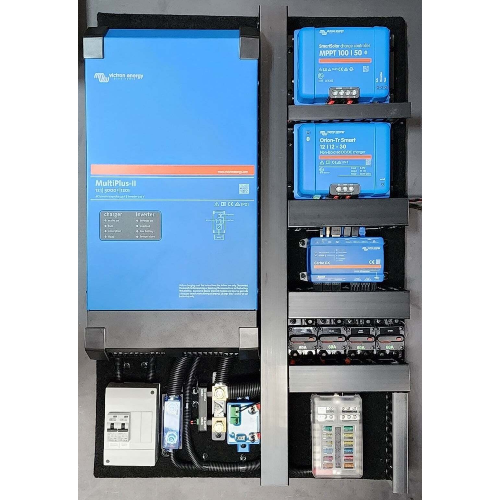

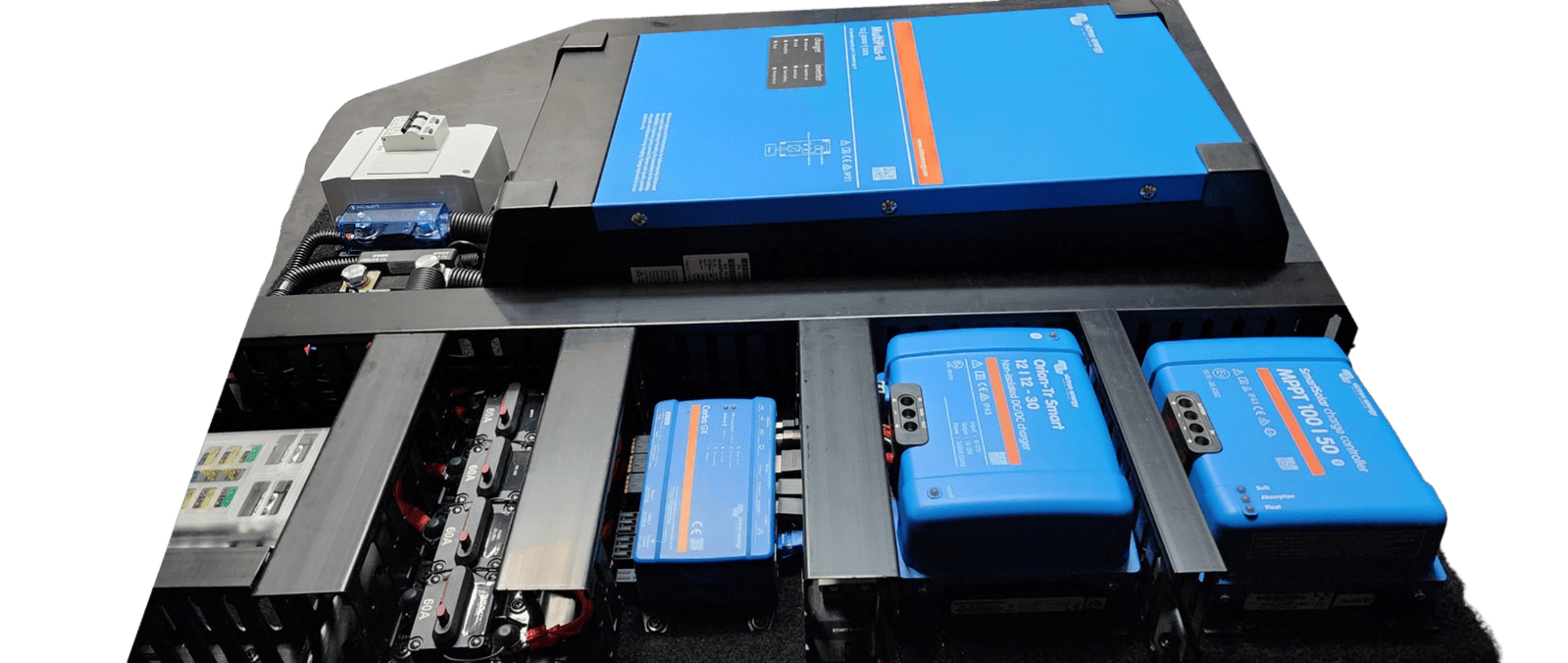

The A2 board includes:

Victron MultiPlus-II Inverter Charger 12/3000/120-32 - PMP122305010

  • Power virtually any 10A appliance with the robust 3000VA inverter.
  • 120A mains charger for rapid charging from the grid.
  • Automatic transfer switch for seamless transition between off-grid and on-grid power, while also charging your batteries.
  • Safety switch circuit protection for added security in both incoming and outgoing inverter circuits
  • Also including Victron Digital Multi Control (Remote On/Off/Charger Only switch) and 9m of cable from the board to allow control of the inverter remotely

Victron SmartSolar MPPT 100/50 Charge Controller - SCC110050210

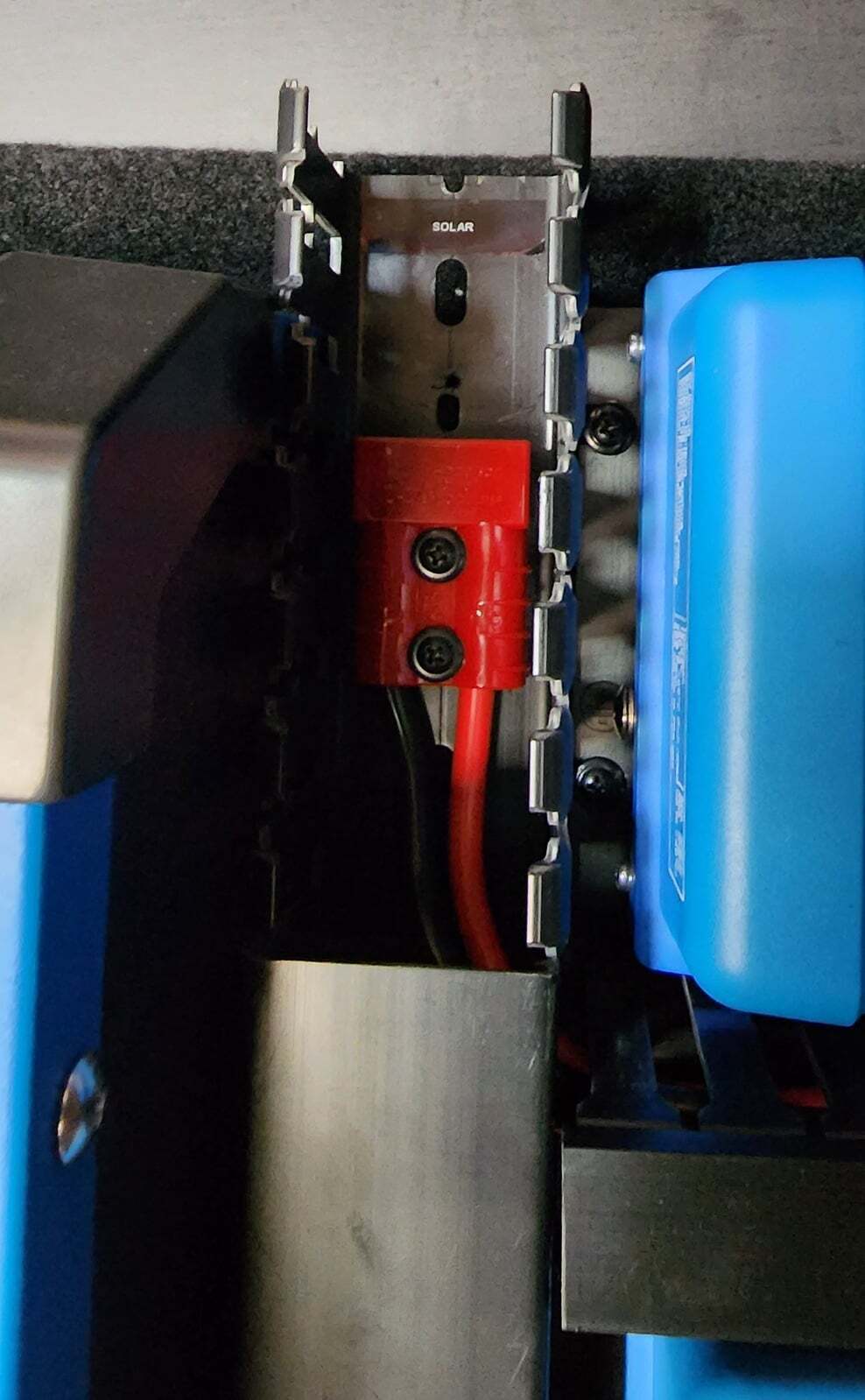

  • Connect effortlessly to solar panels with a red Anderson connector for optimized solar energy harnessing. (Genuine red Anderson supplied)

Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger - ORI121236140

  • Compatible with smart alternators for seamless connection to the starter battery using a grey Anderson connector. (Genuine grey Anderson supplied)

Victron SmartShunt 500A/50mV - SHU050150050

  • Stay informed with real-time data on your house battery's state of charge, current in/out, voltage, and set audible alarms for low levels.

Victron Cerbo GX - BPP900450100

  • Exercise full control over your system with adjustable current limits, relays, tank levels and temperature sensors connectivity.
  • Including 5m of cables for connectivity with GX Touch Display Screen (purchased separately).

Victron Smart Battery Protect 12/24V-65A - BPR065022000

  • Disconnects the 12V loads when batteries low, the unit also has a switch port to allow you to optionally install a switch and disconnect all 12V loads when not using the system.

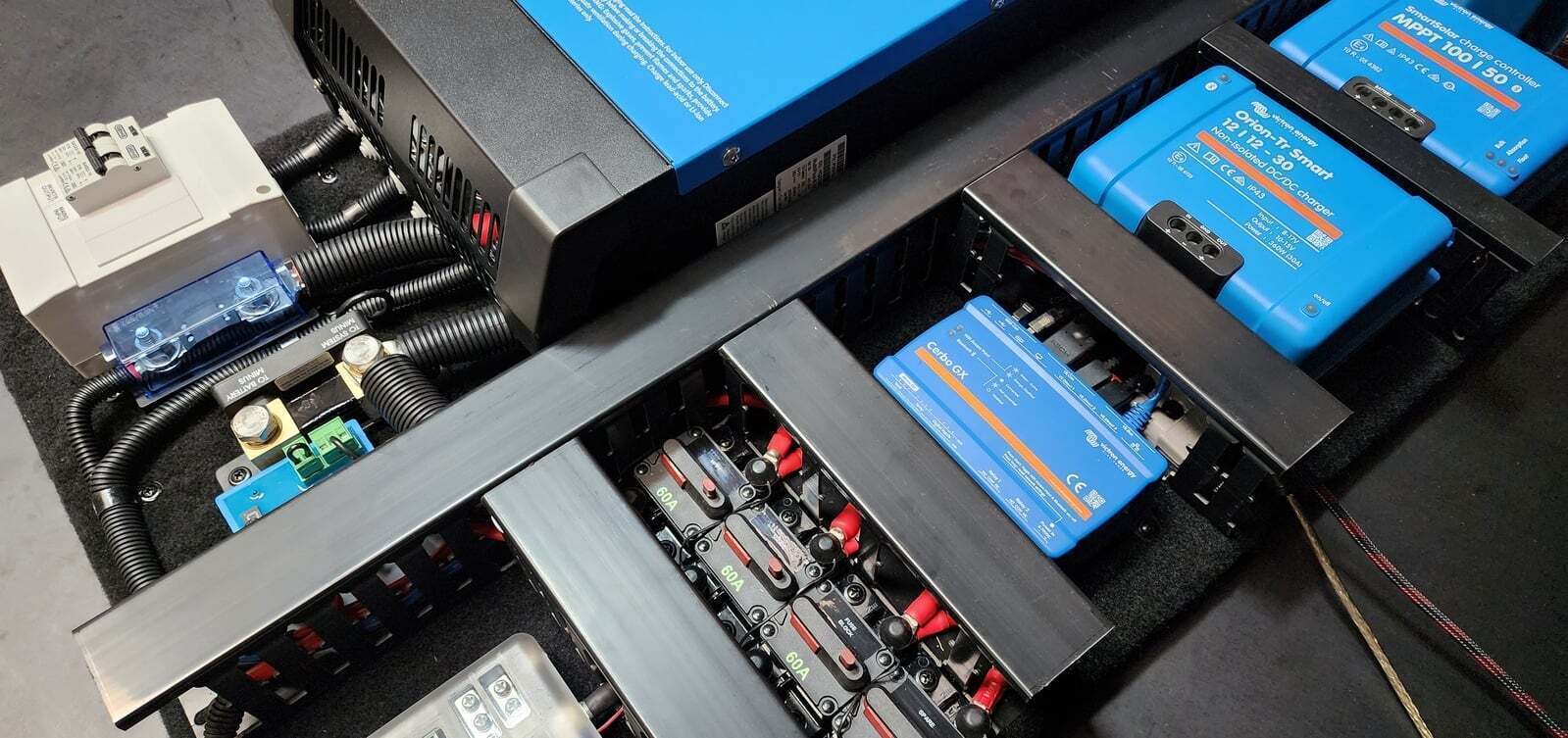

Fuse Block & Circuit Breakers

  • Incorporates a 12 Blade Fuse Block with Exotronic circuit breakers and cables for enhanced protection and circuit management and oversized cables for low loss performance.

400A MEGA Fuse and 70mm2 Double Insulated Power Cable

  • For high current capacity and safety, essential for the inverter.

Specifications

SKU PWB_A2

Brand Victron

Warranty Period: 5 Years

Product Category Power Systems

Voltage 12V

Weight (kg) 33

Dimensions 780 x 530 x 170 mm


Product Q&A

Ask Us a Question
  • Is it possible to disconnect each component without requiring access to the rear of the mounting board or panel?

     Yes, all access points are located on the front of the board.

  • Do the pre-wired Victron boards include integrated tank and temperature sensors as part of their standard configuration, or are these additional components that need to be added separately?

    No, the pre-wired Victron boards do not come equipped with tank and temperature sensors as standard features. However, you have the flexibility to incorporate these sensors by adding them to the Cerbo GX system if you wish to monitor and control tank levels and temperature within your setup. This customization allows you to tailor the system to your specific needs and preferences.

  • What material is used in the construction of the mounting board?

    The mounting board is crafted using form-ply, a sturdy and resilient material known for its structural integrity. To provide an added layer of protection and a finished look, it is then covered with a durable carpet material. This combination of form-ply and carpet not only ensures the board's strength but also provides a functional and aesthetically pleasing surface.

  • Can each component be disconnected without the need to access the rear side of the mounting board or panel? (MYG)

    Certainly, all access points are situated at theCertainly, all access points are situated at the front of the board. front of the board.

  • Do the pre-wired Victron boards come with built-in tank and temperature sensors in their standard setup, or are these separate components that require additional installation? (MYG)

    The pre-wired Victron boards do not include tank and temperature sensors as part of their standard features. Nevertheless, you have the option to integrate these sensors into the Cerbo GX system should you desire to monitor and regulate tank levels and temperature within your setup. This adaptability enables you to customize the system according to your individual requirements and preferences.

  • Which material is utilized in the construction of the mounting board? (MYG)

    The mounting board is made using form-ply, a material celebrated for its structural integrity and resilience. For added protection and a refined appearance, it is then overlaid with a tough carpet material. This combination of form-ply and carpet not only assures the board's strength but also creates a surface that is both functional and aesthetically pleasing.
