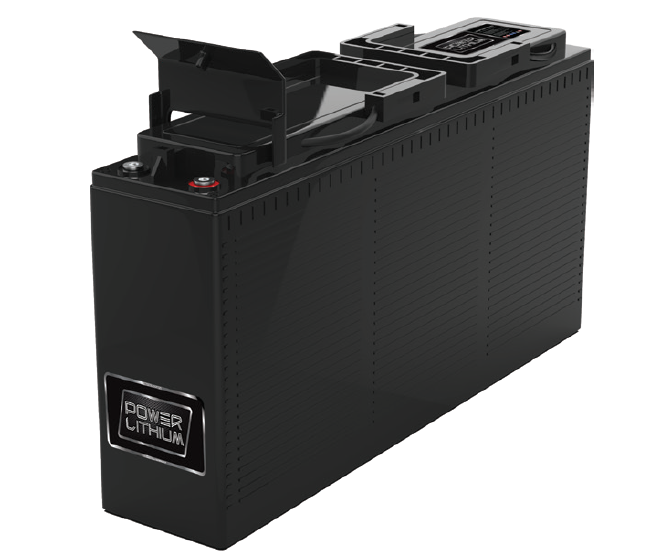

Power Lithium 12V 150Ah Slim Line Battery

Product Description

Power Lithium 12V 150Ah Slim Line Battery, 5 Years Warranty

Features:

• Longer Cycle Life: LiFePO4 batteries would be five times than SLA batteries on cycle life
• High Power & Light Weight: LiFePO4 batteries performance twice power of SLA batteries, while half weight helpful for transport and installation
• Intellegent Management Control: Intelligent BMS system covered by LFP Batteries to ensure that batteries work on safety and perfect condition
• Lower Self-discharge rate: Lower Self-discharge rate to guarantee LFP batteries be stored more longer than SLA batteries

Applications:

• Caravan, RV, camping
• UPS (replacement of SLA batteries)
• Marine, golf cart
• Solar, wind system
• PV, solar light

Specifications:

Electrical Characteristics:

• Chemistry: LiFePO4
• Nominal Voltage: 12.8V
• Nominal Capacity: 150Ah (C5,25°C)
• Energy: 1920Wh
• Internal Resistance: ≤18 mΩ
• Cycle Life: >2000 cycles @1C 100%DOD
• Months Self Discharge: <3%
• Efficiency of Charge: 100% @0.5C
• Efficiency of Discharge: 96-99% @1C

Standard Charge

• Charge Voltage: 14.6±0.2V
• Charge Mode: 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
• Charger Current: 75A
• Max. Charge Current: 150A
• Charge Cut-off Voltage: 15.6V±0.2V

Standard Discharge

• Rated Discharge: Current 75A
• Max Discharge Current:150A
• Max. Pulse Current 450A(<3s)
• Discharge Cut-off Voltage 10V
• Charge Temperature 0 °C to 45 °C (32Fto 113F) @60±25% Relative Humidity
• Discharge Temperature -20 °C to 60 °C (-4F to 140F) @60±25% Relative Humidity
• Storage Temperature 0 °C to 40 °C (32Fto 104F) @60±25% Relative Humidity
• Water Dust Resistance IP56

Mechanical

• BMS Bluetooth available
• Plastic Case ABS
• Dimensions(mm) 551L x 110W x 288H mm
• Weight (kg) 16.3kg
• Terminal M8
