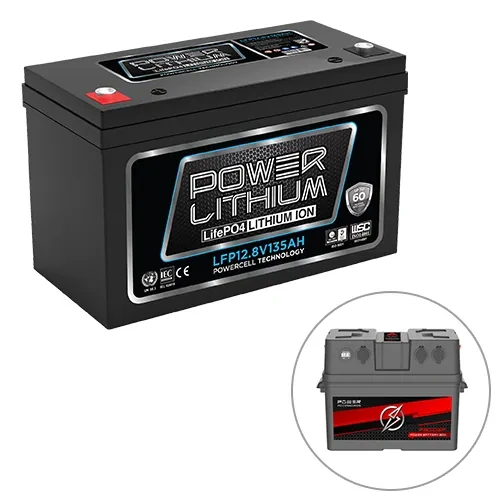

Power Lithium 12V 135Ah Battery with Multi-Function Battery Box with LED light Bundle

Product Description

Power Lithium 12V 135Ah Battery with Multi-Function Battery Box with LED light Bundle, 5 Years Warranty.

Bundle Includes:

• Power Lithium 12V 135Ah Battery, LFP12.8V135AH
• Power Accessories Portable Multi-Function Battery Box with LED light, PB003

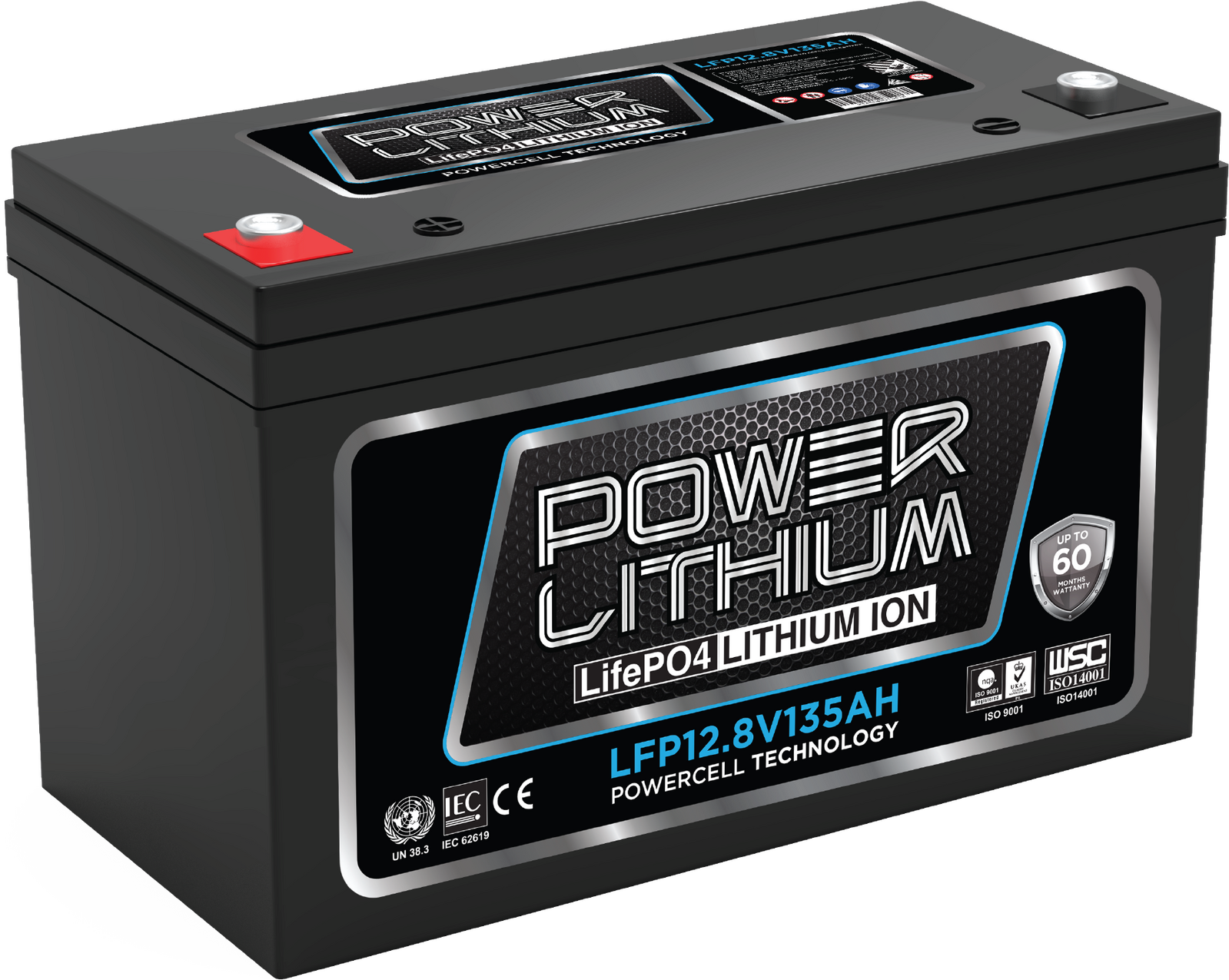

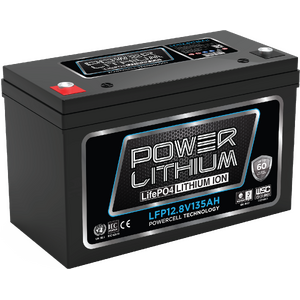

Power Lithium 12V 135Ah Battery

Features:

• Longer Cycle Life: Offers up to 20 times longer cycle life, in five times, longer float, or calendar life, then lead acid battery, helping to minimize replacement costs, and reduce total cost of ownership.
• Lighter Weight: about 40% of the weight of a comparable, lead acid battery. A drop-in replacement for acid batteries.
• Higher Power: delivers twice power of lead, acid, battery, even high discharge rate while maintaining high energy capacity.
• Wider Temperature Range: - 20°C- 60°C
• Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation.
• Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to 10 batteries in parallel.

Application:

• Electric vehicles, electric mobility
• Solar/Wind energy storage system
• UPS, backup power
• Telecommunication
• Medical equipment
• Lighting

Specifications:

Electrical Characteristics

• Nominal Voltage: 12.8V
• Nominal Capacity: 135Ah (C5,25℃)
• Energy: 1728Wh
• Internal Resistance: ≤20mΩ
• Cycle Life: >2000 cycles @1C 100%DOD
• Months Self Discharge: <3%
• Efficiency of Charge: 100% @0.5C
• Efficiency of Discharge: 96~99% @1C

Standard Charge

• Charge Voltage: 14.6 ±0.2V
• Charge Mode: 0.2C to 14.6V, charge current to 0.02C (CC/CV)
• Charger Current: 55A
• Max. Charge Current: 110A
• Charge Cut-off Voltage: 15.6±0.2V

Standard Discharge

• Continuous Current: 110A
• Max. Pulse Current: 400A(<3s)
• Discharge Cut-off Voltage: 8V

Environmental

• Charge Temperature: 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
• Discharge Temperature: -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
• Storage Temperature: 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
• Water/Dust Resistance: IP56

Mechanical

• Cell & Method: 26650 4S35P
• Plastic Case: ABS
• Dimensions (mm.):330x173x212mm
• Weight (kg.):15.6kg
• Terminal: M8
• Protocol (optional): SMBus/RS485/RS232
• SOC (optional): LED

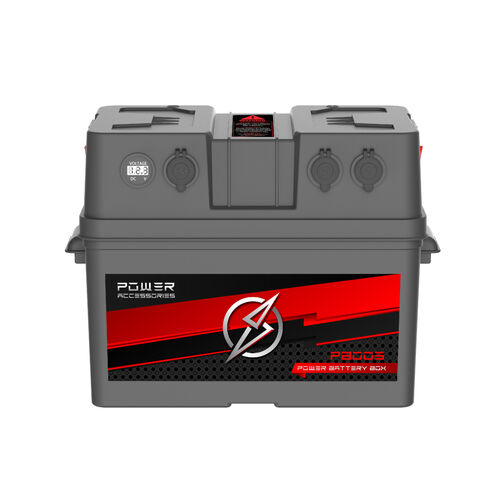

Power Accessories Portable Multi-Function Battery Box with LED light

Instructions For Use:

1. Remove the lid of the Battery Box.
2. Place the battery in the battery box.
3. Attach the clamps from the battery box lid to the corresponding positive and negative terminals on the battery. Fasten the bolts firmly, ensuring they will not become loose.
4. Place lid onto the battery box, making sure that it is evenly and completely shut.
5. With the lid on and the terminals connected, switch the battery to ON using the ON/OFF switch and test the voltage with the voltmeter.
6. If the voltmeter lights up and displays the battery’s voltage, you can now secure the lid.
7. Turn on the LED light switch and check to see if LED light is on or not.
8. To secure the lid, thread the strap around the box and through the two plastic buckles. Fasten and secure on top of the unit.
9. You are now free to plug in your devices to power them with your battery.
