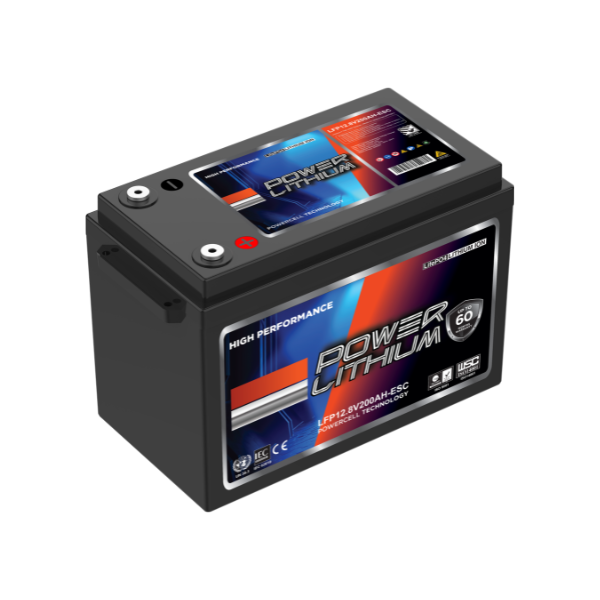

Power Lithium 12.8V 200Ah Deep Cycle Battery, Special Case
SKU: LFP12.8V200AH-ESC Learn More»
Product Description
Power Lithium 12.8V 200Ah Deep Cycle Battery, Special Case, 5 Years Warranty.
Features:
- Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
- Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
- Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
- Wider Temperature Range: -20°C–60°C.
- Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Typical Applications:
- Wheelchairs and scooters
- Solar/wind energy storage
- Back-up power for small UPS
- Golf trolleys & buggies
- Electric bikes
- Tools.
Specifications:
- Nominal Voltage: 12.8 V
- Nominal Capacity: 200 Ah
- Energy: 2560 Wh
- Internal Resistance (AC): ≤10 mΩ
- Cycle Life: ≥4000 cycles @ 0.5C, 100% DOD
- Months Self Discharge: <3%
- Efficiency of Charge: 100% @ 0.5C
- Efficiency of Discharge: 96–99% @ 0.5C
- Charge Voltage: 14.6 ± 0.2 V
- Charge Mode: 0.2C to 14.6 V, then 14.6 V; charge current to 0.02C (CC/CV)
- Charge Current: 60 A
- Max. Charge Current: 150 A
- Charge Cut-off Voltage: 14.6 V ± 0.2 V
- Rated Discharge Current: 60 A
- Max. Discharge Current: 150 A
- Maximum Pulse Discharge Current: 450 A < 30 s
- Discharge Cut-off Voltage: 10 V
- Charge Temperature: 0°C to 55°C @ 60 ± 25% relative humidity
- Discharge Temperature: −20°C to 60°C @ 60 ± 25% relative humidity
- Storage Temperature: −20°C to 45°C @ 60 ± 25% relative humidity
- IP Class: IP67
- Plastic Case: ABS
- Approx. Dimensions: 384 mm × 190 mm × 221 mm
- Approx. Weight: 18.5 kg
- Terminal:M8
- Parallel: Up to 4 units
Specifications
SKU LFP12.8V200AH-ESC
Brand Power Lithium
Warranty Period 5 Years
Product Category Batteries
Battery Voltage 12V
Amp Hours (Ah) 200
Battery Length (mm) 384
Battery Width (mm) 190
Battery Height (mm) 221
Battery Weight (kg) 18.5
Nominal Voltage 12.8V
Nominal Capacity 200
IP Rating IP67
Terminals M8
Battery Chemistry LiFePO4
Cycle Life ≥4000 cycles @ 0.5C, 100% DOD
