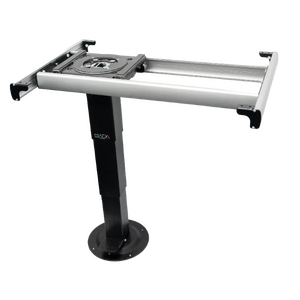

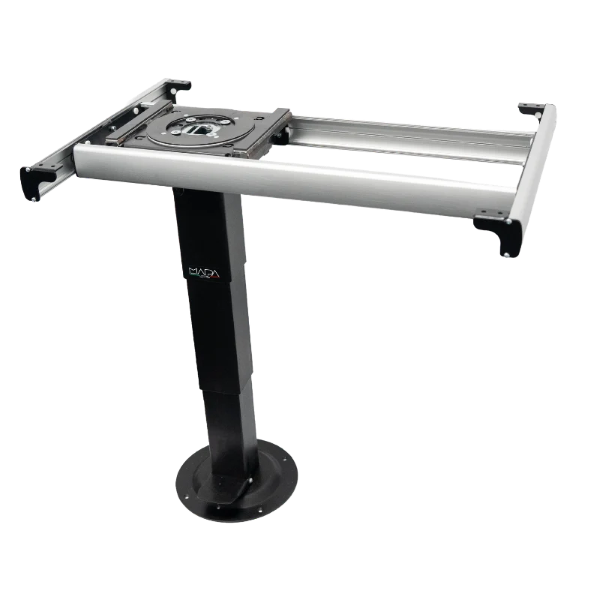

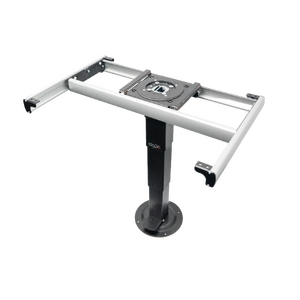

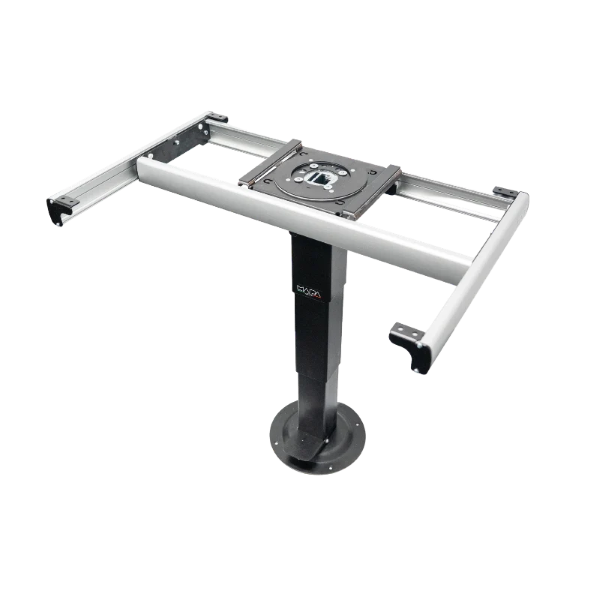

Nuova MAPA Black Adjustable Height Square Table Leg with Turn Table & Slide

Product Description

Nuova MAPA Black Adjustable Height Square Table Leg with Turn Table & Slide, 1 Year Warranty. Designed to maximise space and flexibility inside your caravan, camper, or motorhome, the Nuova Mapa Adjustable Height Table Leg with Turn Table and Slide transforms your dining area in seconds. Imagine sitting down for a meal, effortlessly sliding or swivelling the table exactly where you need it, then lowering it to create a comfortable extra bed when the day is done. With its smooth telescopic action, durable aluminium sliding system, and clever Italian engineering, the Nuova Mapa gives you complete control over your living space while making every inch of your RV work smarter.

Important Information:

• Tabletop not included
• Fixing screws not included

Does Not stop in between fixed bed or table top position.

Due to the size and weight of this item we cannot deliver to PO Boxes

Features:

• Convertible Table to Bed System. Quickly lower the table to create an extra sleeping area when needed.

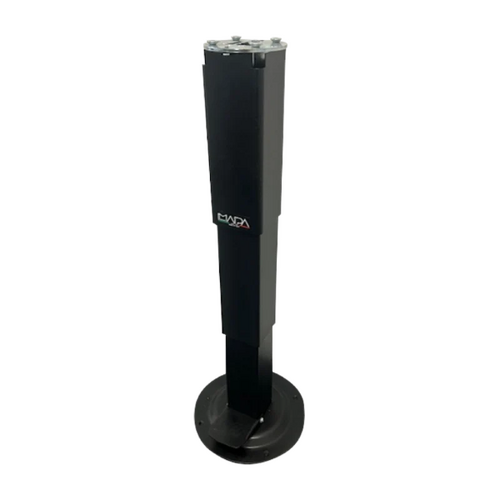

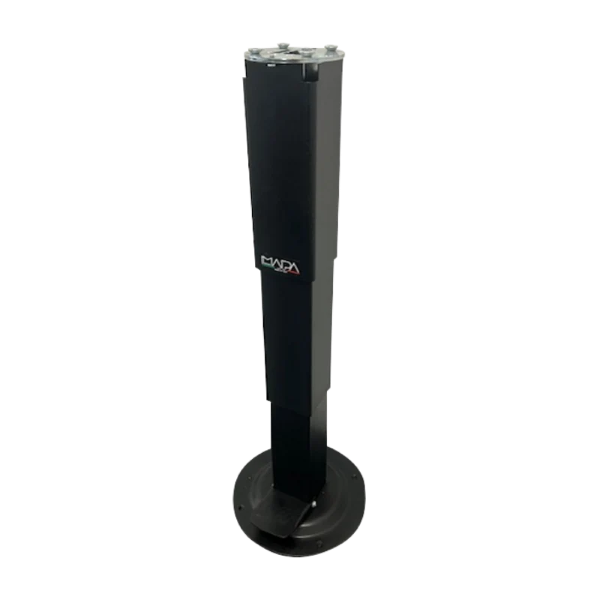

• Telescopic Height Adjustment. Raises to dining height or lowers to bed position using the convenient foot button.

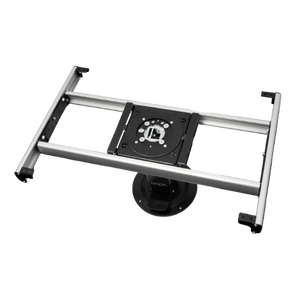

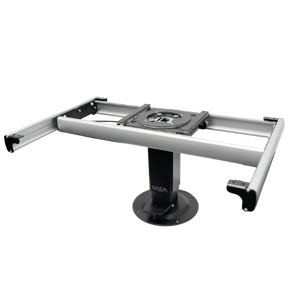

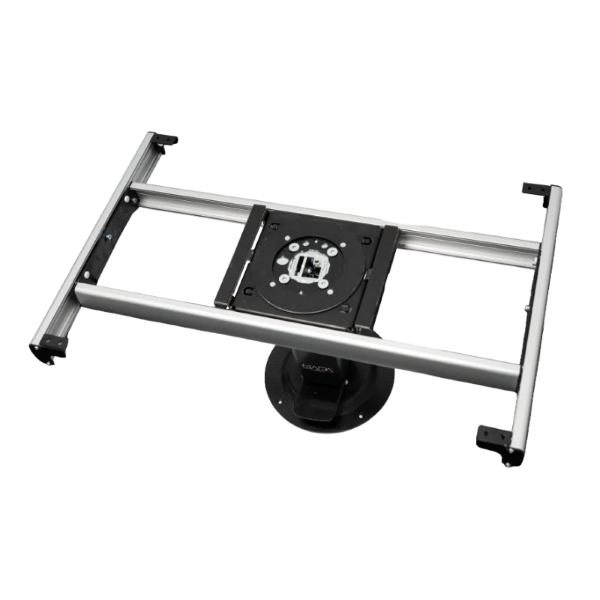

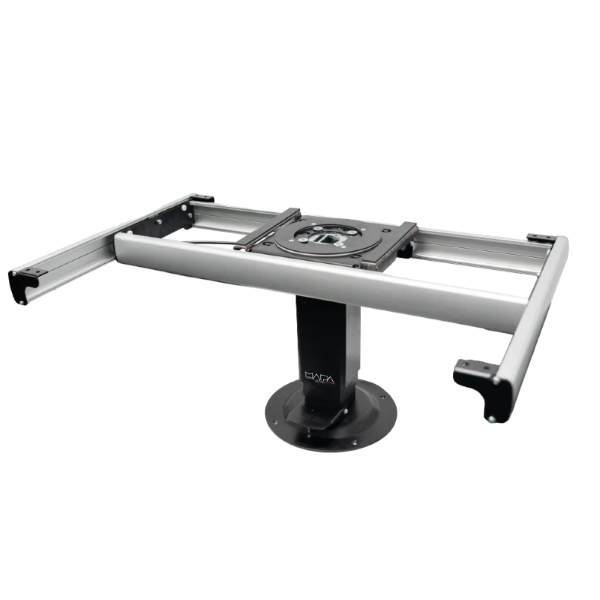

• Turntable & Sliding Mechanism. Allows the tabletop to slide in multiple directions and rotate for maximum positioning flexibility.
• Smooth Sliding Action. Metal bearing system ensures effortless movement and positioning.
• Durable Aluminium Construction. High-quality aluminium sliding mechanism designed for strength and longevity.
• Easy Foot Button Operation. Quick and convenient raise/lower function via the integrated base button.
• Italian-Made Quality. Solid and robust design engineered and manufactured in Italy.
• Adjustable Bed Height. Bed position factory preset at 330mm and adjustable up to 410mm if required.
• Modern Interior Colour. Black finish designed to suit a wide range of caravan interiors.

Specifications:

• Maximum Table Height: 710mm (floor to underside of tabletop)
• Lowest Height: 345mm
• Preset Bed Height: 330mm (adjustable to 410mm)
• Top Bracket Size: 700mm x 440mm
• Base Diameter: 240mm
• Weight Rating (Bed Mode): 100kg
• Unit Weight: 15kg
• Colour: Black
• Construction: Aluminium sliding mechanism with metal bearings
• Height Lock Positions: Upright table position and lowered bed position only. ( Cannot stop inbetween positions)

Slide Range:

• 100mm Forward from centre
• 100mm Back from centre
• 200mm Left from centre
• 200mm Right from centre
