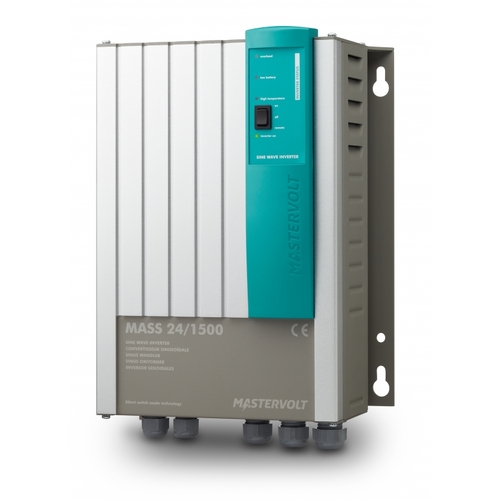

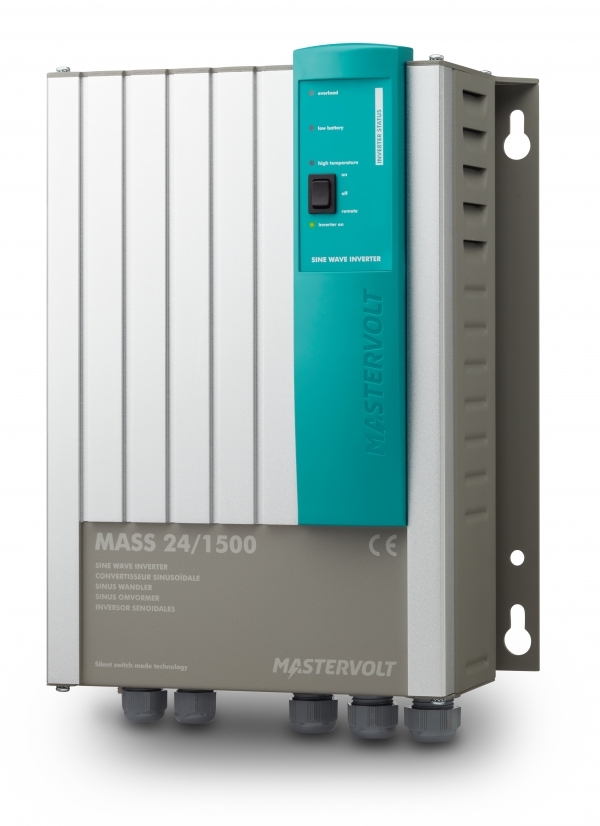

Mastervolt 230V 24V 1500W Mass Inverter



Learn More»
Express Shipping Price Match Guarantee Customer Reviews

Product Description

Mastervolt 230V 24V 1500W Mass Inverter, 2 Year Warranty.

For the toughest tasks

Even under the most extreme conditions the products from the Mass series operate faultlessly, giving you round-the-clock output when necessary. With an MTBF of 180,000 hours at full capacity and 24/7 use, the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply.

Mastervolt’s Mass Sine inverters have been proving their value in the most extreme conditions for 30 years.

Optimal flexibility in system design

Choosing an independent sine wave inverter allows you complete freedom of choice of battery charging equipment. You can freely adapt the rating of these chargers, depending on the desired charge time. In case you want to use renewable energy sources, you may want to choose an MPPT solar charge regulator.

High Efficiency

The high efficiency and automatic economy mode are designed to allow digital clocks to work properly and ensure you many more hours of operation from your batteries. The application of high-frequency technology prevents any annoying humming and zooming sounds, while the high peak capacity ensures that the high inrush current required for electrical tools, for example, is seamlessly produced.

Clear Indicators

The Mass Sine features easy controls on the device itself. As inverters are often built in, we also supply an effective remote control panel, the C4-RI. In addition, the Mass Sine can be controlled via its intuitive display, the EasyView 5, thanks to the integration of MasterBus communication using a MasterBus Inverter Interface or AC Power Analyser.

Easy and safe connections

The Mass Sine inverters provide robust and professional connections for fast and safe installation.

  • Features:
  • For heavy duty work in professional and semiprofessional applications.
  • Full capacity at temperatures up to 40 °C.
  • Pure sine wave output prevents failures and damage to connected sensitive equipment.
  • High peak capacity for the seamless switching on of complex and heavy loads.
  • MasterBus compatible.
  • Suitable for mobile applications.
  • Professional connections.
  • Automatic, reliable and safe operation.
  • Optional: Masterswitch/Systemswitch for automatic selection of the desired energy source.

Product Card


SKU 110450

Brand Mastervolt

GTIN 9319786326688

Product Category Power Inverters

Wattage (W) 1500

Temperature range -25 °C to 80 °C, derating > 40 °C -13 to 176 °F

Protection Degree IP23

Display/Read-Out LED Display

No Load Battery Draw 200 mA - 5 W

Cooling natural/forced

Dimensions 340mm x 261mm x 130 mm

Net Weight (kg) 6.2

Minimal DC Fuse (Slow Blow)* 100 A

High Battery Voltage, Switches on at 30V

Low Battery Voltage, Switches off at 19V

Output Voltage (+/- 5%) 230 V - 50 Hz (± 0.01 Hz)

Continuous Power at 40°C, Cos Phi 1 1200 W

Cos Phi all power factors allowed

AC Connection internal

Efficiency 92%

Harmonic Distortion Typical <5%

Input Current (Nominal Load) 68 A

High Battery Voltage, Switches off at 32V

Technology HF switch mode

Nominal Battery Voltage 24V

MasterBUS Compatible yes, using a MasterBus Inverter Interface or AC power analyser

Approvals CE, E-mark, ABYC A-31

Recommended Battery Capacity > 150 Ah

Protections over temperature, over load, short circuit, high battery, low battery

Minimal Cable Size 25 mm²

Max. Ripple on DC (battery) 5% RMS

Low Battery Voltage, Switches on at 22V

Peak Load 2900 W

Output Waveform true sine
