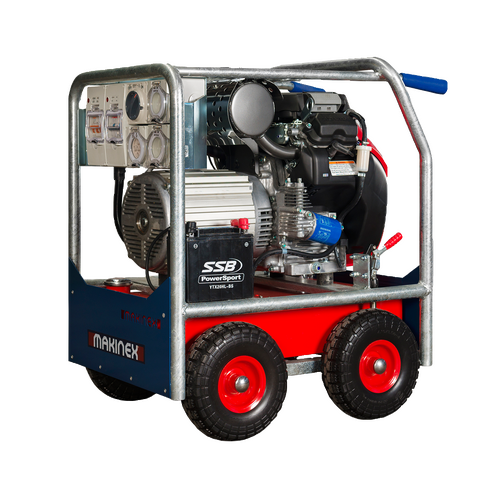

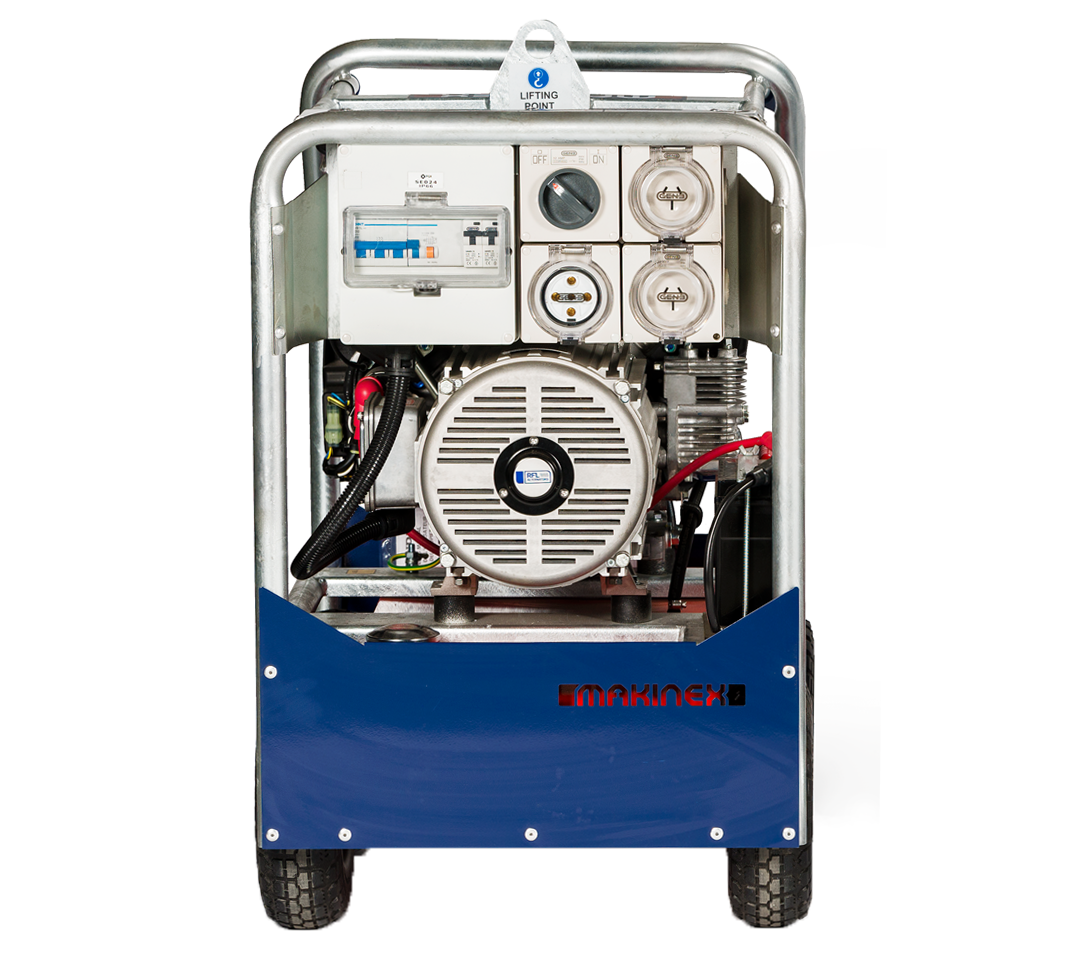

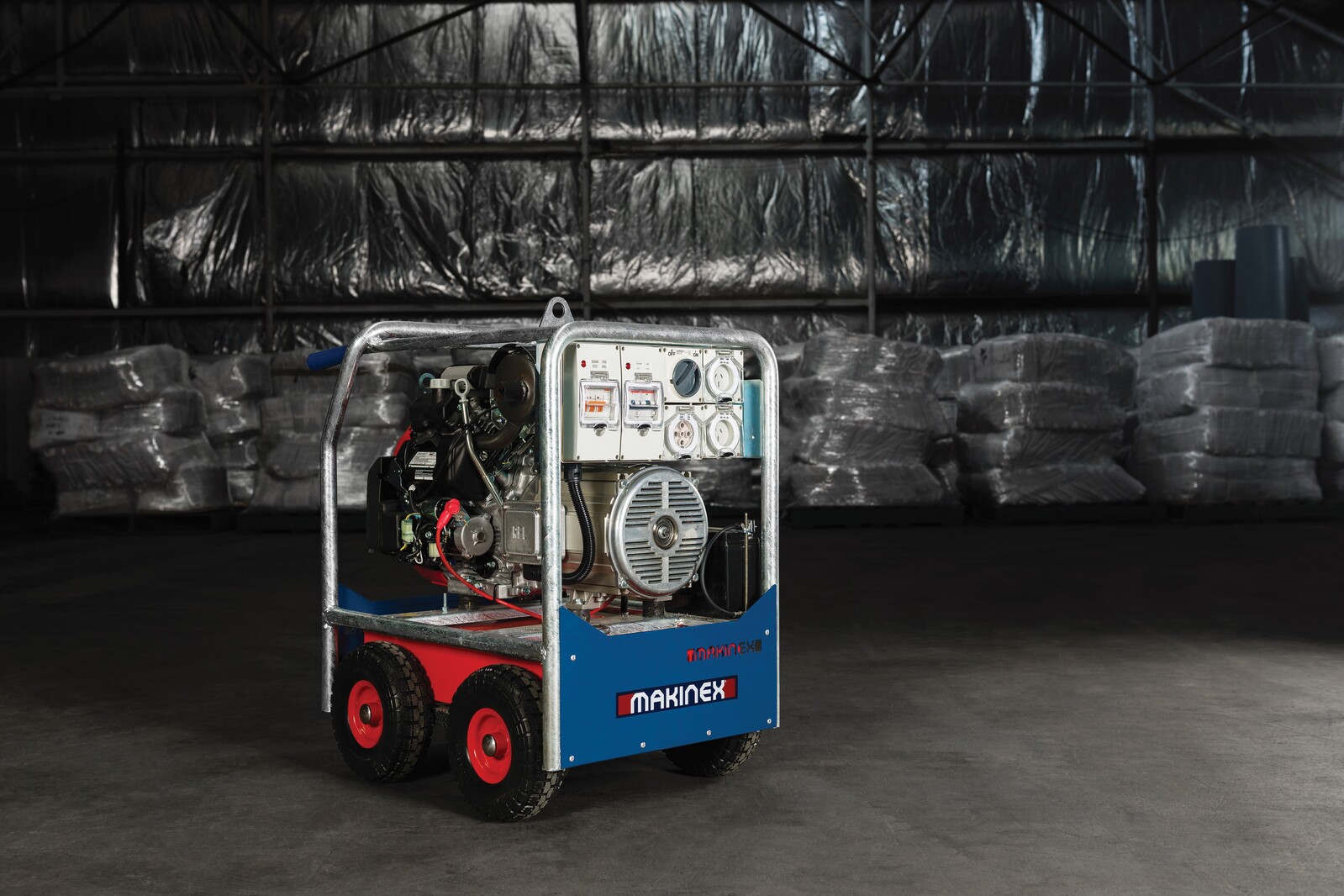

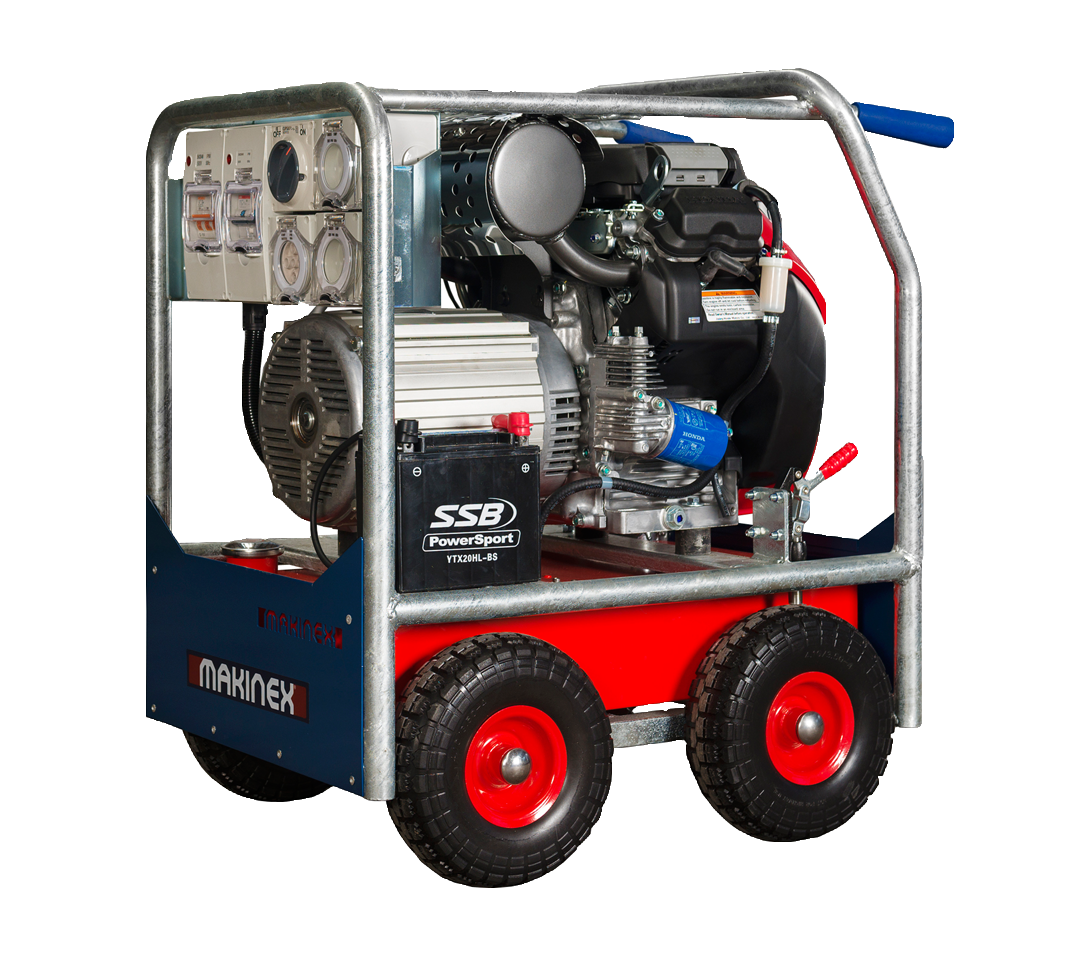

Makinex Honda Dual Phase 16 kVA Petrol Generator



Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Makinex Honda Dual Phase 16 kVA Petrol Generator with Electric Start, 1 Year Warranty. The 16kVA 240/415V generator is a compact, highly portable solution for powering any combination single phase 240V tools and 415V three phase tools such as floor grinding, welders, air compressors, brick saws, and for other power applications in the flooring and construction industries.

No more waiting for someone to rig-up 415V three phase power from the mains. With standard 240V and three phase outlets provided, you can plug in your equipment and get to work, without delay. And at only 156kg in weight the generator is easy to lift on and off the back of a your truck or equipment trailer.

The 16kVA 240/415V is designed for ease-of-use and convenience. For example it allows simultaneous operation of single phase and three phase equipment at the same time. There is no fiddling around with voltage selectors. Simply plug in your equipment to the correctly matched socket and go.

Our advanced alternators use rare-earth magnets and brushless magnetic flux technology which requires fewer electronic components. And this results in more power from a smaller package than comparable generators.

Four large wheels and pushing handles make it a cinch to move the generator from one work area to the next around your job site without the hazard, inconvenience and power loss you get with long power cables.

Top reasons for choosing Makinex generators

  • All Makinex products are designed and built to endure the rigors of the rental market.
  • Advanced alternator tech saves 15% fuel versus similar generators using the same engine.
  • Makinex stands behind its products with technical support, servicing and spares.
  • Designed for maximum convenience and ease for concrete, masonry and flooring pros.

Challenges on the Job

  • Access to 3 phase and single phase power source
  • Delays, waiting for 3-phase 415V power hook-up
  • Getting the required outlets close to your work
  • 3-phase 415V in a simple plug and play format

Solution Benefits

  • Highly portable, 3-phase 16kVA 240/415V generator
  • 3-phase and single phase outlets on same machine
  • Runs light and heavy duty equipment all together
  • Reliable Honda GX690 4-stroke petrol engine
  • High frequency and induction load gear compatible


Product Card

Product Brochure

Product Manual



Brand Makinex

Warranty Period: 1 Year + 3 Years Engine

Product Category Portable Generators

kVA 16

Max Output (Watts) 14,000W / 16kVA

Continuous Output (Watts) 12,800W

Rated Power Factor 0.8

Fuel Tank Capacity 34 Liters

Starting Method Key Start

Engine Type Twin cylinder Air Cooled Petrol

Displacement 688cc

Noise @ 7m NO LOAD - 72dB

Engine Honda GX690

Engine Warranty 3 Years | Warranty Note: Service must be carried out by registered Honda service agent. Please see warranty tab for more information.

Frequency 50Hz

15Amp Outlet Single Phase 15A @ 240V

Voltage 240V Single Phase; 415V Three Phase

Product Dimensions (mm) LxWxH 773mm x 530mm x 902mm

Net Weight (kg) 155


Makinex 16kVA generator


Makinex Power Generators


Makinex 16kW 240V LA Concrete Polishers


Makinex 16kw Three Phase Single Phase Generator


Makinex 16kw 240V Powering Diamatic Grinder and Polisher


Makinex 16kVA Generator - portable & powerful


Two Makinex 16kW Paralleled to run a Duratiq HTC Grinder and Ermator 8600 Vac with +250 feet of cord


Fog Cannon run by a Makinex Generator at Herc Rentals


16kw 480V Fog Cannon Demo


Portable 16kVA Generator powering floor grinder & dust extractor


16kw 240V Generator Demo


Diamatic and the Makinex 16kW 240V Generator


Makinex 23kVA vs Big Box Generator


Product Q&A

Ask Us a Question
  • What size cable will I need to connect my 200W solar panel to the Victron SmartSolar MPPT 100/20 - 12/24/48V Charge Controller?

    You can use 6mm² cable

  • What is the total harmonic distortion rating for this generator?

    Hi There

    They have a harmonic distortion of less than 3%, meaning they are ideal for high-frequency applications.
