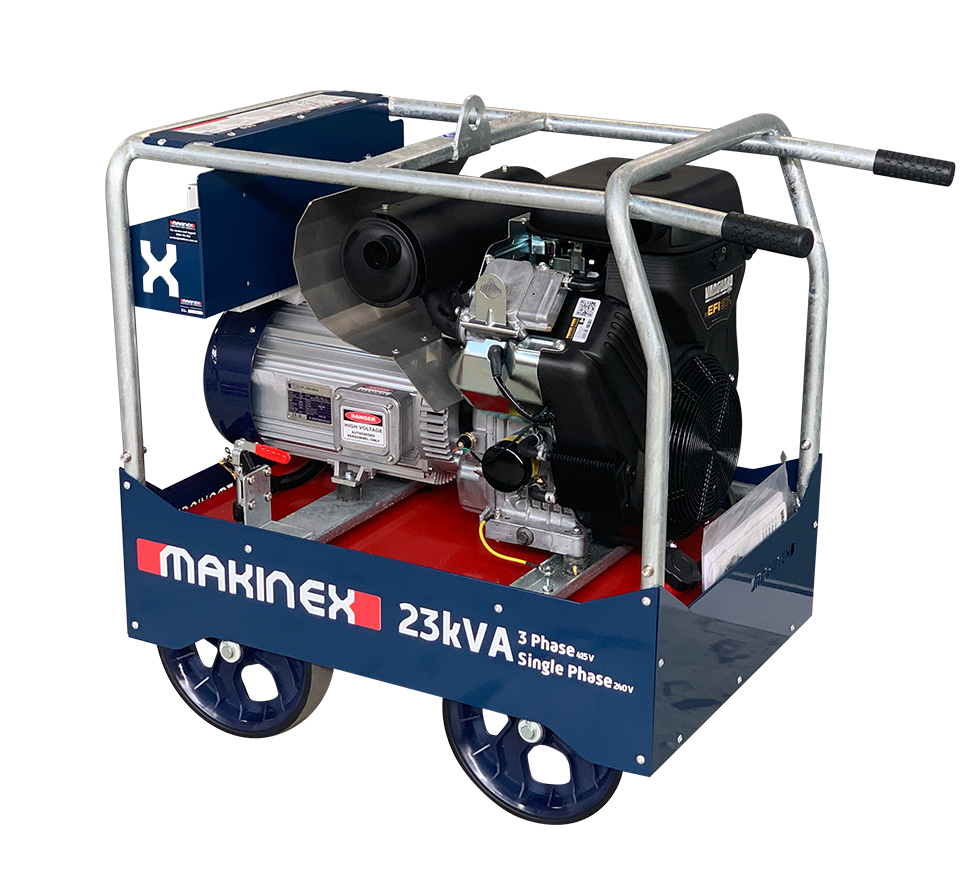

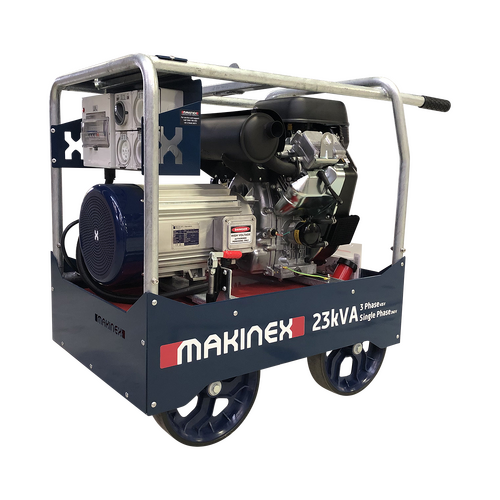

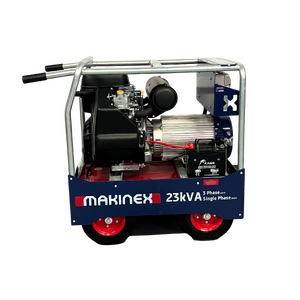

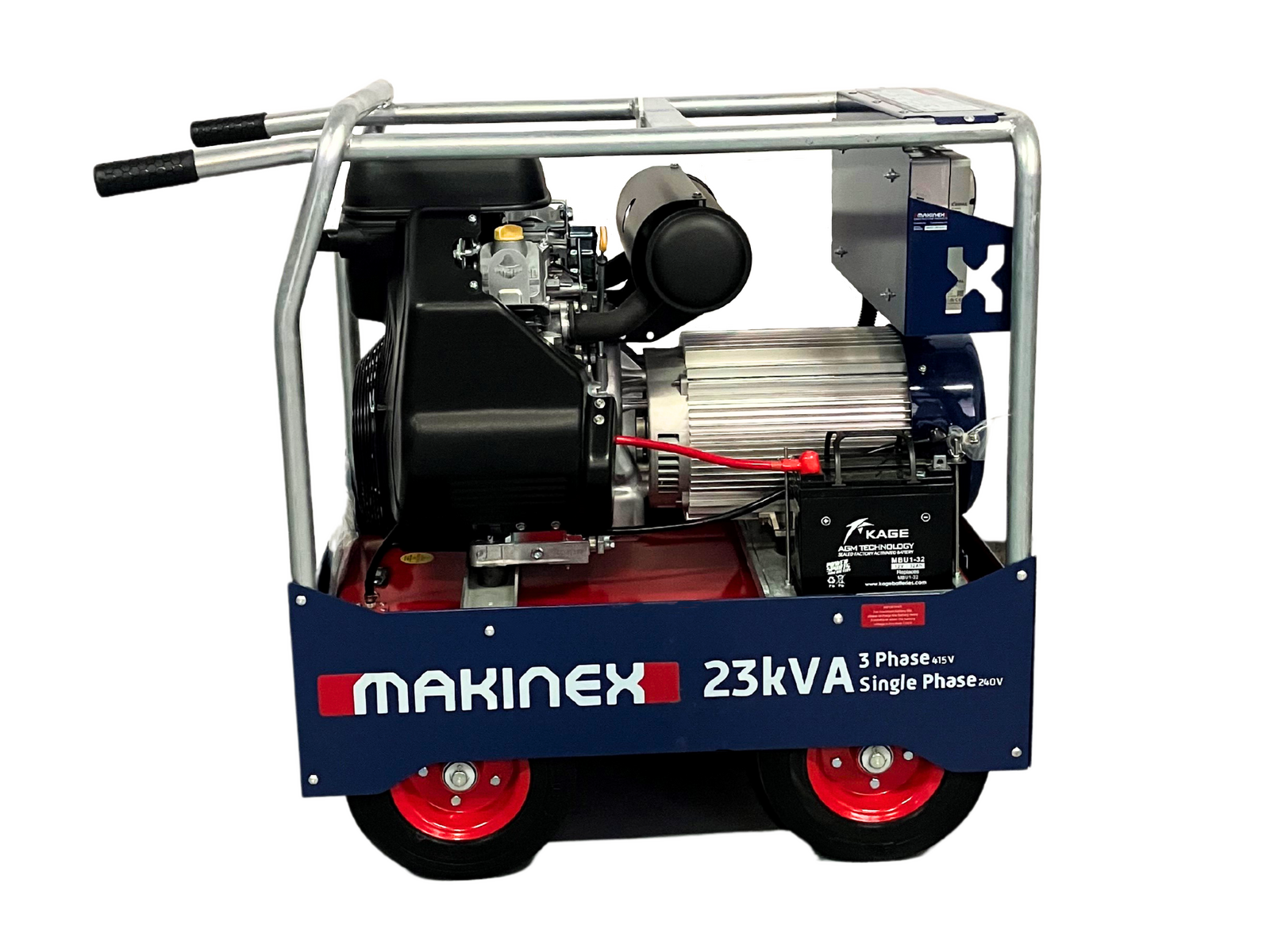

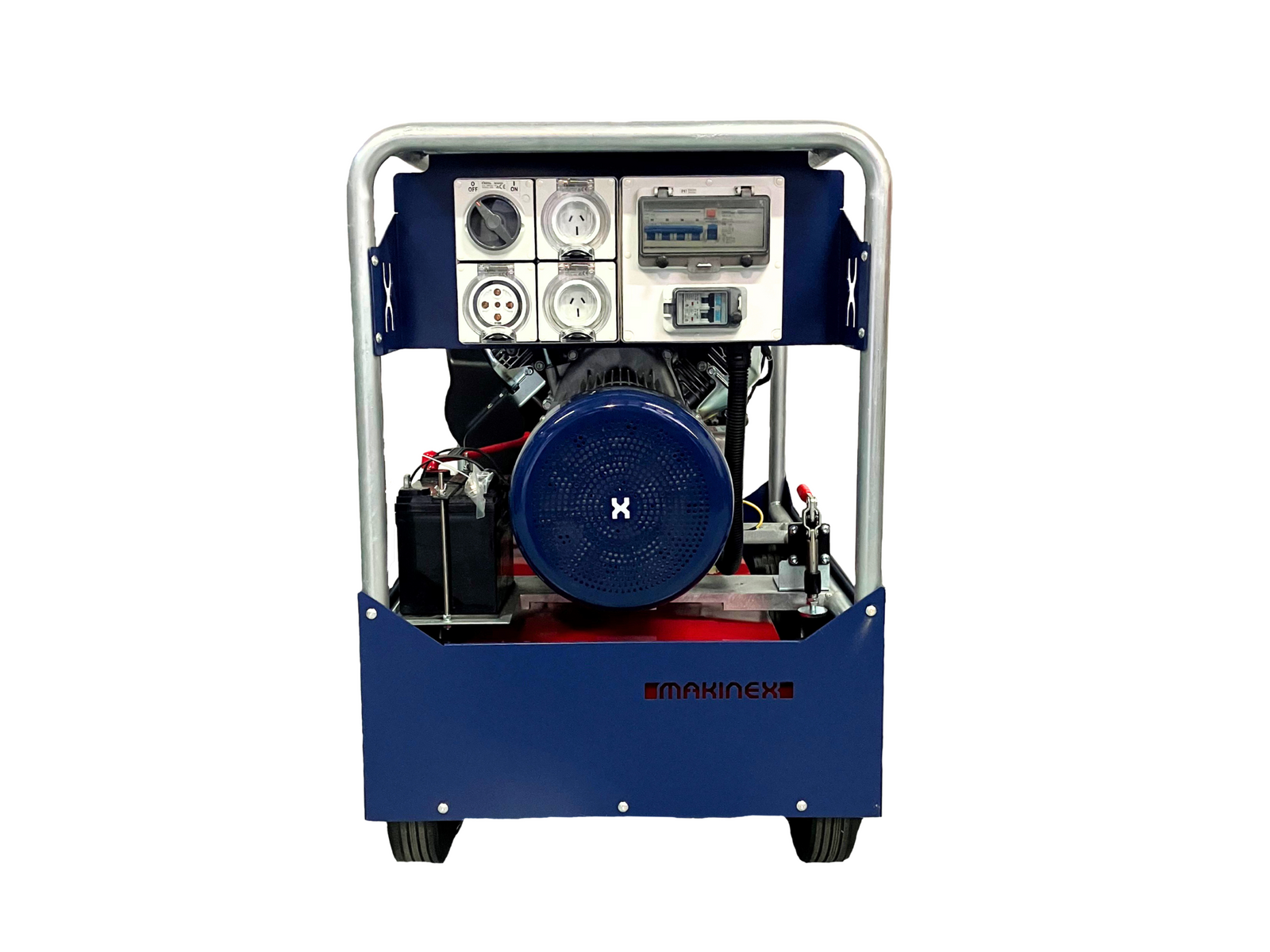

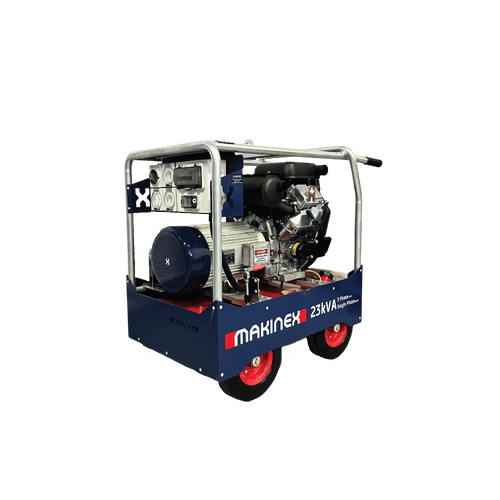

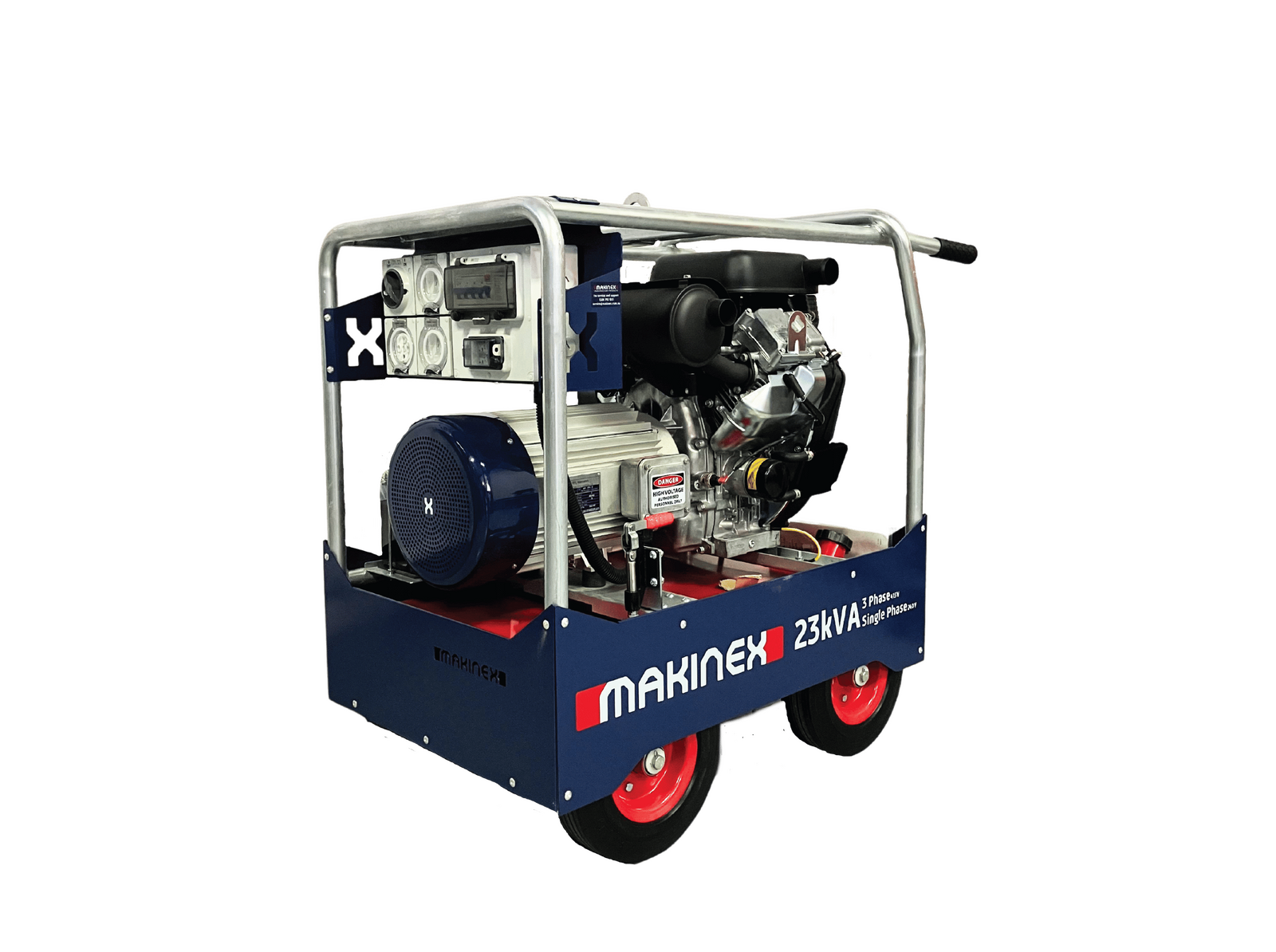

Makinex Briggs & Stratton Dual Phase 23 kVA Petrol Generator



Learn More»
Built to Order Approx. 3-4 Weeks Express Shipping Price Match Guarantee Customer Reviews

Product Description

Makinex Briggs & Stratton Dual Phase 23 kVA Petrol Generator with Electric Start, 1 Year Warranty. Less than one third the size and weight of comparable towable and SKID generators, the 23kVA is the world’s smallest 3-phase 415V generator in its class. This is a game-changer for power-hungry contractors and tradesmen in the concrete, masonry and flooring industry.

Avoid all the hassle of a cumbersome heavy-duty generator parked at the curb. The 23kVA 415V is so small it fits in your equipment trailer or truck, and gets through standard doorways. So, you can put it right where it is needed, and eliminate the hazard and power loss of long cables.

The 23kVA uses permanent-magnet brushless alternator technology. This guarantees clean 415V three phase power and robust power supply.

These advanced alternator features yield 15% more power from the same engine, than is possible with conventional copper wound alternators, while requiring fewer electronic components. This makes for less wear and tear and a longer lifespan.

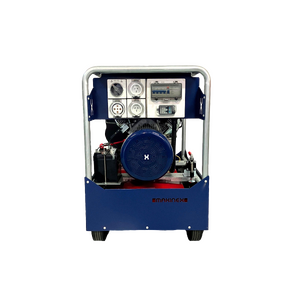

Equipped with industry standard 32A 3 phase and 15A single phase outlets, the 23kVA 415V can power multiple pieces of single phase and 415V three phase equipment at the same time with no requirement for voltage selection. Just plug equipment into the right outlet and power it up!

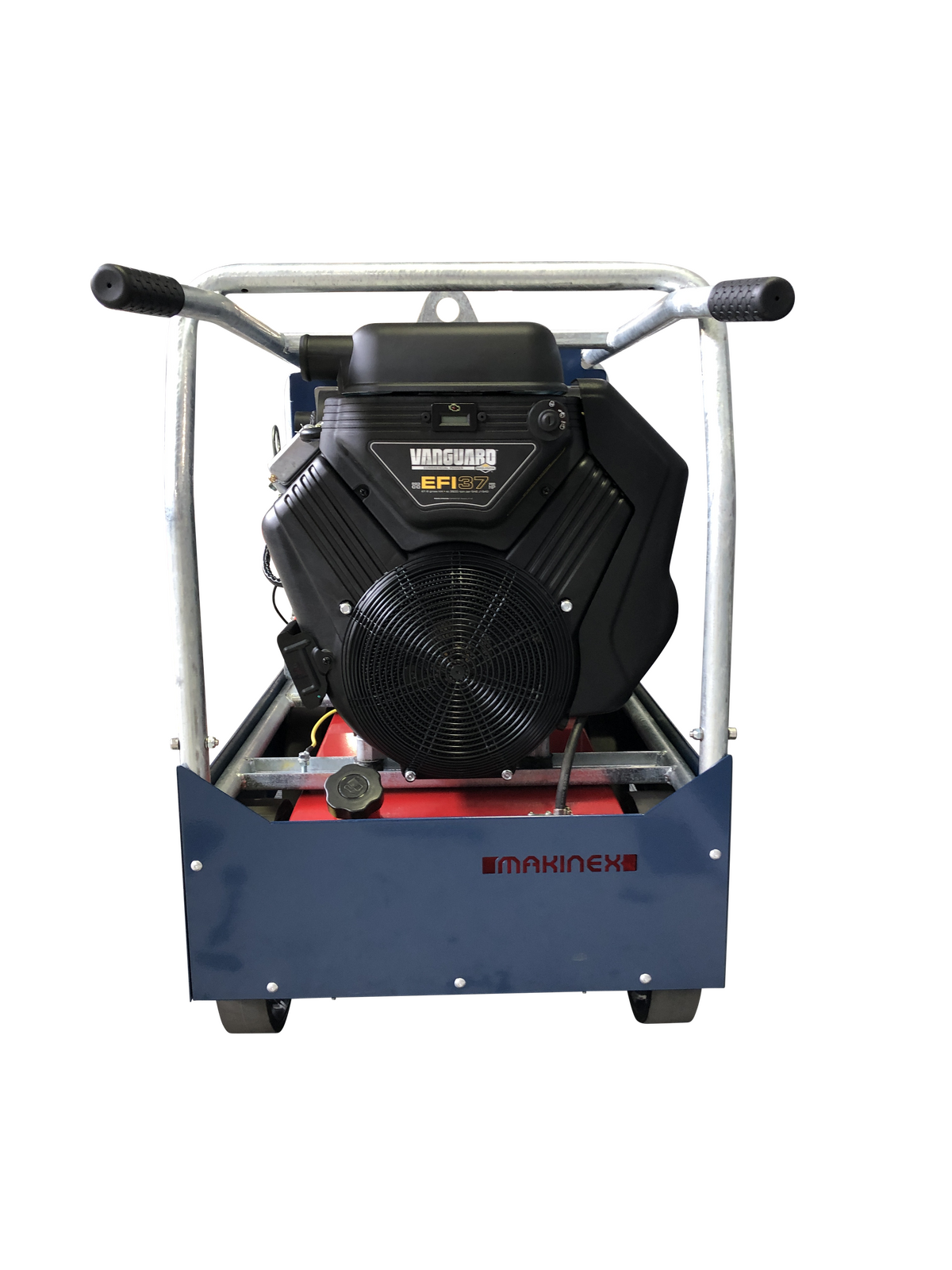

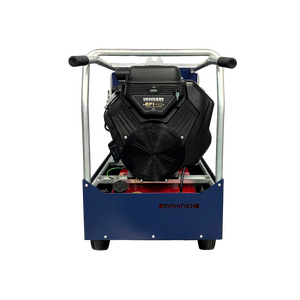

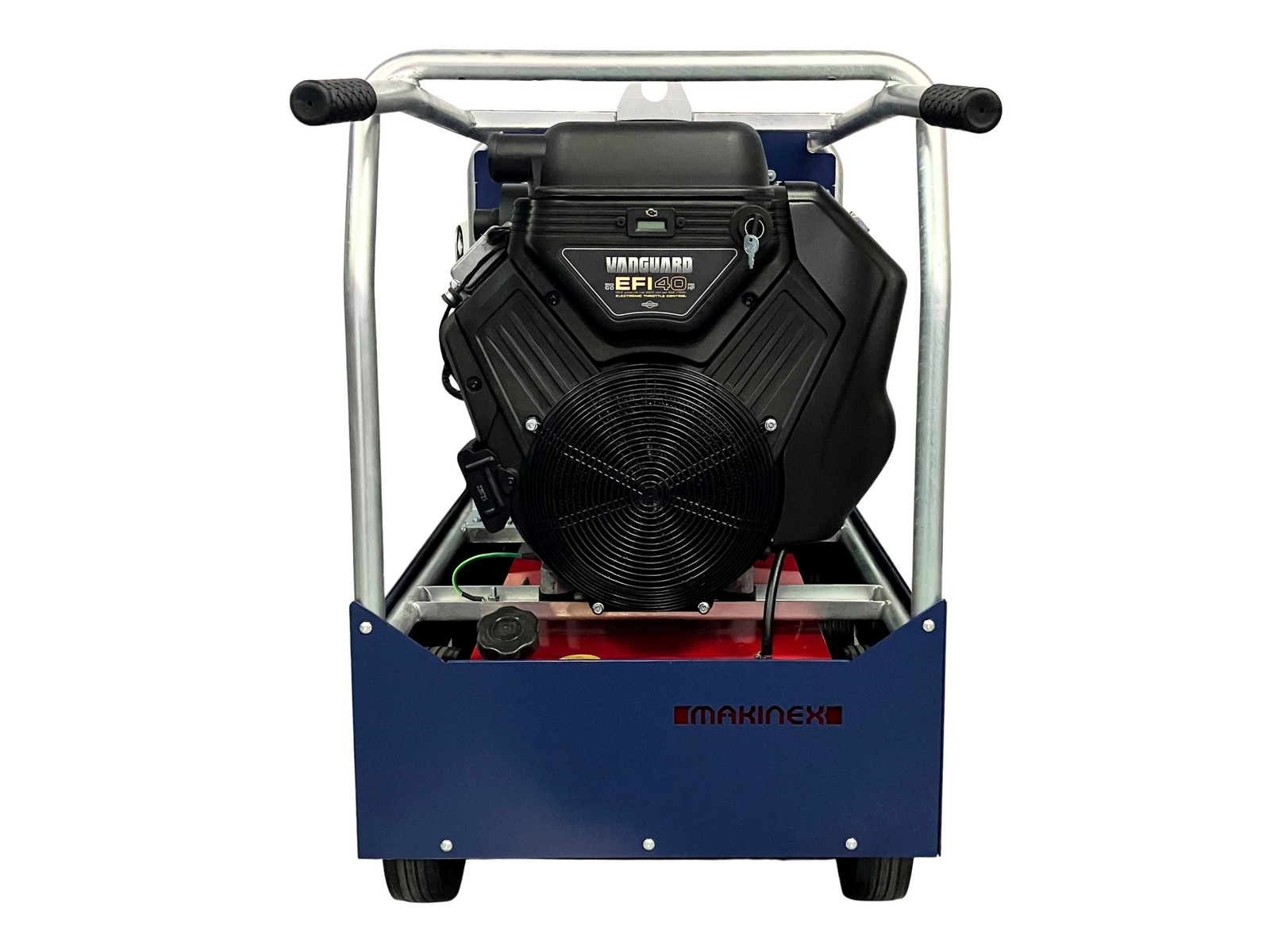

Powered by the Briggs & Stratton VANGUARD™ V-Twin OHV horizontal engine, you can be sure of great fuel economy, low emissions and a perfectly balanced engine with low vibrations.

Top reasons for choosing Makinex generators

  • All Makinex products are designed and built to endure the rigors of the hire market.
  • Advanced alternator tech saves 15% fuel versus similar generators using the same engine.
  • Makinex stands behind its products with technical support, servicing and spares.
  • Designed for maximum convenience and ease for concrete, masonry and flooring pros.
Challenges on the Job
  • Curbsite power is inconvenient and expensive
  • 5% loss in voltage every 100ft of long cables
  • Getting clean 30A 415V power close to work area
  • Towing generator to site or having it delivered
Solution Benefits
  • Light and small enough to carry on your truck
  • Single and 3-phase power generation
  • Powers 240V and 415V equipment at the same time
  • Simultaneous single and three phase operation
  • Highly portable, thanks to four large wheels
  • High frequency and induction load gear compatible


Product Brochure

Product Manual



Brand Makinex

Warranty Period: 1 Year + 3 Years Engine

Product Category Portable Generators

kVA 23

Max Output (Watts) 19000W

Continuous Output (Watts) 18000W

Rated Power Factor 0.8

Fuel Tank Capacity 50 L

Starting Method Key Start

Noise @ 7m 50% LOAD - 80dB

Engine Vanguard EFI 37hp

Engine Type Twin cylinder Air Cooled Petrol

Frequency 50Hz

Net Weight (kg) 240

Engine Warranty 3 Years | Warranty Note: Service must be carried out by registered Honda service agent. Please see warranty tab for more information.

Voltage 240V / 415V

Product Dimensions (mm) LxWxH 1105mm x 632mm x 1024mm


Makinex 23kVA Generator


Makinex Power Generators


Makinex 23kVA Generator


Makinex 23kVA vs Big Box Generator


Makinex 23kVA Power Generator


Portable 23kw 480V Generator


Makinex 23kW 480V Running Husqvarna 830 S and HTC 80


Makinex 23kVA generator running Brokk demolition equipment


23kW 480V Generator with 300+ of cord


23kW 480V Running HTC & Sase
