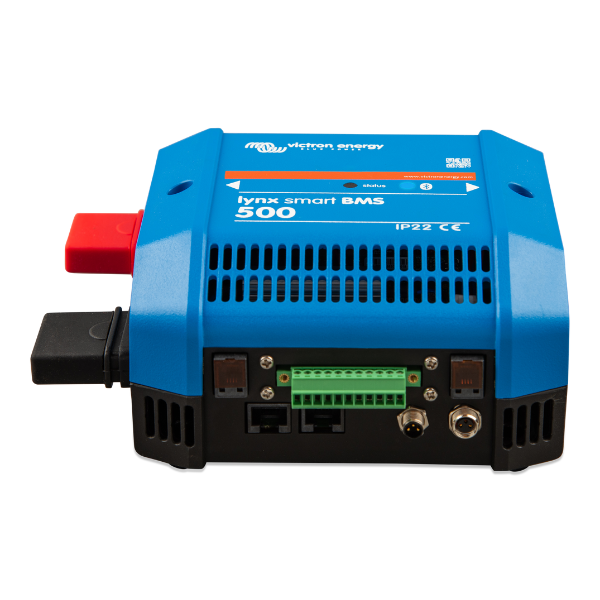

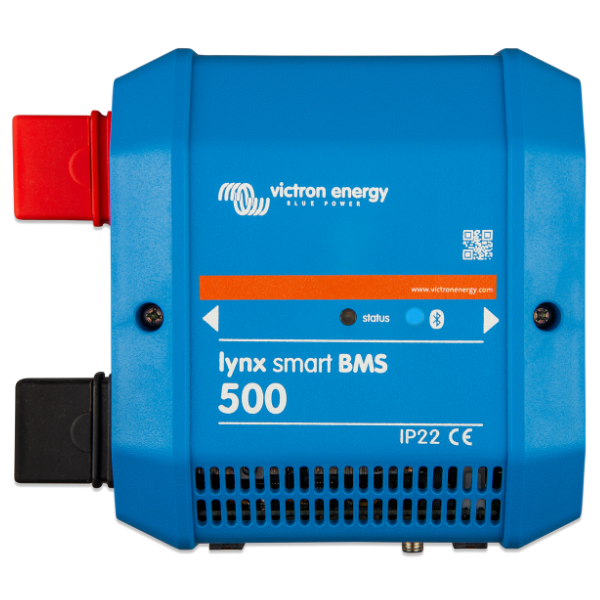

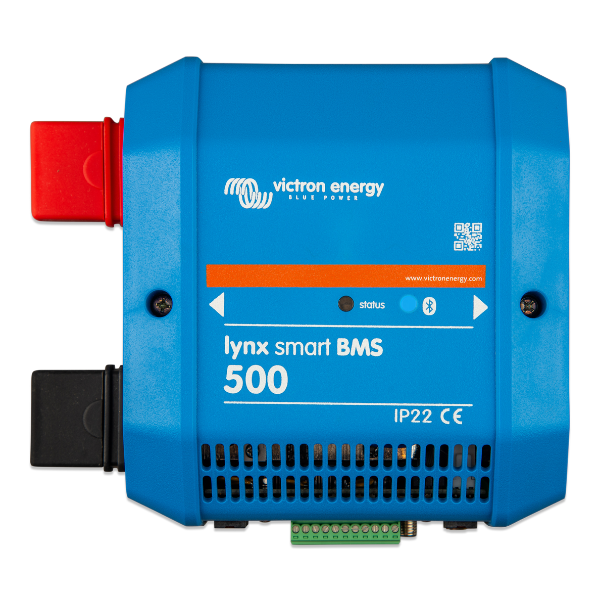

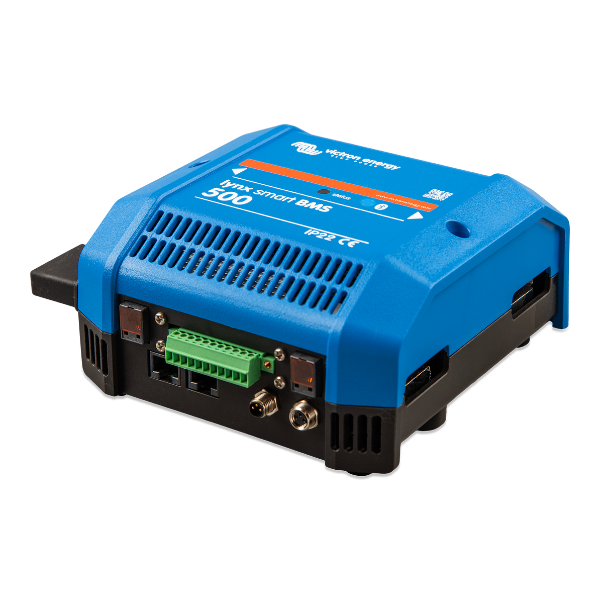

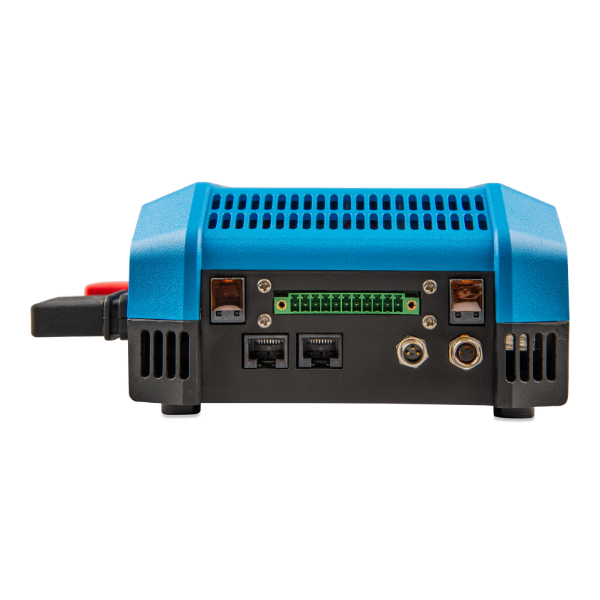

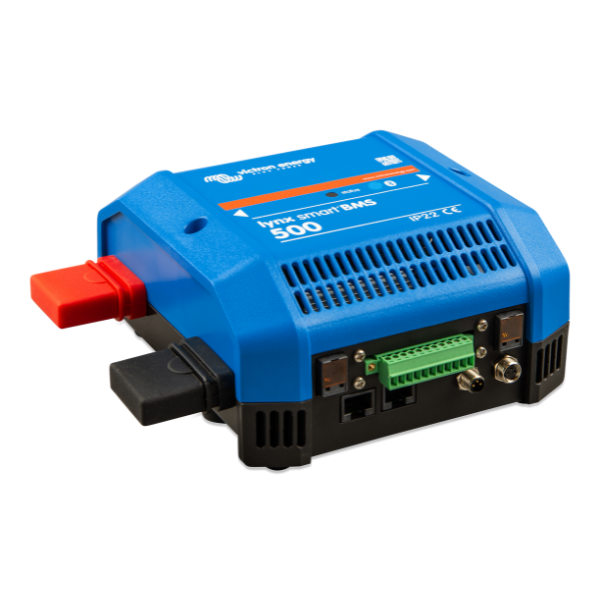

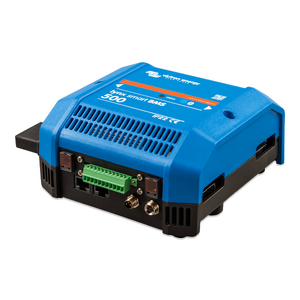

Victron Lynx Smart BMS 500 (M10)
SKU: LYN034160210 Learn More»
Product Description
Victron Lynx Smart BMS 500 (M10), 5 Year Warranty. The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. It is available in two versions: 500A and 1000A (both with M10 busbar connections).
The main features are:
- Built-in 500A or 1000A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch.
- Battery monitor, indicating state of charge percentage and more data.
- Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
- Bluetooth for use with VictronConnect app, for setup and monitoring, including Instant Readout - key data of the BMS at-a-glance.
- Local and remote monitoring using a Victron GX device, for example the Cerbo GX or Ekrano GX.
The Lynx Smart BMS is part of the modular Lynx Distribution system.
.png)
Specifications
SKU LYN034160210
Brand Victron
Warranty Period: 5 Years
Product Category Batteries Other
Dimensions 190 x 180 x 80 mm
Humidity Max 95Â % (Non-Condensing)
Weight (kg) 1.9
Operating temperature range -40°C to +60°C
Battery Voltage Range 9-60 VDC
Protection Class IP22
Storage Temperature Range -40 °C to +60 °C
