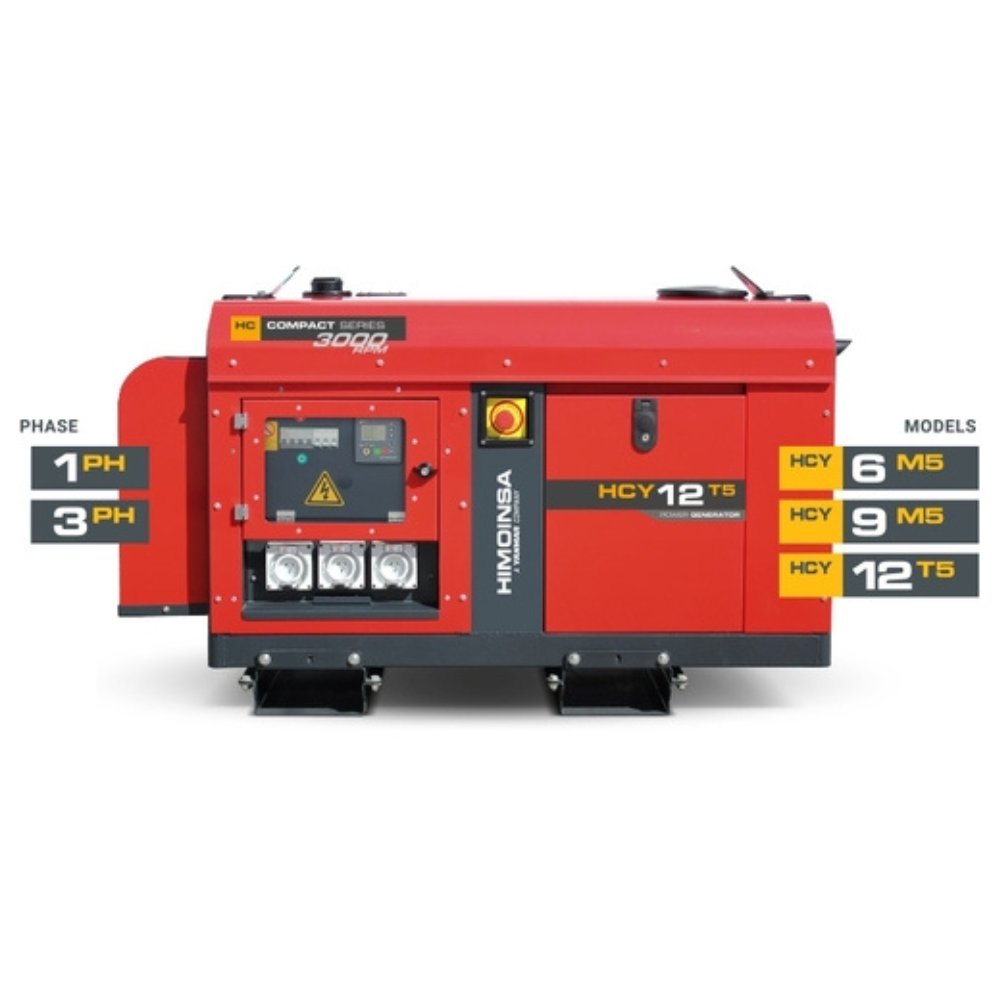

Himoinsa 8.6kVA Yanmar Compact Single Phase Diesel Generator

SKU: HCY-9M5 Learn More»



Express Shipping Price Match Guarantee Customer Reviews

Product Description

Himoinsa 8.6kVA Yanmar Compact Single Phase Diesel Generator, 1 Year Warranty. This is powered with Yanmar’s economical & reliable 3TNM68HHFCG diesel engine and backed by a full manufacturers warranty ensuring you peace of mind.

Himoinsa HCY-9 M5 Compact Series diesel generator comes packed with the following features and is the ideal solution to integrate with your solar, battery and inverter system as well as for use in agriculture, mining & construction applications.


  • Rated 8kVA prime, 8.6kVA standby, 50Hz, Single Phase, 240V, 1.0PF
  • Yanmar diesel with superior durability & fuel economy, 2 pole 3,000RPM.
  • Quality 2 Pole AC alternator, single bearing closed coupled with voltage regulator with +/-1%
  • Enclosure Sound Level: 69dB(A) @ 7m
  • 2 point lifting frame – Fork lift pockets,
  • Control panel viewing window & vertical air discharge with integral exhaust.
  • 38.9 litre bunded fuel tank 10.3 hour run time (at 100% load).
  • Engine Alternator mounted to base frame via anti vibration mounts.
  • Set mounted control panel containing key start / remote start controller and circuit breaker.
  • The Himoinsa M5 generator controller provides a LCD display with comprehensive engine & alternator parameters display with shutdown protection.
  • Heavy duty battery, battery leads, isolator and hold down brackets.
  • Battery charger for standby operation, requires an external 240v power supply.
  • 3 x 15amp IP66 – RCD/MCBO protected outlets.



Brand Himoinsa

Warranty Period: 1 Year

Product Category Himoinsa Generators

Standby kVA 8.6

Phase Single

kVA (Max Power) 8

Net Weight (kg) 403

Dimensions 1530 x 930 x 780mm

15Amp Outlet Single Phase 3x IP66 – RCD/MCBO protected outlets.

Voltage 240V

Max Output 8.6

Noise Level (dB @ 7m) 69dB(A) @ 7m

Fuel Type Diesel

Weight (kg) 430

Engine Make YANMAR - 3TNM68 HHFCG
