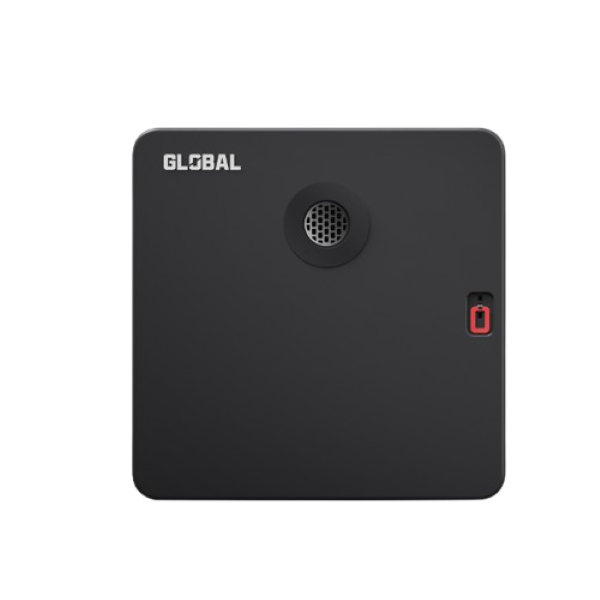

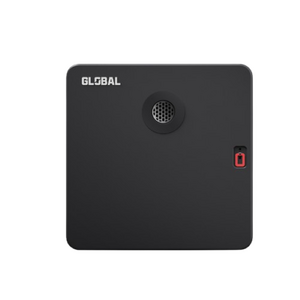

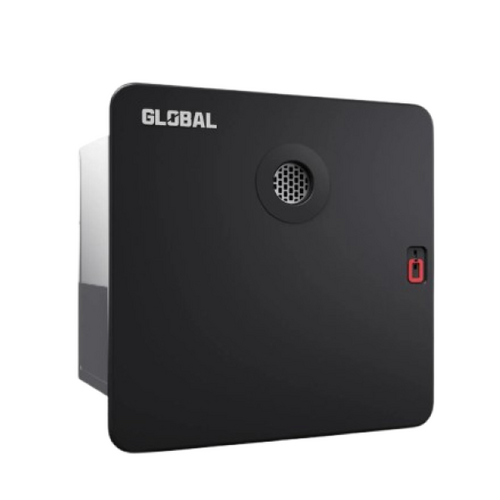

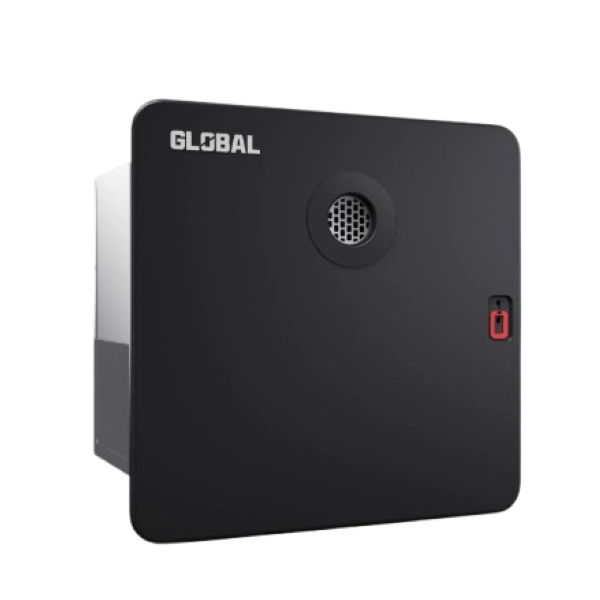

Global Heritage Instant Hot Water System

SKU: WCG146 Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Global Heritage Instant Hot Water System, 2 Year Warranty. Experience Instant, Efficient, and Worry-Free Hot Water.

Upgrade your hot water system with our compact, lightweight, and tankless solution designed for maximum performance and efficiency. Delivering instant hot water on demand, this system uses up to 90% less energy than traditional storage systems, saving you money while reducing your carbon footprint.

Engineered to fit standard cut-outs, installation is seamless and highly flexible thanks to its 45.5MJ/h rating, which ensures optimal gas pipe sizing, superior temperature stability, and excellent performance even in low ambient temperatures.

Features:

Instant Hot Water
Easy Installation - Standard plumbing
User friendly control panel
Hinge door for easy access
Modern Design
Integrated gas regulator

Specifications:

Dimensions (WxDxH): 390 x 390 x 418mm
Cut out size (WxD): 330 x 330mm
Net Weight: 9.3kg
Power Input: DC 12V, 36 W
Energy Consumption: 45.5MJ/h
Fuel: Universal LPG
Inlet Gas Pressure: 2.75 Kpa
Water Operating Pressure: 0.8 Mpa Max
Min. Water work pressure: 0.15 Mpa
Water Temperature: 5°C to 50°C
Capacity: 5.8 L/min (Temp rise 25 °C )
Heat Output: 9.8kW

Go to: Product Details

Go to: Reviews

Specifications

SKU WCG146

Brand Global Heritage

Warranty Period 2 Years

Product Category RV Heaters and Hot Water

Dimensions 390 x 390 x 418 mm (W x D x H)

Weight (kg) 9.3

Gas consumption 45.5 MJ/h

Power Supply 12V DC

Gas pressure 2.75 kPa

Maximum water pressure 0.8 MPa

Power Consumption 36W

Cut-out Dimensions 330 x 330 mm

Gas Type Universal LPG

Heat Output 9.8kW

Minimum Operating Water Pressure 0.15 MPa

Water Temperature Range 35°C - 50°C

Hot Water Capacity 5.8 L/min (25°C temperature rise)

Go to: Specifications

Go to: Reviews

Product Q&A

Ask Us a Question

How far away can I mount the digital wall controller?

The included digital wall controller can be mounted up to 5 metres away from the main unit using 2-core 18-gauge wiring.
Does the unit have an internal safety timer system?

Yes it does! The unit will automatically shut off and display an error code if the hot water runs continuously for longer than 20 minutes.
Can I install a mesh bug screen over the vent?

No. Bug screens block necessary airflow, which causes system fault codes (Error E8/E9) and voids your warranty.
How does it handle extremely cold water in winter?

When incoming water is below 7°C, the heater needs extra time to warm it up. To get hot water, slow the flow rate down by partially turning down your hot tap or adjusting the manual Water Control Valve on the back of the unit.
Does it have built-in freeze protection?

Yes. The thermostat turns the burner on at 3°C and off at 14°C. Requires active 12V power and LPG.
Can I install a mesh bug screen over the vent?

No. Bug screens restrict airflow, trigger Error E8/E9, and void the warranty.
How does it handle extremely cold water in winter?

Below 7°C incoming water, reduce flow so the burner has time to heat. Adjust the manual Water Control Valve on the back or partially close your tap.
Does it have built-in freeze protection?

Yes. The thermostat turns the burner on at 3°C and off at 14°C. Requires active 12V power and LPG.
