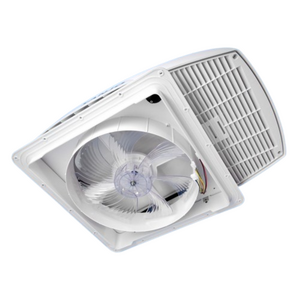

Freucamp Plus Fan with Rain Dome / Thermostat / LED / Blind (356mmx356mm) - White

Product Description

Freucamp Plus Fan with Rain Dome / Thermostat / LED / Blind (356mmx356mm), 2 Year Warranty. The Freucamp Plus Fan is a powered 12V roof vent for caravans and RVs, combining a 10-speed reversible fan, electronic lid lift and thermostatic Auto mode. Use the fan to draw fresh air in or exhaust heat and odours; in Auto mode it opens and exhausts when the measured temperature rises 2°C above the set point, then stops and closes when it falls 2°C below.

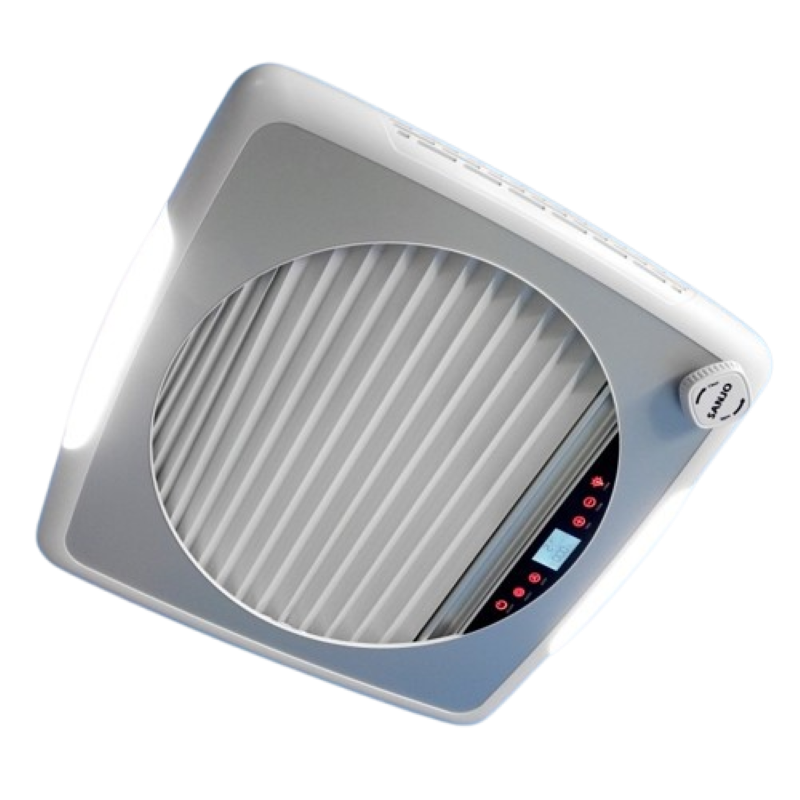

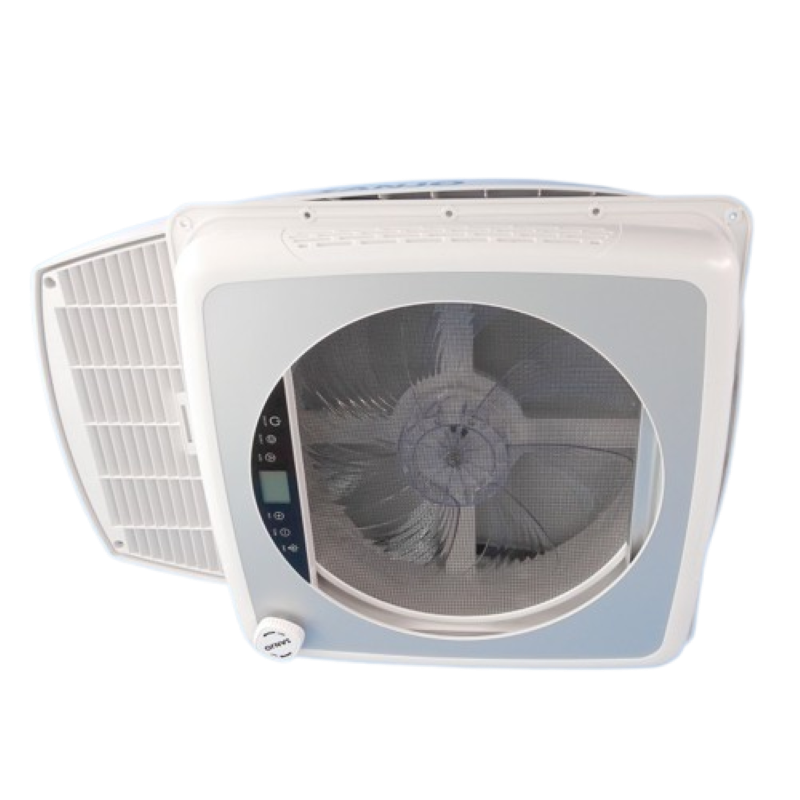

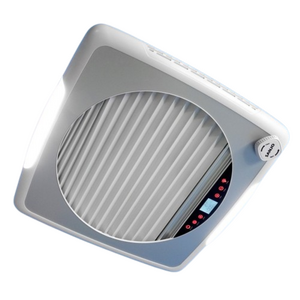

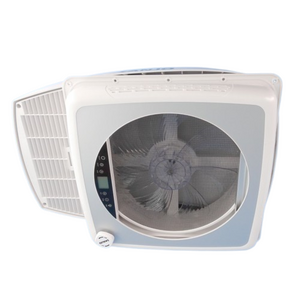

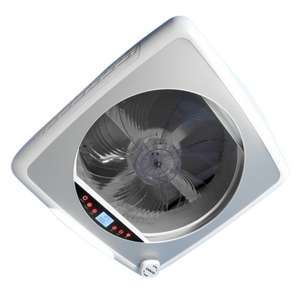

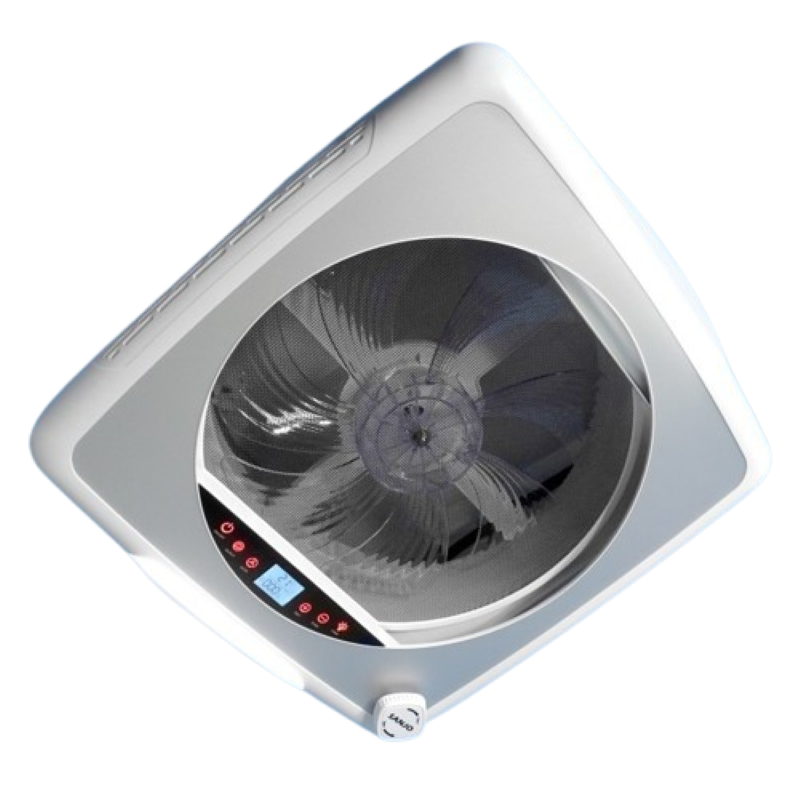

Operation is from the interior touch controls or supplied remote. The white rain dome, insect screen, block-out blind and warm white LED light are integrated into the assembly. The lid can also be opened or closed manually with the hand knob, with the power switched off before manual operation.

This variant requires a 355 x 355 mm nominal 14-inch roof opening and suits roof thicknesses from 27 to 80 mm. It connects to 12V DC with red positive and black negative wiring. The opening needs at least 30 mm of sound supporting roof structure around it, and the manual specifies MS-type sealant at the mounting frame. Allow for the 182 mm maximum open height, and do not leave the lid open in strong wind or heavy rain.

Features:

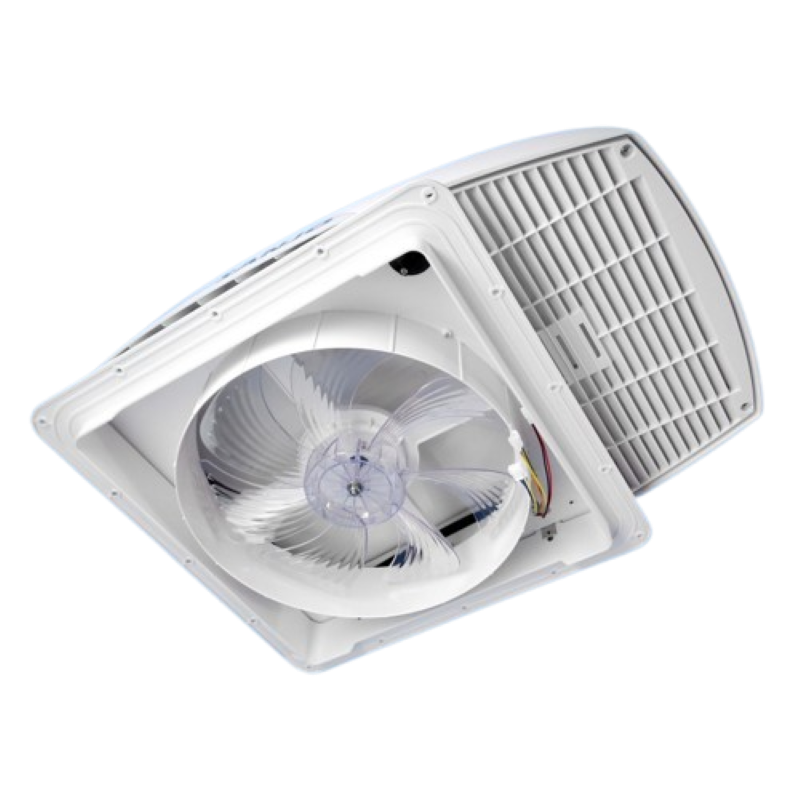

• 10-speed brushless fan for adjustable ventilation
• Reversible airflow for fresh-air intake or exhaust operation
• Thermostatic Auto mode electronically opens, exhausts, stops and closes around the selected temperature

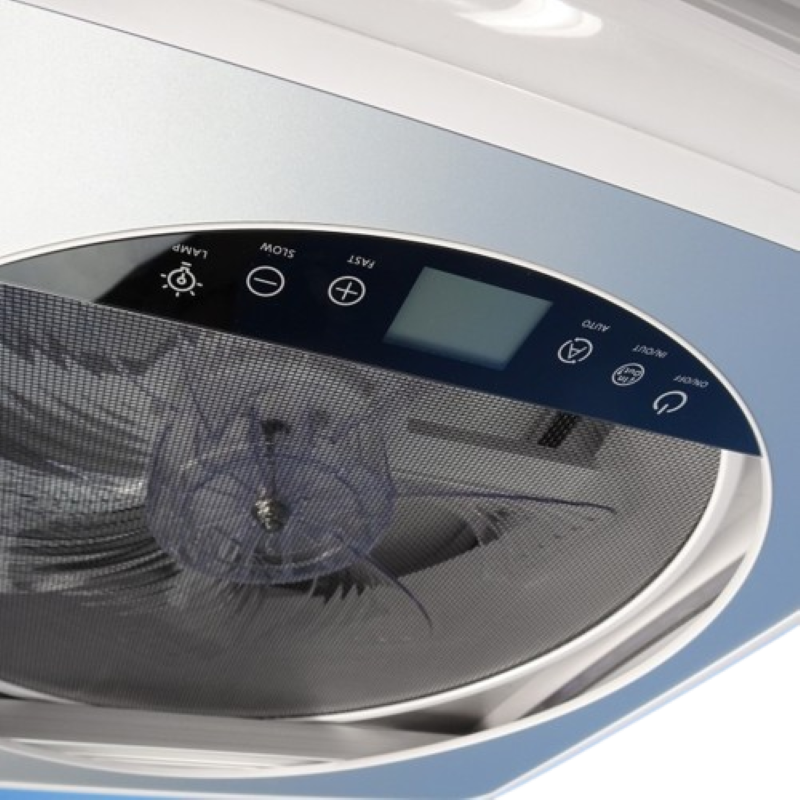

• Interior touch controls and supplied LCD remote control
• Electronic lid lift with manual hand-knob operation available when powered off
• Integrated warm white LED light, block-out blind and insect screen

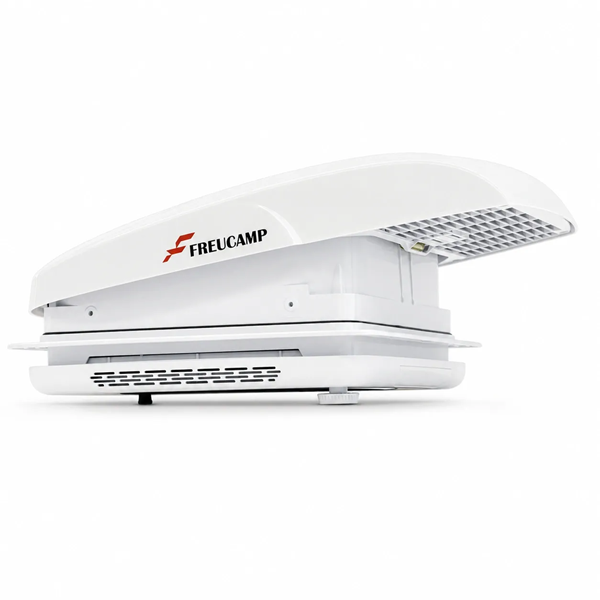

• Rain-dome design provides weather shielding around the vent
• Fan-blade obstruction, lid obstruction and out-of-range voltage protection

Specifications:

• Colour: Clear, White or Black

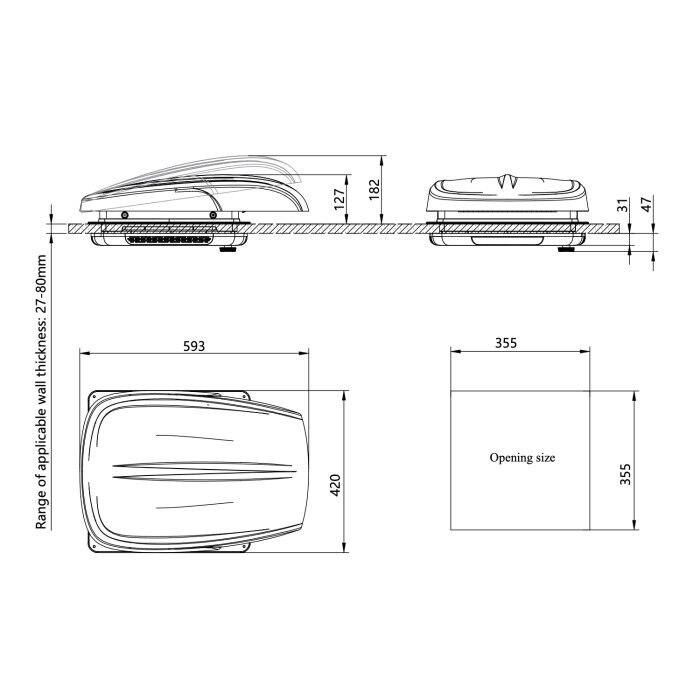

• Cut-Out: 355 x 355 mm (nominal 14-inch)
• Rooftop Footprint: 420 x 593 mm
• Height: 127 mm closed / 182 mm maximum open
• Internal Garnish: 400 x 400 x 47 mm
• Suitable Roof Thickness: 27-80 mm
• Normal Voltage: 12V DC
• Operating Voltage Range: 9-16V DC
• Maximum Current: 1.6A operating / 2.0A locked rotor
• Maximum Power: 24W total at maximum fan speed with full lighting
• Maximum Ventilation: 3000 m³/h
• Noise at Speed 4: ≤29 dB exhaust / ≤32 dB intake
• Noise at Speed 10: ≤47 dB exhaust / ≤53 dB intake
• Weather Protection Rating: IPX4
• Auto Temperature: 26°C fixed from control panel; -2°C to 40°C adjustable by remote
• Drive Shafts Supplied: 120 mm for 27-47 mm roofs; 140 mm for 48-67 mm roofs; 160 mm for 68-80 mm roofs
• Supplied With: remote control and base, drive shafts, spring, lampshades, mounting screws and cable tie
• Remote Batteries Required: 2 x AA
• Minimum Supporting Structure Around Opening: 30 mm wide
