Fiamma Kit Bars DJ Crafter (17-On), Deep Black with Carrier Support Bars. 08753-01-

Product Description

Fiamma Kit Bars DJ Crafter (17-On), Deep Black with Carrier Support Bars. 08753-01-, 1 Year Warranty. Fiamma bike carrier to fit Fiat Ducato, Peugeot Boxer and Citroen Relay / Jumpers vans and Campervans from 2006 onward. Fits to H2 and H3 vans with double rear doors but DOES NOT FIT 270° hinge system.

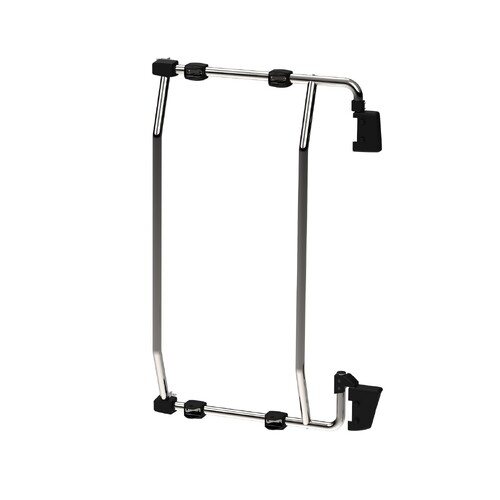

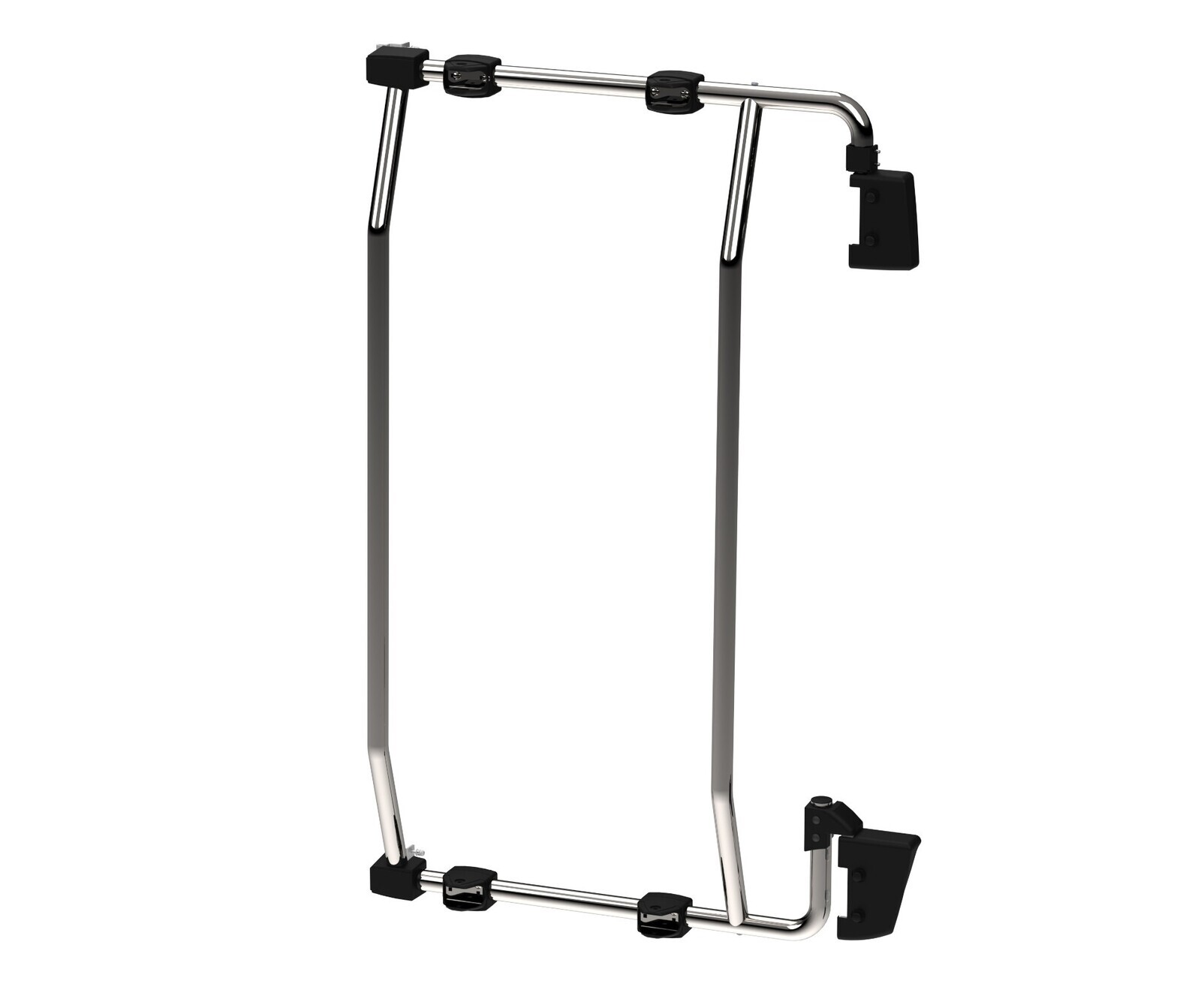

This listing includes the Fiamma Kit Frame Ducato (08753-01-) which is the vehicle specific mounting frame in Stainless Steel, and Fiamma Carry Bike Frame in Aluminium (02096-35-) which is the part the bikes are loaded on.

Carry Bike Frame Ducato carries 2 bikes as standard but, because it mounts to the door frame rather than the door itself, it is suitable for carrying 2 E-bikes or can be upgraded to carry 3 bikes by purchasing the additional rail and bike Block arm. The Fiamma Carry Bike Frame Ducato has a total weight capacity of 50kg.

The bike support rails can be set to 3 different heights (standard, medium and low) to make lifting the bikes onto the rack easier. In the medium and lower position you will need a License Plate Carrier or trailer board as the bikes can obstruct the vehicle number plate and running lights.
