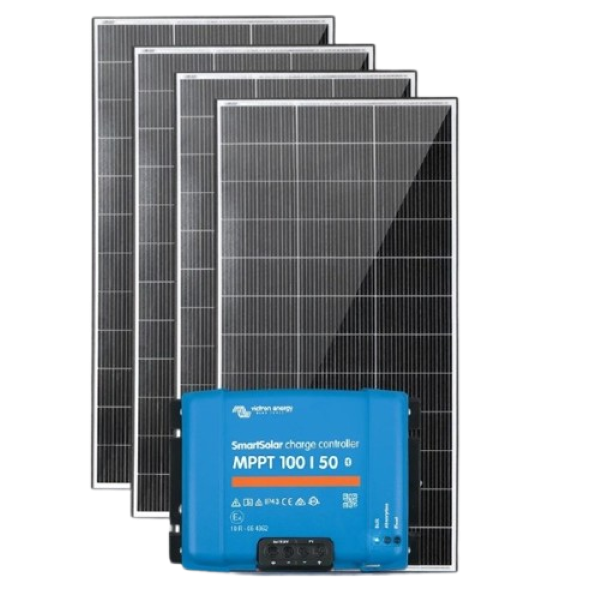

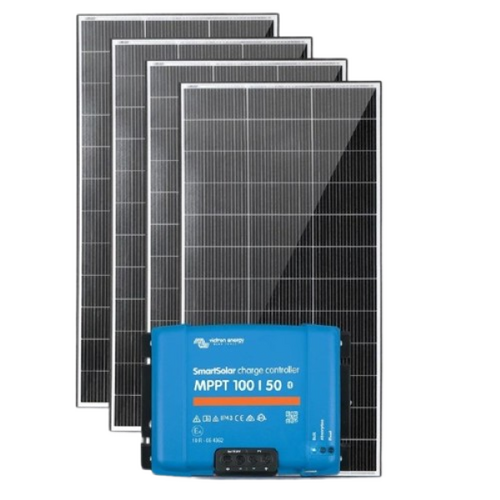

Exotronic 4x 200w Solar Panel & Victron SmartSolar MPPT 100/50 Bundle

Product Description

Exotronic 4x 200w Solar Panel & Victron SmartSolar MPPT 100/50 Bundle, 5 Years Warranty.

Bundle Includes:

• Exotronic 200W Fusion Fixed Solar Panel, Exo-SP-TCN-200
• Victron SmartSolar MPPT 100/50 Charge Controller, SCC110050210

The Exotronic 4x 200W Solar Panel & Victron SmartSolar MPPT 100/50 Bundle delivers a powerful, integrated energy solution for large off-grid and mobile applications. Combining four high-efficiency N-Type TOPCon solar panels with the precision of a Victron SmartSolar MPPT 100/50 Bluetooth charge controller, this bundle is engineered for caravans, RVs, marine vessels, tiny homes, and industrial setups where reliable, high-yield solar power is essential.

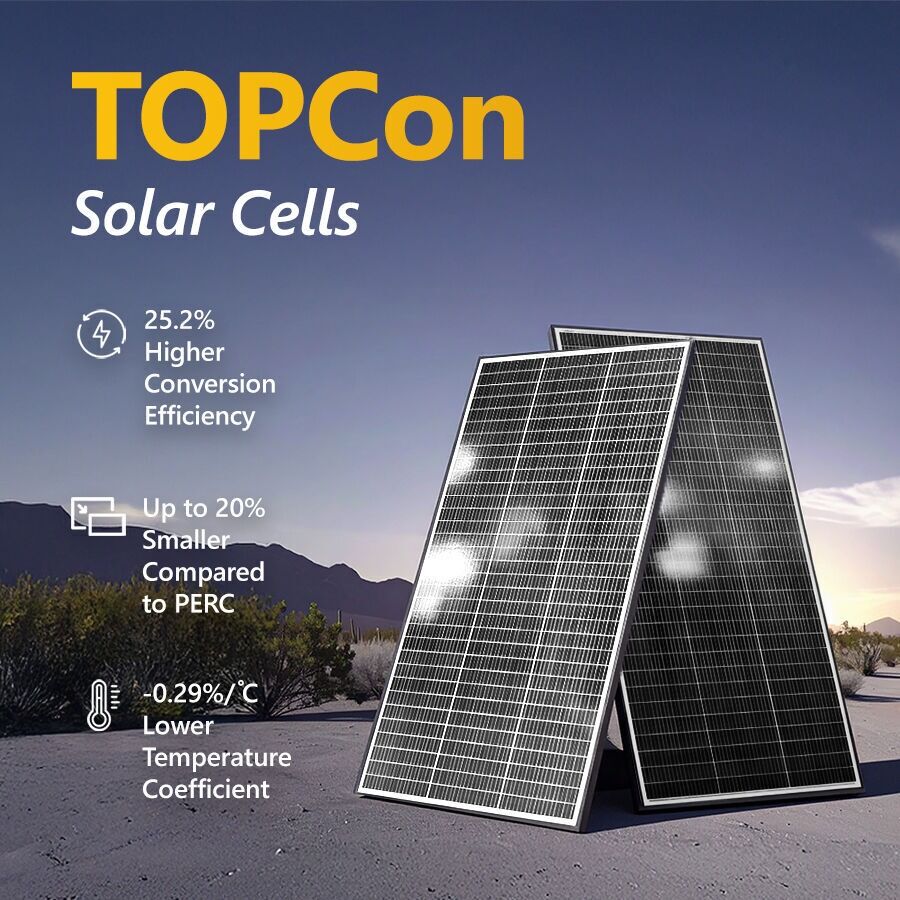

Each Exotronic 200W Fusion Series panel features advanced TOPCon (Tunnel Oxide Passivated Contact) cell technology, achieving a 25.2% cell efficiency that outperforms conventional monocrystalline and PERC panels. This means more energy from a compact footprint, making it ideal for roof-mounted installations with limited space. The panels are built to withstand harsh Australian conditions, with a robust anodised aluminium frame and high-transmissivity tempered glass that resists impact and environmental degradation.

The included Victron SmartSolar MPPT 100/50 charge controller maximises energy harvest with ultra-fast Maximum Power Point Tracking, delivering up to 30% more efficiency than traditional PWM controllers. Its built-in Bluetooth connectivity allows real-time monitoring and configuration via the VictronConnect app, giving you complete control over your system's performance and battery health.

Key Features:

• 800W total solar capacity from four 200W panels, suitable for 12V, 24V, or 48V battery banks
• 25.2% cell efficiency with N-Type TOPCon technology for superior low-light and high-temperature performance
• Victron SmartSolar MPPT 100/50 with Bluetooth for intelligent charging and remote system management
• Comprehensive protection including PV reverse polarity, output short circuit, and over-temperature safeguards
• Complete installation kit with four mounting bracket sets and two tubes of Fix15 adhesive sealant
• Durable construction rated for wind loads up to 2400 Pa and snow loads up to 5400 Pa

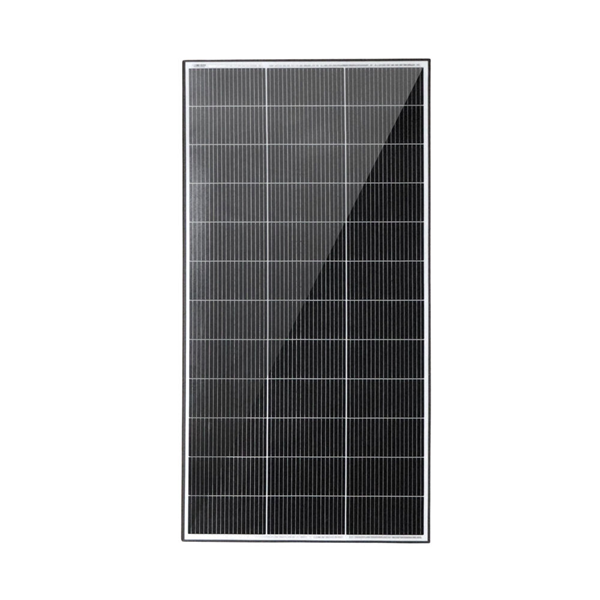

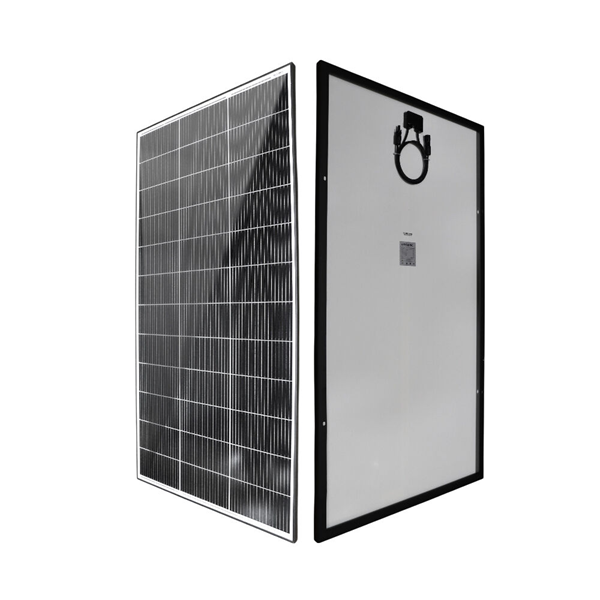

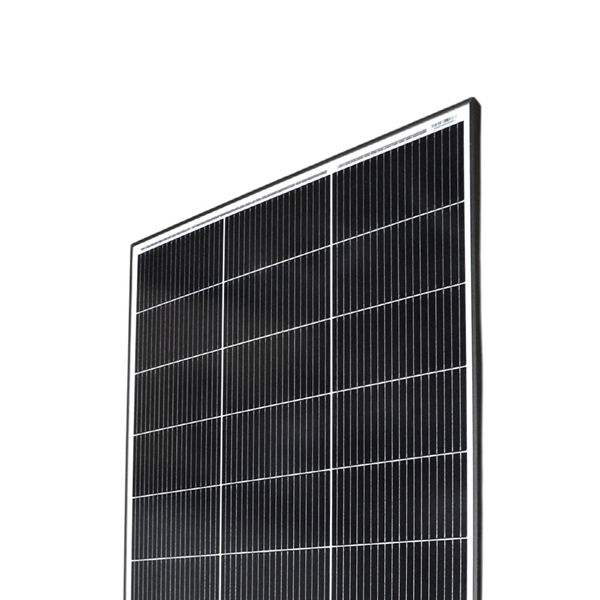

Exotronic 200W Fusion Fixed Solar Panel

Specifications

• Model: Exo-SP-TCN-200
• Power: 200 W

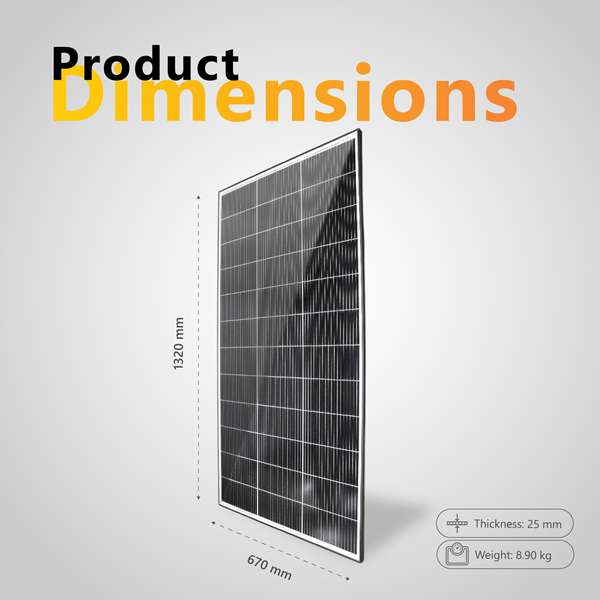

• Dimensions: 1320 × 670 × 25 mm
• Weight: 8.9 kg
• Vmp: 18.0 V
• Imp: 11.11 A
• Voc: 21.0 V
• Isc: 12.1 A
• NMOT: 41°C ±3°C
• Temperature Coefficient of Pmax: -0.37%/°C
• Temperature Coefficient of Voc: -0.29%/°C
• Temperature Coefficient of Isc: 0.05%/°C
• Operating Temperature: -40°C to +85°C
• Maximum System Voltage: 1000 VDC
• Maximum Fuse Rated Current: 15 A
• Front: 3.2 mm Tempered Glass
• Frame: Black Anodized Aluminium Alloy

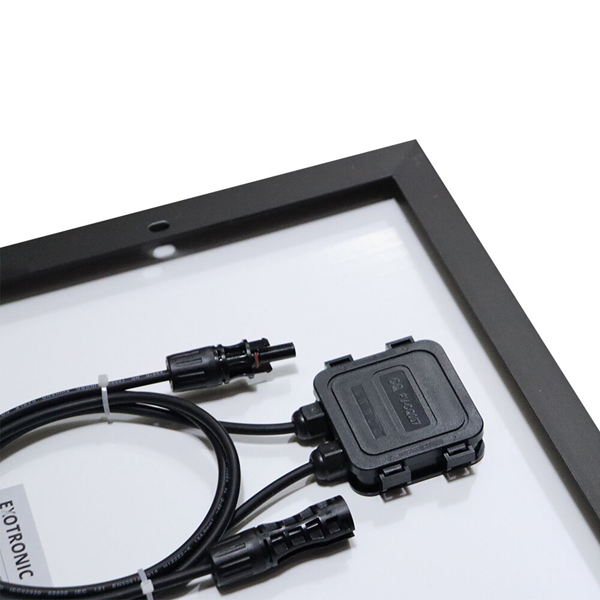

• Junction Box: IP65
• Connectors: MC4 Compatible

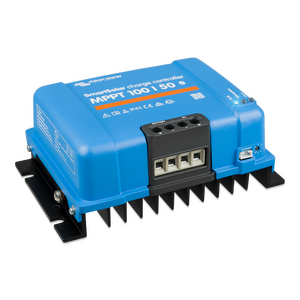

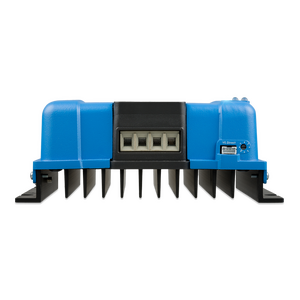

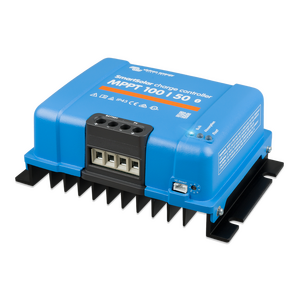

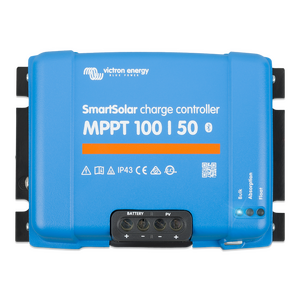

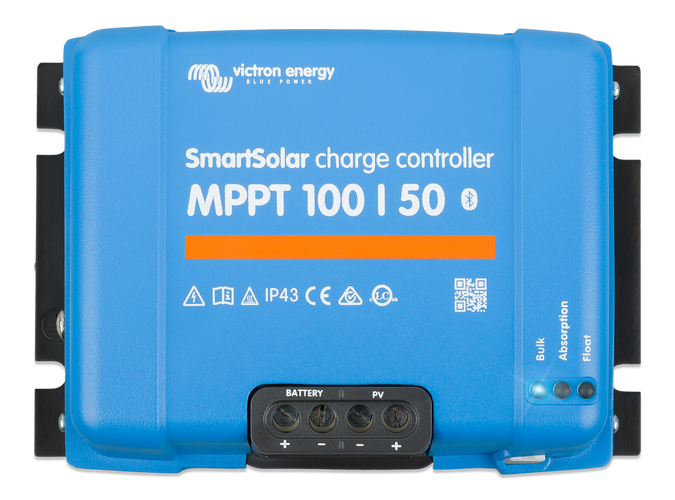

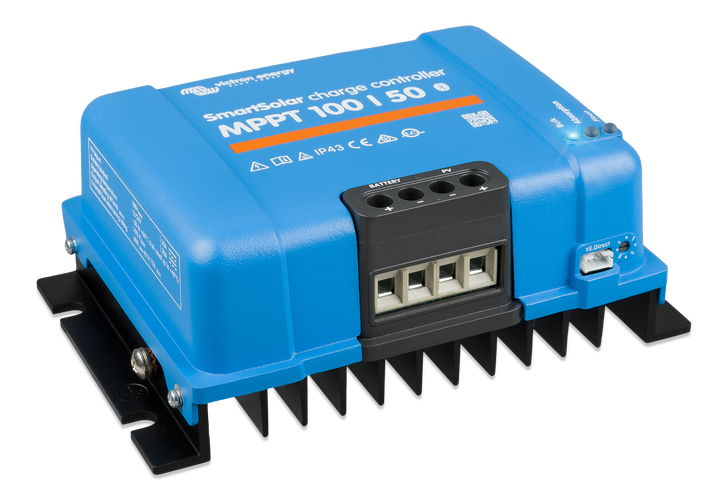

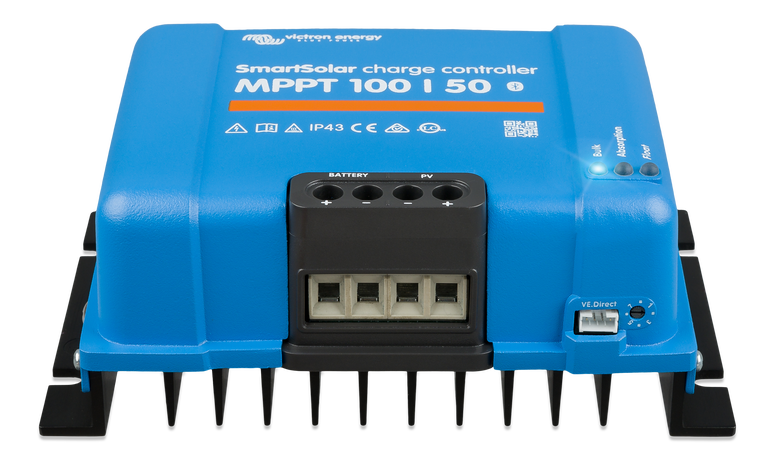

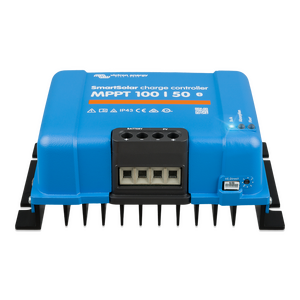

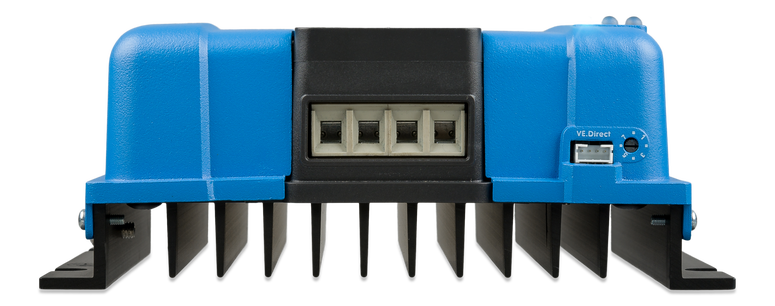

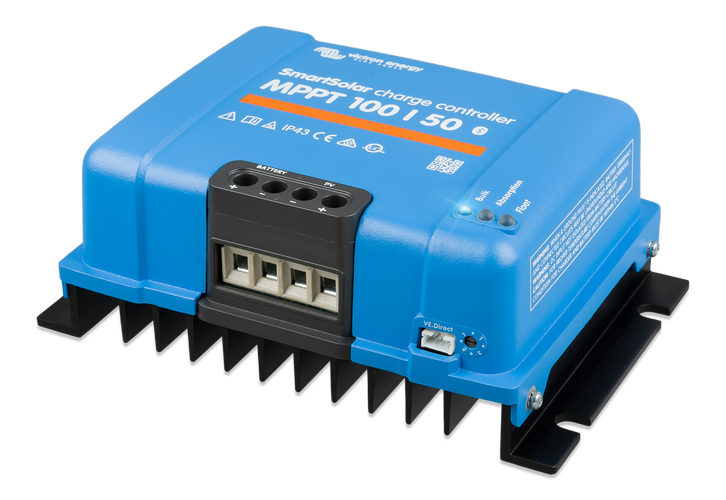

Victron SmartSolar MPPT 100/50 Charge Controller

Specifications:

• Battery voltage 12/24V Auto Select
• Rated charge current 50A
• Nominal PV power, 12V 1a,b) 770W
• Nominal PV power, 24V 1a,b) 1400W
• Maximum PV open circuit voltage 100V
• Max. PV short circuit current 2) 60A
• Maximum efficiency 98%
• Self-consumption 12V: 30 mA 24V: 20 mA
• Charge voltage 'absorption' Default setting: 14,4V / 28,8V (adjustable)
• Charge voltage 'float' Default setting: 13.8V / 27.6V (adjustable)
• Charge algorithm multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Protection
  • PV reverse polarity
  • Output short circuit
  • Over-temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Colour Blue (RAL 5012)
• Power terminals 16 mm² / AWG6
• Protection category IP43 (electronic components), IP22 (connection area)
• Weight 1.3 kg
• Dimensions (d x w x h) 70 x 186 x 130 mm
