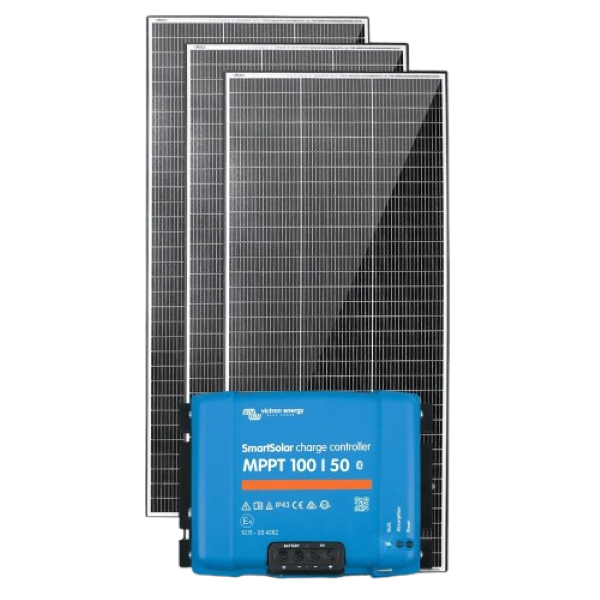

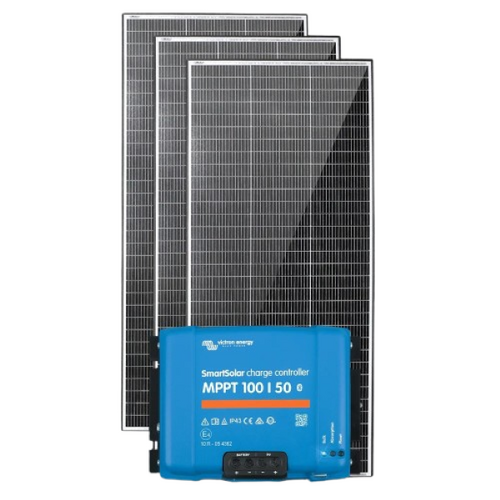

Exotronic 3x 220w Solar Panel & Victron SmartSolar MPPT 100/50 Bundle

Product Description

Exotronic 3x 220w Solar Panel & Victron SmartSolar MPPT 100/50 Bundle, 5 Years Warranty.

Bundle Includes:

• Exotronic 220W Fusion Fixed Solar Panel with Shade Resistant, Exo-SP-TCN-220
• Victron SmartSolar MPPT 100/50 Charge Controller, SCC110050210

This bundle combines three Exotronic 220W Fusion Series solar panels with the Victron SmartSolar MPPT 100/50 Bluetooth charge controller, delivering a robust 660W power solution for demanding off-grid and mobile energy systems. Engineered for Australian conditions, the kit provides reliable, high-yield solar harvesting with intelligent battery management, making it an excellent choice for caravan solar systems, marine solar panels, tiny homes, and remote industrial installations.

Each panel features advanced N-Type TOPCon solar cell technology with a fixed 25.2% cell efficiency, outperforming conventional monocrystalline and PERC modules. This higher efficiency translates to more power per square metre, a critical advantage when roof space is limited. The panels maintain strong output even in low-light and partially shaded conditions, reducing the risk of underperforming arrays during cloudy weather or when shadows from roof hardware are unavoidable.

The Victron SmartSolar MPPT 100/50 charge controller uses ultra-fast Maximum Power Point Tracking to extract the maximum available energy from the array, achieving efficiency consistently above 98%. Its integrated Bluetooth allows wireless monitoring and configuration via the VictronConnect app, giving you real-time visibility of solar yield, battery status, and historical trends. The controller supports 12V and 24V battery banks, with a nominal PV power rating of 700W at 12V and 1400W at 24V, ensuring the 660W array operates well within safe limits for both voltages.

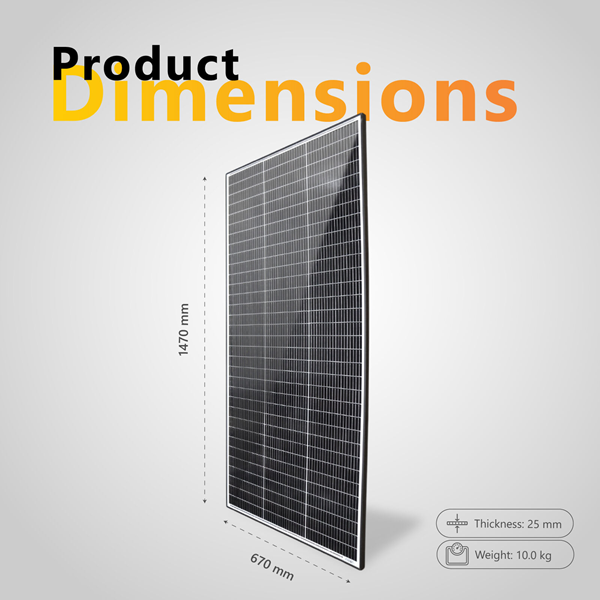

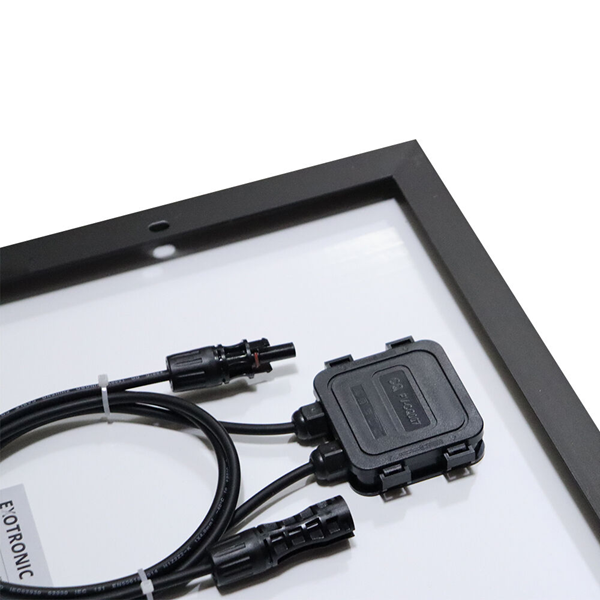

Included mounting bracket kits and Fix15 adhesive sealant simplify installation on various roof types, while the panels’ lightweight 10 kg design and compact 1470x670x25mm dimensions ease handling. The fully potted IP65 junction boxes and MC4-compatible connectors ensure reliable, weather-resistant electrical connections, reducing long-term maintenance concerns in coastal and high-humidity environments.

Features:

• 660W total solar capacity from three 220W panels with 25.2% cell efficiency
• Victron SmartSolar MPPT 100/50 with Bluetooth for wireless monitoring and control
• N-Type TOPCon cells offer lower degradation and better low-light performance than PERC
• Lightweight, anodised aluminium frames and tempered glass for durability in mobile use
• Complete installation kit includes mounting brackets and adhesive sealant

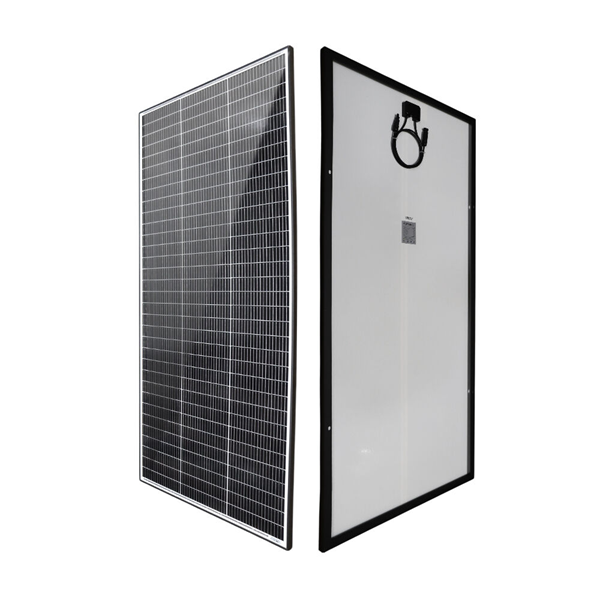

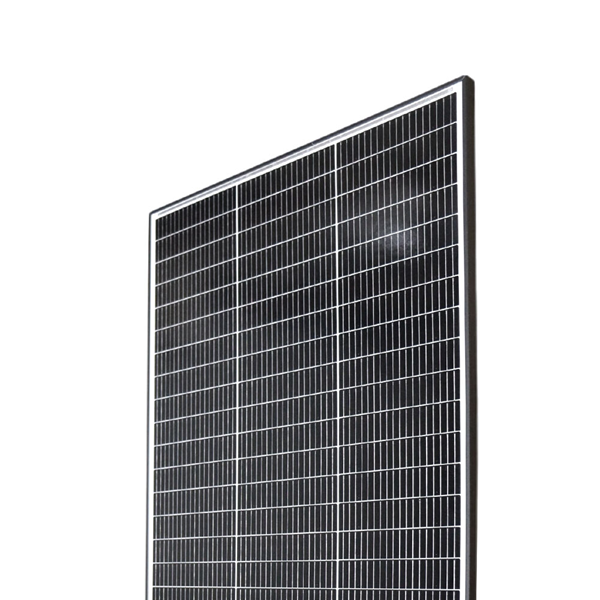

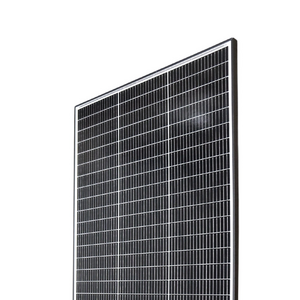

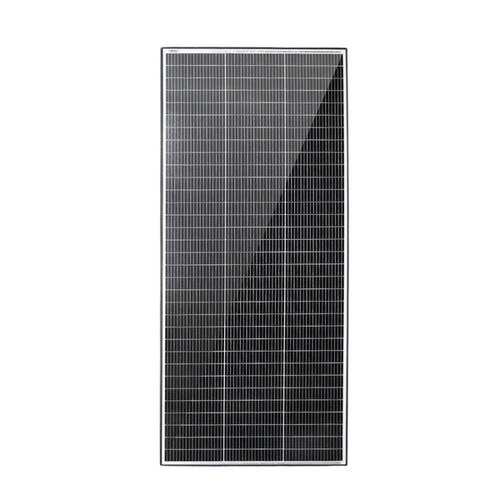

Exotronic 220W Fusion Fixed Solar Panel with Shade Resistant

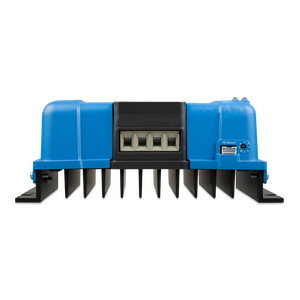

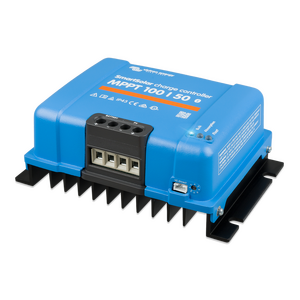

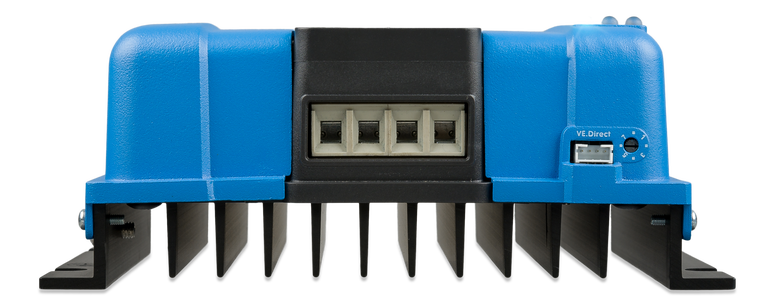

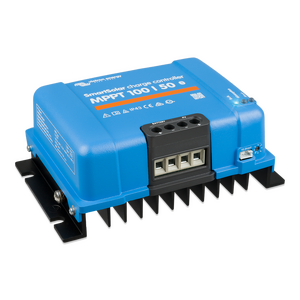

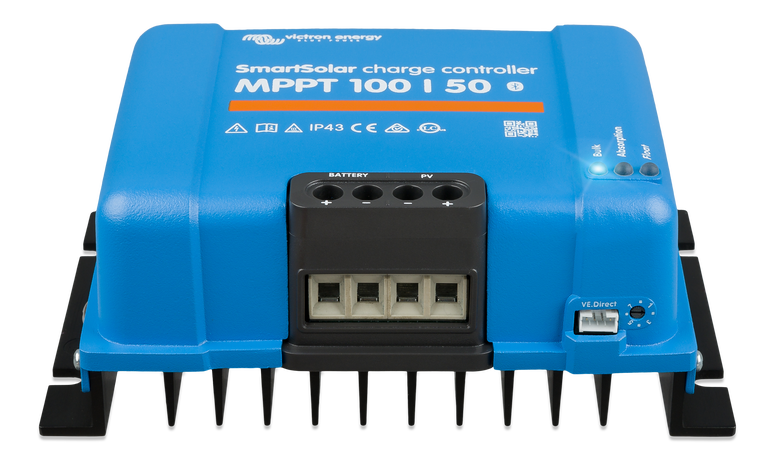

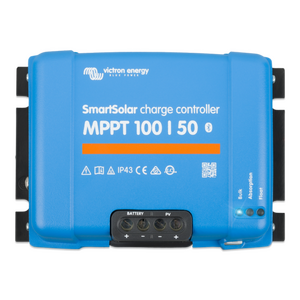

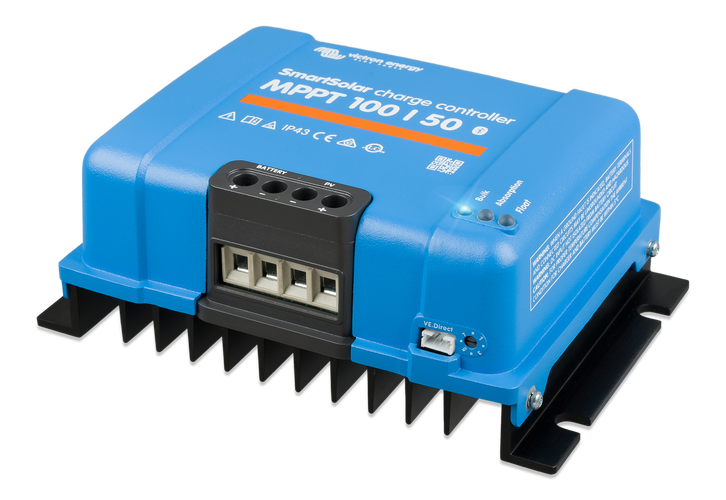

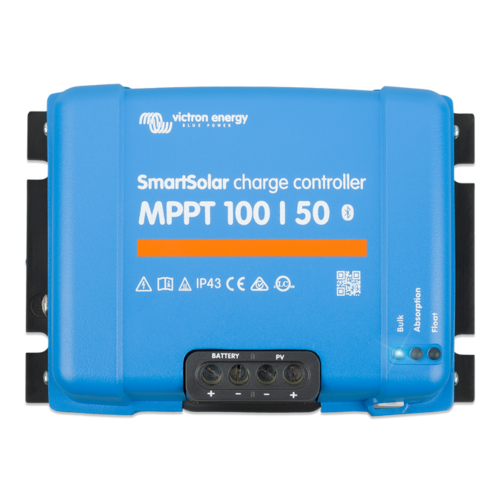

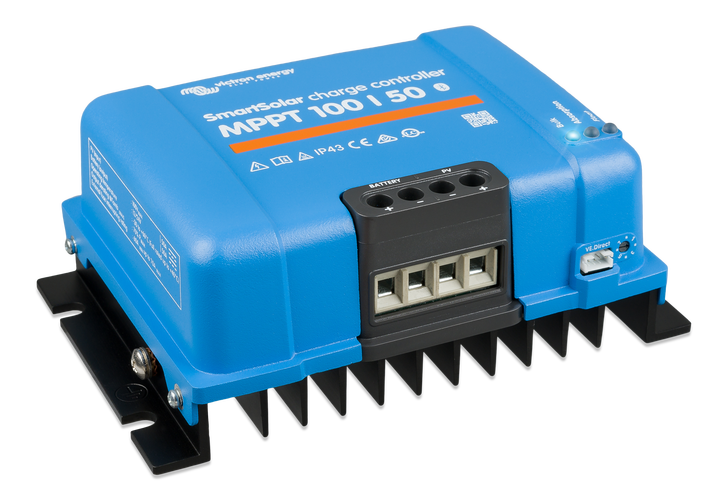

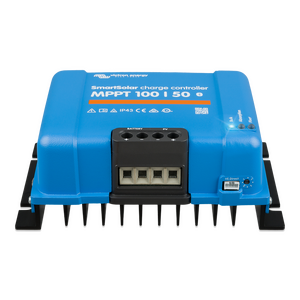

Victron SmartSolar MPPT 100/50 Charge Controller

Specifications:

• Battery voltage 12/24V Auto Select
• Rated charge current 50A
• Nominal PV power, 12V 1a,b) 770W
• Nominal PV power, 24V 1a,b) 1400W
• Maximum PV open circuit voltage 100V
• Max. PV short circuit current 2) 60A
• Maximum efficiency 98%
• Self-consumption 12V: 30 mA 24V: 20 mA
• Charge voltage 'absorption' Default setting: 14,4V / 28,8V (adjustable)
• Charge voltage 'float' Default setting: 13.8V / 27.6V (adjustable)
• Charge algorithm multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Protection
  • PV reverse polarity
  • Output short circuit
  • Over-temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Colour Blue (RAL 5012)
• Power terminals 16 mm² / AWG6
• Protection category IP43 (electronic components), IP22 (connection area)
• Weight 1.3 kg
• Dimensions (d x w x h) 70 x 186 x 130 mm
