Exotronic 300W Fusion Ultra-Light Folding Solar Panel | No Controller

Product Description

Exotronic 300W Fusion Ultra-Light Folding Solar Panel | No Controller, 5 Year Warranty. The Exotronic 300W Fusion Ultra-Light Folding Solar Panel combines advanced N-Type TOPCon solar cell technology with an ultra-lightweight folding design. Delivering powerful portable charging performance, it is built for caravans, RVs, 4WDs, camping and off-grid adventures where dependable solar power is essential.

Featuring premium 25.6% efficient N-Type TOPCon solar cells, the panel captures more energy from available sunlight than many conventional monocrystalline and PERC solar panels, helping maximise charging performance throughout the day.

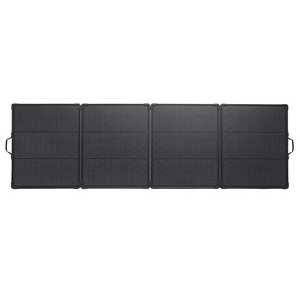

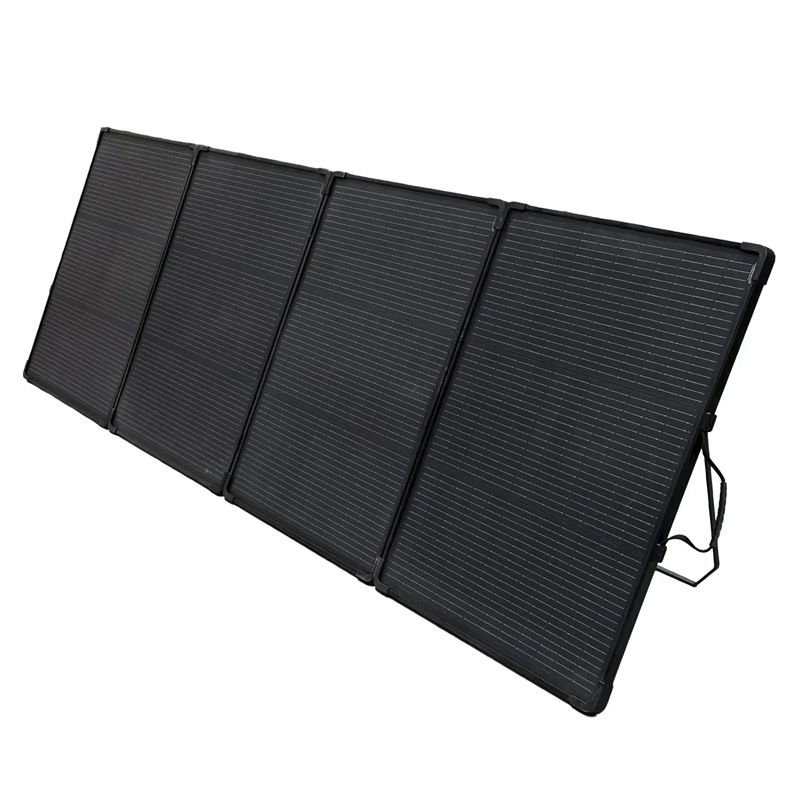

The 300W Fusion Portable Series is constructed using four high-performance 75W solar modules that fold neatly into a compact briefcase design. This provides an excellent balance of high power output, portability and convenient storage.

The Exotronic Fusion Portable Series features an ultra-light reinforced backplate that provides additional structural support behind the solar cells while keeping the overall panel weight to a minimum.

This reinforced backplate helps minimise cell flex during transport, setup and everyday use. By reducing movement and stress across the cells, it helps minimise the risk of micro-cracks, one of the leading causes of reduced output, accelerated degradation and premature failure in portable solar panels.

The added structural support also improves resistance to heat-related stress. During repeated heating and cooling in harsh Australian conditions, the reinforced backplate helps protect the solar cells from cracking and long-term degradation, providing greater reliability throughout the life of the panel.

The Fusion Portable Series uses advanced N-Type TOPCon (Tunnel Oxide Passivated Contact) solar cells. Compared with conventional P-Type monocrystalline and PERC solar panels, TOPCon technology delivers higher efficiency, improved low-light performance and lower long-term degradation.

The Exotronic 300W Fusion Ultra-Light Folding Solar Panel delivers dependable charging wherever mains power is unavailable. Its higher output makes it ideal for powering larger battery systems and extended off-grid adventures.

Ideal for:

• Charging lithium and AGM batteries in caravans and RVs
• Portable solar systems for camper trailers and 4WD touring
• Camping and overlanding power systems
• Charging compatible portable power stations
• Marine and boating applications
• Remote worksites and off-grid camps
• Emergency backup power

Construction benefits include:

• Ultra-lightweight construction weighing only 8.7 kg
• Four 75W folding solar modules for compact portability

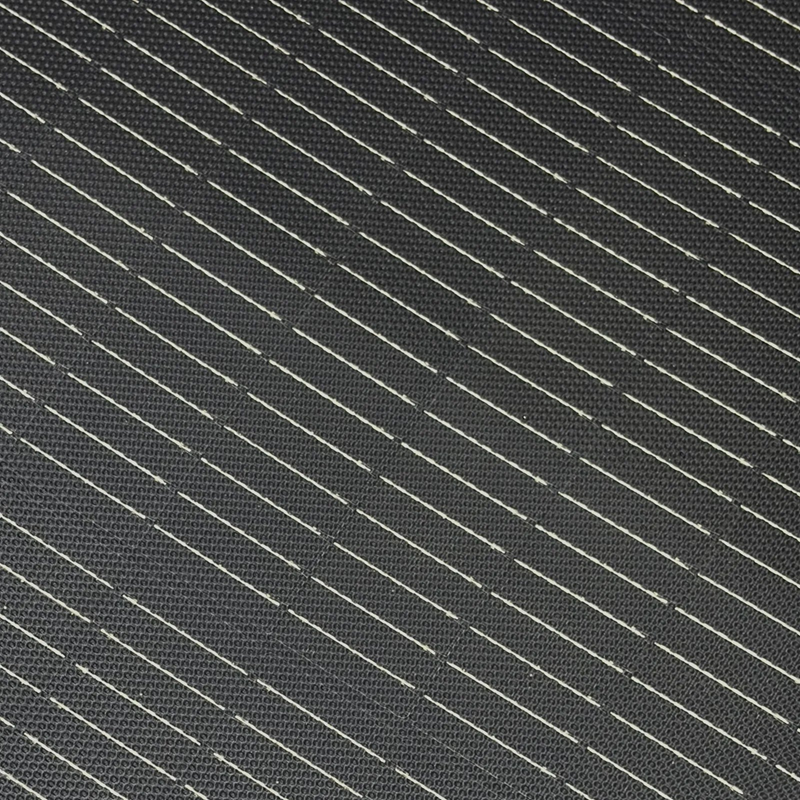

• Durable ETFE surface with excellent UV resistance

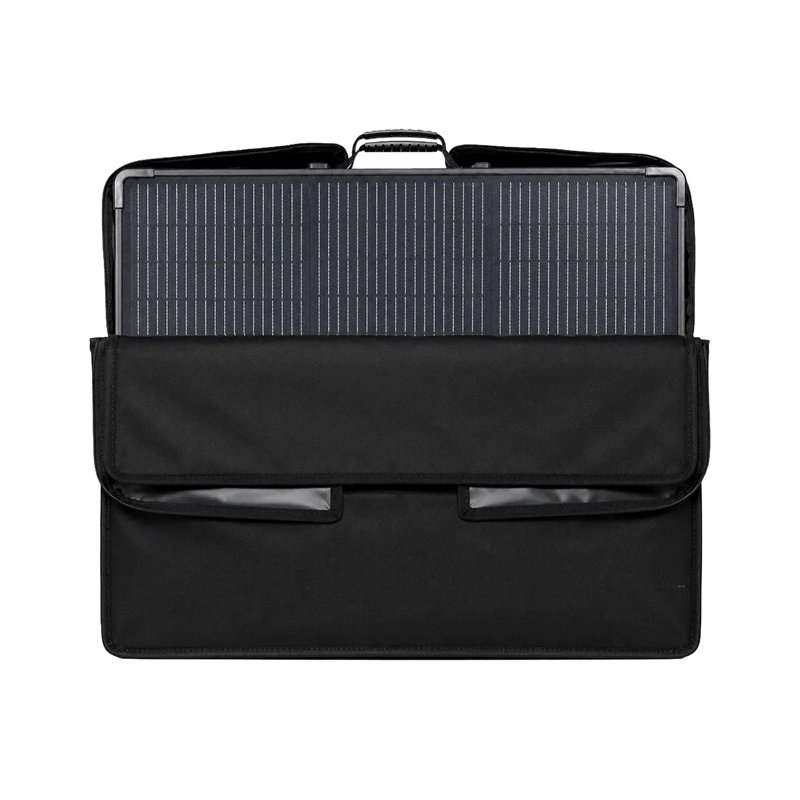

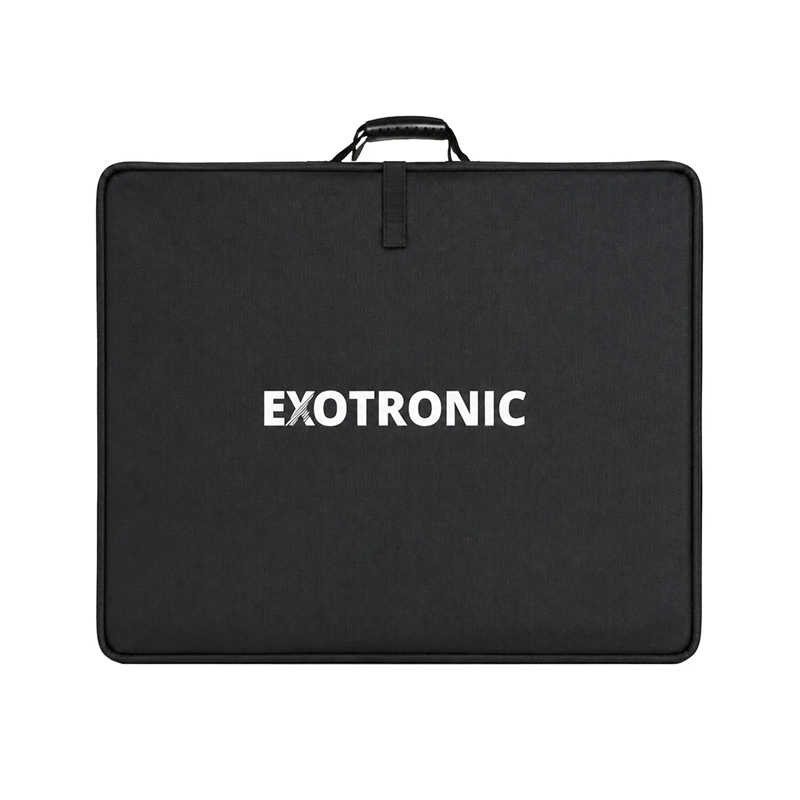

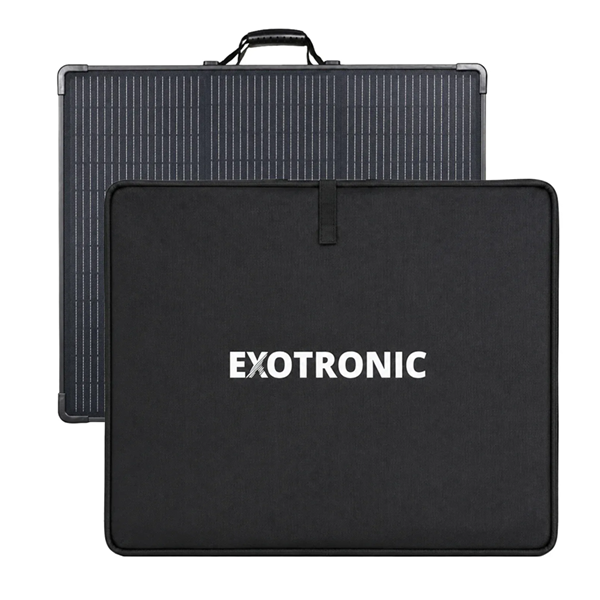

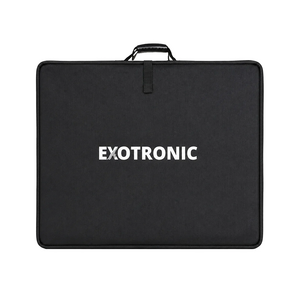

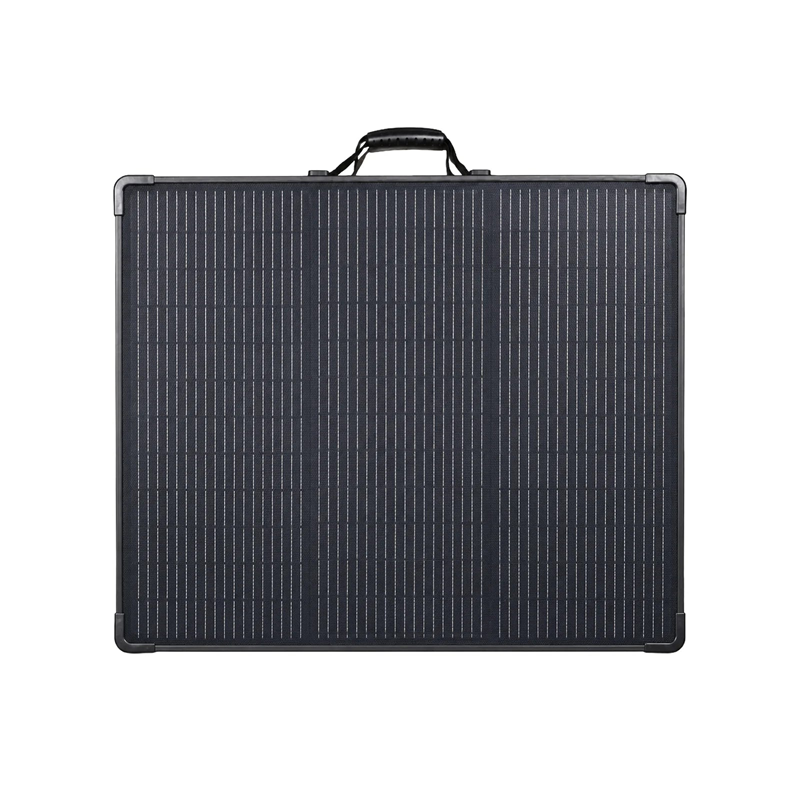

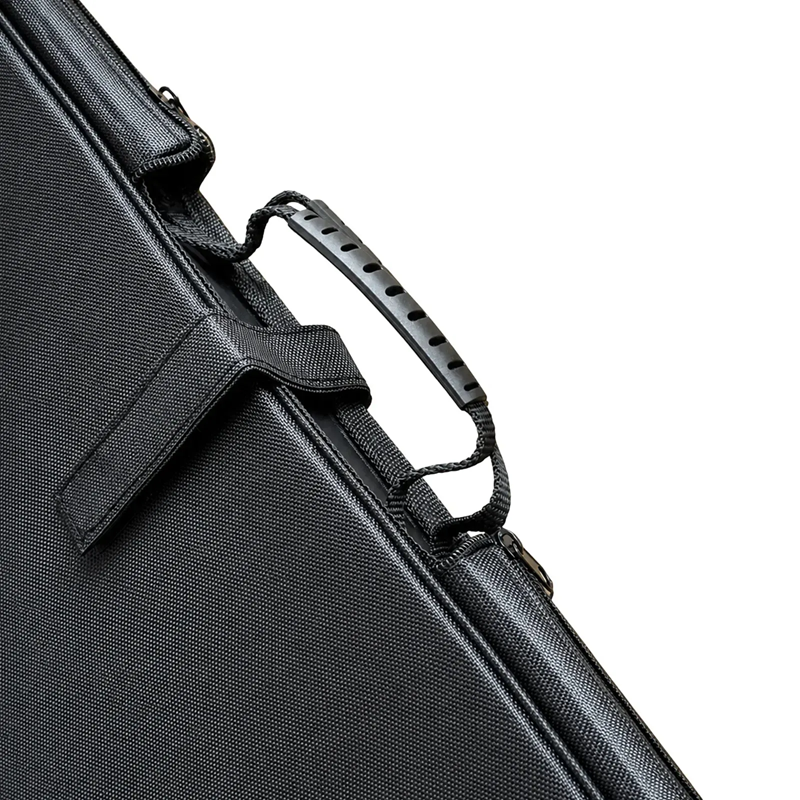

• Briefcase-style folding design for easy transport and storage
• Designed for Australian outdoor conditions

Specifications:

• Power: 300 W
• Dimensions (mm) Folded: 560 x 670 x 80

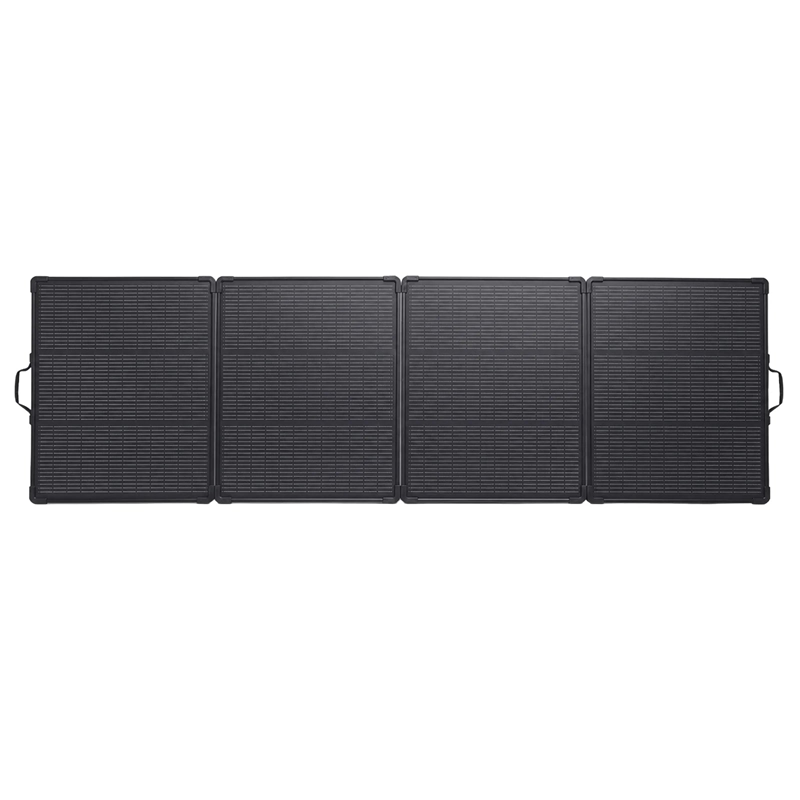

• Dimensions (mm) Unfolded: 2240 x 670 x 17
• Weight: 8.7 kg
• Vmp: 22.1 V
• Imp: 13.57 A
• Voc: 25.7 V
• Isc: 15.26 A
• NMOT: 41°C +/-3°C
• Temperature Coefficient of Pmax: -0.37%/°C
• Temperature Coefficient of Voc: -0.29%/°C
• Temperature Coefficient of Voc: 0.05%/°C
• Operating Temperature: -40 - +85°C
• Maximum System Voltage: 1000VDC
• Maximum Fuse Rated Current: 15A
