Exotronic 2 x 225W Fixed Monocrystalline Solar Panel

$605

Save $193 (24%) off RRP of $798

CALCULATE SHIPPING:

Accessories

$15

$10

Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Currently FREE with the Exotronic 2 x 225W Fixed Monocrystalline Solar Panel is:

Product Description

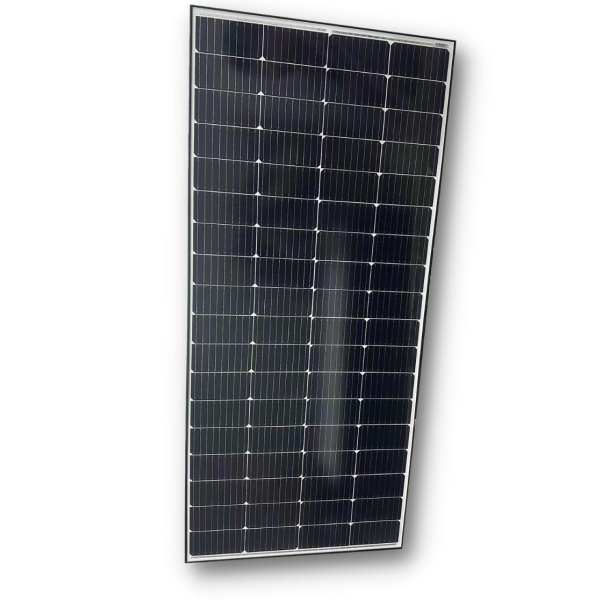

Exotronic 2 x 225W Fixed Monocrystalline Solar Panel, 5 Year Warranty.

Pack Includes:

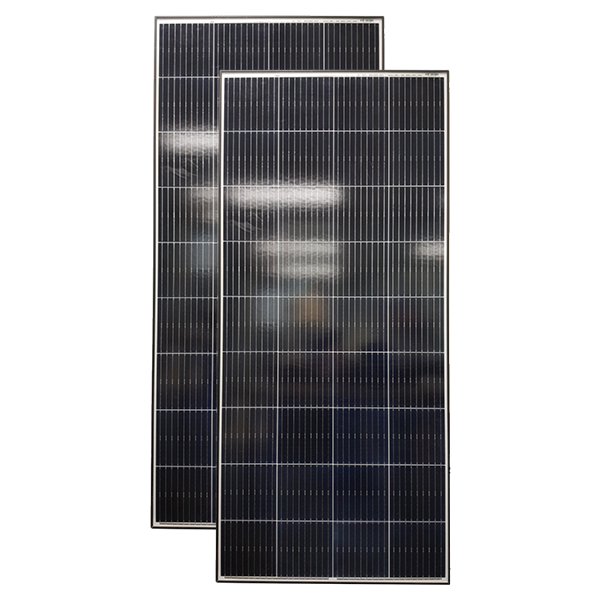

  • 2 x Exotronic 225W Fixed Monocrystalline Solar Panel

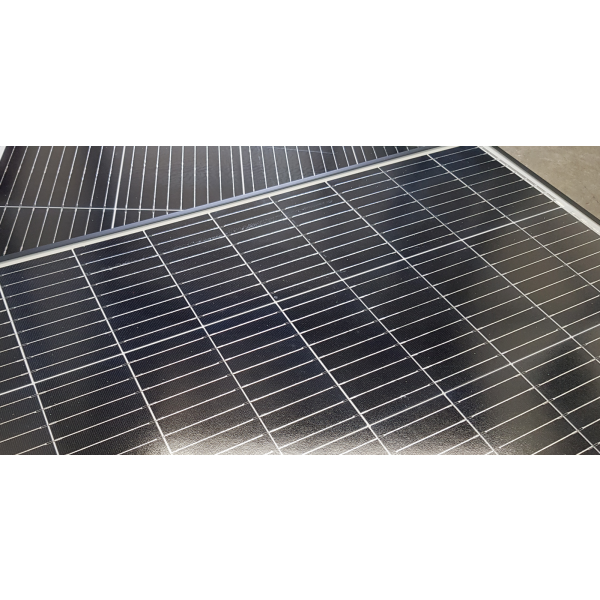

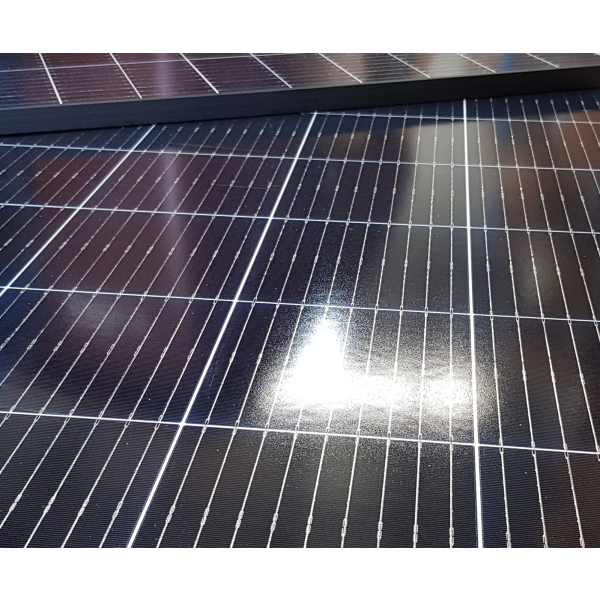

Using 23% efficient Trina monocrystalline passivated emitter rear contact (mono-PERC) square cut cells and the latest 9-wire bus-bar low-loss design, these panels achieve a high efficiency with a positive power tolerance.

PERC cells provide better performance in low light applications compared to traditional monocrystalline silicone designs as some of the light that passes through the cell is bounced back and converted into electricity.

The 9-wire busbar decreases the resistance of the module and carries current evenly over the whole surface of the cells to ensure that all there are minimal power losses within the module and significantly reduces uneven cell heating and hot spots.

The anodised aluminium frame is further protected by a black protective coating and is only 25mm thick to assist a low-profile design and reduce the weight of the module while still giving good rigidity to protect the module from vibrational and torsional stresses.  The tempered glass provides high resistance to impact damage.  Low-iron high transmissivity glass is used to provide excellent low light performance.

  • Salt mist  and ammonia resistant
  • Wind load resistant - 2400 Pascal
  • Snow load resistant - 5400 Pascal

Exotronic 30W Fixed Solar Panel Manual

Specifications

SKU 2xExo-SP-F4-225

Brand Exotronic

Warranty Period: 5 Years

Product Category Solar Packs

Solar Panel Type Flexible Solar Panels

Solar Panel Cell Type Monocrystalline

Watts (W) 450

Temperature coefficient of Isc (0.065±0.01)%/℃

Voltage at Pmax (VMP) 20.52V

Power Tolerance 0~+3%

Weight 11.2kg

NOCT(Air 20℃;Sun 0.8kW/m² wind 1m/s) 47±2℃

Temperature Coefficient of Voc -(0.40±0.05)%/℃

Operating Temperature 40℃to 85℃

No. of cells and connections 72(4*18)

Temperature coefficient of power -(0.5±0.05)%/℃

Current at Pmax(Imp) 10.96A

Maximum System Voltage 1000VDC

Open Circuit Voltage Voc(V) 24.15V

Dimensions 1570mm x 700mm x 25mm (per Solar Panel)

Short-circuit current (Isc) 12.18A

Cells 166mm Mono
