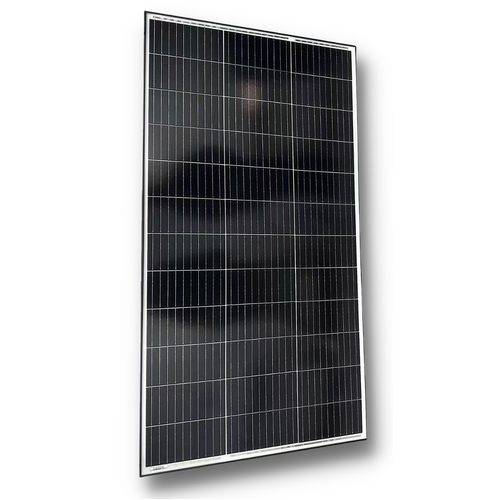

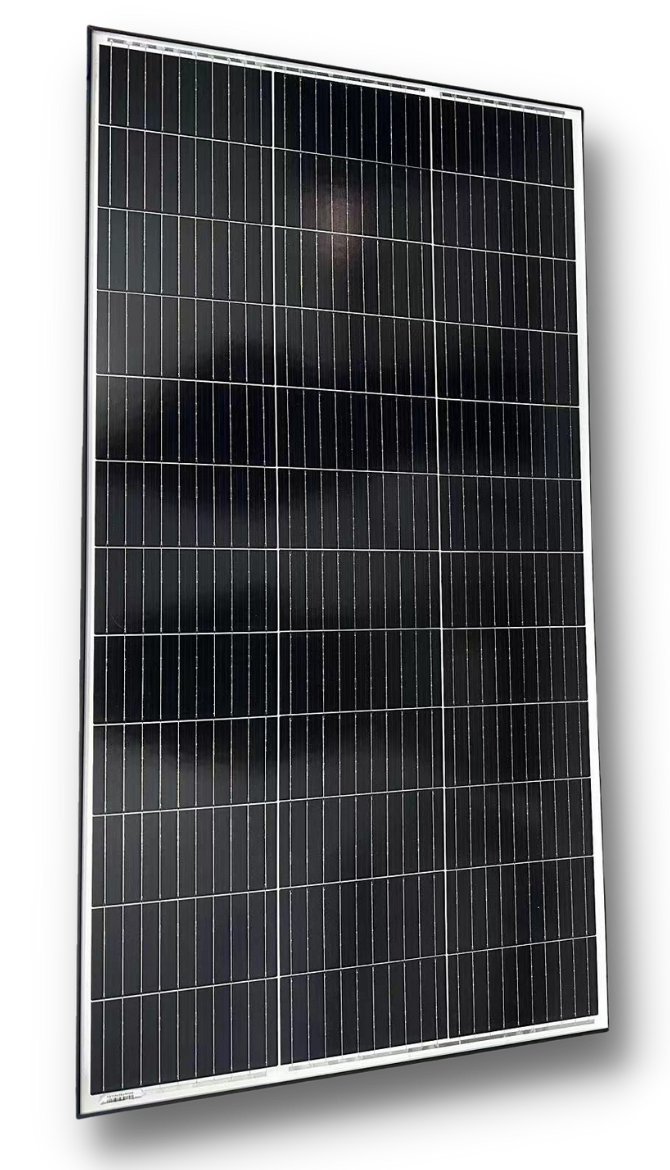

Exotronic 180W Fixed Monocrystalline Solar Panel
Save $100 (29%) off RRP of $349
Product Description

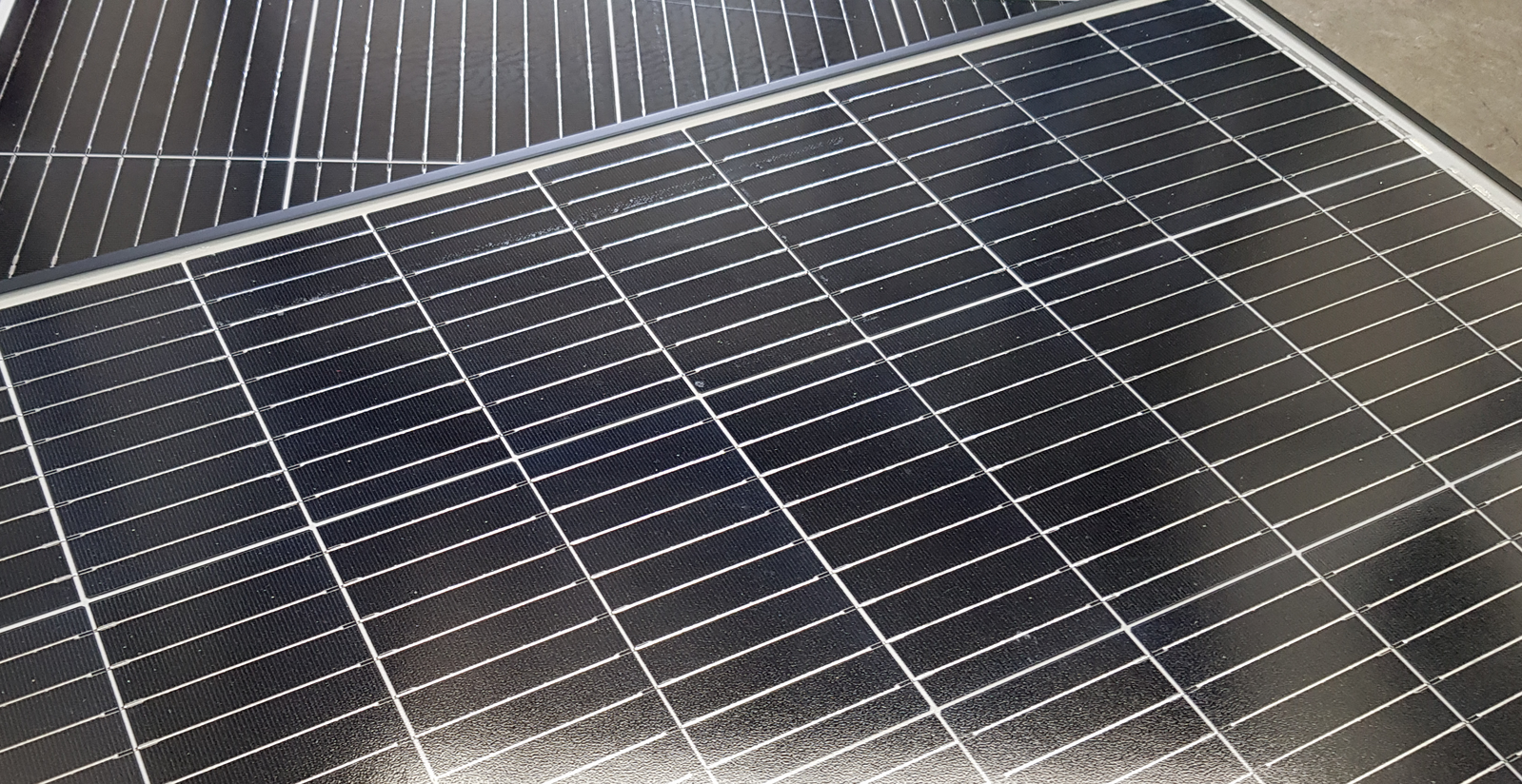

Exotronic 180W Fixed Monocrystalline Solar Panel, 5 Year Warranty. Using 23% efficient M6 monocrystalline passivated emitter rear contact (mono-PERC) square cut cells and the latest 9-wire bus-bar low-loss design, these panels achieve a high efficiency with a positive power tolerance.
PERC cells provide better performance in low light applications compared to traditional monocrystalline silicone designs as some of the light that passes through the cell is bounced back and converted into electricity.

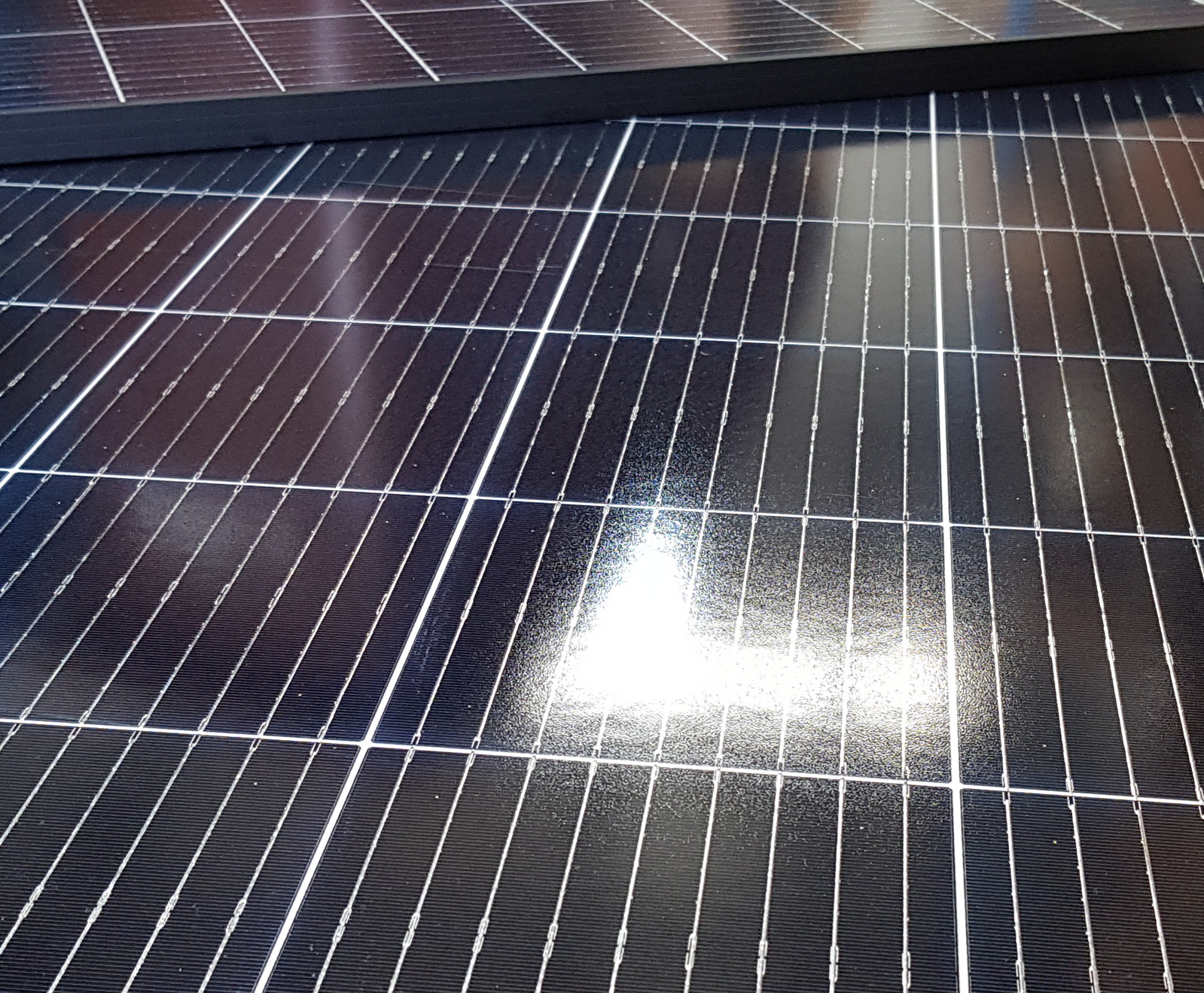

The 9-wire busbar decreases the resistance of the module and carries current evenly over the whole surface of the cells to ensure that all there are minimal power losses within the module and significantly reduces uneven cell heating and hot spots.
The Exotronic range of panels has been designed so that all panels have closely matching votlages, therefore all sizes can be wired in parallel.
The anodised aluminium frame is further protected by a black protective coating and is only 25mm thick to assist a low-profile design and reduce the weight of the module while still giving good rigidity to protect the module from vibrational and torsional stresses. The tempered glass provides high resistance to impact damage. Low-iron high transmissivity glass is used to provide excellent low light performance.
- Salt mist and ammonia resistant
- Wind load resistant - 2400 Pascal
- Snow load resistant - 5400 Pascal
Specifications
SKU Exo-SP-F3-180
Brand Exotronic
Warranty Period: 5 Years
Product Category Portable Solar Panels
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Monocrystalline
Watts (W) 180
No. of Cells 36 (3x12)
Junction Box IP65/IP67
Open Circuit Voltage Voc(V) 23.2
Frame Black Anodized Aluminium Alloy
Front 3.2mm Tempered Glass
NMOT 47C +/-2C
Voltage at Pmax (VMP) 19.6V
Maximum System Voltage 1000VDC
Power 180W
Weight 8.9 Kg
Dimensions 1320 x 670 x 25 mm
Maximum Fuse Rated Current 15A
Temperature Coefficient of Voc -0.4%/C
Temperature Coefficient of Voc 0.065%/C
Operating Temperature -40 - +85C
Module Efficiency (%) 19.2
Short Circuit Current Isc(A) 10.01
Connectors MC4 Compatible
Temperature Coefficient of Pmax -0.5%/C
Current at Pmax(Imp) 9.19
