Exotronic 12V 300Ah Axion CANBus Bluetooth Lithium Battery

Product Description

Exotronic 12V 300Ah Axion CANBus Bluetooth Lithium Battery, 5 Year Warranty.

Proudly Australian Made: A Commitment to Quality and Innovation

Crafted with precision and pride on Australian soil, the Exotronic 12V 300Ah Axion Series Smart Deep Cycle LiFePO4 Lithium Battery represents the pinnacle of local manufacturing excellence. This product showcases the innovative spirit of Australian engineering, our commitment to quality, safety, and environmental responsibility. Designed to meet the diverse demands of both adventure and reliability, each battery integrates globally recognised safety standards with robust, homegrown ingenuity. By choosing Exotronic, you're supporting Australian innovation and contributing to a sustainable future, all while ensuring your energy needs are met with world-class performance tailored for Australia's unique landscapes and conditions.

Versatile Applications for Every Need

• Ideal for Travel and Adventure: Exotronic Lithium Batteries are a perfect match for Caravans, RVs, and 4x4 vehicles. Whether you're hitting the road or exploring off the beaten path, these batteries provide reliable power to keep your journey going.
• Reliable Backup Power: Ideal for emergency power solutions, these batteries ensure that your critical systems stay operational when you need them most. They're perfect for home backup systems, ensuring peace of mind during power outages.
• A Trustworthy Choice for Rugged Conditions: Their durability makes them particularly suited for off-road applications, where resilience against harsh conditions is essential.

Not Designed for Engine Starting: Please note that these batteries are not intended for under-bonnet applications or as cranking/starting batteries. Their strengths lie in providing steady, reliable power in stationary or mobile applications, where endurance and resilience are crucial.

Ultra-Compact Powerhouse Design

Despite its compact footprint, this battery packs a powerful punch, offering 300Ah of dependable energy storage and up to 300A discharge, perfect for a powerful 3000W inverter. Perfect for space-conscious setups without compromising on performance.

10mm 304 Stainless Vent for PTFE Tubing

The Axion Series includes a vent for 10mm OD PTFE tubing, providing a dedicated vent pathway for installations where external vent routing is required. When correctly vented and installed as part of a suitable battery venting system, the Axion Series is designed to meet AS/NZS 3001.2 battery venting system requirements. 304 and PTFE construction provides excellent temperature and chemical resistance, making it well suited to demanding caravan, RV, off-grid and industrial applications.

CANbus Integration for Victron GX Systems

The Axion Series includes a CANbus port for connecting to Victron GX systems with a Cerbo GX or Ekrano GX. This allows the battery system to integrate with compatible Victron monitoring and control setups, helping provide a more complete view of your power system from a central GX display or interface.

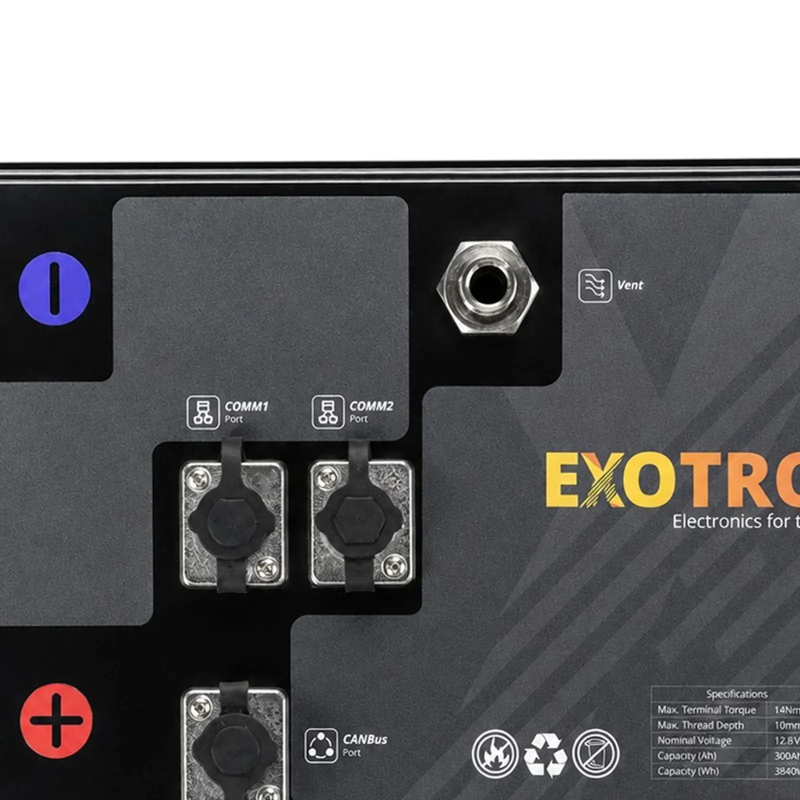

Battery-to-Battery Communications

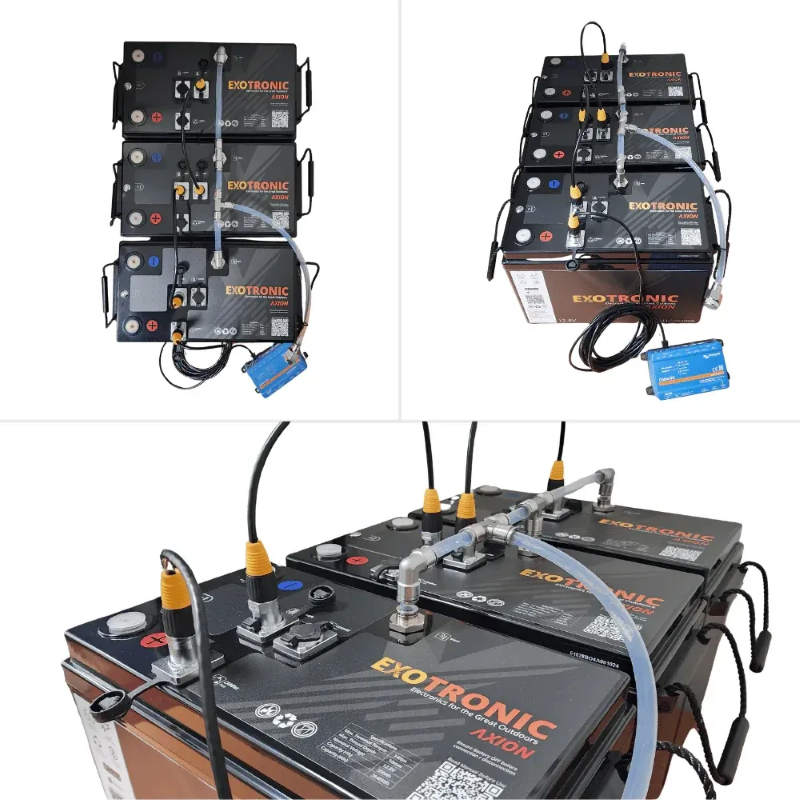

Axion batteries feature dedicated communication ports for parallel battery bank installations. These ports allow connected batteries to share information and operate together as a coordinated system, making Axion suitable for larger, scalable energy storage applications.

When linking multiple batteries, connect matching ports between each battery: Comm1 to Comm1, Comm2 to Comm2, and repeat the same pattern across the bank.

Features:

• Sleek, Space-Saving Profile
• Real Time Bluetooth Monitoring
• Vent for 10mm PFTE Tube
• Designed to meet AS/NZS 3001.2 internal installation battery venting system requirements without an additional enclosure
• CANbus Port for Connecting to Victron GX Systems with a Cerbo GX or Ekrano GX
• Comms Ports for Connecting Batteries to Batteries
• Parallel Connection Only, up to 16 Batteries
• On/Off Button
• JK BMS with 2A Integrated Microprocessor Controlled Active Balancer
• A Grade Aluminium-cased Prismatic Cells featuring Safety Rupture Disc
• 0-100% Useable Capacity
• IEC 62619 Certified Cells
• 5x Temperature Sensors including MOSFET Temp

Specifications:

• Battery Capacity: 300Ah
• Battery Nominal Voltage: 12.8V
• Continuous Discharge Current (30 Min): 300A
• Peak Current (1s): 500A
• Trip Current (60s): 300A
• Maximum Inverter Size: 3000W
• Maximum Number of Parallel Batteries: 16 of the same model
• Series Compatible: No
• Low Voltage Trip: 10V
• High Voltage Trip: 14.6V
• Balance Current: 2A

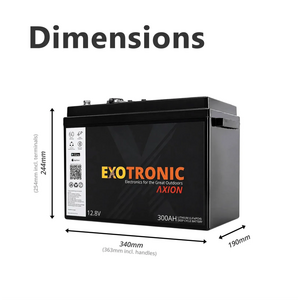

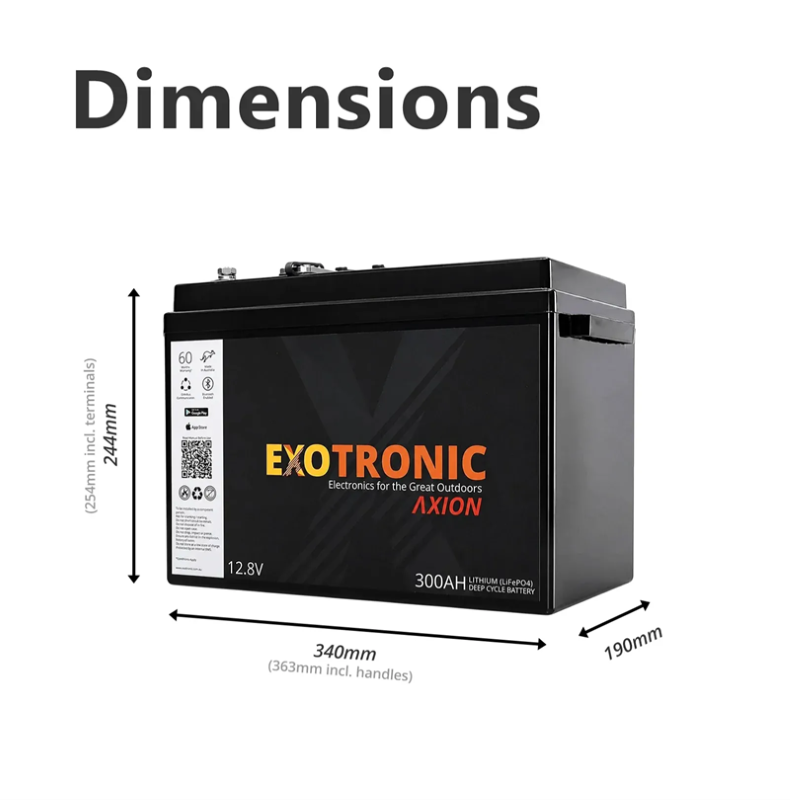

• Length: 340mm (363mm incl. handles)
• Width: 190mm
• Height: 244mm (254mm incl. terminals)
• Weight: 25kg
• Mounting Orientation: Upright
• Nominal Continuous Charge Current: 90A
• Maximum Continuous Charge Current: 150A
• Absorption Voltage: 14.0–14.2V
• Float Voltage: 13.5V
• Cycle Life (0.3C): 4000 100% cycles at 25°C to 80% capacity within 5 years
• Case Material: ABS
• Terminal: M8 Bolt – 10mm depth
• Terminal Torque: 14Nm Max (12Nm Recommended)
• Communication Ports: Comm1 and Comm2
• CANBus Communication: Dedicated CANBus Port
• Marine Version Pre-Trip Alarm Output: 2-pin output: 12VDC in alarm state; 20mA maximum load; Protect with 0.1A fuse maximum; Pin 1: Positive; Pin 2: Negative
• Caravan Version Safety Vent: Accepts 10mm OD PTFE tubing; Maximum 1m tube length to outside; Tube must be routed lower than battery height; Water must not be allowed to enter the tube; Breather/safety vent for lithium battery ventilation requirements
• Capacity Measurement: 14.6V to 10V at 0.3C at 25°C
• Operating Temperature – Charging: 5°C–45°C
• Operating Temperature – Discharging: -20°C–55°C
• Storage Temperature: -20°C–60°C
• Ideal Storage Conditions: 25°C, 40% SoC (approx. 13V)
• Battery Ventilation Required: 10mm Clearance on all sides; 100mm Clearance on the top
• Ingress Protection – Marine Version (CANBus and Alarm Port Covers Removed): IP20
• Ingress Protection – Marine Version (CANBus and Alarm Port Covers Fitted or Suitable Connectors Fitted): IP66
• Ingress Protection – Caravan Version: IP20 with safety vent disconnected and/or CANBus port covers removed; IP54 with safety vent tubing correctly installed and all CANBus port covers or suitable connectors securely fitted
