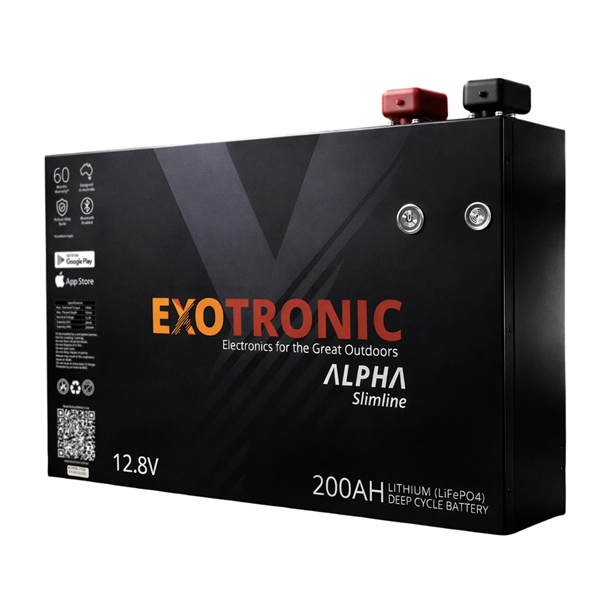

Exotronic 12V 200Ah Alpha Slimline Smart Bluetooth Lithium Battery

Product Description

Exotronic 12V 200Ah Alpha Slimline Smart Bluetooth Lithium Battery, 5 Year Warranty.

Ideal for Travel and Adventure

Exotronic Lithium Batteries are a perfect match for caravans, RVs, and 4x4 vehicles. Whether you're hitting the road or exploring off the beaten path, these batteries provide reliable power to keep your journey going.

A Trustworthy Choice for Rugged Conditions

Their durability makes them particularly suited for off-road applications, where resilience against harsh conditions is essential.

Ultra-Compact Powerhouse Design

Despite its compact footprint, this battery packs a powerful punch, offering 200Ah of dependable energy storage and up to 200A continuous discharge, perfect for a powerful 2000W inverter. Ideal for space-conscious setups without compromising on performance.

Heavy Duty Slim Metal Case

The Slimline metal enclosure offers outstanding strength while maintaining a narrow profile ideal for tight installations such as behind seats, under false floors, or in canopy compartments. The rigid structure protects the internal cells from vibration, impacts, and harsh environments, ensuring long-term stability and reliability wherever you install it.

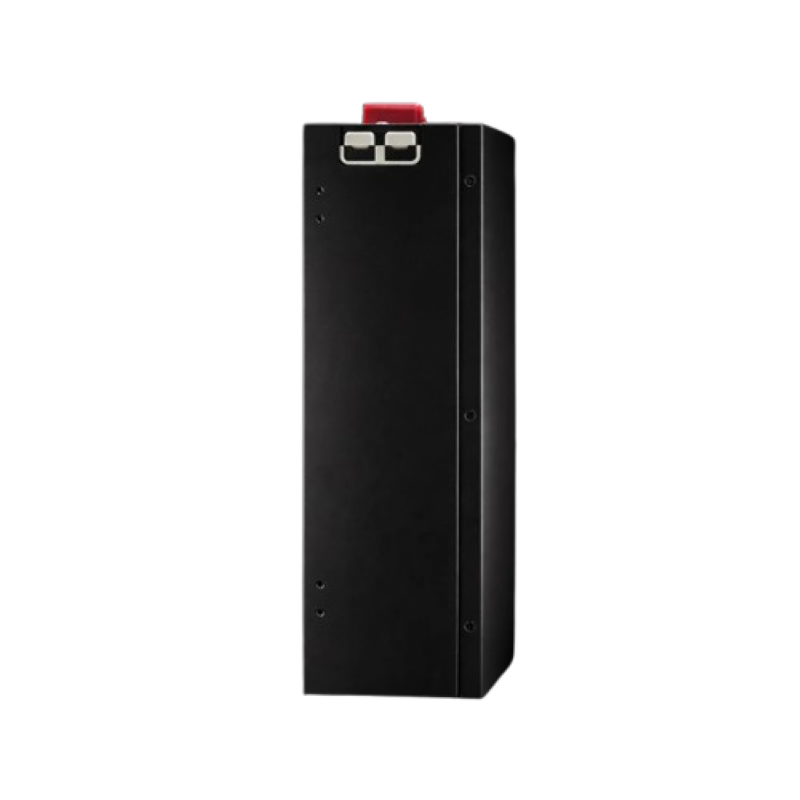

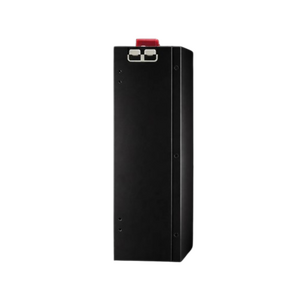

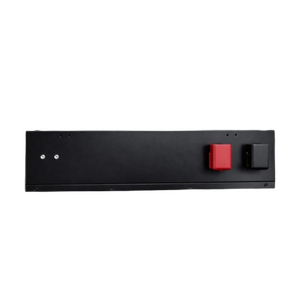

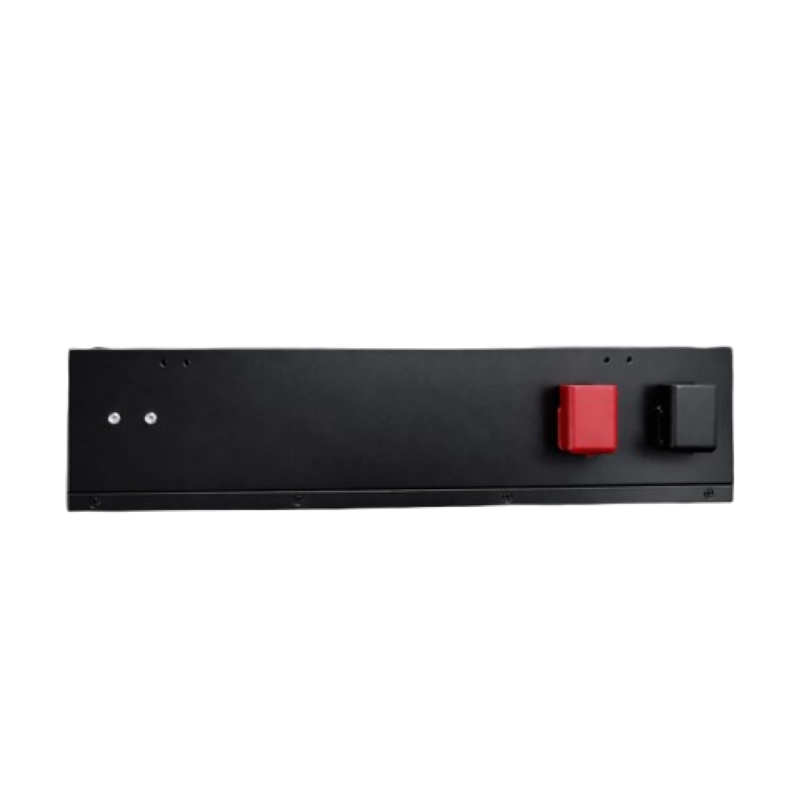

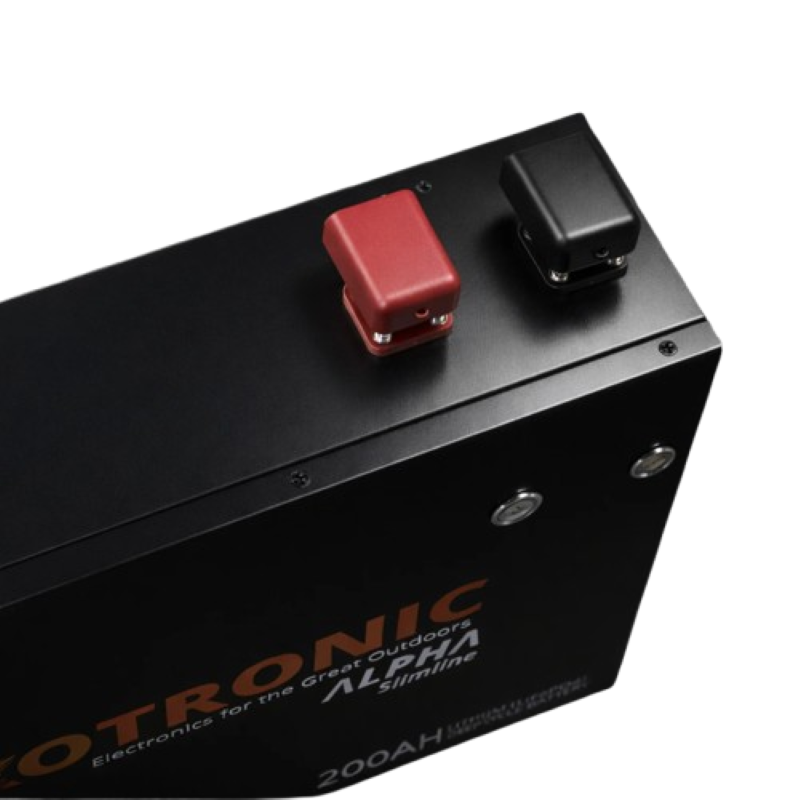

175A Anderson Plug and M8 Terminals

The high-current Anderson output and solid brass M8 terminals provide low-resistance, secure connections suitable for inverters, chargers, and heavy loads. Connected directly to the BMS for maximum efficiency, these outputs must be fused appropriately for safety. The combination of plug-and-play Anderson convenience and robust threaded terminals delivers installation flexibility for any setup.

Features:

• Strong Metal Slimline Casing
• Real Time Bluetooth Monitoring

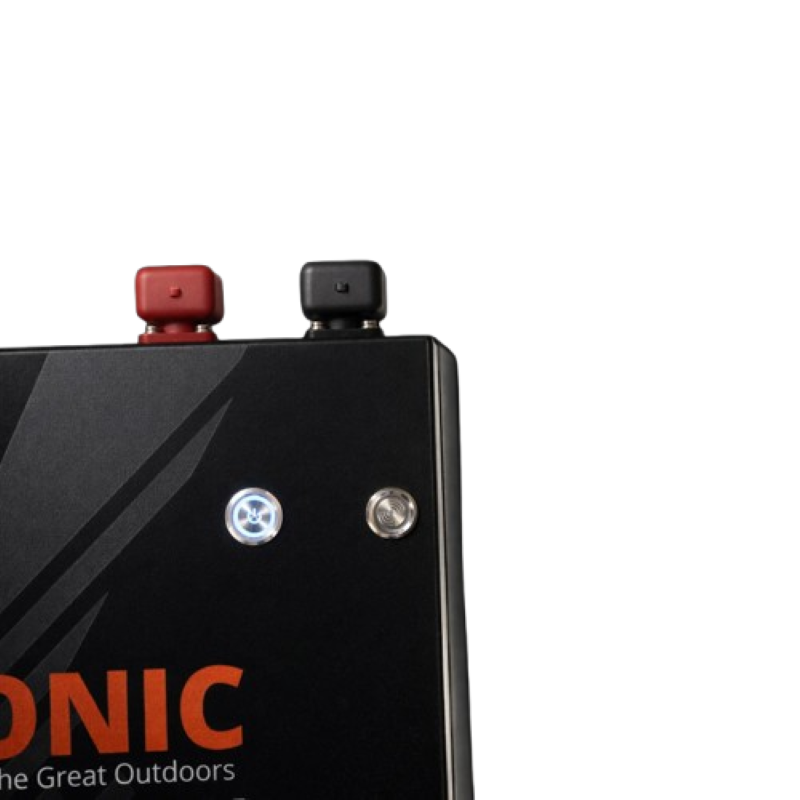

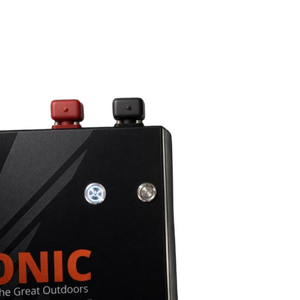

• On/Off/Reset Button
• Pre-trip Audible/Visual Alarm for 60 seconds at 10% State of Charge
• 200A JBD BMS
• 175A Anderson Plug and M8 Terminals
• 8 Mounting Bracket Locations - Top/Bottom, Left/Right
• 1.2A Active Cell Balancer
• A Grade Aluminium-cased Prismatic Cells featuring Safety Rupture Disc
• 0–100% Useable Capacity
• IEC 62619 Certified Cells

Specifications:

• Battery Capacity: 200Ah
• Battery Nominal Voltage: 12.8V
• Continuous Discharge Current (30 Min): 200A
• Peak Current (1s): 300A
• Trip Current (10s): 220A
• Maximum Inverter Size: 2000W
• Low Voltage Trip: 10V
• High Voltage Trip: 14.6V
• Balance Current: 1.2A

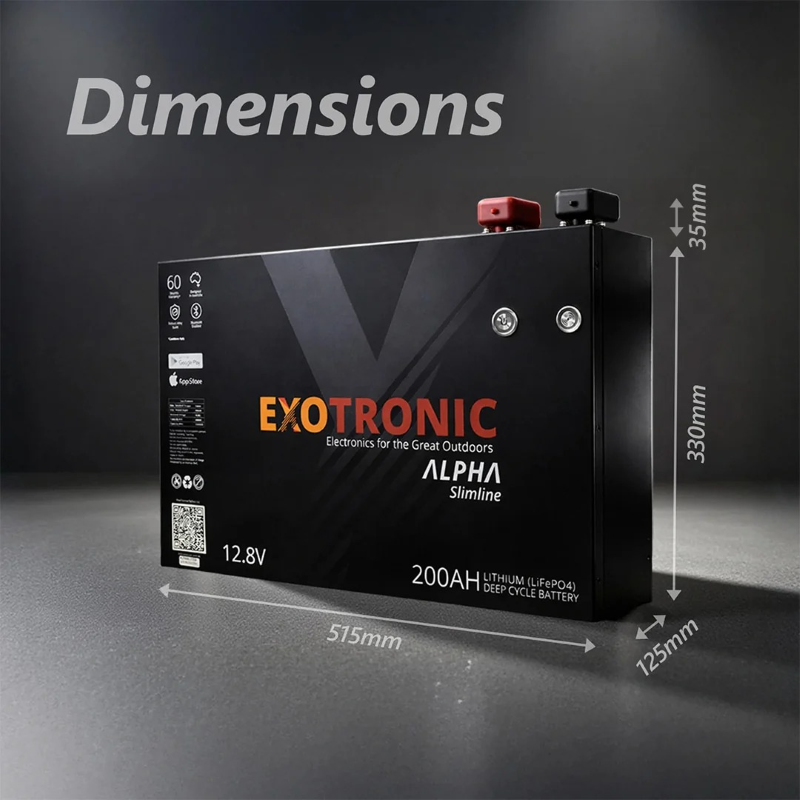

• Length: 515mm
• Width: 125mm
• Height: 330mm
• Weight: 24kg ± 1kg
• Mounting Orientation: Upright/Side
• Nominal Continuous Charge Current: 50A
• Maximum Continuous Charge Current: 80A
• Absorption Voltage: 14.0–14.2V
• Float Voltage: 13.5V
• Cycle Life (0.3C): >3000 100% cycles at 25°C to 80% capacity within 5 years
• Case Material: Powder-coated metal Slimline case
• Terminal: M8 Bolt – 10mm depth; 175A Anderson Plug × 1
• Terminal Torque: 14Nm Max (12Nm Recommended)
• Capacity Measurement: 14.6V to 10V at 0.3C at 25°C
• Operating Temperature – Charging: 5°C–45°C
• Operating Temperature – Discharging: -20°C–55°C
• Storage Temperature: -20°C–60°C
• Ideal Storage Conditions: 25°C, 40% SoC (approx. 13V)
• Battery Ventilation Required: 10mm Clearance on all sides
• Additional Features: Bluetooth / Switch / Buzzer
