Enerdrive 20A AC and 40A DC RV60 DIY Installation Kit

K-RV-60

$1,350

Save $84 (6%) off RRP of $1,434

FREE SHIPPING

Learn More»
This product is built to order. Build time 4 weeks. Express Shipping Price Match Guarantee Customer Reviews

Product Description

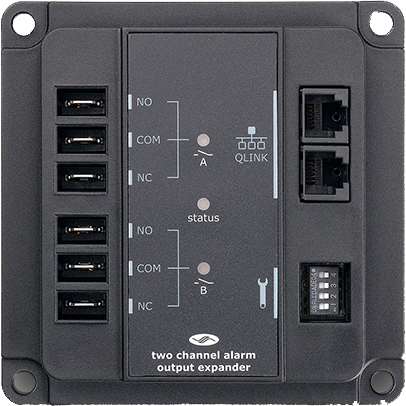

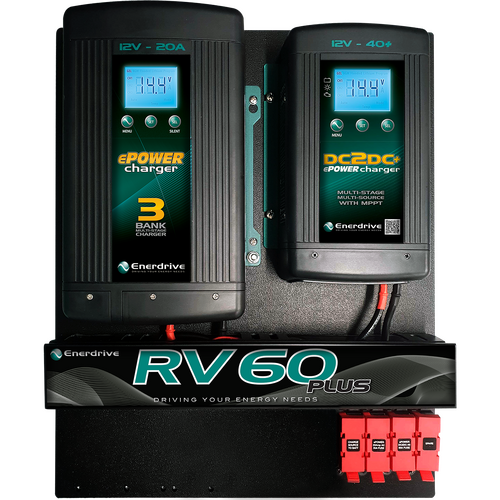

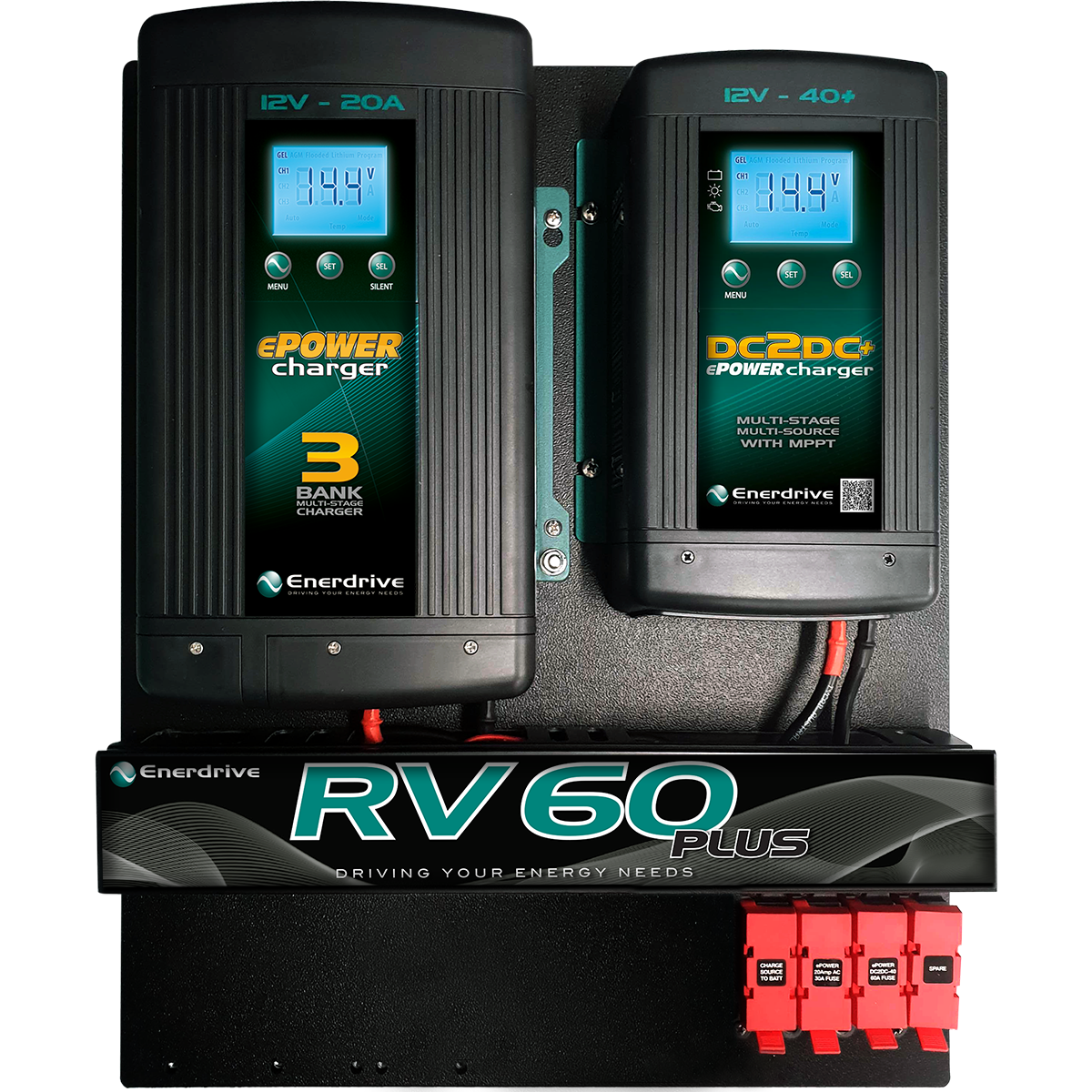

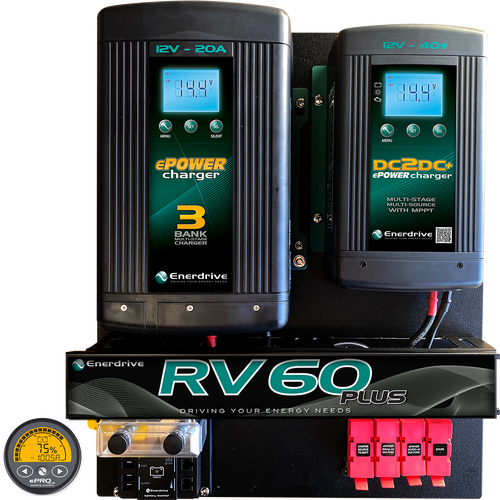

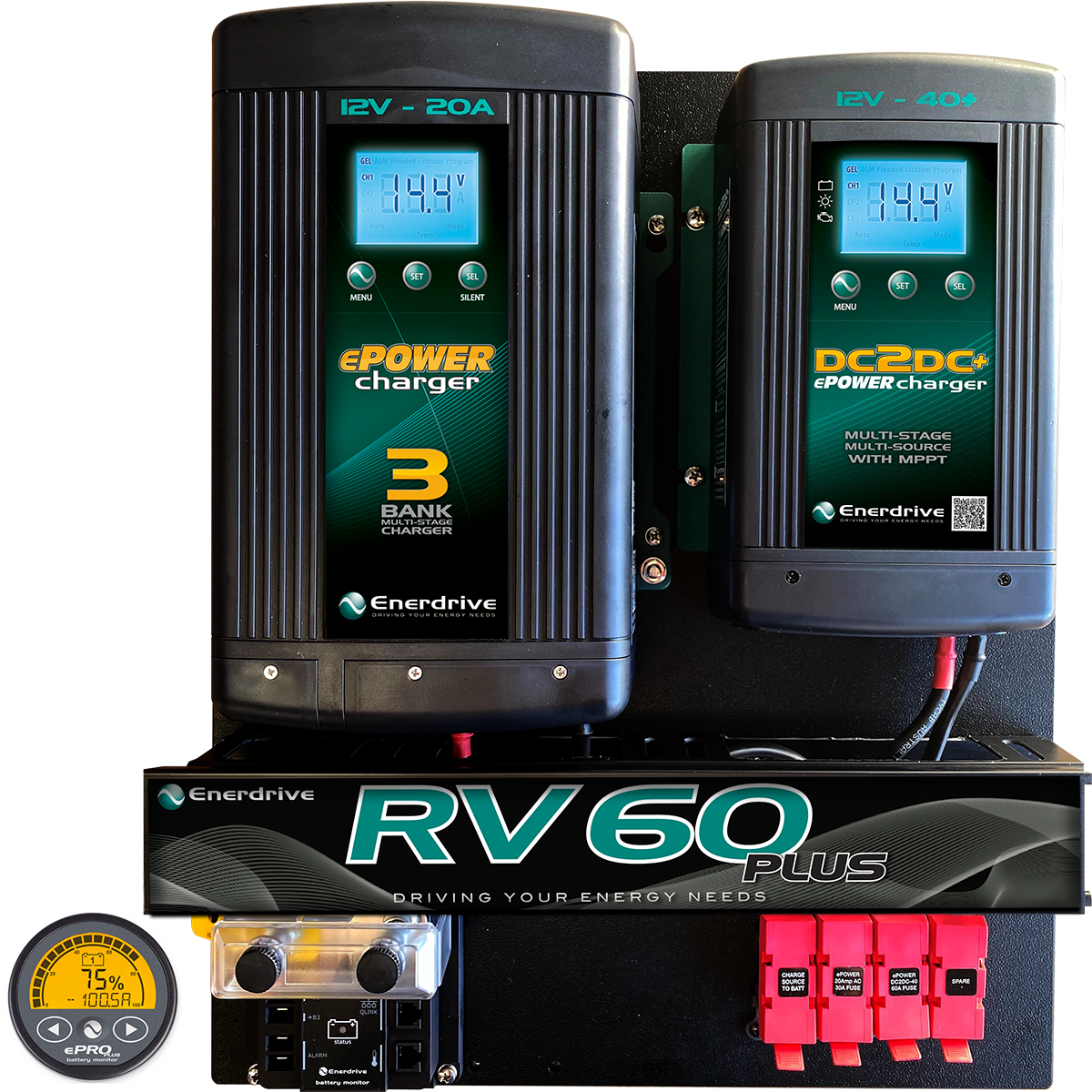

Enerdrive RV60 DIY Installation Kit with 40A DC2DC & 20A AC Battery Charger, 5 Year Warranty. Introducing Enerdrives RV Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more.

Enerdrive have created many different layouts to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. You can choose kits ranging from 20A AC & 40A DC chargers through to 40A AC & DC units with monitoring and Low Battery Cutout.

These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All RV boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.

Enerdrive also have you covered from a service and support angle with the RV Installation kits. Designed, constructed and pre-wired by Enerdrive, we know exactly the layout and wiring of your kit so any fault finding or support can be given quickly and concisely.

PRO TIP: Common accessories to go with this canopy system are; one or two AGM Board Cable Kits. Thickness, length & quantity will depend on installation type. Please check products cable description for details.



RV60 Kits Includes: K-RV060 K-RV060-01 K-RV060-02 K-RV060-03

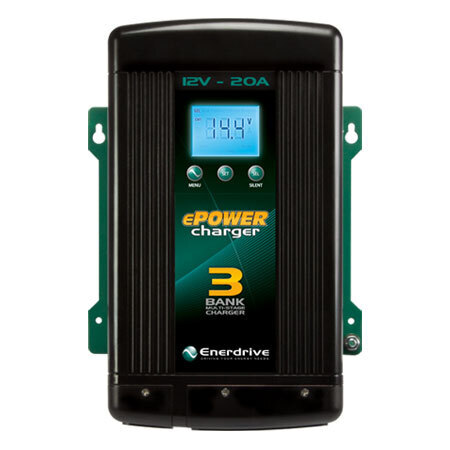

ePOWER AC 20Amp 230v Charger * * * *

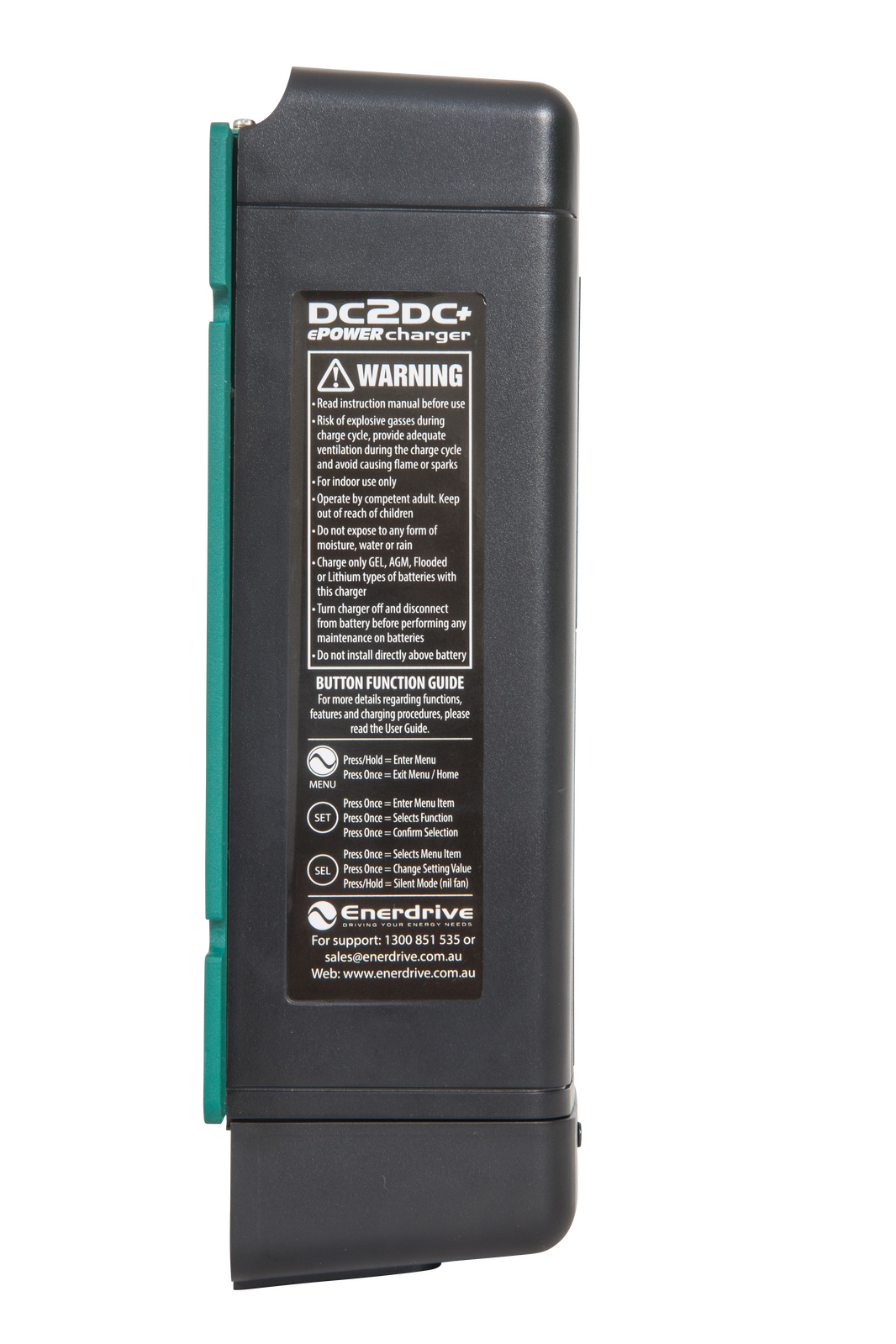

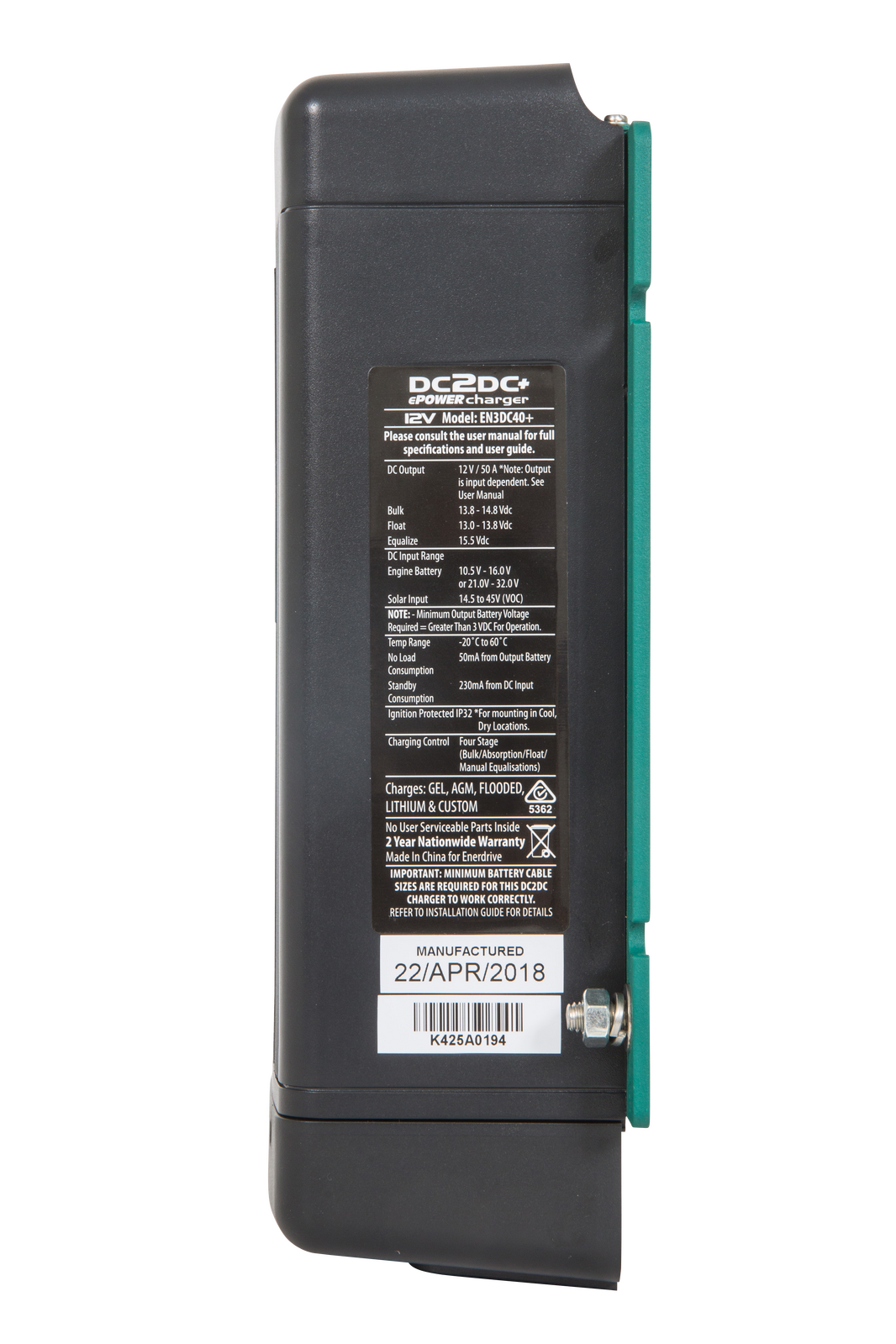

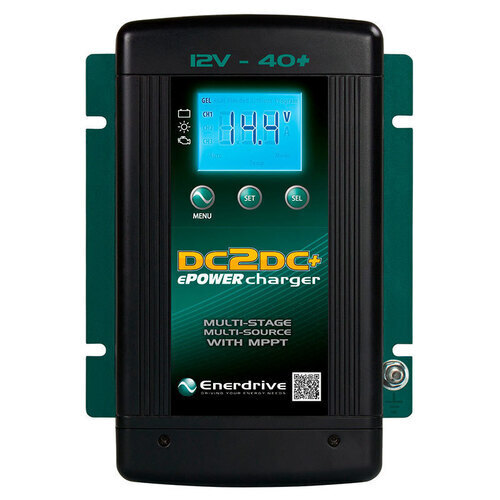

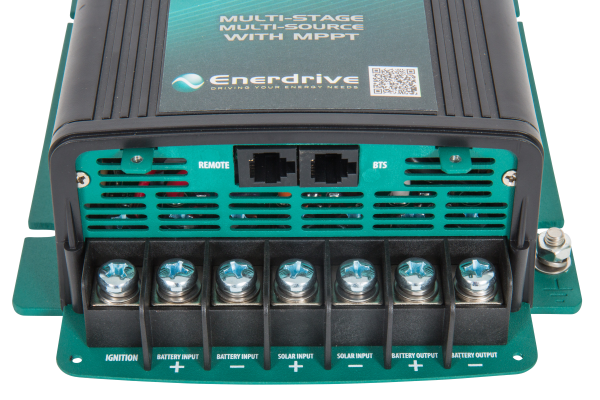

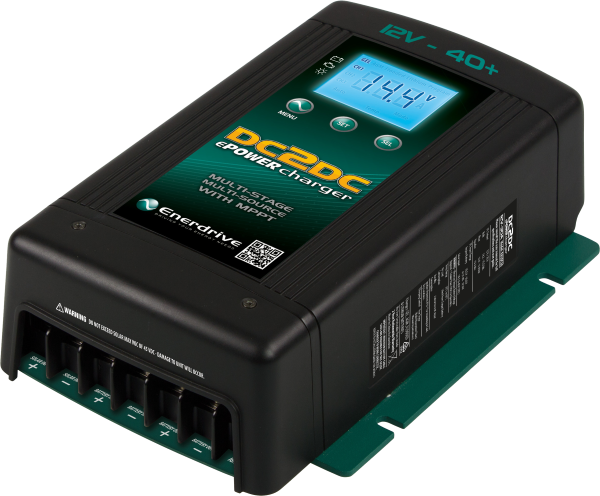

ePOWER DC2DC 40+ Charger (Vehicle/Solar) * * * *

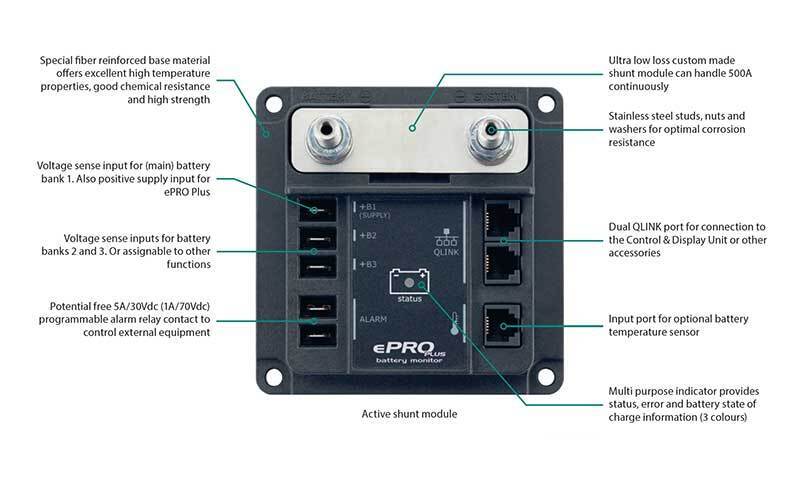

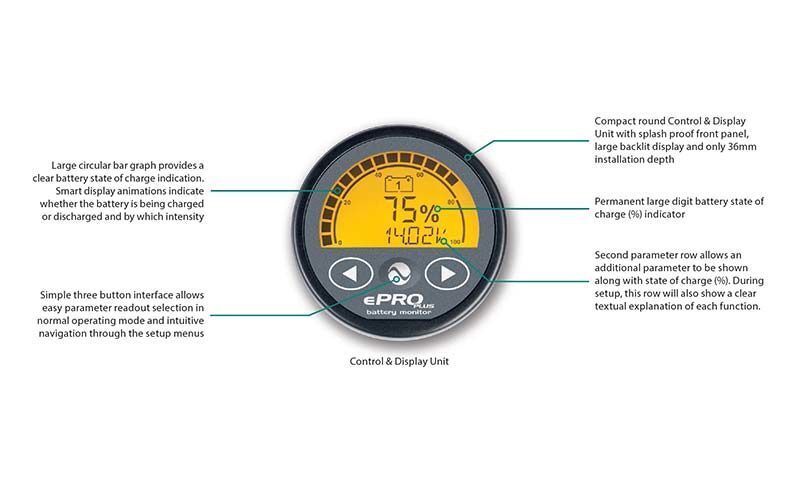

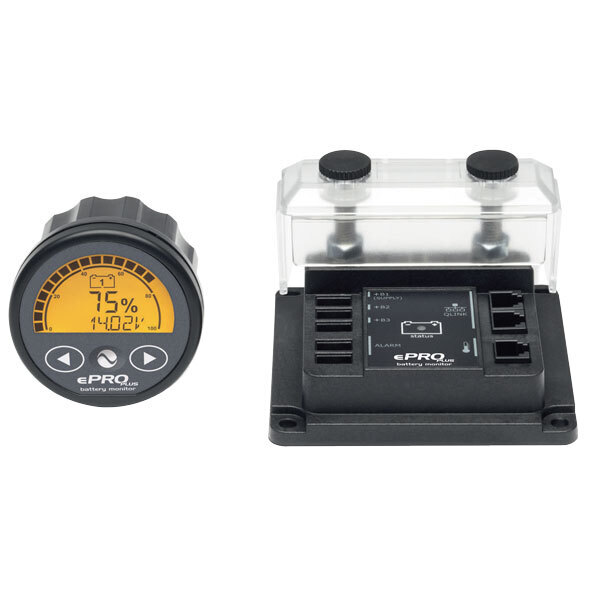

ePRO Plus 500A Battery Monitor with Remote Display,
with Audible & Visual Alarm

  * * *
ePOWER AC Charger 30A Output Fuse Connection * * * *
ePOWER DC2DC 60A Output Fuse Connection * * * *
50A Load Output Fuse Connection * * * *
8 Circuit "Wedge" Fuse Block     *
Low Battery Cutout
(Programmed in ePRO Plus via Users Data Input)
      *
12mm Black Plastic Mounting Board. Water & Rot Resistance * * * *
Dimensions (LxWxD) mm 480 x 400 x 100 480 x 400 x 100 480 x 400 x 100 480 x 400 x 100
(*) Indicates Standard Fitment



RV60 Wiring Diagram:

Wiring Diagram

RV60-01 Wiring Diagram:

Wiring Diagram

RV60-02 Wiring Diagram:

Wiring Diagram

RV60-03 Wiring Diagram:

Wiring Diagram

Specifications

SKU K-RV-60-KIT

Brand Enerdrive

Warranty Period: 5 Years

Product Category Power Systems

Nominal Voltage 12.8V (Lithium Batteries)

Nominal Capacity 100Ah (100A Lithium Battery) | 125Ah (125A Lithium Battery) | 200Ah (200A Lithium Battery)

Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (Lithium Batteries)

Battery Charge Temperature 0 ̴ 45°C (Lithium Batteries)

Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V (Lithium Batteries)

Standby (Float) Voltage 13.50 ̴ 13.60V (Lihium Batteries)

Maximum Charge Current 80A @ 25°C for 30mins (100A Lithium Battery) | 60A @ 25°C for 30mins (125A Lithium Battery) | 150A @ 25°C for 30mins (200A Lithium Battery)

Recommended Charge Current for Maximum Life ≤ 33A (100A Lithium Battery) | ≤ 40A (125A Lithium Battery) | ≤ 60A (200A Lithium Battery)

Battery Discharge Temperature -20 ̴ 60° (Lithium Batteries)

Battery Output Voltage Range 11.00 ̴ 14.60V (Lithium Batteries)

Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins (100A & 125A Lithium Battery) | 200A @ 25°C ± 5°C for 30mins (200A Lithium Battery)

Pulse Discharge Current 450A for 1.0s (Lithium Batteries)

Discharge Cut-off Voltage ≤ 11.20V (Lithium Batteries)

Temperature range ≤ 30 days -20°C ̴ 35°C, 45 ̴ 75% RH (100A Lithium Battery)

DC Output Connection Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Charger)

Output Short Circuit Yes, (with user replaceable fuse/s) (AC Charger)

Power Factor Correction Yes (AC Charger)

Humidity 5-95%, relative humidity non-condensing (AC Charger)

Voltage Max. 32V DC (Fuse Block) | 12/24V (100A Lithium Battery)

Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (AC & DC Charger)

Storage Range (temp) -40° to 70° C (AC Charger)

Cooling Forced air ventilation (thermo controlled fan) (AC Charger)

Standby Current < 2 mA (AC Charger)

Output Current Rating 40Amps (DC Charger)

LCD Display Charging status, Battery Voltage, Output Current & Fault Codes. (AC Charger)

AC Input Connection IEC with Supplied 1.2M Power Lead (AC Charger)

Over Charge Yes, unit shutdown (AC Charger)

Operating Range (temp) -20° to 60° C (AC Charger)

AC Input Frequency Range 47 – 63 Hz (AC Charger)

Dimensions 480 x 400 x 100 mm (LxWxD) (Unit)

Equalize 15.5V (DC Charger) | 16V (AC Charger)

Charger Efficiency 95% (DC Charger) | > 82% (AC Charger)

Power consumption (DC 12V) 350W (Full Load) (AC Charger)

Ingress Protection IP32 (Basic drip proof in vertical orientation) (AC Charger)

Float 13.0V - 13.8V (DC Charger) | 13.4V - 13.8V (AC Charger) | 13.50 - 13.80V (200A Lithium Battery)

AC Input Voltage 90 to 265 VAC (AC Charger)

DC Output Ground Single Heavy Duty Common Ground Stud (AC Charger)

Battery Temp Sensor Port RJ12 (standard battery temp. sensor supplied) (AC Charger)

Reverse Polarity Yes, (with user replaceable fuse/s) (AC Charger)

Dimensions (LxWxH mm) 242 x 172 x 74mm (DC Charger) | 295 x 206 x 86 mm (AC Charger) | 65 x 41 x 82 mm (Low Battery Cutout) | 310 x 170 x 236 mm (L x W x H) (100A Lithium B

Over Temperature Protection Yes, unit de-rated and shutdown (AC Charger)

DC Output Single (DC Charger) | Three (1 fully independent, 2 common with diode isolation) (AC Charger)

Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Charger) | Hot, Normal, Cold (no sensor connected) (AC Charger)

Charger Mode Output Voltage 13.8V - 15.5V (DC Charger) | 14.2V - 15.5V (AC Charger)

AC Input Operating Range 207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max) (AC Charger)

Charging Control Three Stages (DC Charger) | Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setting), Prio

Output System Voltage 12V (AC & DC Charger)
