Enerdrive 190W Solar Panel with Installation Kit


Save $43 (8%) off RRP of $532


Learn More»
Express Shipping Price Match Guarantee Customer Reviews

Product Description

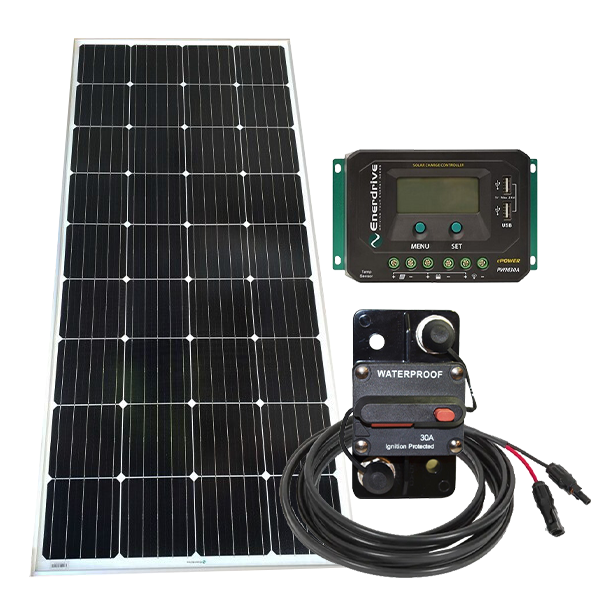

Enerdrive 190W Solar Panel Kit, includes Solar Charge Controller, Circuit Breaker, 10m Solar Cable & Lugs, 5 Year Warranty.

Bundle Includes:

  • SP-EN190W - Enerdrive 190W Mono Crystalline Fixed Solar Panel
  • EN43030 - Enerdrive ePOWER PWM 30A Solar Charge Controller
  • EN-RCB30 - Enerdrive EN-RCB30 Surface Mount Resettable Breaker - 30amp

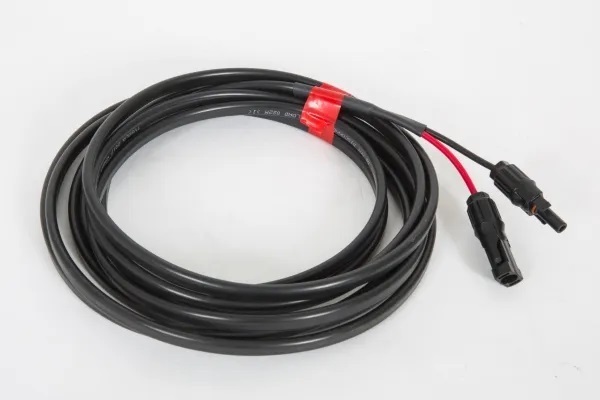

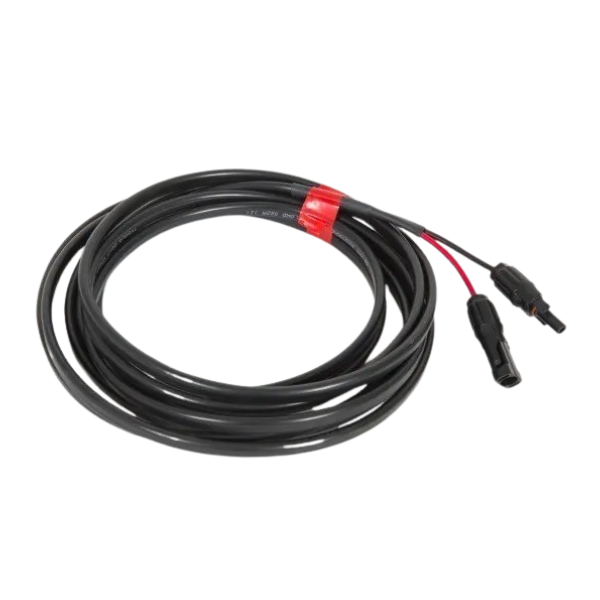

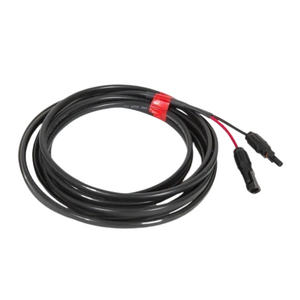

  • SP-SC10-6MM - Enerdrive 10m 4mm² Twin Solar Cable with MC4 Plugs
  • 4 x EN-LUG-6-8 - Enerdrive 6mm2 x 8mm Cable Lug Bell Mouth

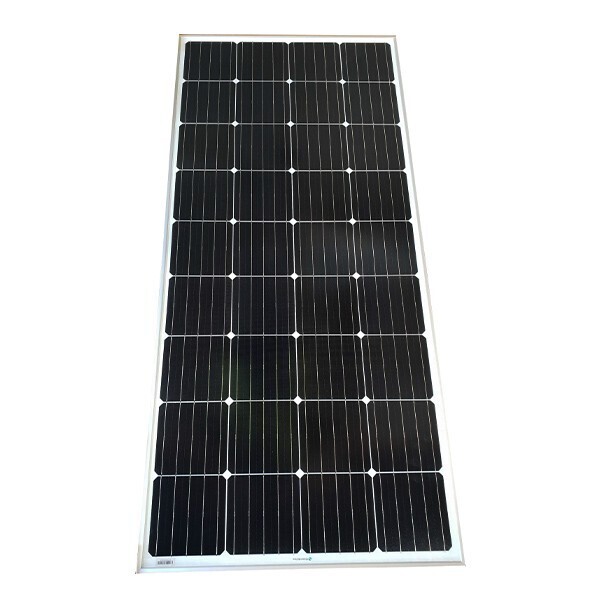

Enerdrive 190W Mono Crystalline Fixed Solar Panel, Silver

Enerdrive solar panels are typically around 20+vdc open circuit.

  • Suited to 12v installations (or 24v by series connections of panels)
  • A fly lead cable is provided for easy connection of the 10 & 20w panels
  • The larger panels have MC4 compatible solar cable connectors included

Enerdrive Product Card

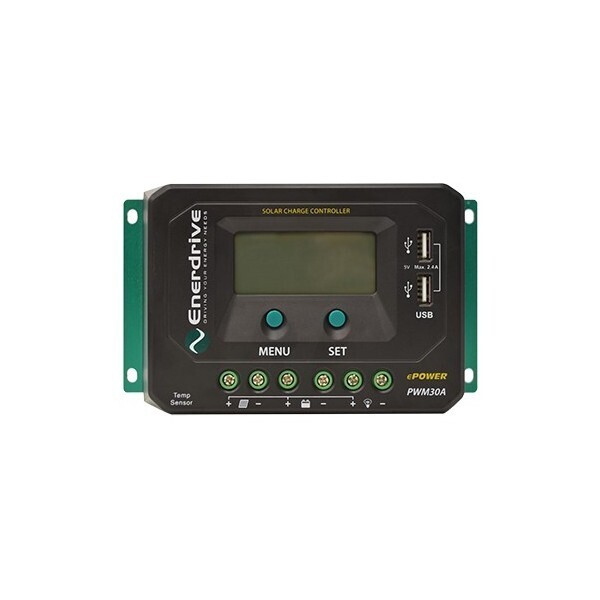

Enerdrive ePOWER PWM 30A Solar Charge Controller

For maintenance free protection of your batteries and solar panels the controllers regulated output will prevent batteries overcharging.

Load Disconnect (LD) feature will protect batteries from being over discharged.

Enerdrive PWM 30A Solar Charge Controller benefits include:

  • Protects battery from overcharge and discharge
  • 12/24V auto detect
  • Handles up to 30 Amps of Array Current
  • Handles up to 450 Watts of solar power
  • Maintenance free protection of your solar panel and batteries
  • Maintains battery voltage
  • Maintain 12/24V batteries in a fully charged state


  • Informative backlight LCD display indicates solar charge input, charge/load output Volatage/Amps
  • Selectable battery type Sealed, Flooded & Gel
  • 2 x USB Outputs 2.4A
  • Full output operation up to 55oC
  • Temperature compensation
  • High precision on voltage set point
  • Wall mountable

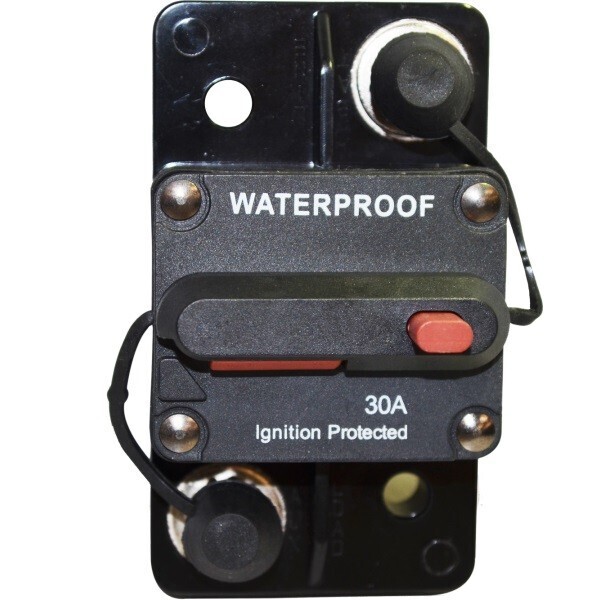

Enerdrive EN-RCB30 Surface Mount Resettable Breaker -30amp

Enerdrive have just released a affordable range of surface mount circuit breaker while keeping with the high quality that our customers have come to expect.

Units between 25-70amp have 1/4” studs while the larger units 80—150amp have the larger 3/8” studs for Quality DC connections.

Please Note: Check the Enerdrive Charger Manual for recommended Breaker & Cable sizing.



Brand Enerdrive

GTIN 9342616028148

Warranty Period: 5 Years

Product Category Solar Packs

Solar Panel Type Fixed Solar Panels

Solar Panel Cell Type Monocrystalline

Watts (W) 190

Operating temperature range -25˚C+55˚C | -20˚C+70˚C (LCD) (Charge Controller)

Max Power Voltage Vm(V) 19.3 (Solar Panel)

Net Weight (kg) 11.7

Output 5VDC/2.4A (USB, Total) (Charge Controller)

Open Circuit Voltage Voc(V) 24.2 (Solar Panel); 12V - 25 VOC / 24V - 50 VOC (Charge Controller)

Short Circuit Current Isc(A) 9.98 (Solar Panel)

Test Conditions 1000W/m² , AM1.5 , 25°C (Solar Panel)

Max System Voltage (VDC) 1000 (Solar Panel)

Max Power Current Im(A) 9.33 (Solar Panel)
