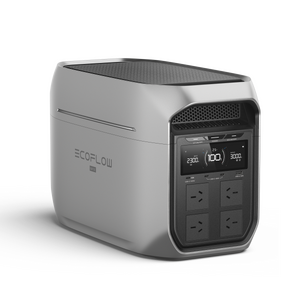

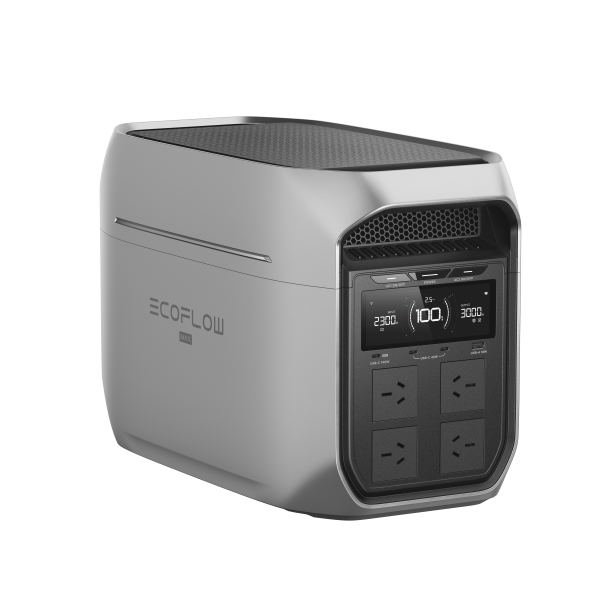

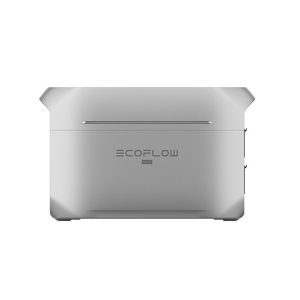

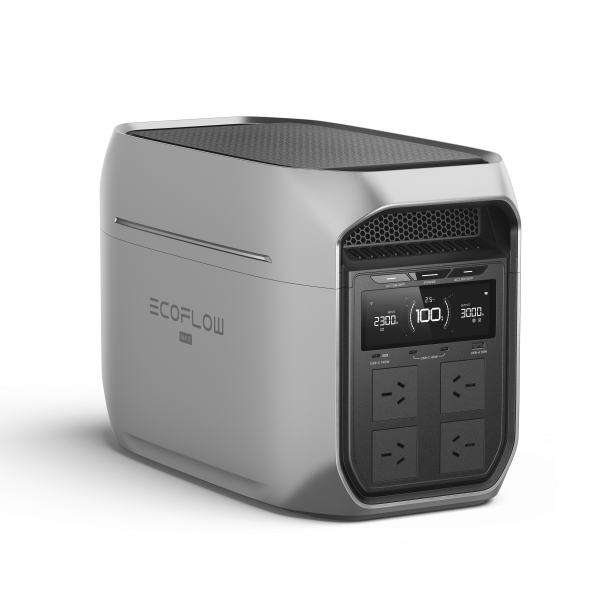

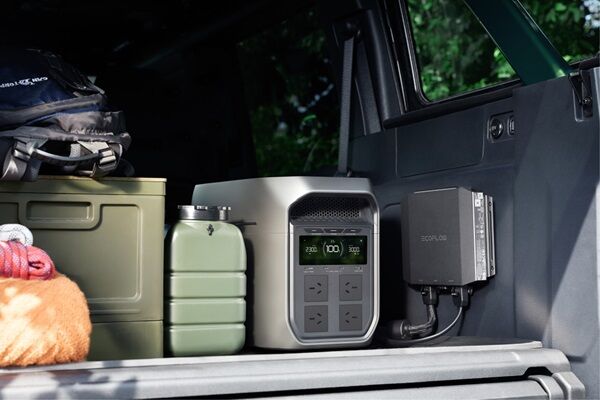

EcoFlow Delta 3 Max Plus Power Station with 2048Wh Battery Capacity

Product Description

EcoFlow Delta 3 Max Plus Power Station with maximum 3000W AC output & Built in 2048Wh (170Ah@12V) Battery Capacity, 5 Year Warranty. The EcoFlow DELTA 3 Max Plus is a 2kWh Portable Power Station with a 3000W maximum output.

Key Features and Technology:

• Power Output and Capacity: It offers a 3000W AC rated output with a 6000W surge. With X-Boost 3.0 technology, it can support devices up to 3800W. The capacity is 2048Wh, which is 25% more power compared to the EcoFlow DELTA 2 Max.
• Scalability: The capacity is scalable from 2-10kWh. Pairing with EcoFlow Smart Generators can provide longer or unlimited runtime.
• Battery and Reliability: It uses EV-grade full-tab LFP batteries, engineered for over 10 years of reliable power. The full-tab design increases efficiency and safety, and provides 25% more efficient power flow. The unit is built with an EV-Grade Cell-to-Chassis (CTC) structure, making it drop-resistant. It has a <10ms switchover time for fast, class-leading UPS protection.
• Charging: There are five charging methods, with a fast charge time of 43 minutes. Charging options include Wall (1800W input), Generator (up to 2600W), Solar (1000W input), Alternator (1000W input), and Solar + Alternator Dual Charging (0-80% in 51 minutes).
• Smart Features: It features Smart Output Priority Tech, allowing users to choose which circuits stay powered via the app to extend runtime for essentials. It also has an Anderson Port with 95% efficiency. The EcoFlow app allows for monitoring and setting timed charging/discharging missions to save costs.
• Comparison: Compared to the DELTA 3 Max, the DELTA 3 Max Plus has a higher AC output (3000W vs 2400W), greater expandable capacity (up to 10kWh vs X), Output Priority Tech, a 140W max USB-C output, and a 12.6V 30A Anderson Output.

Specifications:

• Color: Silver
• Capacity: 2048Wh
• Net Weight: Approx. 22.1 kg
• Dimensions: 494 × 242 × 305 mm
• 170Ah@12V

Power

• Total Output Ports: 10
• Total Output Power: 3581W Max

AC Output

• Number of AC Outlets: 4
• Output Priority: Yes
• Max AC Output: 3000W
• Output Voltage: 230V ~ 50Hz, 3000W total
• Current: 13A max per port (×4)
• Surge Output: 6000W
• Max Output with X-Boost: 3900W
• X-Fusion: Yes

DC Output

• Number of DC Outlets: 6
• USB-A: 1 × 18W Max
• USB-C:
  • 1 × 140W Max (HID)
  • 2 × 45W Max (45W total)
• 12V DC Output: 378W Max
  • Car Power Output ×1: 12.6V ⎓ 10A
  • Anderson Output ×1: 12.6V ⎓ 30A

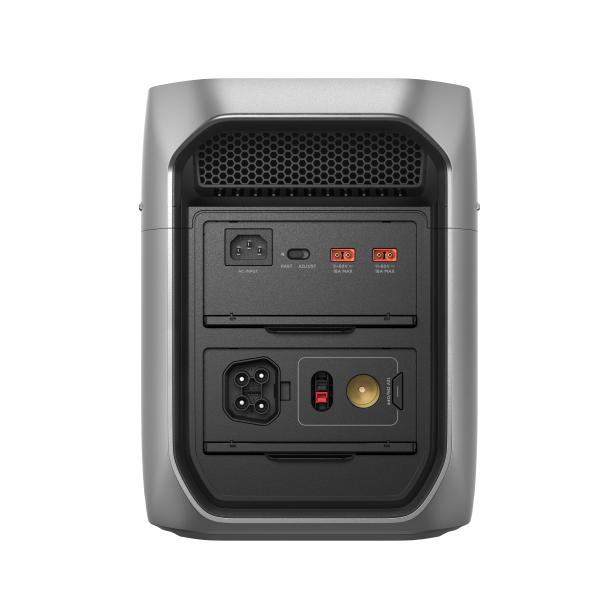

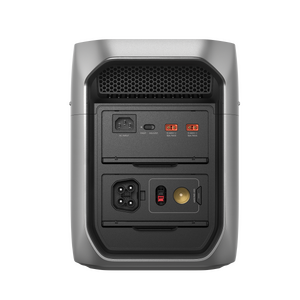

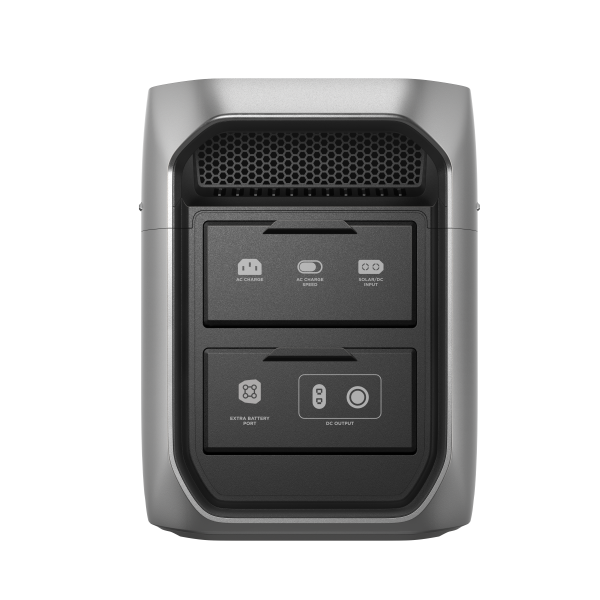

Input / Charging

• Utility Power Charging: 2300W (depends on input voltage)
• Input Voltage: 220–240V ~ 10A, 50/60Hz
• 0–80% Charge Time: 47 minutes (0.8 hour)
• 0–100% Charge Time: 68 minutes (1.1 hours)
• Solar Charging: 1000W (2 × 500W)
• Generator Charging: 2400W Max
• Alternator Charging: 1000W Max (through 4+8 port)
• Car Charging: 12V/24V ⎓ 8A

Battery

• Battery Chemistry: LFP
• Number of Extra Battery Ports: 1 (expandable to 2)
• Extra Battery Port Type: 4+8
• Compatible Extra Batteries: D2M / D3MP / D3 / DP3 EB
• Max Capacity with Extra Battery: Up to 10kWh (with 2 × DP3 EB)
• CTC Craftsmanship: CTC

UPS

• UPS Response Time: 10ms + HID

Connectivity

• Screen: Yes
• Wi-Fi: Yes
• Bluetooth: Yes
• App Support: Yes

User Experience

• Warranty: 3 + 2 years
• Noise Level: ≤30dB at 600W
• Operating Altitude: ≤3000 m
• Discharge Temperature: -10°C to 45°C
• Charge Temperature: 0°C to 45°C
• Storage Temperature: -10°C to 45°C

Battery Protection

Over-voltage protection, overload protection, over-temperature protection, short-circuit protection, low-temperature protection, low-voltage protection, and overcurrent protection.

What’s in the Box?

• 1 x EcoFlow DELTA 3 Max Plus Portable Power Station
• 1 x AC Charging Cable
• 1 x Manuals & Warranty Card
