Dieselheat DH9 Hydronic Diesel Hot Water System with Eberspacher D5E HS3 Furnace

SKU: DH9-D5E-B2B-RV Learn More»
$3,146
EXTRA $70 OFF! Add to cart to get an instant discount
SALE ENDS:

CALCULATE SHIPPING:

Accessories

$285

In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Dieselheat DH9 Hydronic Diesel Hot Water System with Eberspacher D5E HS3 Furnace, 2 Year Warranty. Super compact diesel hot water for slide on capmers, small vans and other rigs where space is tight.

The DH9 is Dieselheat’s smallest and most versatile diesel hot water system, with super fast heat up time, the DH9 will provide a sink full of hot water or a continuous shower at 2.5L/min within 6-7 min of a cold start whilst occupying a space the size of a couple of shoe boxes.

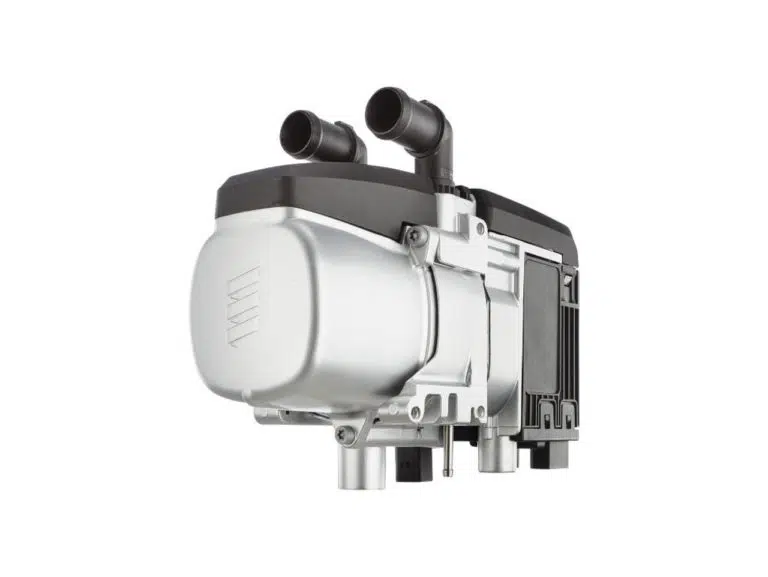

The beautifully engineered D5E HS3 furnace from Eberspacher modulates it’s heat output from 1.3 to 5kW, so the DH9 can work with a small coolant volume whilst avoiding excessive cycling, this also minimizes noise and power consumption.

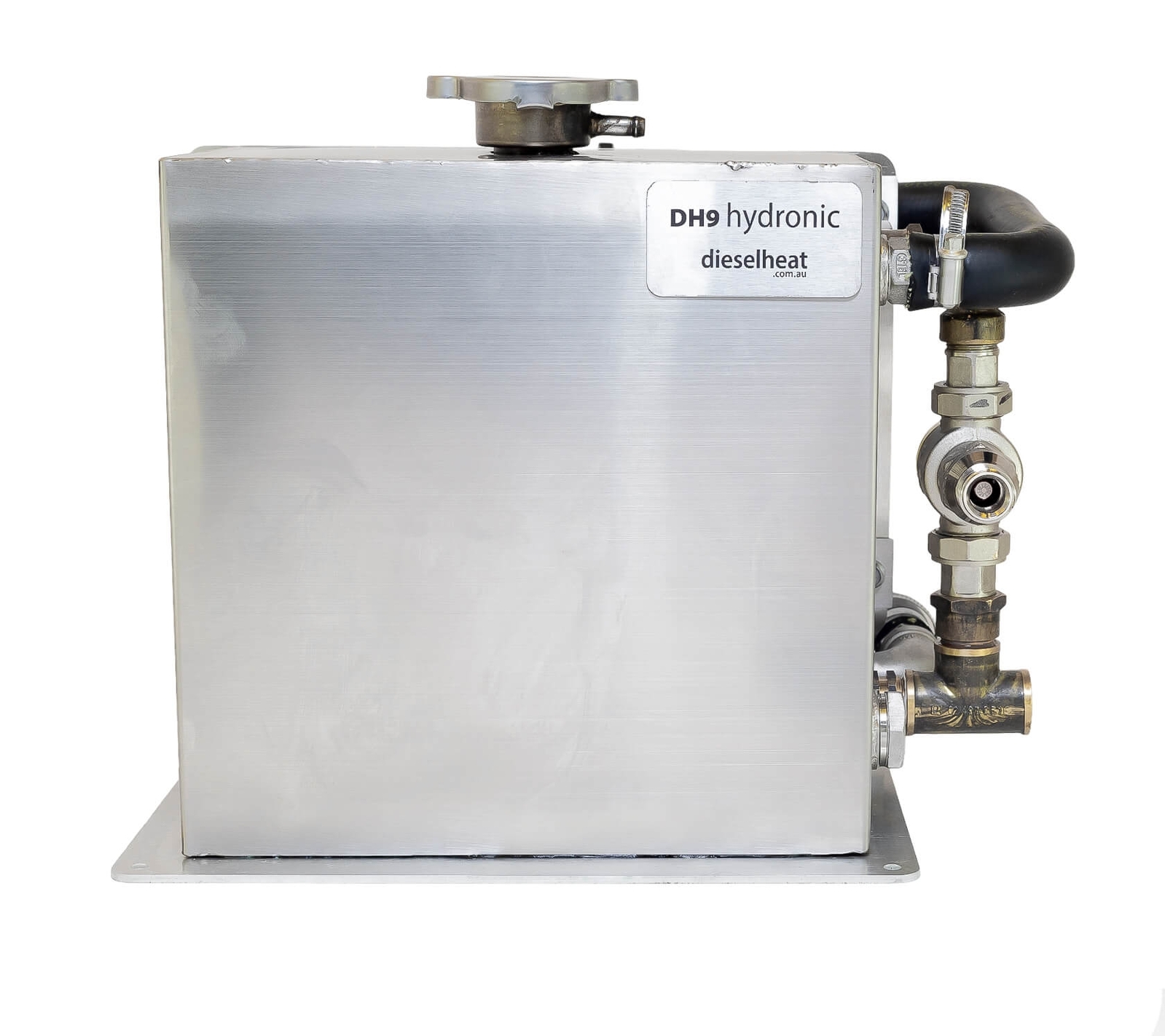

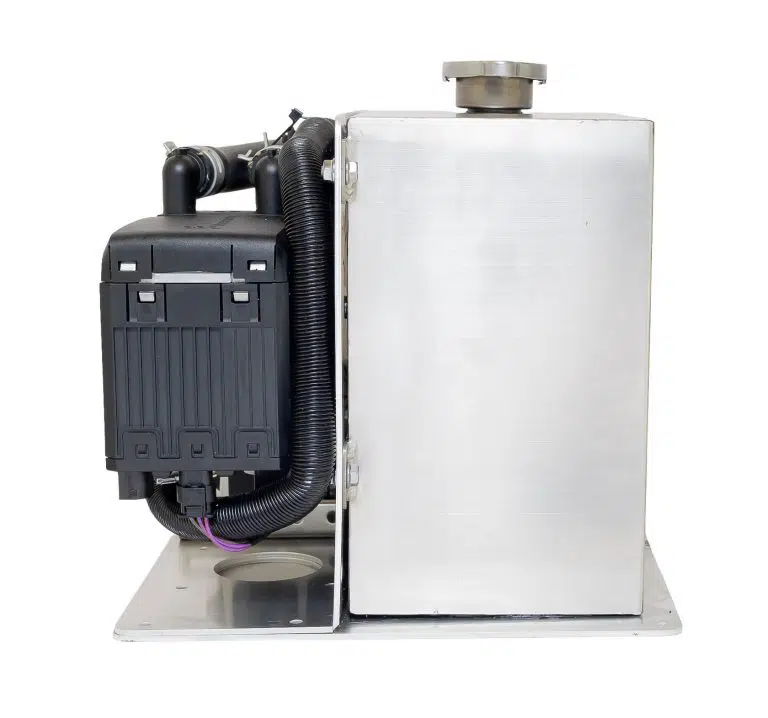

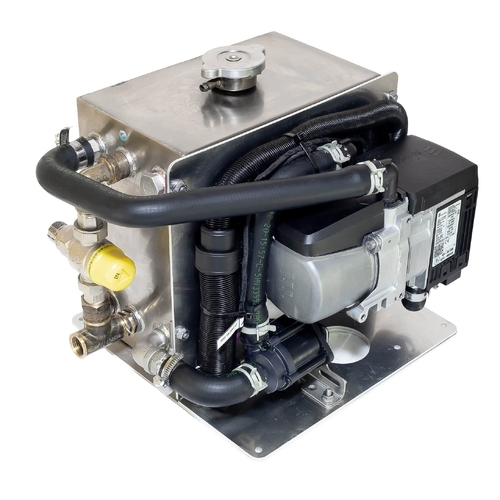

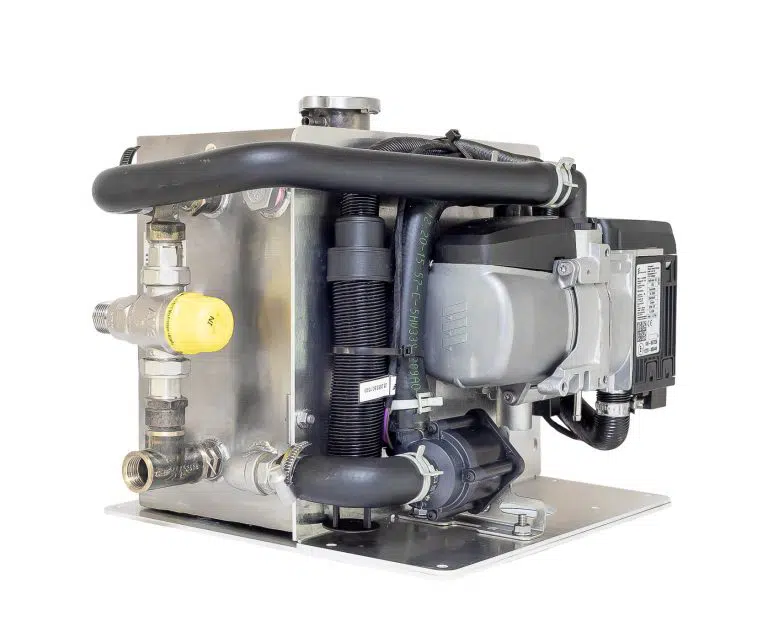

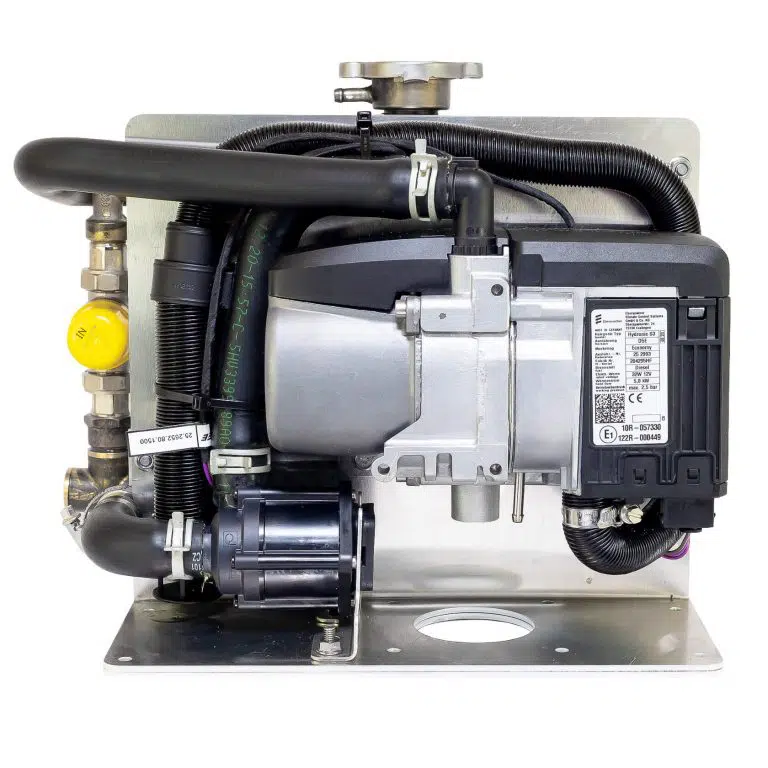

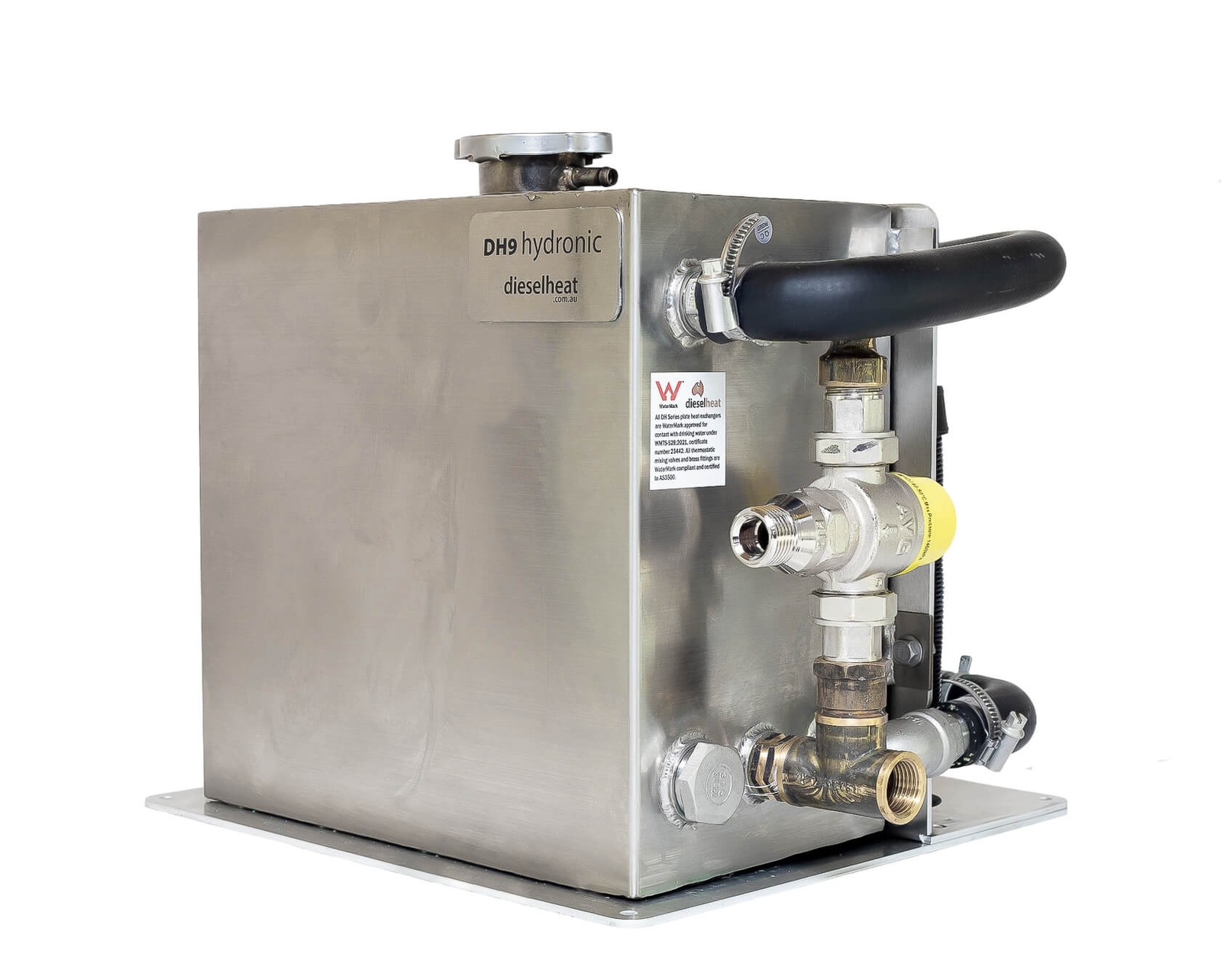

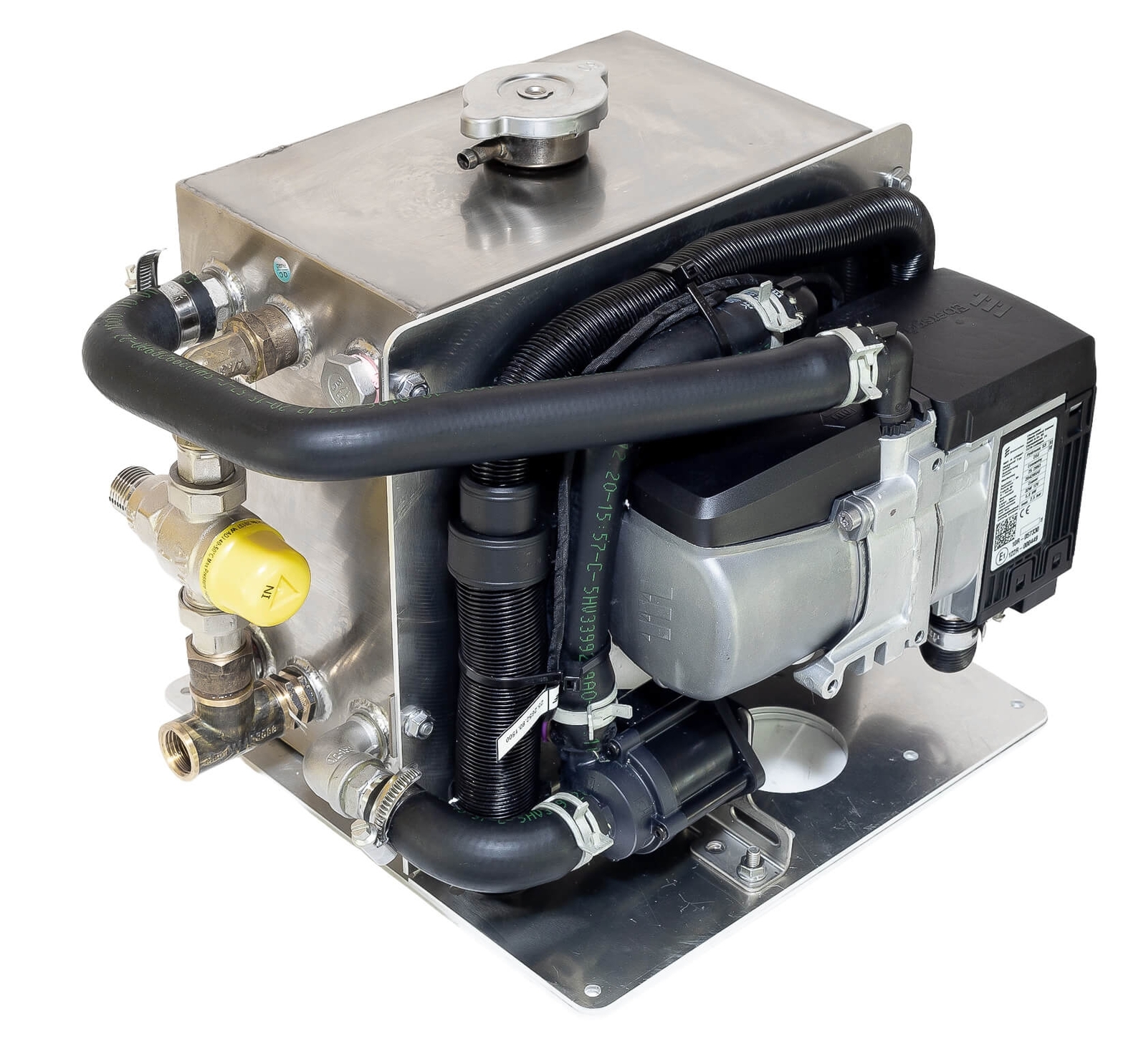

The DH9 is sold assembled with the tank and furnace back to back on an aluminum mounting stand for easy installation and suits small spaces.

Features:

  • The most compact hydronic system
  • Fully assembled and tested for quick easy install
  • All 316 stainless steel, suitable for caravans and boats
  • Fast heat up time, around 7min from cold
  • Integrated air heating (optional)

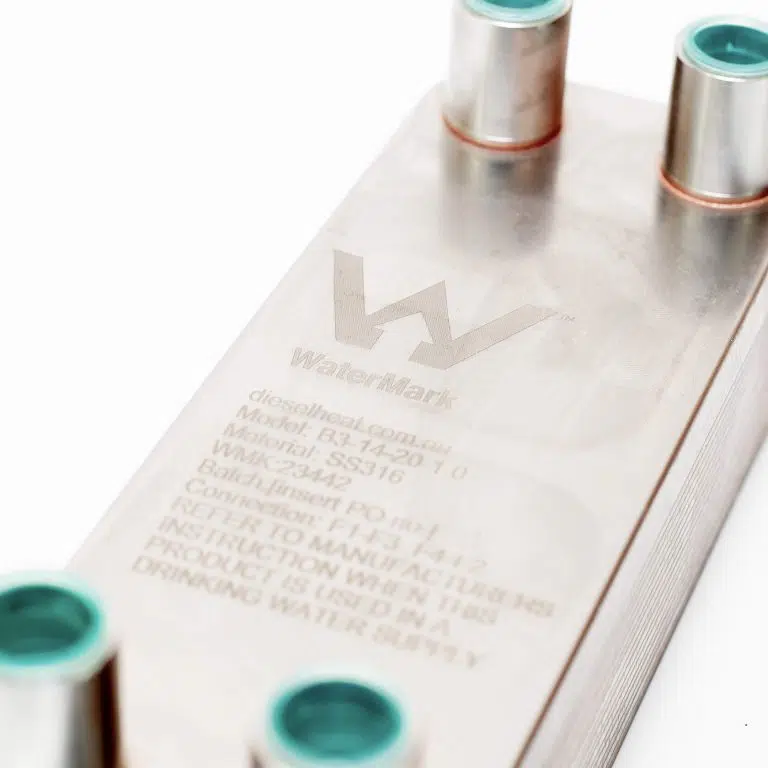

  • Includes Watermark approved tempering valve and plate heat exchanger to ensure hot water is always delivered at safe temperatures

Pair the DH9 with a Bricor Ultra Max low flow shower head to have super water wise showers – 0nly 2.5L/min, great for a caravan or boat where water is limited.

By adding in a Kalori fan head, the DH9 diesel hot water becomes an effective air heater, giving off up to 4kW of air heating from the single quiet Kalori Silencio 2 fan head.

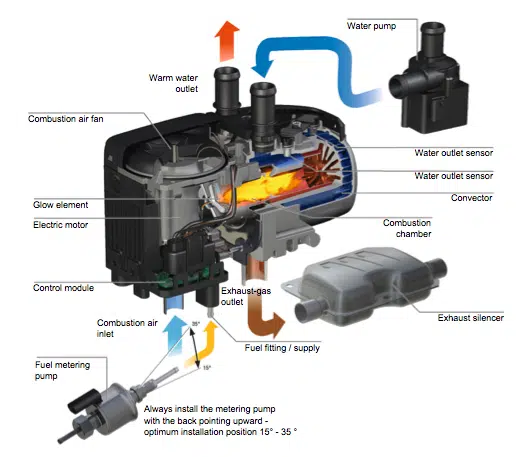

The advantages of the brand new Eberspacher D5E HS3 Furnace include:

  • Much quieter in terms of the combustion fan and overall noise
  • Uses the new Eberspacher super quiet fuel pump (no ticking sound)
  • Drops to low power much faster, so re-starts are much gentler and quieter
  • Longer service life – 3000 hours is claimed
  • Stepless power output from 1.3 to 5kW
  • When using fan heads for air heating, as long as the fan head is dissipating over 1.3kW it won’t cycle at all, and at low power it is as quiet as an air heater
  • Soft start water pump that primes more easily
  • Improved water and dust resistance
  • Excellent installation kit

Kits now include the high temperature silicon floor plate to get the exhaust through the floor with a dust/water proof seal.

System Performance

  • Time to useable hot water from cold start: 6-7min
  • Time to fully hot: 9-10min
  • Regeneration time between showers: 4min
  • Length of shower assuming 30 degree temp rise using Dieselheat shower heads:
  • Bricor UltraMax 2.5L/min @ 40PSI: >15min (recommended shower head)
  • Bricor Elite 4L/min @ 40PSI:   4.5min (pushing the limits, better to use a DH15 for this shower head)

Length of time the system can achieve a 30 deg temperature rise:

  • 2L/min – >15min
  • 3L/min – 9min
  • 4L/min – 3.5min
  • 5L/min – 2 min

These numbers are all affected by ambient temperature, installation layout and assume no concurrent air heating, so should be taken as a guide.

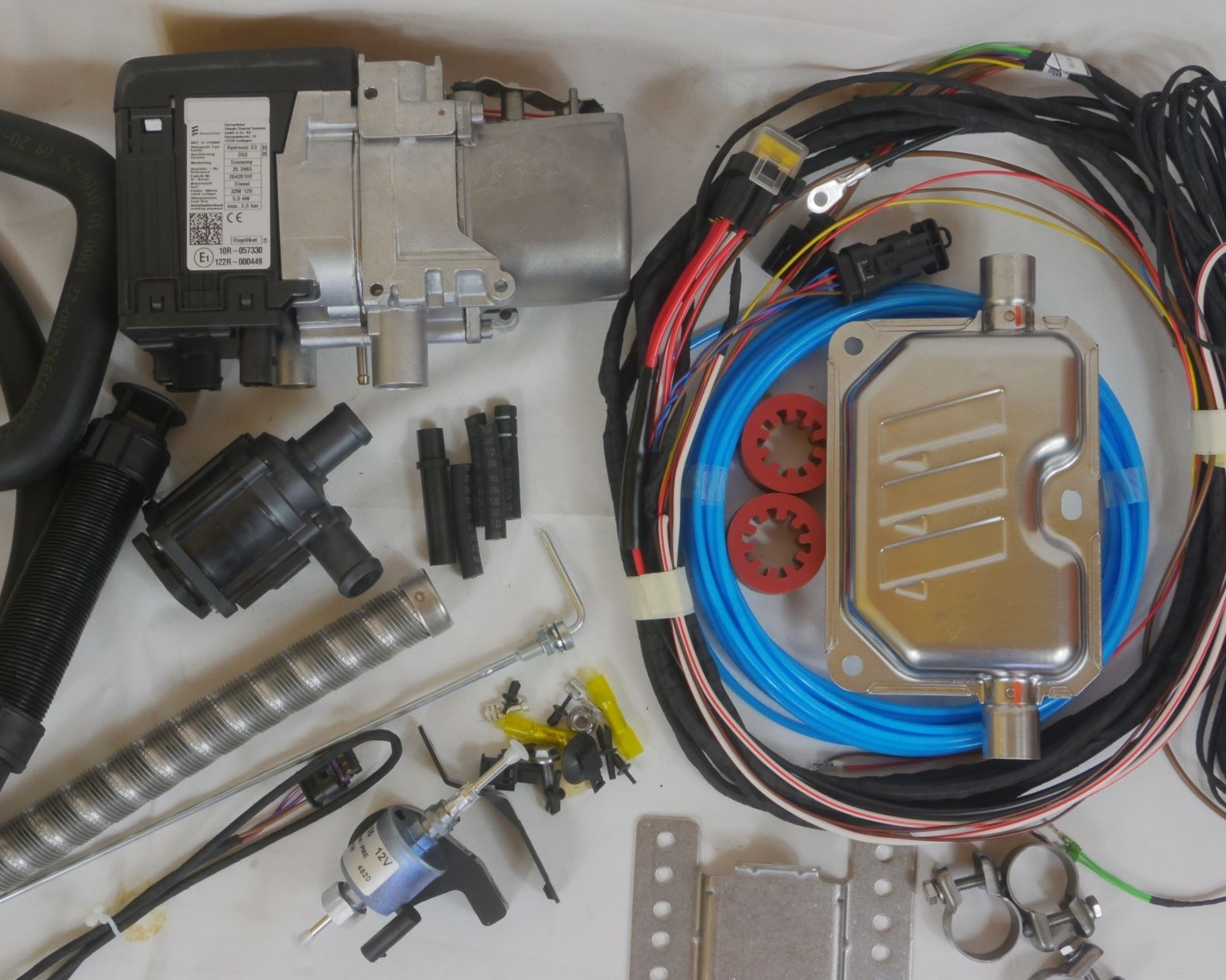

Kit Contents:

The pre-assembled and tested hot water system  includes:

  • compact 9L hot coolant tank
  • mounting bracket
  • Eberspacher diesel hot water furnace
  • combustion air silencer
  • exhaust system
  • silicon floor plate for exhaust
  • tempering valve
  • wiring loom with on/off switch
  • fuel pump and fuel line
  • on/off toggle switch

Note: the system is not shipped with coolant. The purchaser is required to fill the tank using a standard automotive corrosion resisting coolant mix.

Installation Guide

Operating Guide

Eberspacher D5E HS3 Technical Manual, click here:

Product Manual

Specifications

SKU DH9-D5E-B2B-RV

Brand Dieselheat

Warranty Period: 2 Years

Product Category RV Heaters and Hot Water

Fuel Diesel

Depth (mm) 160mm

Height (mm) 280


Product Q&A

Ask Us a Question
  • Can I mount the Diesel Heat Hot water System on its side?

    The hot water system requires coolant to be filled from the top of the unit, therefore it can not be installed on its side.
