Professional 24V battery charging
The ideal 24V solution
The MXT 14 is designed for batteries that are put under a lot of strain, making it ideal for commercial vehicles, buses, trucks and CV workshops.

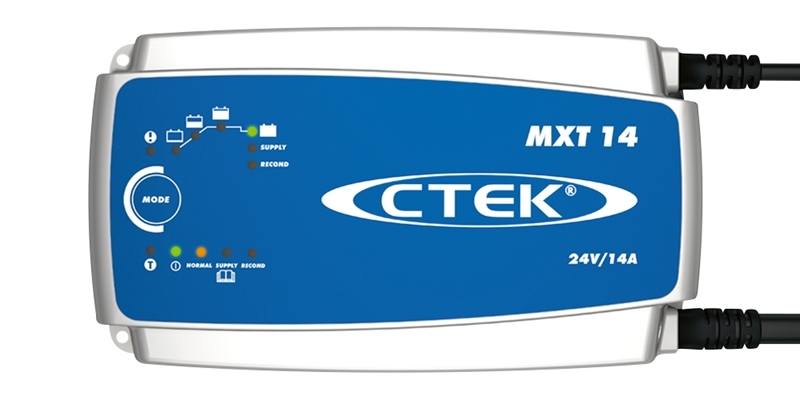

The MXT 14 professional 8 step 24V battery charger delivers 14A to 24V batteries from 28-300Ah and is suitable for maintenance charging up to 500Ah. Its features include battery diagnosis to establish whether the battery can receive and retain a charge, a Recond mode for restoring and reconditioning stratified and deeply discharged batteries, and a built-in temperature sensor for optimized charging regardless of weather conditions. The MXT 14 also has a ‘Supply’ mode so it can be used as a 24V power source.
- Charges 24V batteries from 28-300Ah
- Recond program
- Temperature sensor to compensate for cold conditions
- Can be used as a 24V power source
- IP44 classified for outdoor use
- Fully automatic ‘connect and forget’ 8 step charging
- Patented maintenance charging up to 500Ah

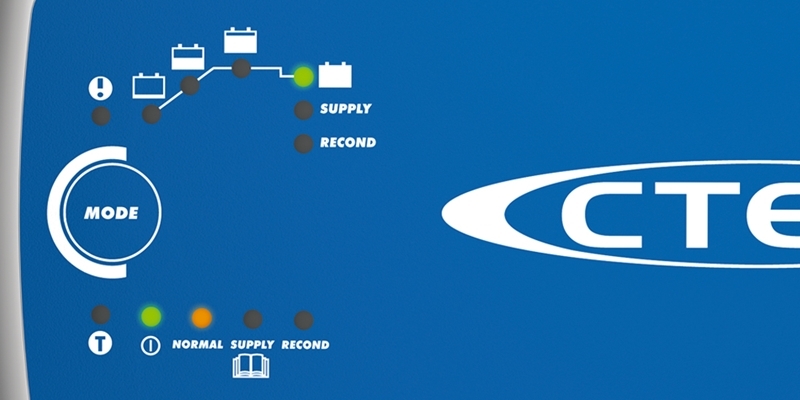

- Easy to read LED display
- Safe spark free operation
- Reverse polarity protected
- Short circuit proof
- 2-year warranty
Product Category Battery Chargers
Warranty Period: 2 Years
Output Current Rating (Amps) 24
Start Voltage 2.0V
Output System Voltage 24V
Output 28.8V/31.6V/27.2V, 14A max
Dimensions 235 x 130 x 65 mm (L x W x H)
Net Weight (kg) 1.9
Ambient Temperature -20˚C to +50˚C
Battery Capacity 28–500Ah
Insulation Class IP44
Back Current Drain Corresponding to less than 1Ah/month
Input 220–240VAC, 50–60Hz, 2.9A max
Battery Types All types of lead-acid batteries, 24V, WET, MF, Ca/Ca, AGM, GEL
Tutorials - CTEK Lithium XS - Unboxing
Tutorials - CTEK Lithium XS - How to connect
Tutorials - CTEK Lithium XS - Charging
CTEK 8 Step Charging
On Board Charging - Which product is right for you?
Good product - easy to use Review by Rob BrittenProduct well presented and instructions easy to follow.(Posted on 13 June 2020)
What size battery charger do I need for my lead acid battery I have in my camper?
A good battery charger rule of thumb for charging a lead acid battery, is using a charger with output current (amps) of 10-20% of the battery total stored capacity (Ah).
So, for example if the battery is 12V 100Ah, the charger need to be minimum of 10A and maximum of 20A. Often splitting the difference at 15% (so a 12V ~15A charger) is a good option. Happy charging!
What is the maximum length of charging cables between the charger and the batteries being charged?
The max length would be the 2000mm of cable that comes with the charger as standard.
