COAST RV CARAVAN BIKE RACK X4

SKU: 350-20054 Learn More»

CALCULATE SHIPPING:

Quantity

Postcode

Suburb

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

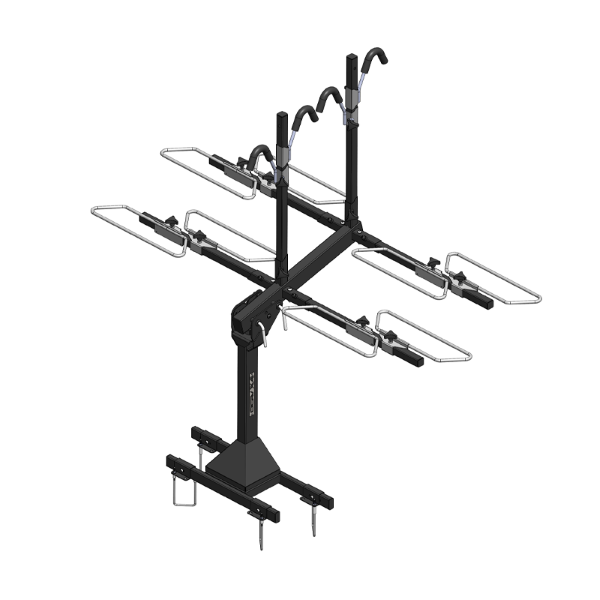

Coast Rv Caravan Bike Rack X4, 1 Year Warranty. Engineered from high-grade Extra 400 steel and finished with zinc plating plus a Textura powder coat, the X4 is built to handle heavy loads and withstand Australian touring conditions. Its pivoting design rotates smoothly, letting you reach your drawbar storage without removing your bikes.

Key Features

Designed for caravans – A-frame rack tailored for drawbar installation
Carries 4 bikes – elevated rack suitable for wheel sizes from 20” to 29”
Heavy-duty construction – Extra 400 high-grade steel frame
Long-lasting protection – zinc plated and Textura powder-coated finish
80kg load capacity – ideal for multiple family bikes or e-bikes
Pivoting design – rack rotation gives safe access to gas bottles and toolboxes
Certified quality – welding meets AS/NZS1554.1 standards with ISO 9001 certification
Rack weight – 45.7kg including all hardware

What’s in the Box

1x Coast RV X4 Caravan Bike Rack (4 Bike)
Complete mounting hardware set
User installation instructions

Go to: Product Details

Go to: Reviews

Specifications

SKU 350-20054

Brand Coast to Coast

Warranty Period: 1 Year

Product Category Bike Carriers

Weight (kg) 45.7

Bike Capacity 4

Go to: Specifications

Go to: Reviews

Product Q&A

Ask Us a Question

Can I install this bike carrier myself?

Yes, the carrier is designed for DIY installation using the supplied hardware and step-by-step instructions. Assistance is recommended when positioning or lifting components.
How much clearance is required from the caravan?

You need atleast a 130mm clearance between the pivot beam and caravan wall.
Which bike should go closest to the caravan?

For best weight distribution, the heaviest bike should be placed nearest the post assembly.
How are the bikes secured?

Wheel Cradles: To hold the bike wheels firmly in place.Stabiliser Posts: Equipped with claw grips that clamp onto the bike frame.Hand Knobs: Which you tighten manually to lock everything securely.
Can the bikes touch each other?

No, bikes should not touch each other or the carrier. Use protective material like foam to prevent damage.
Can I tilt the rack with bikes loaded?

No, it is not recommended to tilt the rack while bikes are loaded.
Do I need to check the carrier before each trip?

Yes, all nuts, bolts, and fasteners should be checked before every trip to ensure safety.
Do I need spacers for installation?

It depends on your A-frame size:(127mm to 150mm) x 50mm A-Frame - No Spacer is required(100mm to 126mm) x 51mm A-Frame - The Spacer is Required
