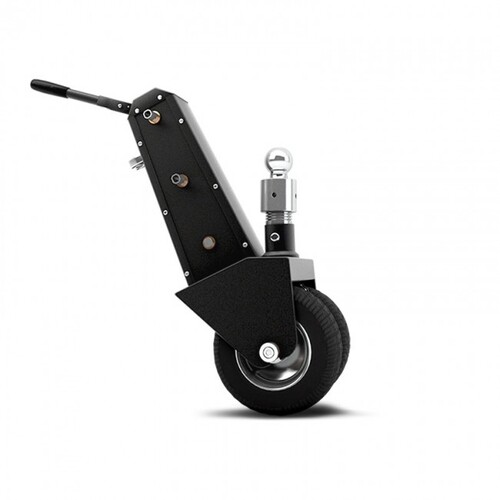

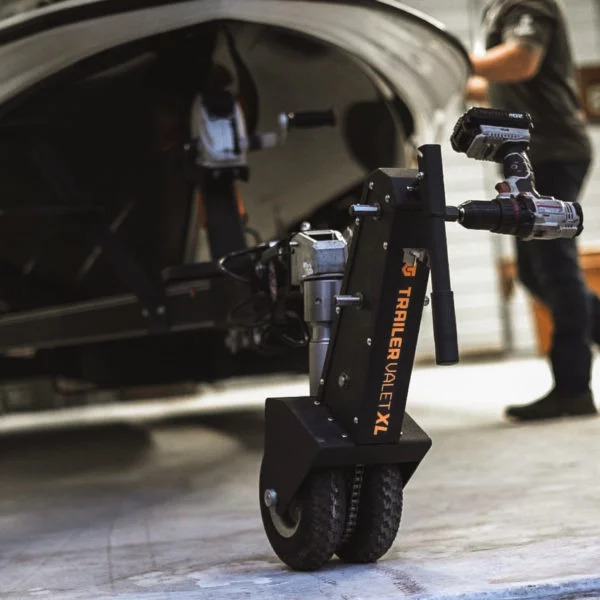

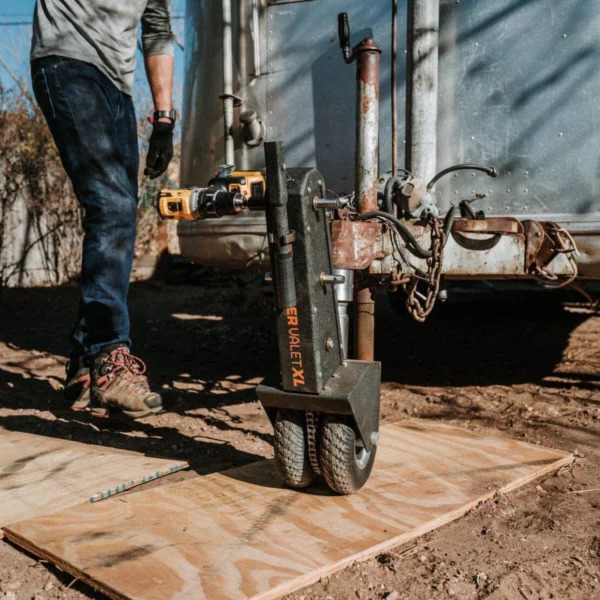

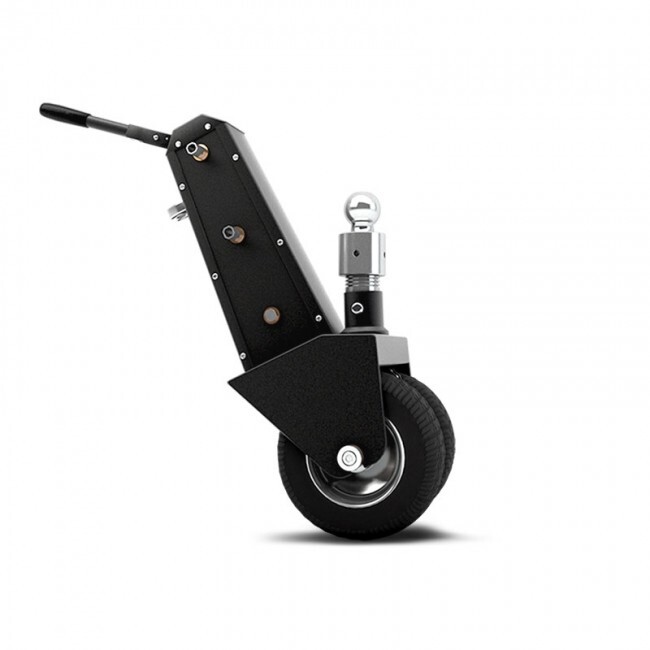

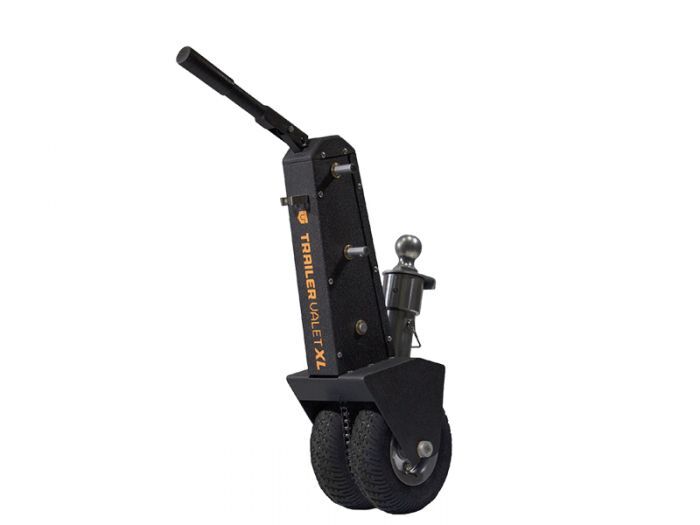

Camec Trailer Valet Mover XL

SKU: 043705 Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

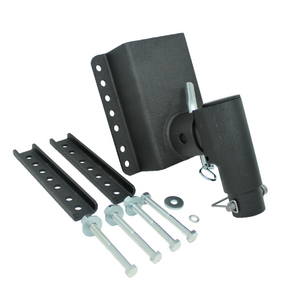

Trailer Valet XL Mounting Bracket

$239

Call 1300 400 122

Add To Wishlist

Customer Reviews

"Great Caravan Mover"

anonymous

We are really happy with this product. It works so well to move a large caravan to exactly where you want it. Highly recommend.

(Posted on 16 August 2024)

Go to: Product Details

Go to: Specifications

Product Description

The Trailer Valet XL, 1 Year Warranty. Move your trailer or caravan with ease using the Trailer Valet XL Mover! Heavy-duty, durable, and simple to operate, it takes the strain out of tight turns and tricky spots.

Engineered by Trailer Valet, the Trailer Valet Mover XL is advertised as the “toughest, most compact trailer dolly on the market”. Designed as an improvement to the highly popular, original Trailer Valet Mover model, the XL edition features many attractive upgrades and features.

Using only a crank handle, this innovative caravan mover is capable of directing RVs up to 4500kg in weight, all the while featuring durable 9-inch tires that make the tightest, smoothest turns imaginable. Specially engineered with a patented ball attachment mechanism for a quick installation, as well as an equipped automatic safety brake, the Trailer Valet Mover XL is the top-rated caravan mover for campers with large RVs.

Features:

IT DOES THE HEAVY LIFTING - The Trailer Valet XL makes it easy to park or move your trailer of up to 4,500kgs in tight spaces. Take corners and make adjustments to your trailer position by steering as you move.
HIGH TECH - The XL attaches to your trailer via the coupling or with the additional bracket and works as a hand dolly or drill-powered mover.
HITCH EASILY - This mover features never-flat tires and an auto-brake for precise control, letting you lift, maneuver, and hitch larger trailers easily without using your tow vehicle.
SAFETY MEASURE - The XL can push trailers up a 5% grade; never pull it uphill. Please note that using the XL Mount Bracket reduces capacity by 900kgs and lowers incline rating.

Specifications:

Perfect for most trailers weighing up to 4500 kg
Individual tire strength capable of withstanding 225 kg
Dimensions: 736mm H x 188mm W x 660mm L
Weight: 23.5kg
Trailer Capacity: 4500kg
Towball Weight: 450kg
Towball Size: 50mm
Wheel Type: 9" Pneumatic
Included Drill attachment for effortless operation
Improved cranking mechanism featuring greater gear reduction
Equipped with durable brass bearings
Cutting-edge positraction capabilities for superior traction and control

Hot Tips:

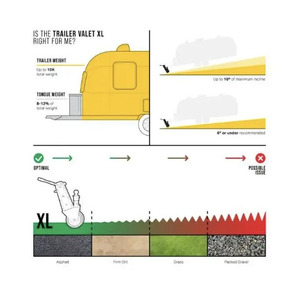

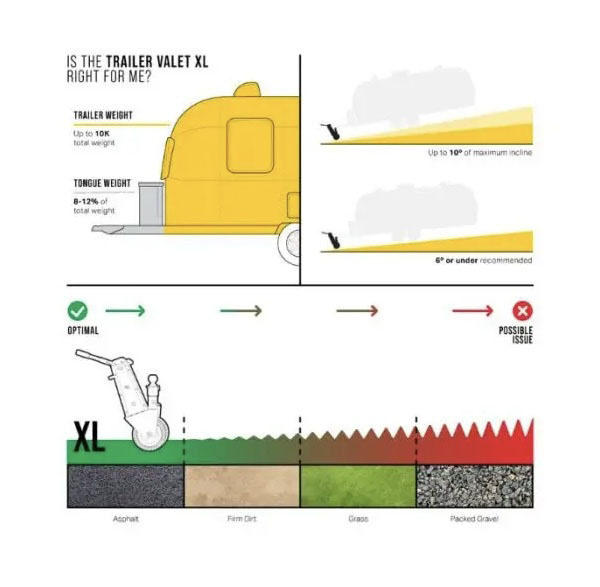

The Trailer Valet XL should be used on slopes and inclines less than 10 degrees on paved or concrete surfaces, refer to the user manual for optimum slopes and surfaces. Using the drill attachment on an incline is not recommended
If you have a swivel hitch such as the Cruisemaster DO35, it is recommended to use the Trailer Valet Mover or see the Trailer Valet XL Mounting Bracket in the accessories list to mount directly to the chassis.
The Trailer Valet XL needs 8–12% tongue weight to maintain proper traction. If you’re moving a boat trailer, which is typically heavier at the rear, add weight near the hitch to increase weight at the hitch, or opt for the Trailer Valet XL Mounting Bracket and install futher along the chassis to increase downward weight on the mover.

Go to: Product Details

Go to: Videos

Specifications

SKU 043705

Brand Trailer Valet

GTIN 617724468452

Warranty Period 1 Year

Product Category Caravan Movers

Product Type Jockey Wheel

Dimensions 736mm H x 188mm W x 660mm L

Weight (kg) 23.5

Trailer Capacity 4500kg

Towball Weight 450kg

Towball Size 50mm

Wheel Type 9" Pneumatic

Go to: Specifications

Go to: Q & A

Videos

Trailer Valet XL Promo Video

How to Install the Trailer Valet XL

Trailer Valet XL Unboxing

How To Use The Trailer Valet Drill Attachment

Go to: Videos

Go to: Reviews

Product Q&A

Ask Us a Question

Am I able to use the trailer valet xl mover with a DO35 hitch pin?

Unfortunately not, the Trailer Valet is not designed to be used with any hitches that swivel, this includes the DO35.
Hi,Is the trailer valet clean copatable with the mchitch auto coupler instead of the normal ball hitch?CheersDave

Hi Dave,

The Trailer Valet XL is only compatible with 50mm towballs.
What is the minimum distance from the top of the ball to the bottom of the wheel?

Hi Kevin, The distance from the top of the ball to the bottom of the wheels is approximately 518.8mm.
We have a flat bed dual axle trailer trailer for a Hussler ride on mower. Maximum weight of trailer is 2000kg. The slope we have to move the trailer up and down is 7degrees. Using you device would it be safe to do so? Would the brakes on the device hold t

Hi Ron,

We would not recommend the Trailer Valet XL for your application.

Whilst it may do the job to get the trailer up the incline, the internal brake may not be best when going down hill.

For further clarification, you may want to contact Camec tech support on 1300 422 632.
Hi what size ball,also Iam wanting to use on grass,sometimes wet soft ground,I will use for boat which ways around 750kg,and camping trailer about1100kg.Thanks Shane.

Hi Shane,

Thank you for inquiry.

The coupling ball size of the Trailer Valet XL is 50mm.
Can the Trailer Valet XL be used on any type of incline?

No, the Trailer Valet XL should not be used on slopes or inclines greater than 10 degrees. This is subject to a variety of factors including alternate surfaces, weight distribution, change in weight capacity, use on multi-axle trailers, etc.
Where on an incline should the Trailer Valet XL be positioned?

The Trailer Valet XL should always be on the lower end of an incline or slope and should not be pushed down or pulled up the incline or slope.
Can I use my impact driver with the Trailer Valet?

You cannot use an Impact Drive with the Trailer Valet XL Mover. It is best to use a standard cordless drill.
Does the Trailer Valet XL come with the drill attachment?

Yes the drill attachment is included with the Trailer Valet XL
How much does the Trailer Valet XL weigh

The Trailer Valet weighs 23.5kgs
What dimensions can the Trailer Valet XL handle? What is the gear ratio?

The Trailer Valet XL can handle any sized trailer provided it meets the weight limits. We recommend inviting a second person to guide your trailer from the opposite end, especially in tight spaces, as turning requirements can vary widely according to the trailer's dimensions. Each Trailer Valet model has a high and low gear train. The XL has a low gear ratio of 27:1 and a high gear ratio of 11:1.
Is the Trailer Valet motorised? Is there a standard socket that can be used as an electric drill attachment?

To move the XL, you can use a cordless power drill with the included attachment. However, this method should only be used when moving your trailer on level surfaces. To avoid injury, the user should have a firm grip and ensure brake disengagement. We recommend using a cordless, non-impact electric drill with a torque output of at least 22Nm. We do not recommend using electric drill attachments other than the one designed specifically for the Trailer Valet; our attachment employs a unique design to ensure a snug fit on the gear axles.
What is the proper tire inflation? Can the Trailer Valet XL remain attached to the trailer while in motion?

The current XL unit has solid rubber tires. No, only the standard Trailer Valet is able to be put into a stow position.
