BMPRO RV View 2 Battery Monitor with OdysseyLink103

SKU: BMPRVVIEW2OD Learn More»
BMPRO RV View 2 Battery Monitor with OdysseyLink103
Free Shipping
$349
EXTRA $10 OFF! Add to cart to get an instant discount
SALE ENDS:

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

BMPRO RV View 2 Battery Monitor with OdysseyLink103, 2 Year Warranty.

MONITOR YOUR RV BATTERY WITH A WALL MOUNTED 12V BATTERY MONITOR

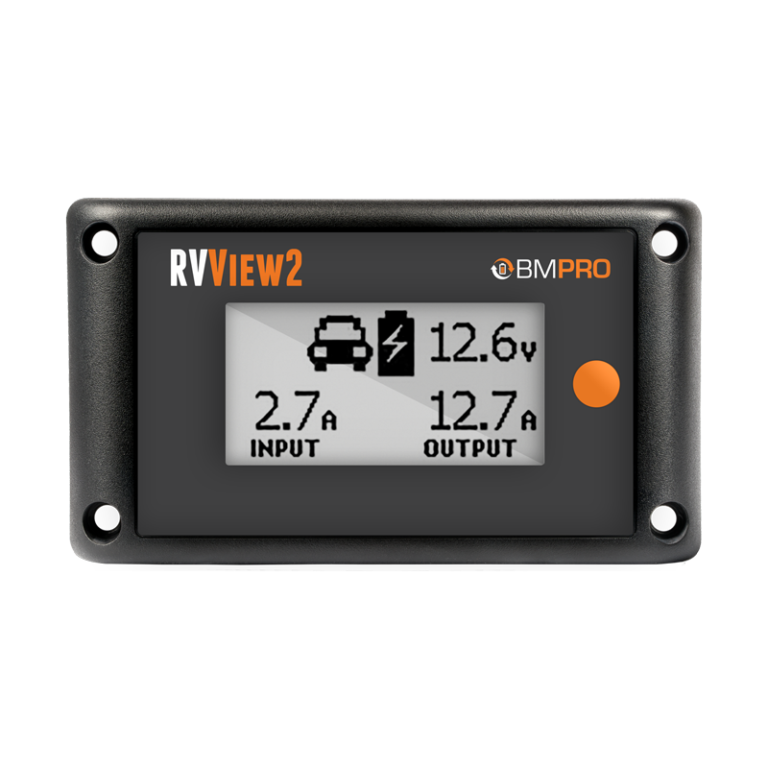

The RVView2 is a wall-mounted battery monitor designed specifically to operate with BMPRO’s BatteryPlus35. The RVView2 connects to the BatteryPlus35 via the data cable. The monitor gives you vital up-to-the-minute data about your caravan’s current status using a clear back-lit display. The display shows volts and amps, battery charge and discharge status, as well as the source input for the vehicle’s 12V system.

Input Amps shows the total current going through the BatteryPlus35, while Output Amps shows the current provided to appliances. Input source indicator displays mains, solar, auxiliary, or two simultaneously present power sources, if available.

System voltage displays the voltage across the battery terminals, while the battery symbol indicates whether the battery is charging, discharging, fully loaded or not fully loaded. As a power saving feature, the display will turn off automatically 30 sec after its activation.

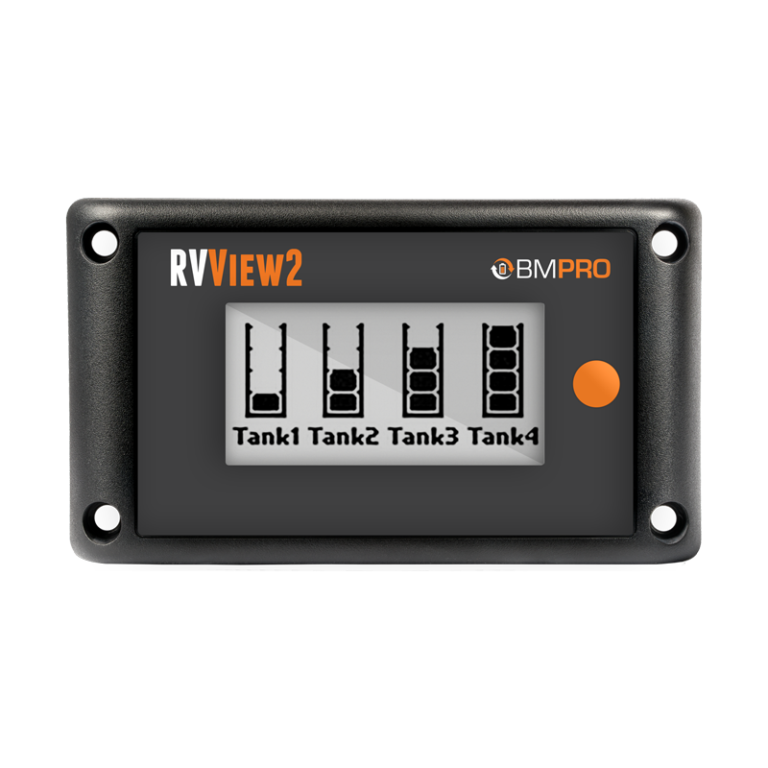

In addition to battery monitoring, the RVView2 enables monitoring of water levels of up to four water tanks from a sleek, wall mounted display.

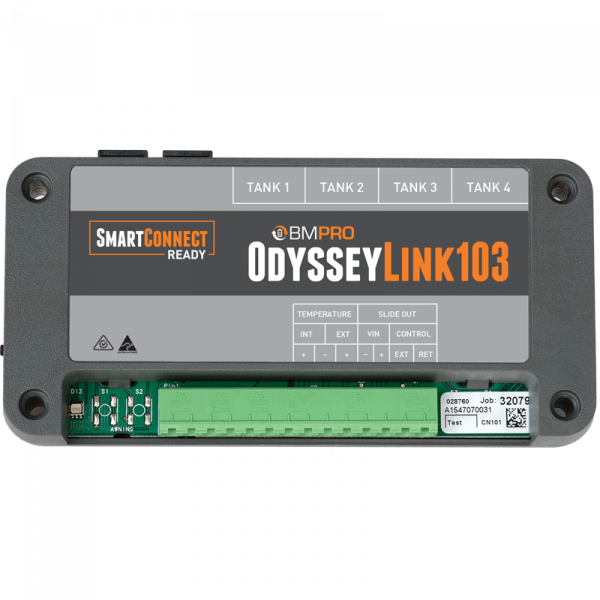

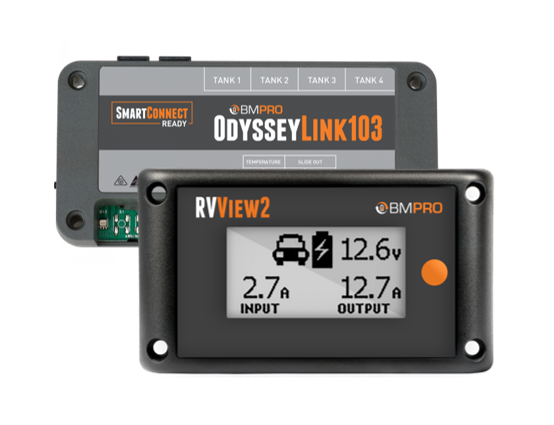

The RVView2 can be connected to the OdysseyLink103 to become a part of the Odyssey system. OdysseyLink103 enables SmartConnect Bluetooth sensors and the use of a free Odyssey App to remotely monitor the battery and control caravan’s water pumps from the mobile phone.

RVView2 is designed and manufactured in Australia.

Features:

  • Monitor:
    • battery voltage and charge status,
    • battery charging & discharging currents,
    • Auxiliary and solar charging currents,
    • Level indication of up to 4 water tanks
    • Battery on/off status
  • Separate water tank screen
  • Function to disconnect the battery from the load
  • Includes OdysseyLink103 to enable SmartConnect and free Odyssey app

Product Card

Product Manual

Product Drawing

The table below illustrates which BMPRO range products are compatible and if any prerequisites will apply to the combination

Please CLICK HERE for more information on these BMPRO combinations and relevant prerequisites

BMPRO Compatibility Table

*This combination will have certain prerequisites - please CLICK HERE for more information

Specifications

SKU BMPRVVIEW2OD

Brand BMPRO

GTIN 09358381000227

Warranty Period: 2 Years

Product Category Battery Monitors

Dimensions 140mm x 80mm x 15.5mm (W x H x D)

Input Voltage 6V-16V

Ambient Temperature 0 ºC – 50 ºC


Product Q&A

Ask Us a Question
  • Does this include the odysseylink103?

    Hi There,

    The RVVIEW does not include the OdysseyLink. It does include the cable to connect to an OdysseyLink however.

Warranty

For details relating to this product's warranty CLICK HERE

Delivery

    For details relating to our delivery process CLICK HERE
