Product Description

BMPRO Battery Managament System with SmartConnect Premium Complete RV Sensor Kit, 2 Year Warranty.

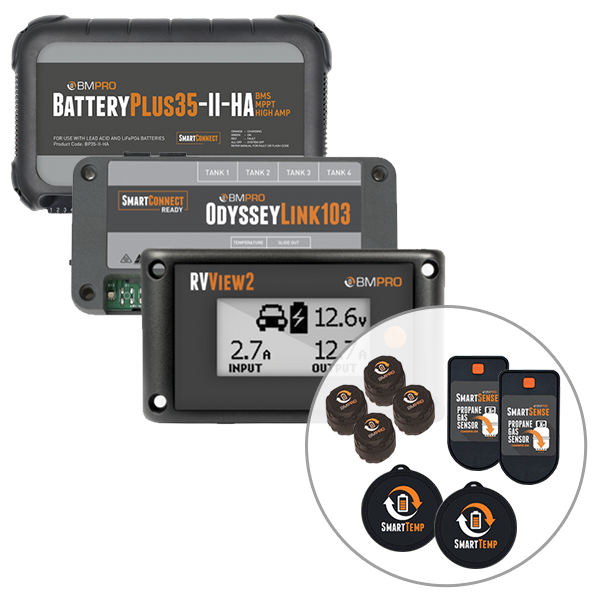

Pack Includes:

  • BMPRO BatteryPlus35-II-HA 35A High Amp Battery Management System, BMPBP35IIGAUHA
  • BMPRO RV View 2 Battery Monitor with OdysseyLink103, BMPRVVIEW2OD
  • BMPRO SmartConnect Premium Complete RV Sensor Kit, BMPSMARTCONNPREM

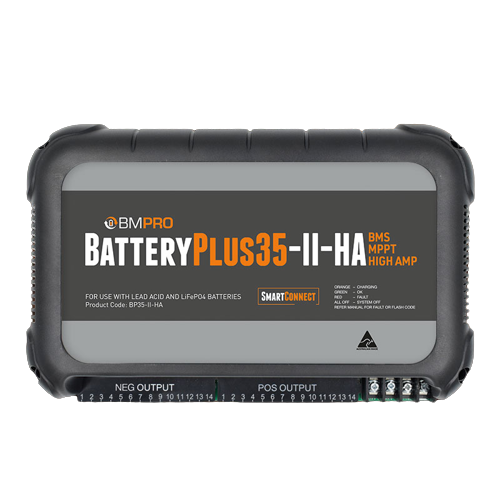

BMPRO BatteryPlus35-II-HA 35A High Amp Battery Management System

BatteryPlus35-II-HA is a complete high amp battery management system designed to support transition of caravans to lithium batteries. This all in one power solution combines a 35A power supply for 12V loads, 30A multi-stage AC charging and 30A Solar MPPT regulation as well as a host of battery protection features.

Connect the unit via CAN bus to the Trek battery monitor or to Odyssey touch screen via the OdysseyLink to monitor the status of your battery and to control your caravan features and functions or use it to connect to the BC300 to monitor high currents via CommLink.

BatteryPlus35-II-HA is pre-cabled with a permanent mains power supply cord for use with 240V or 110V input power – great for powered sites.

The unit also features a 40A rated uncontrolled +BRK battery output. This output is specifically designed for loads which do not need to be isolated or have a current rating of higher than the inbuilt circuit protection of the individual outputs and have a current rating less than 40 A.

Use it to connect, for example:

  • Proactive Electronic Stability Control SwayControl
  • Emergency Trailer Break-Away Safety System TrailSafe
  • Heaters
  • Stereo memory

Designed and manufactured in Australia, the slim and sturdy BatteryPlus35-II-HA is fully equipped to charge the current generation of deep cycle batteries. Connect solar panels to the battery management system and power your adventures with renewable energy. Swap your caravan battery to the LiFePO4 deep cycle and harness the benefits of lithium. This high amp battery management system is specially designed to ensure the best performance and longevity of lithium batteries.

Features:

  • Total output current 35A
  • 30A multistage battery charger
  • Inbuilt solar MPPT regulator (420W, 30A, 25V max input)
  • Distribution board with 12 at 10A and 2 at I5A DC outputs for load connection
  • Electronic resettable fuses
  • CAN bus connection for BMPRO accessories
  • In-built battery management system
  • Solar and Aux Blending
  • Auxiliary DC input
  • Load current limit
  • Low voltage disconnect
  • Compatible with lead acid and lithium (LiFePO4) deep cycle batteries

Product Brochure

Product Manual

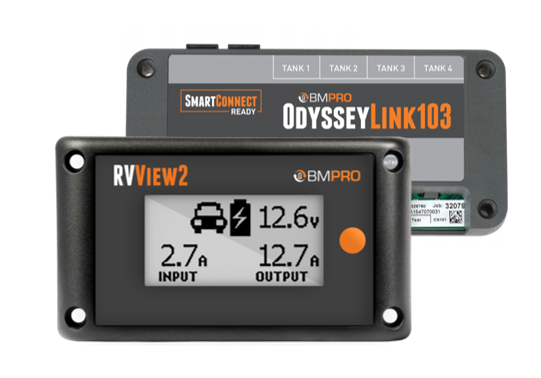

BMPRO RV View 2 Battery Monitor with OdysseyLink103

MONITOR YOUR RV BATTERY WITH A WALL MOUNTED 12V BATTERY MONITOR

The RVView2 is a wall-mounted battery monitor designed specifically to operate with BMPRO’s BatteryPlus35. The RVView2 connects to the BatteryPlus35 via the data cable. The monitor gives you vital up-to-the-minute data about your caravan’s current status using a clear back-lit display. The display shows volts and amps, battery charge and discharge status, as well as the source input for the vehicle’s 12V system.

Input Amps shows the total current going through the BatteryPlus35, while Output Amps shows the current provided to appliances. Input source indicator displays mains, solar, auxiliary, or two simultaneously present power sources, if available.

System voltage displays the voltage across the battery terminals, while the battery symbol indicates whether the battery is charging, discharging, fully loaded or not fully loaded. As a power saving feature, the display will turn off automatically 30 sec after its activation.

In addition to battery monitoring, the RVView2 enables monitoring of water levels of up to four water tanks from a sleek, wall mounted display.

The RVView2 can be connected to the OdysseyLink103 to become a part of the Odyssey system. OdysseyLink103 enables SmartConnect Bluetooth sensors and the use of a free Odyssey App to remotely monitor the battery and control caravan’s water pumps from the mobile phone.

RVView2 is designed and manufactured in Australia.

Features:

  • Monitor:
    • battery voltage and charge status,
    • battery charging & discharging currents,
    • Auxiliary and solar charging currents,
    • Level indication of up to 4 water tanks
    • Battery on/off status
  • Separate water tank screen
  • Function to disconnect the battery from the load
  • Includes OdysseyLink103 to enable SmartConnect and free Odyssey app

Product Card

Product Manual

Product Drawing


BMPRO SmartConnect Premium Complete RV Sensor Kit

MORE CONTROL OVER YOUR CARAVAN WITH SMARTCONNECT PREMIUM

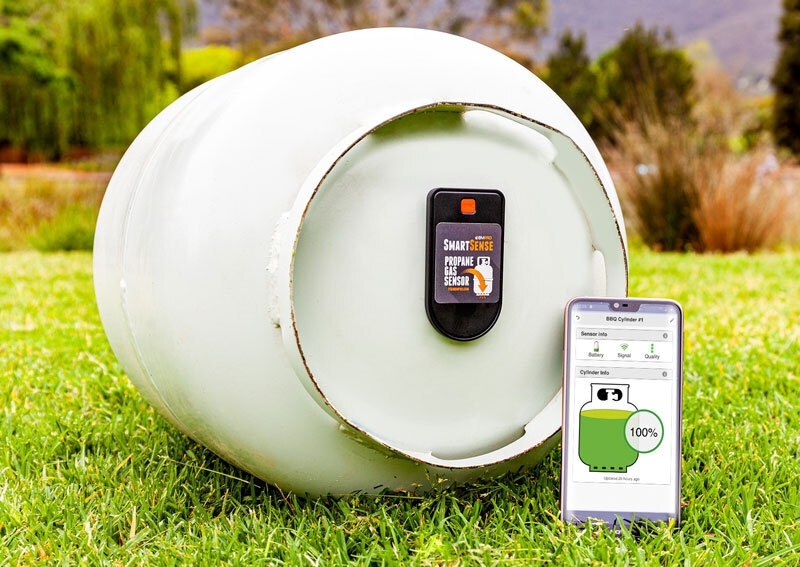

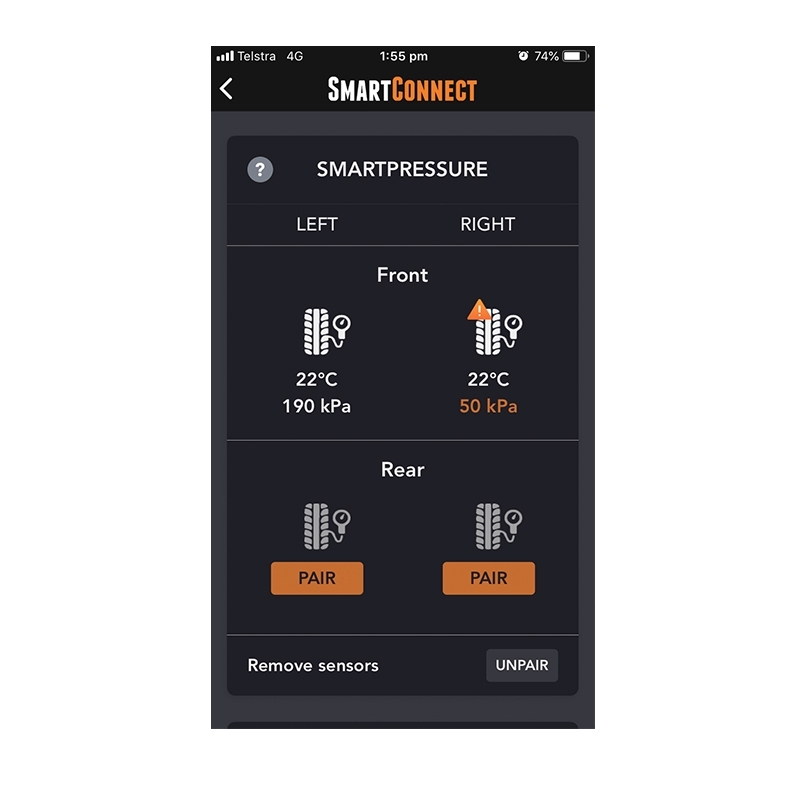

SmartConnect Premium RV sensor kit allows users to monitor multiple parameters in their caravan, such as tyre pressure, gas bottle level, and temperatures.

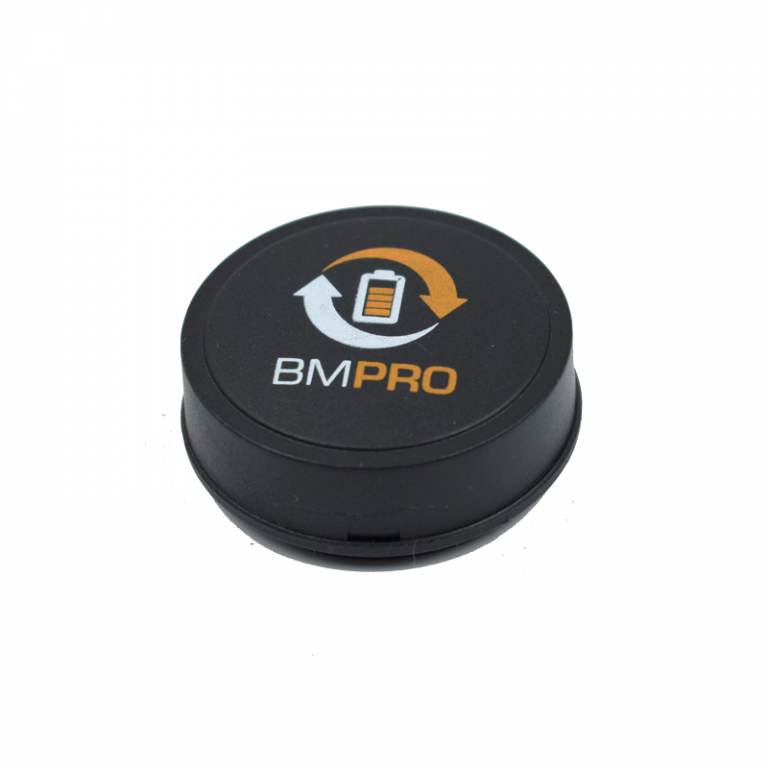

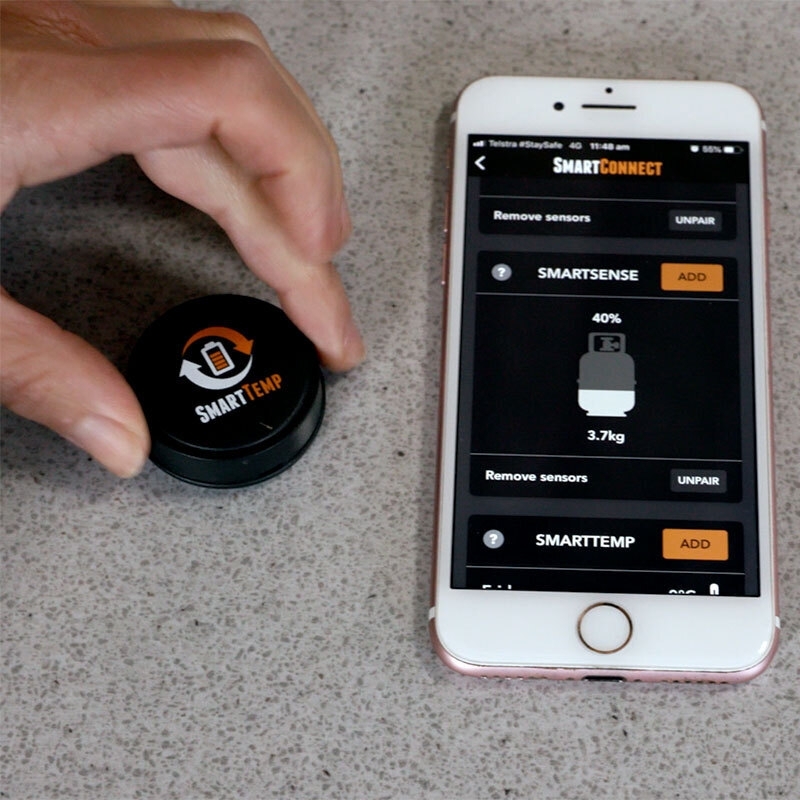

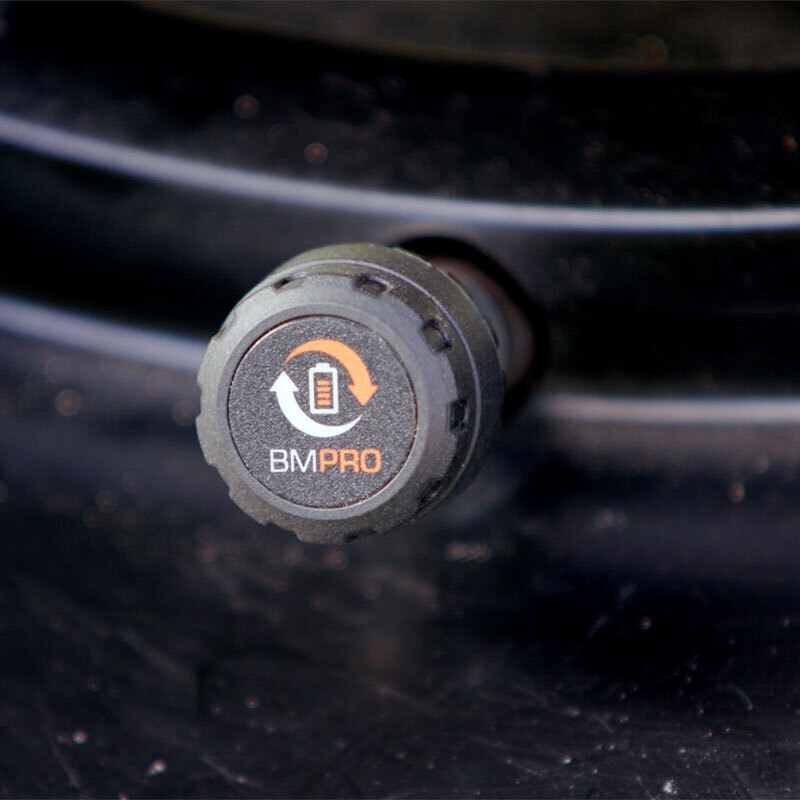

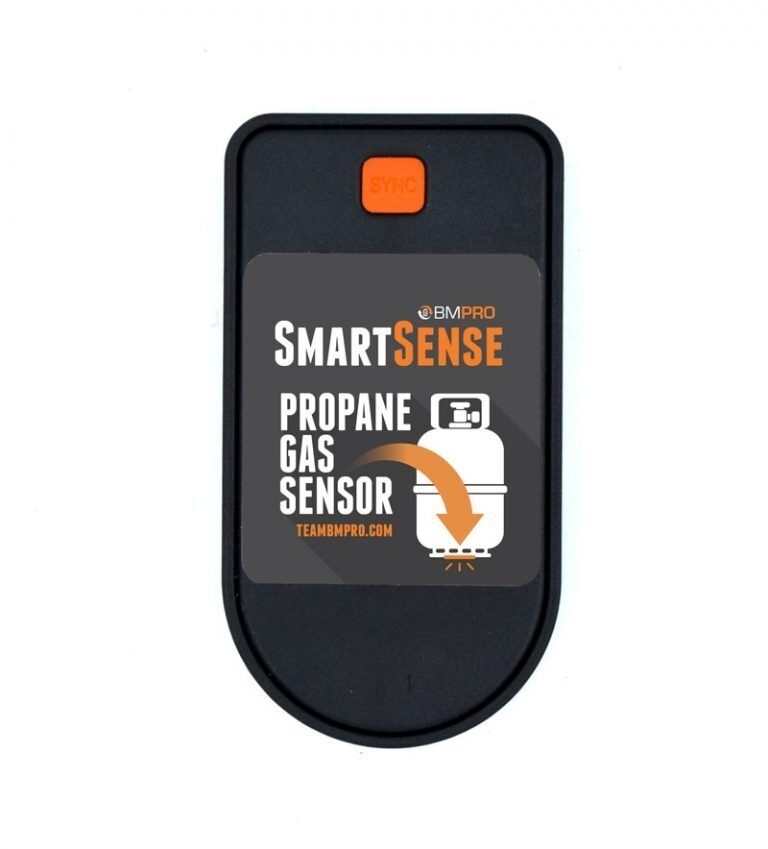

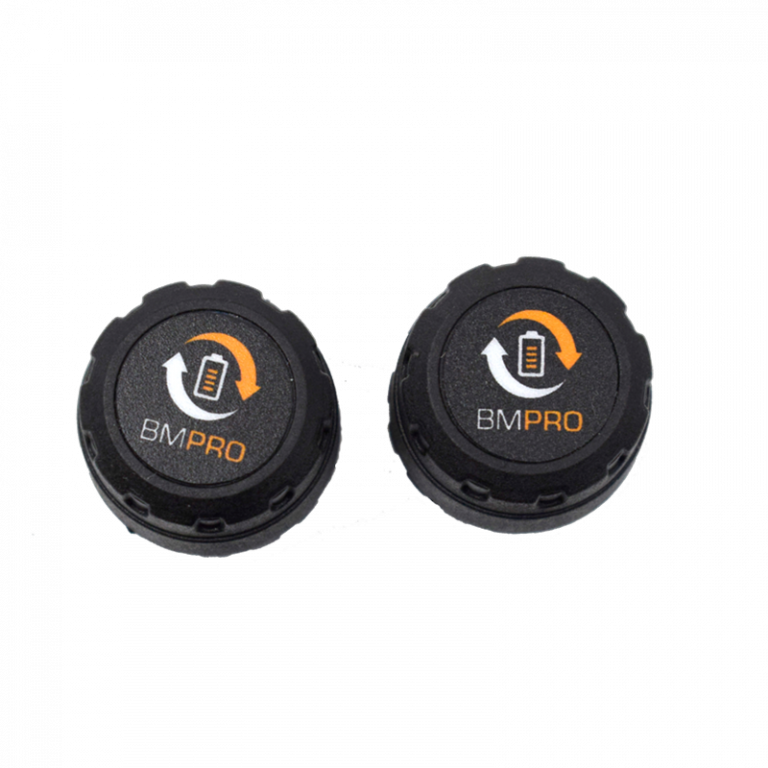

The kit includes two SmartSense sensors, two SmartTemp sensors, four SmartPressure sensors and one toolkit to mount tyre pressure monitors.

SmartConnect software is already pre-loaded into the BMPRO systems installed on all major brands or Australian caravans built in 2020, and can be simply activated at any stage from manufacturing through to aftermarket.

Please ensure your RV is equipped with BMPRO ControlNode103 or OdysseyLink103, in order for SmartConnect app to be available.

Features:

  • Complete SmartConnect Premium kit
  • DIY installation in minutes
  • Package includes: 2 x SmartSense, 2 x SmartTemp, 4 x SmartPressure, 1 x toolkit
  • Compatible with BMPRO Smart RV systems JHub, Odyssey, JAYCOMMAND, RVMaster
  • REQUIRES ControlNode103 (for JHub users) or OdysseyLink103 (for Odyssey users)

The table below illustrates which BMPRO range products are compatible and if any prerequisites will apply to the combination

Please CLICK HERE for more information on these BMPRO combinations and relevant prerequisites

BMPRO Compatibility Table

*This combination will have certain prerequisites - please CLICK HERE for more information

Specifications

SKU BMPROBMS2

Brand BMPRO

Warranty Period: 2 Years

Product Category Batteries Other

Output Current Rating 35A (Load + Battery Current) (BMS)

Dimensions 140mm x 80mm x 15.5mm (W x H x D) (Battery Monitor)

Ambient Temperature 0-50 °C (BMS)

Input Voltage 110-240V AC ± 10%, 50-60Hz (BMS) | 6V-16V (Battery Monitor)
