Black Jack MINI Ultimate Bundle with Harness Kit, Folding Foot & Jockey Block

Product Description

Black Jack MINI Ultimate Bundle with Harness Kit, Folding Foot & Jockey Block, 3 Year Warranty.

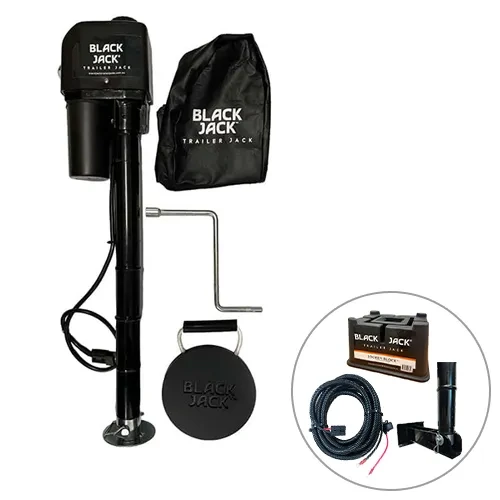

Bundle Includes:

• Black Jack MINI Electric Trailer Jack, BJTJ-MINI
• Black Jack Folding Foot for Mini, BJTJ-FF-MINI
• Black Jack DIY Harness Kit, BJTJ-HAR
• Black Jack Jockey Block, BJTJ-JB

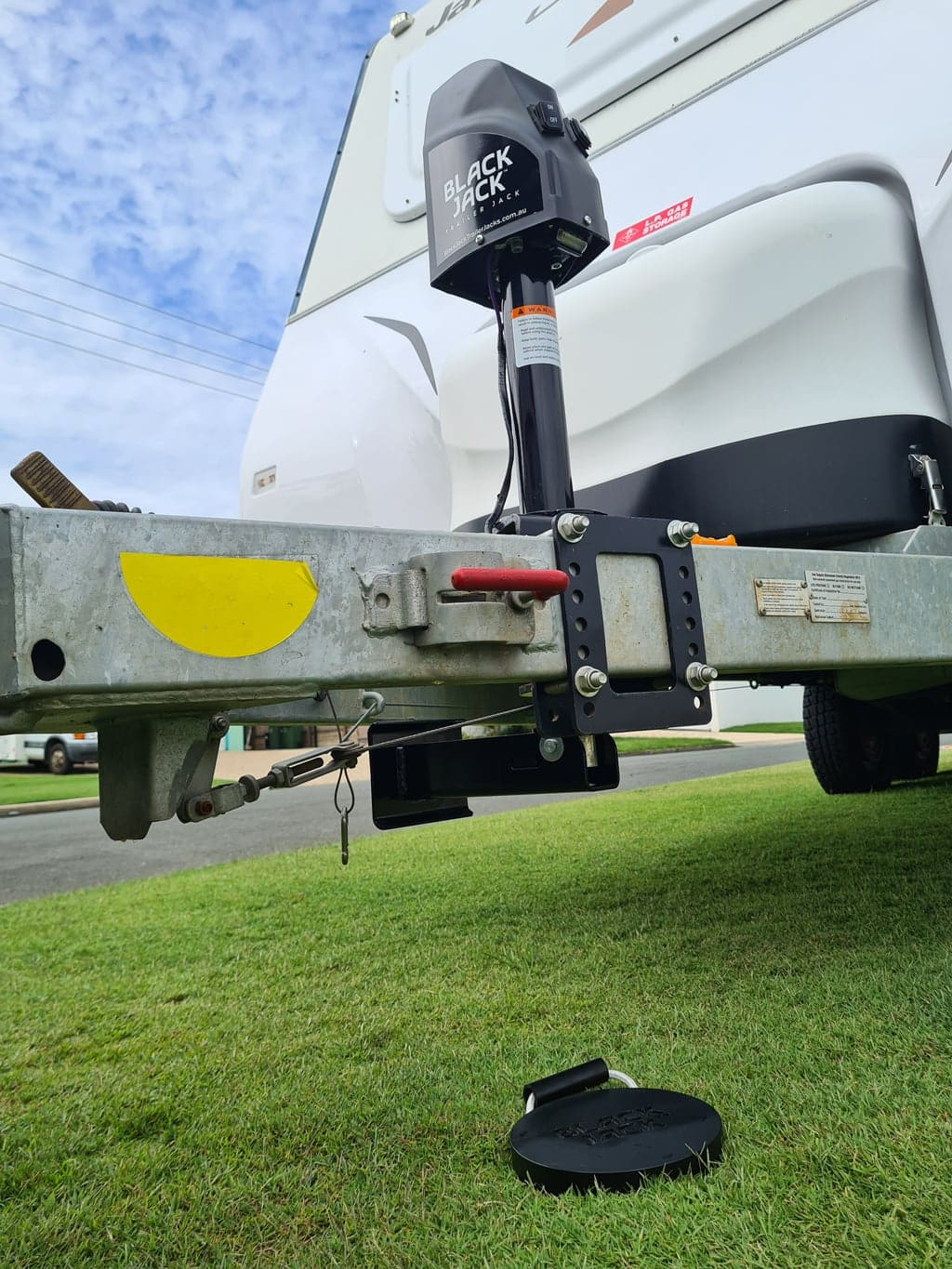

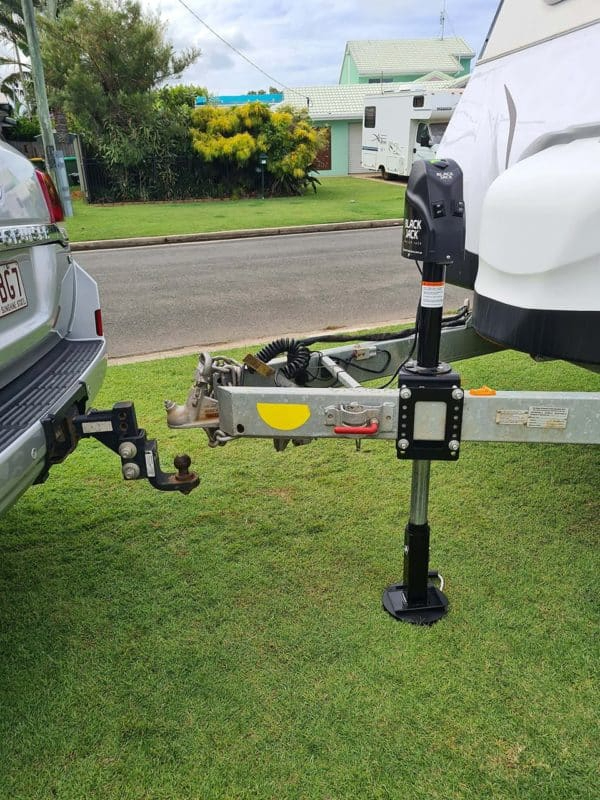

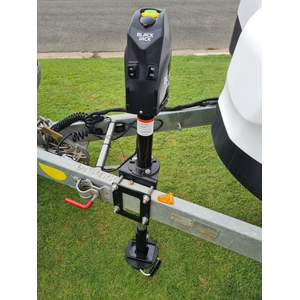

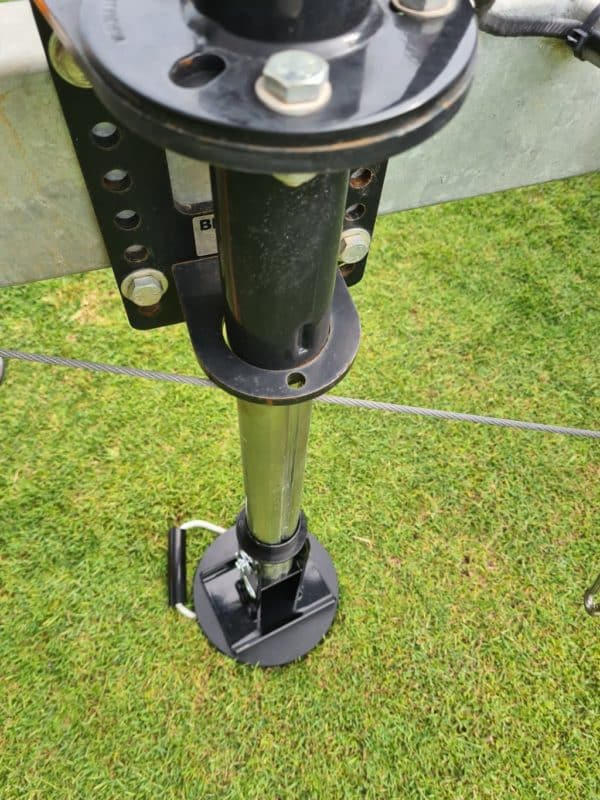

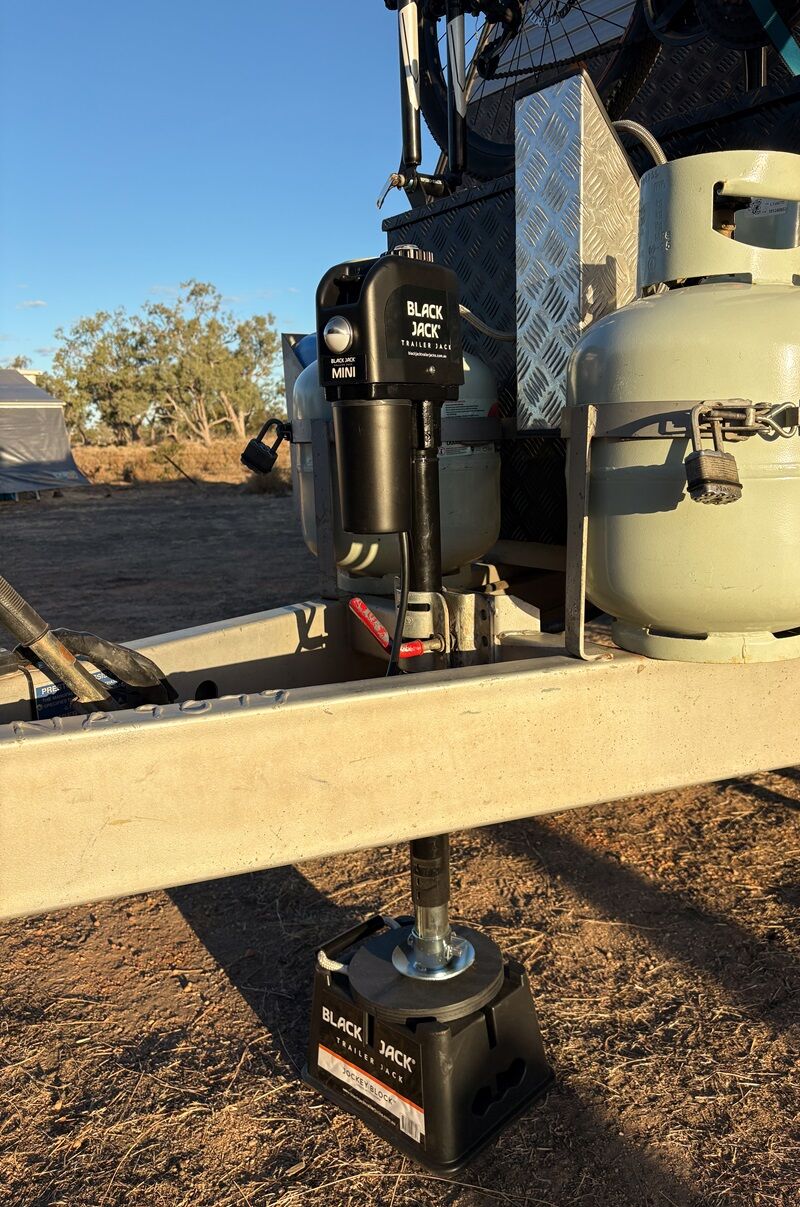

Black Jack MINI Electric Trailer Jack

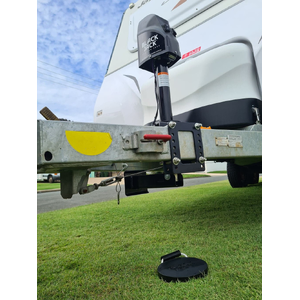

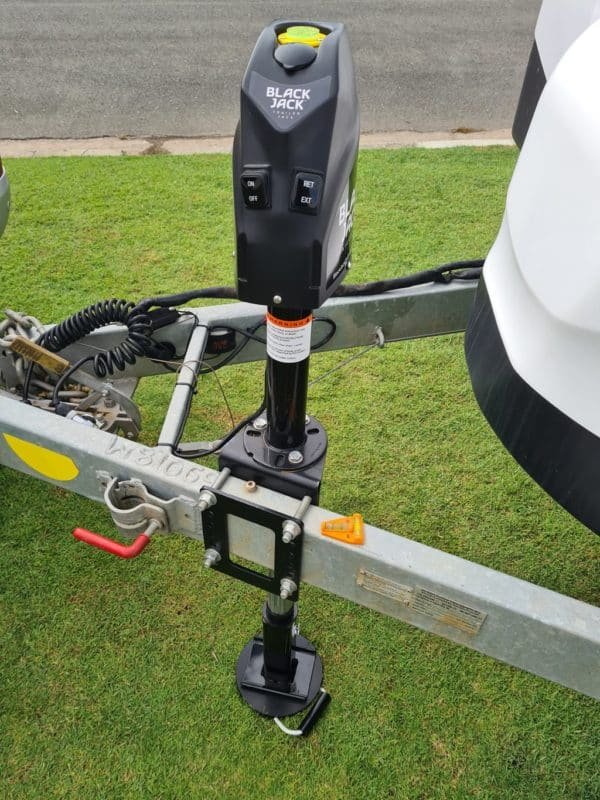

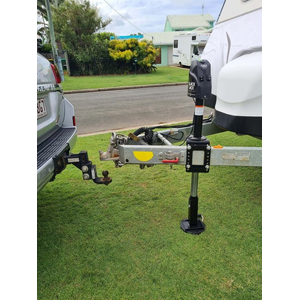

Take the effort out of hitching and leveling your trailer with the Black Jack Mini Electric Trailer Jack. Compact yet powerful, it makes raising and lowering your Caravan effortless, removing the need for a cranking jockey wheel. The Black Jack Mini is designed to fit into your existing jockey wheel clamp, saving precious space on your A-Frame.

• The Black Jack Mini is the simplest, lightest and most affordable electric jockey wheel on the market today.
• The Black Jack Mini is purposed designed with a 50mm diameter shaft that will fit directly into your standard 50mm jockey wheel clamp. Perfect for A-frames where room is tight and a simple upgrade to a 50mm manual jockey wheel.
• With 3 different mounting notches to choose from, the Black Jack Mini can be positioned for optimum lift and storage.
• With a 1000kg lift capacity, the Black Jack Mini easily manages most Australian caravans. Since ball weight is typically 10% of a caravan's weight (ATM), a 3000kg van only requires approx 300kg of lift capacity - well within this Jack's capacity.
• The mounting notches are 100mm apart. The Black Jack Mini can be mounted on one mounting notch, if your clamp points are shorter than 100mm.

Features:

• Black Jack Safe Auto Stop- cuts power when fully retracted or extended
• 1000 kg lifting capacity, more than enough muscle
• Robust 50 mm diameter post that fits a standard Australian Jockey wheel clamp
• Massive 450 mm stroke that will lift the caravan clear of the tow vehicle hitch in any conditions
• Choice of 3 mounting lugs
• Built in level indicator to easily adjust the caravan level after you unhitch
• Tough powder coated finish
• Pre-wired to an Andersen plug – length of cable is 1.4m
• Emergency crank handle included as an emergency back up
• Built in night light for operating after hours
• Free all-weather cover to keep the dirt and rain out
• Total weight 8.5 kg

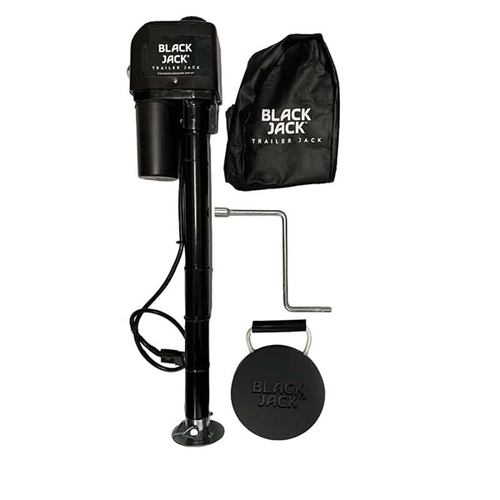

The kit includes:

• The new Black Jack Mini
• All Weather Cover
• Black Jack Soft Ground Foot Pad
• Manual Handle

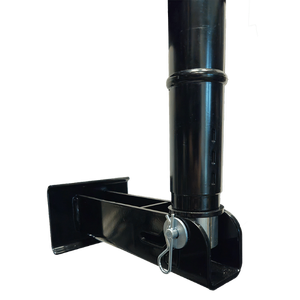

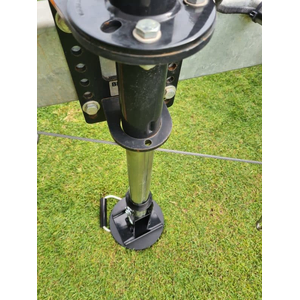

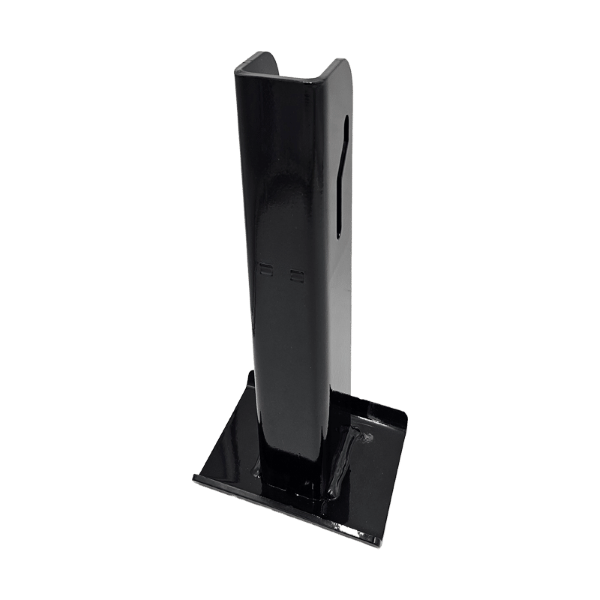

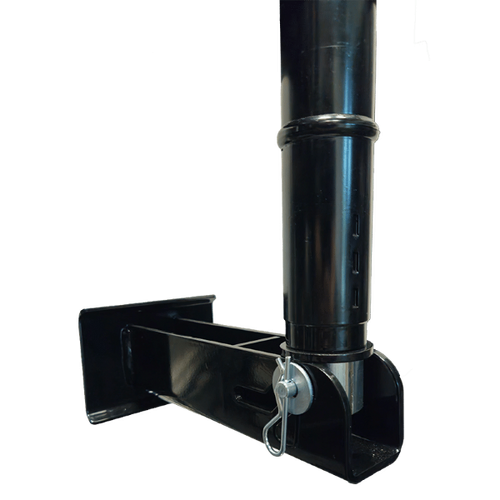

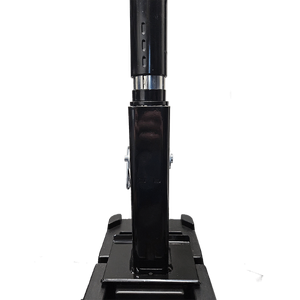

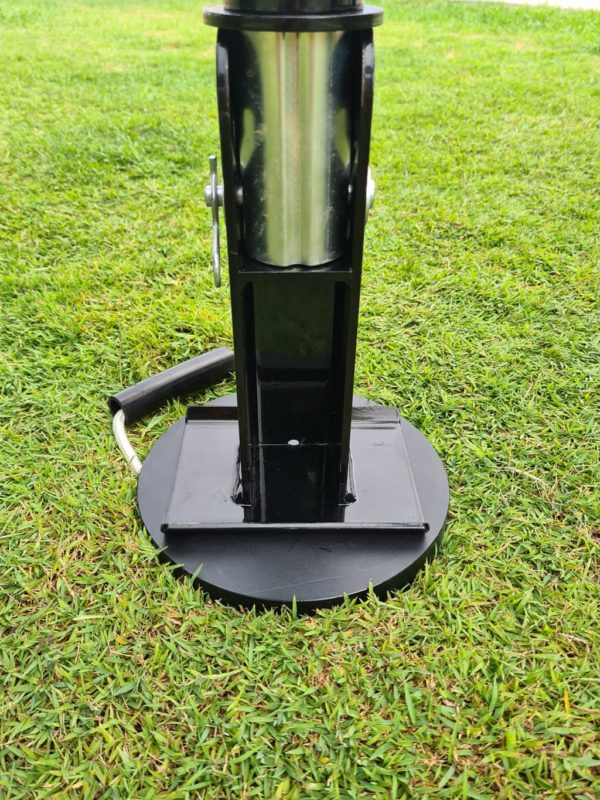

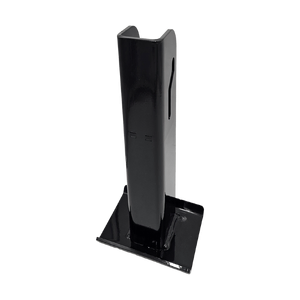

Black Jack Folding Foot for Mini

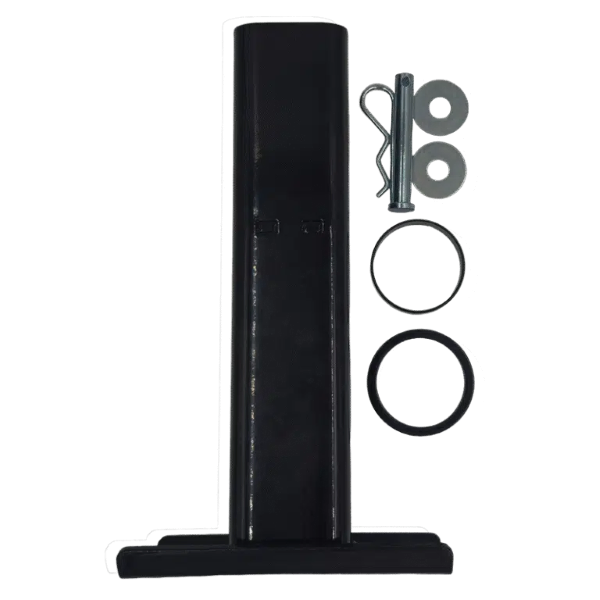

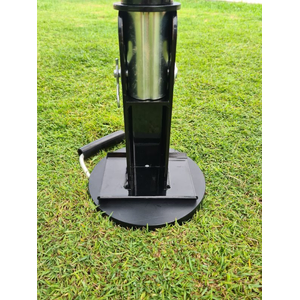

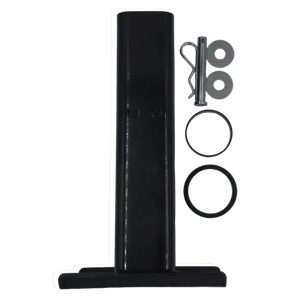

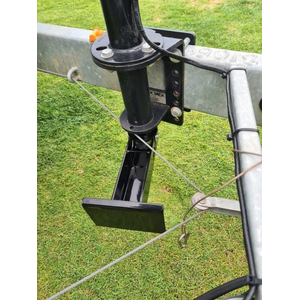

The amazing Black Jack Folding Foot Mini is designed to easily connect to the shaft of the Black Jack Mini in just a few easy steps. Simply remove the existing silver foot. Position and align the Mini Folding Foot in its place, add the collar and ring, and insert the pin in the holes provided. Makes operating the Mini faster and easier and improving your hitch and unhitch experience.

In addition to these custom designed features for the Black Jack Folding Foot:

• Made strong from protective powder coated mild steel, suitable for harsh environments.
• Designed for rapid deployment and retraction saving you time.
• No more bending down when using your trailer jack or jockey wheel.
• Amazingly light weight and can be permanently mounted or stowed away in compact spaces.
• Corrosion, oil and chemical resistant.

Warning and Caution!!

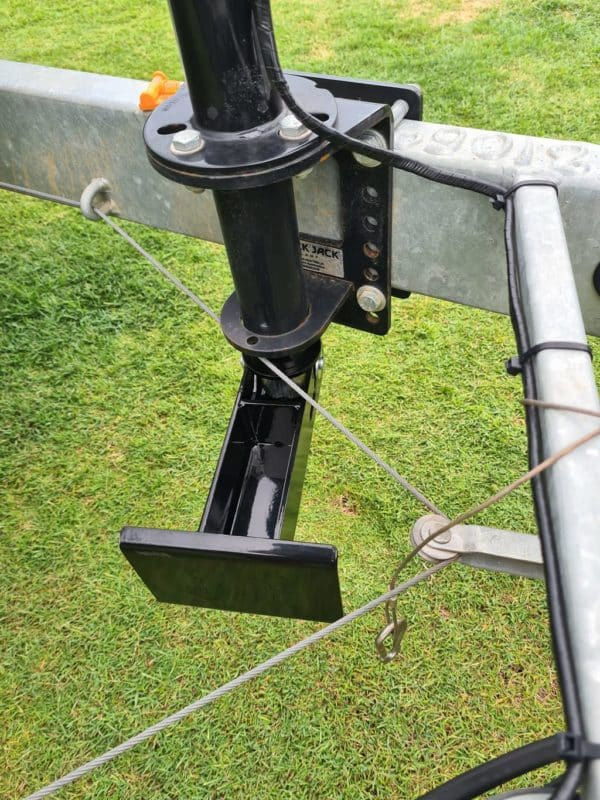

Black Jack Folding Foot Installation.

• The folding foot must be installed so that it is clear of any obstructions. The folding foot must be able to freely extend and retract to its full extension and full horizontal retraction.
• If the foot encounters an obstruction, for example a chassis rail or brake cables, before it is fully retracted to a horizontal position then there is a risk of serious internal mechanical damage to the Black Jack Mini. The damage is caused by the leverage pressure (up to 1,000kg) the folding foot can add it if encounters an obstruction. This type of damage is NOT covered under warranty as it is a user installation error.
•  When installing the folding foot, make sure the Black Jack Mini orientation allows for full clearance of the folding foot. This may mean rotating the orientation of the Black Jack Mini.
•  If the folding foot cannot be installed so that it is clear of obstructions, then DO NOT USE IT.  Install the silver foot instead.

  Please note: The Mini folding foot suits the Black Jack Mini only. It will not fit other Black Jacks or other electric jacks.

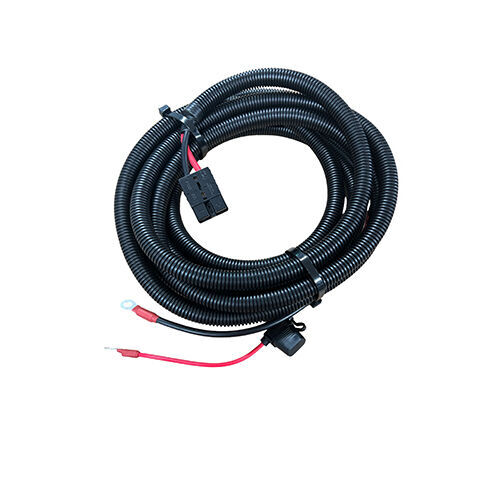

Black Jack DIY Harness Kit

The Black Jack Trailer Jack Harness Kit saves you time and money by not having to source components when installing your Black Jack Trailer Jack. The ‘DIY’ Harness kit provides the correct protection and process, making your installation a breeze.

Features:

• Suitable for Caravans and Trailers
• DIY saving you time and money on install
• One size suits most applications
• Easy to install components
• Hardwired for your safety.
• Minimal tools required.

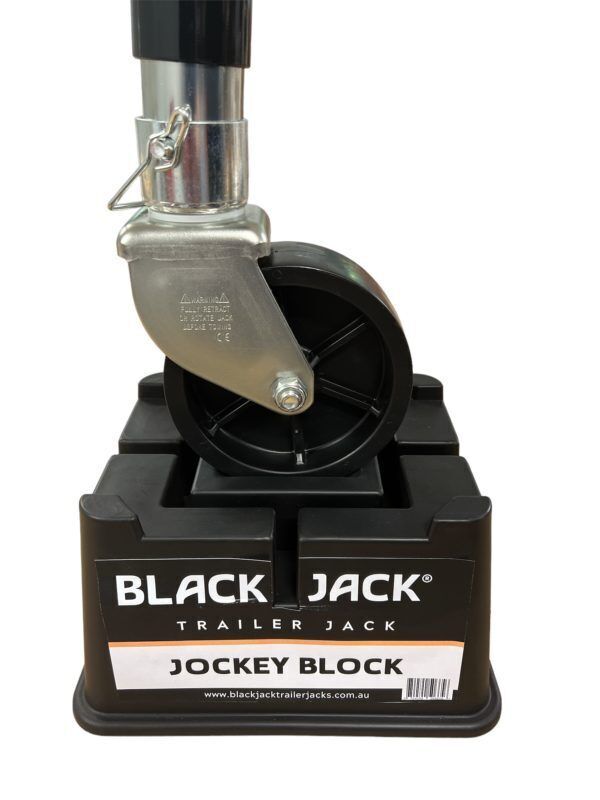

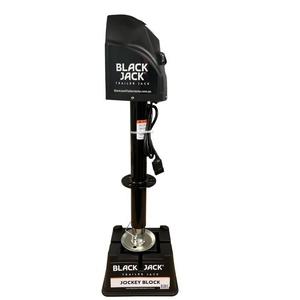

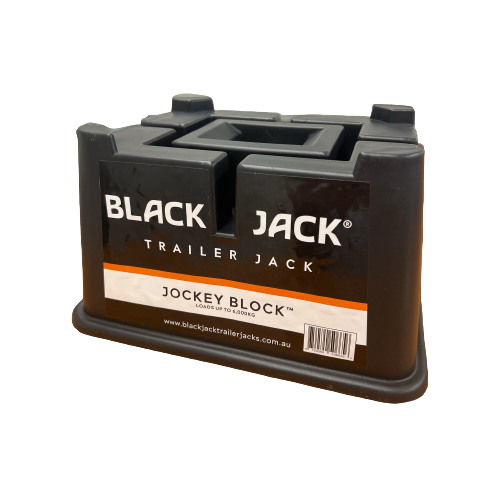

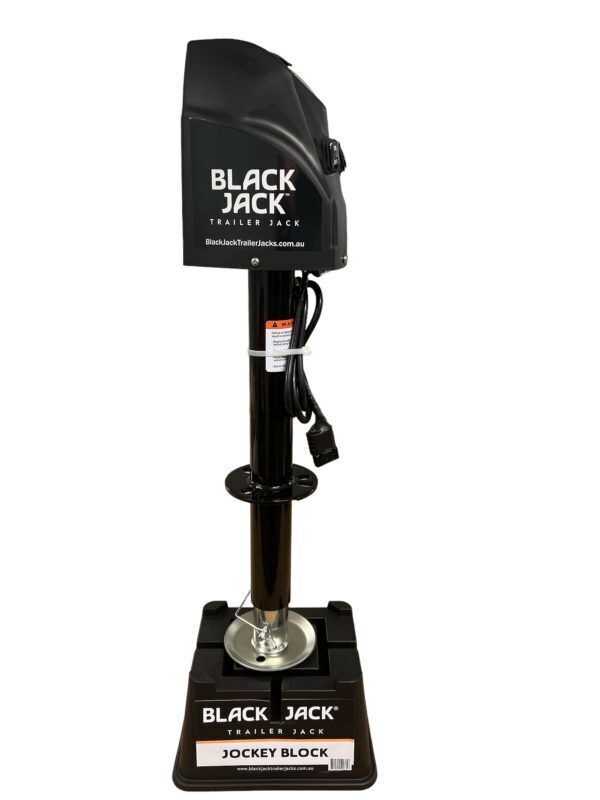

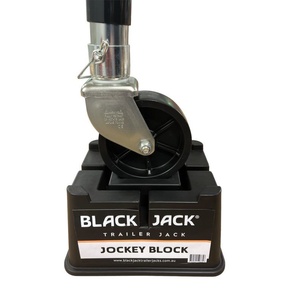

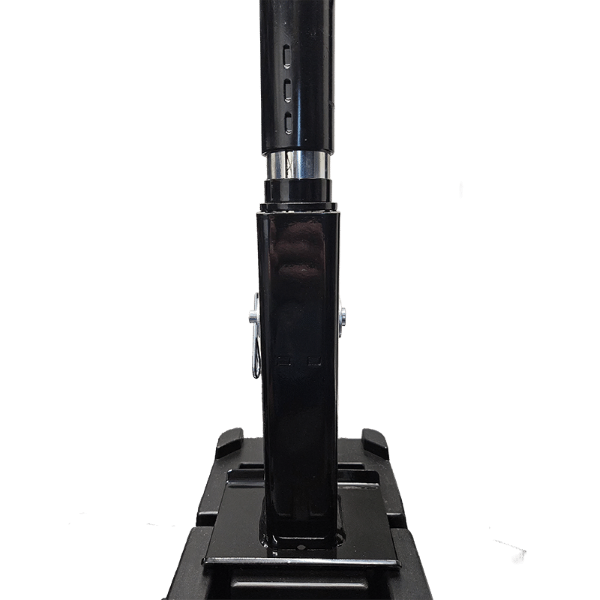

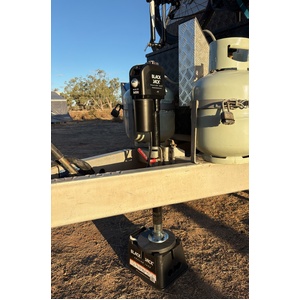

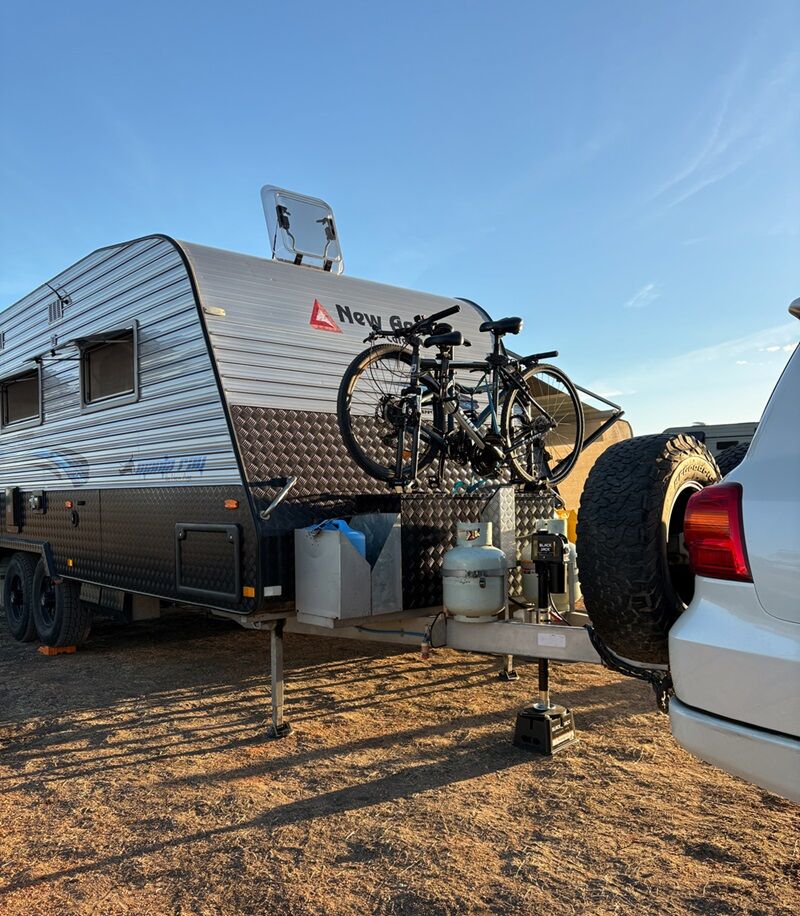

Black Jack Jockey Block

Regularly camping on soft or uneven ground? Ensure stability and peace of mind with the Black Jack Jockey Block. The Black Jack Jockey Block is the ultimate Jack Block for your Caravan or Trailer. It will save you up to 40 cranks of the jockey wheel. So much less stress and effort when hitching and unhitching. If you use it in conjunction with the amazing Black Jack then it will save you time, and you will be more stable.

The Jockey block eliminates nearly all movement and sway in parked Caravans and Trailers.

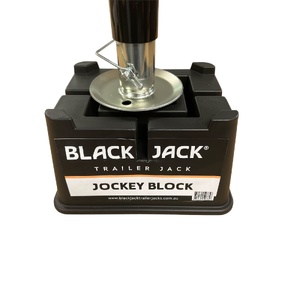

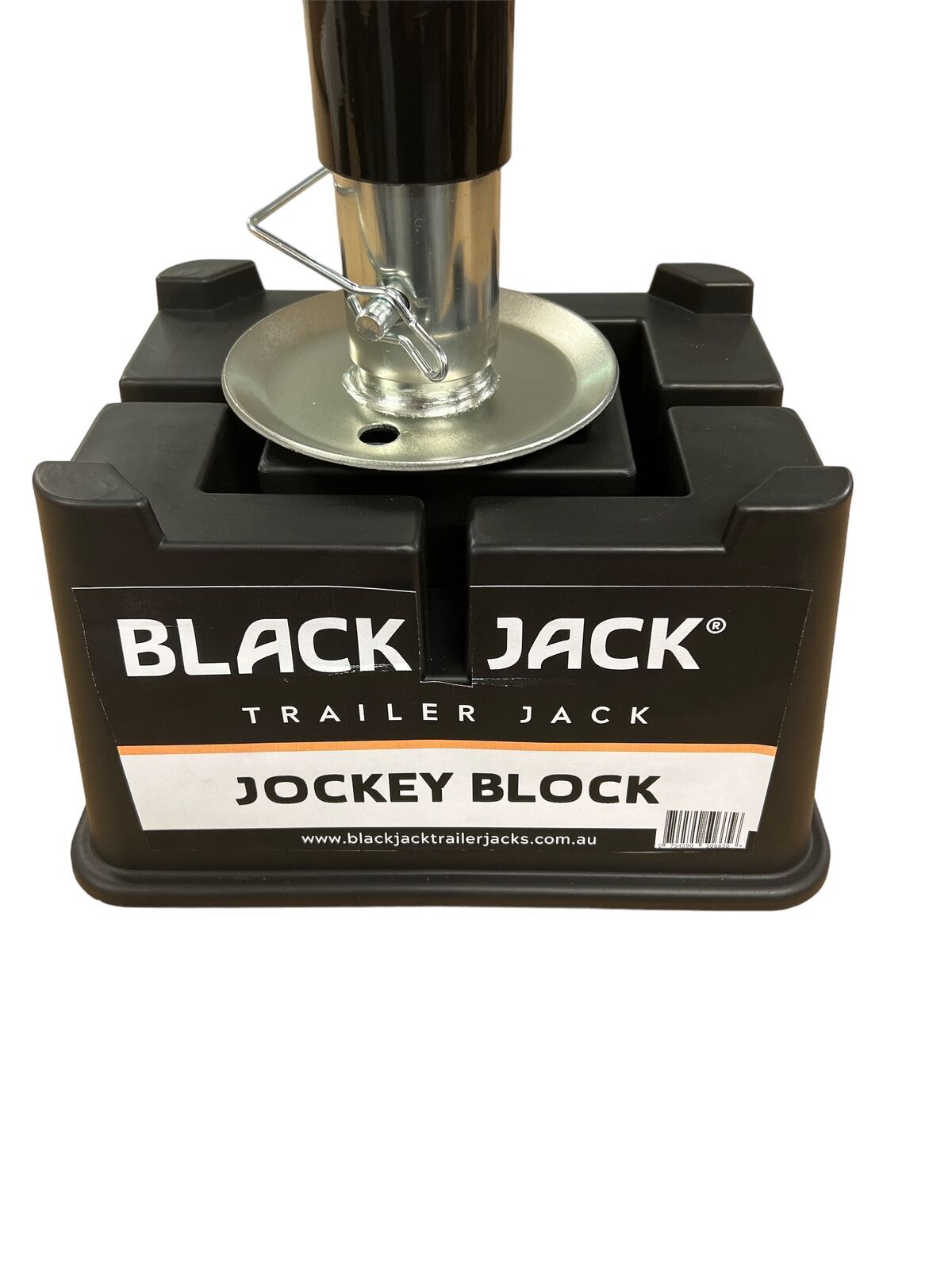

It suits traditional Jockey Wheels, Black Jack trailer Jacks, Stabilizer Jacks, Wheel Jacks, Scissor Jacks, and more.

Being extremely strong (rated at 6,000 kg per jockey block) and durable, it will last a lifetime. And unlike old blocks of wood it resists dirt, grime and oil so no more carrying around old smelly blocks of wood.

Why Our Customers Love It: Speed up the process of unhitching with the use of the Big Block especially on tall off road vans.

Specification:

• Dimensions: 28cm long by 22cm wide
• Height: 15cm
• Weight: 2.5kg
• Maximum Load: 6,000kg
• Centre recess: 92 x 62mm
