Aussie Traveller Rear View Square Camera Kit, Black

Product Description

Aussie Traveller Rear View Square Camera Kit, Black, 1 Year Warrannty.

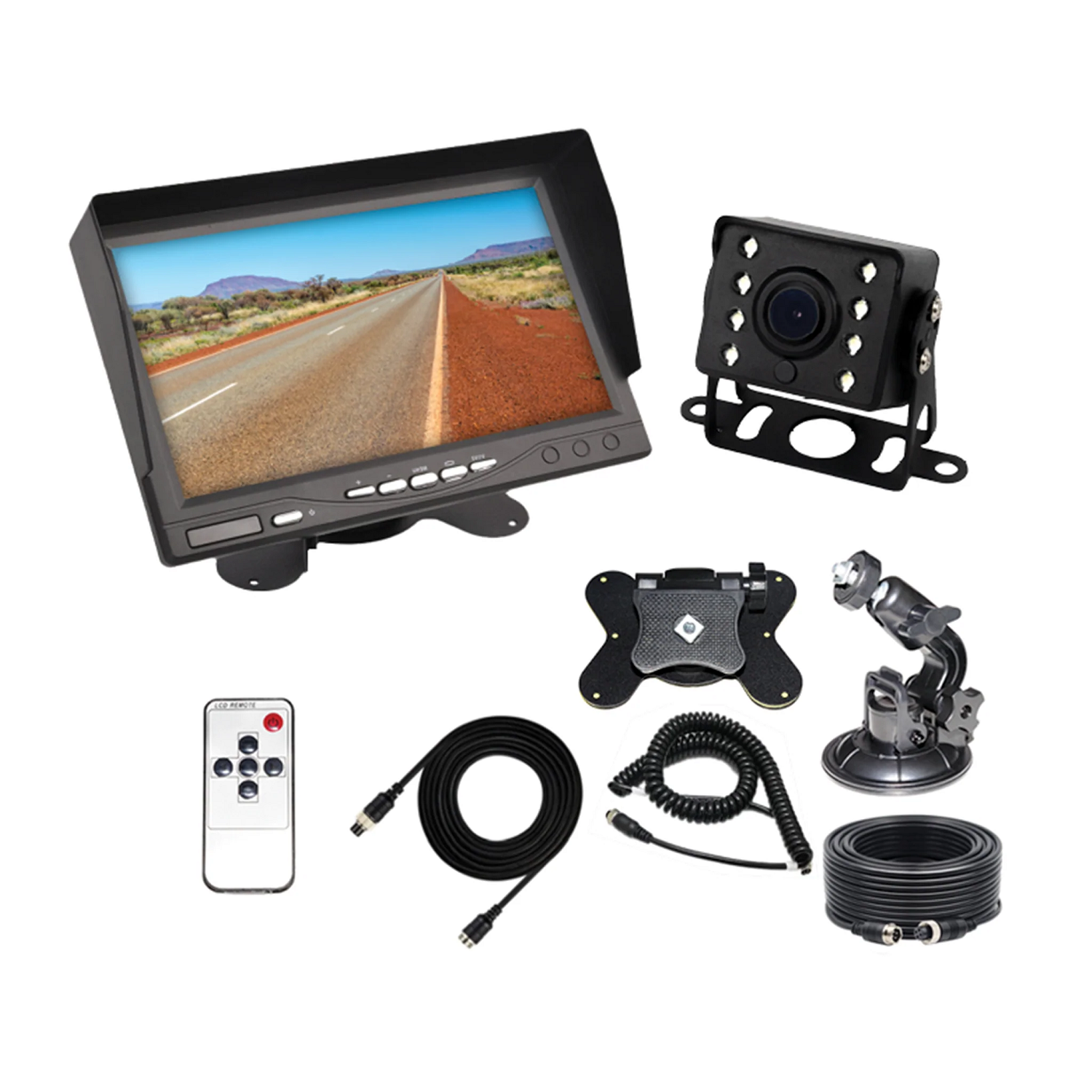

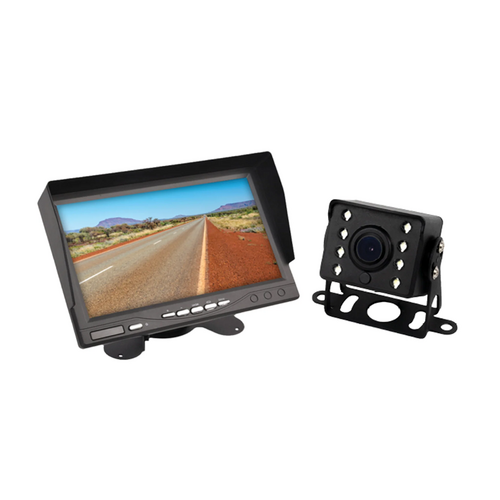

The Aussie Traveller Rear View Camera Kit as a must for your vehicle, so that you can get a clear picture what's behind you. The square style camera produces wide angle, high quality imagery for you to view on the 7 inch high resolution display monitor. This kit has all that is required for easy installation and mounting. It is exactly what you need for keeping a close eye on your 4x4, Caravan, RV, Camper Trailer or Motorhome.

Features:

• Waterproof IP67 rating
• 12V powered camera & LCD display monitor
• 5m coiled cable for connection between the tow vehicle and the towed vehicle
• Easy to install - Screen can be mounted onto front windscreen or dashboard via the supplied suction mount
• Camera features extremely low current draw yet delivers excellent resolution
• Uses standard 50Hz frequency with 120degree lens angle
• Cables also allow for RV installation such as Campers and Motorhomes

Specifications:

TFT LCD Monitor:

• Screen dimensions: 7 inch
• Resolution: 800 x 480 RGB
• System: PAL & NTSC auto switch
• Power: DC 12V
• Consumption: 3W
• Video: Two way video input
• Rear View: Image can be changed Left & Right
• Operate Mode: Key button & Remote control
• Size: 180 x 120 x 50 (mm)

Camera:

• System: PAL/NTSC
• Effective Pixels: 648 x 488 pixels
• Sensing Area: 5.55um x 5.55um
• Scanning System: 2:1 interlace
• Sync System: Internal
• Resolution: 420 TV lines
• Horizontal Sync,Frequency: 15.625KHz / 15.73KHz
• Vertical Sync,Frequency: 50Hz / 60Hz
• Minimum illumination: 1.5lux/F1.2
• Video Output: 1.0VP-P.75Ohm
• Gamma Consumption: 0.45
• AGC: Auto
• S/N ratio: Better than 48Db
• White Balance: Auto
• Electronic Shutter: 1/60-1/15,000 Seconds
• BLC: Auto
• Current Consumption: 80Ma
• Power Supply: DC 12V
• Operating Temperature: -10°C~46°C RH95% MAX
• Storage Temperature: -30°C~60°C RH95% MAX
• Lens: 1.8mm F=2.0
• Lens Angle: 120°
• Waterproof Grade: IP67
