Exotronic 200W Portable Folding Solar Panel with 20A MPPT Solar Controller

Product Description

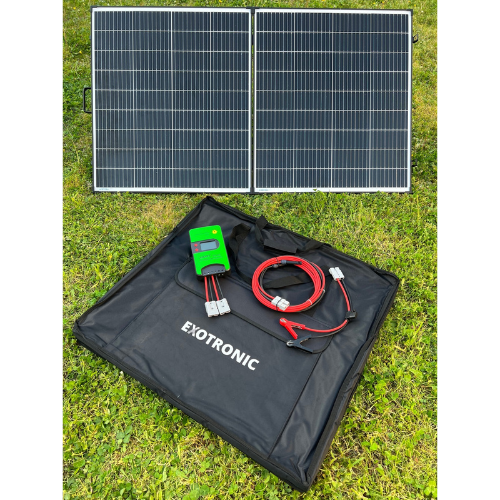

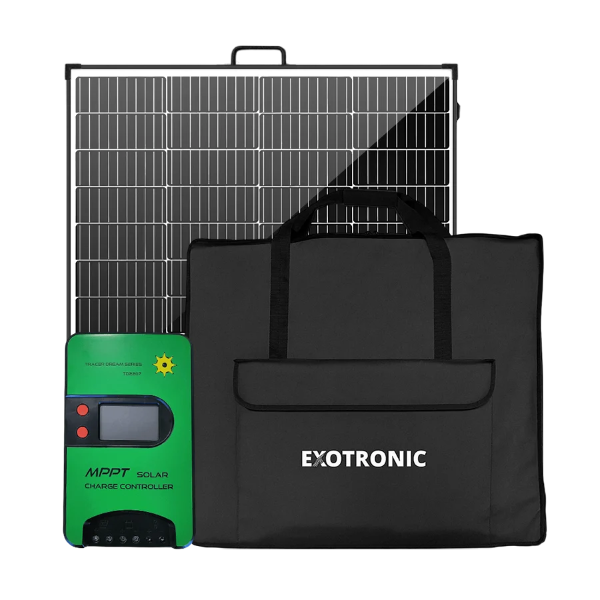

Exotronic 200W Portable Folding Solar Panel with 20A MPPT Solar Controller, 5 Year Warranty.

Complete 200W Portable Solar Solution with Smart Bluetooth Monitoring

Ensure reliable power generation while off-grid with this highly efficient portable solar kit. Designed for camping, mobile setups, and remote sites, this foldable solar briefcase combines high-performance power generation with an advanced 20A MPPT charge controller. By utilizing premium Trina monocrystalline cells, this system maximizes energy capture even when your caravan or camper trailer is parked in the shade.

High-Efficiency Mono-PERC Solar Technology

At the core of the 200W folding array are passivated emitter rear contact (mono-PERC) solar cells. This advanced design achieves impressive energy yield, especially in low-light and overcast conditions, as light passing through the cell is reflected back for a second conversion. The integration of a 9-wire busbar structure significantly lowers internal resistance, improves current distribution, and minimizes the risk of uneven cell heating or hot spots. The result is a robust 19.3% overall module efficiency.

Shade-Resistant and Durable Construction

Outdoors, shading from trees or structures is inevitable. To combat this, each half of the 200W solar briefcase is wired independently. If one section falls under shadow, the other continues to operate at optimal capacity, preventing a total system output drop.

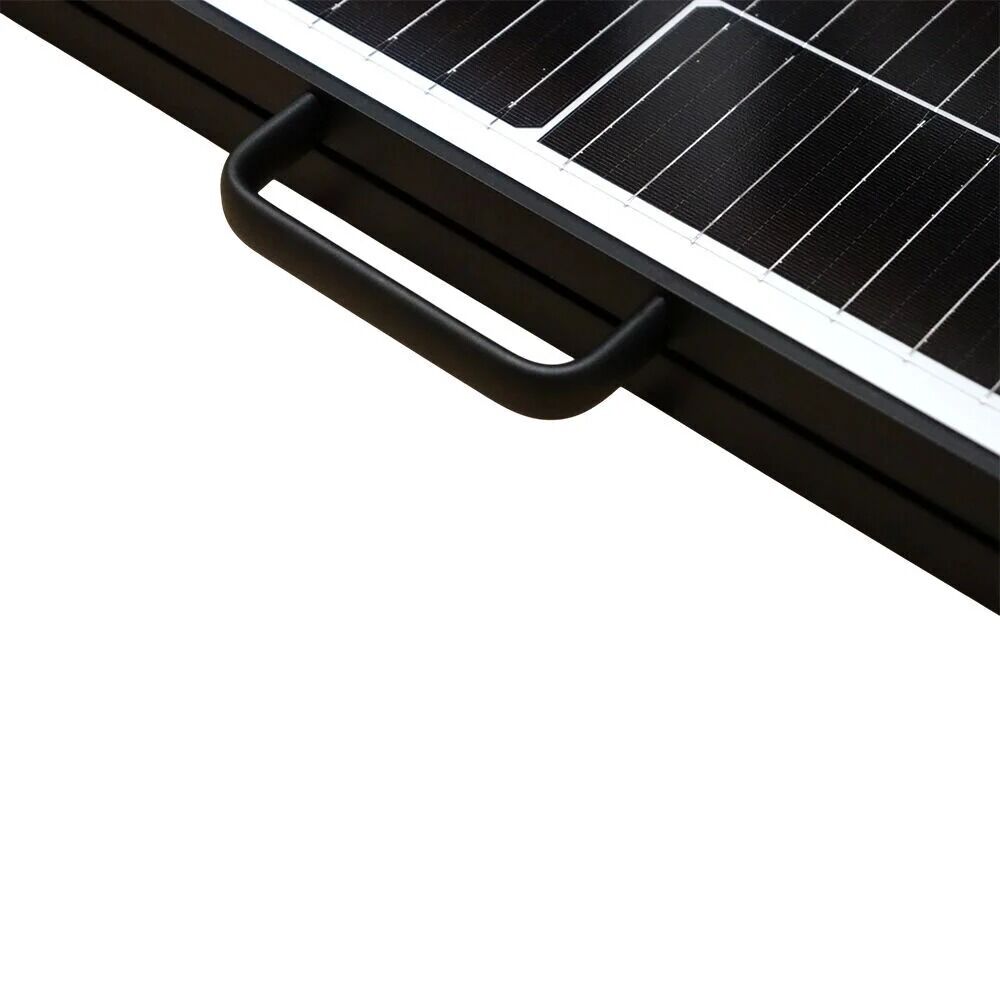

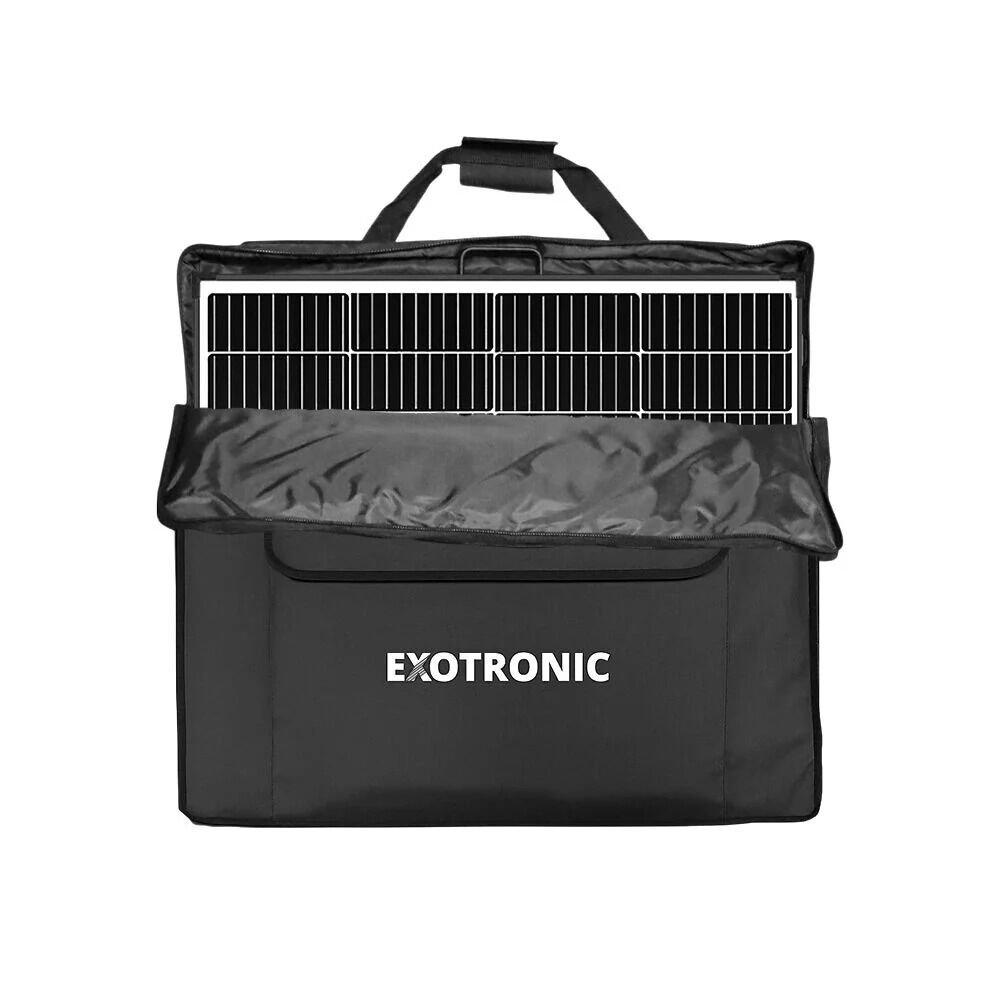

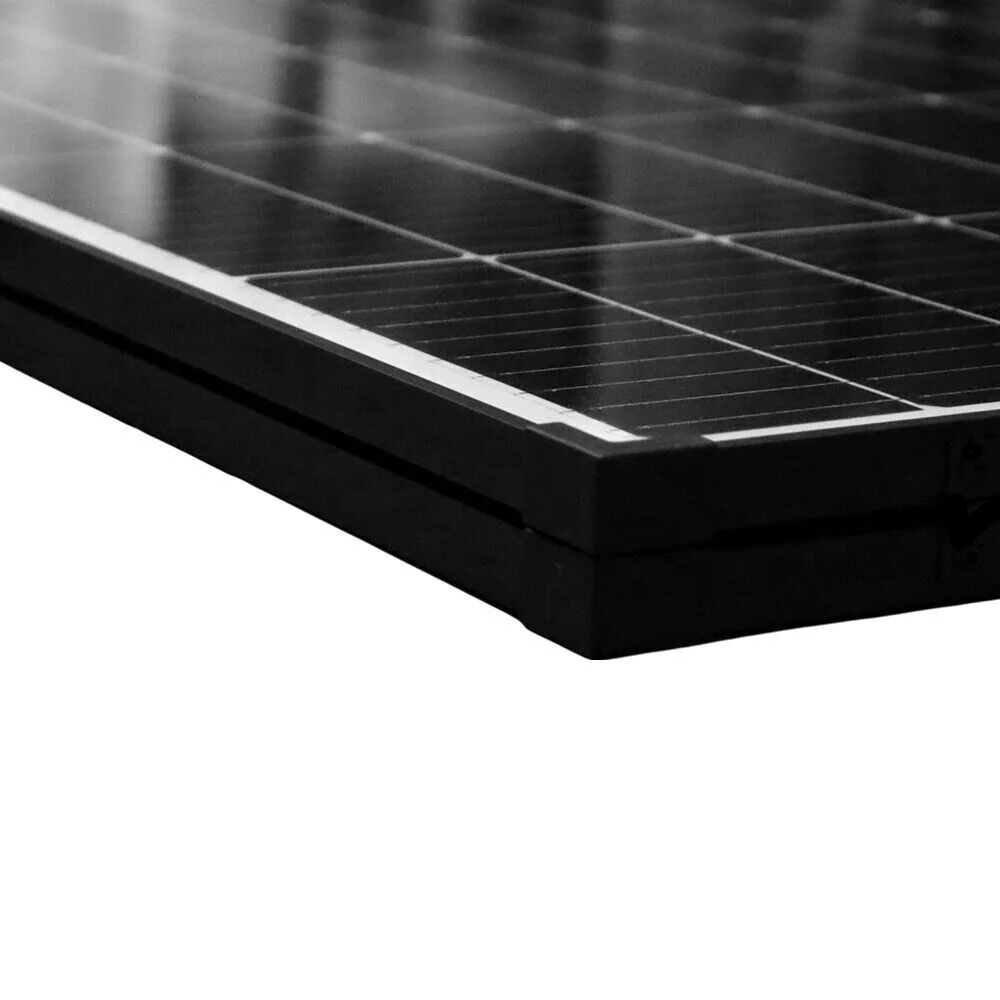

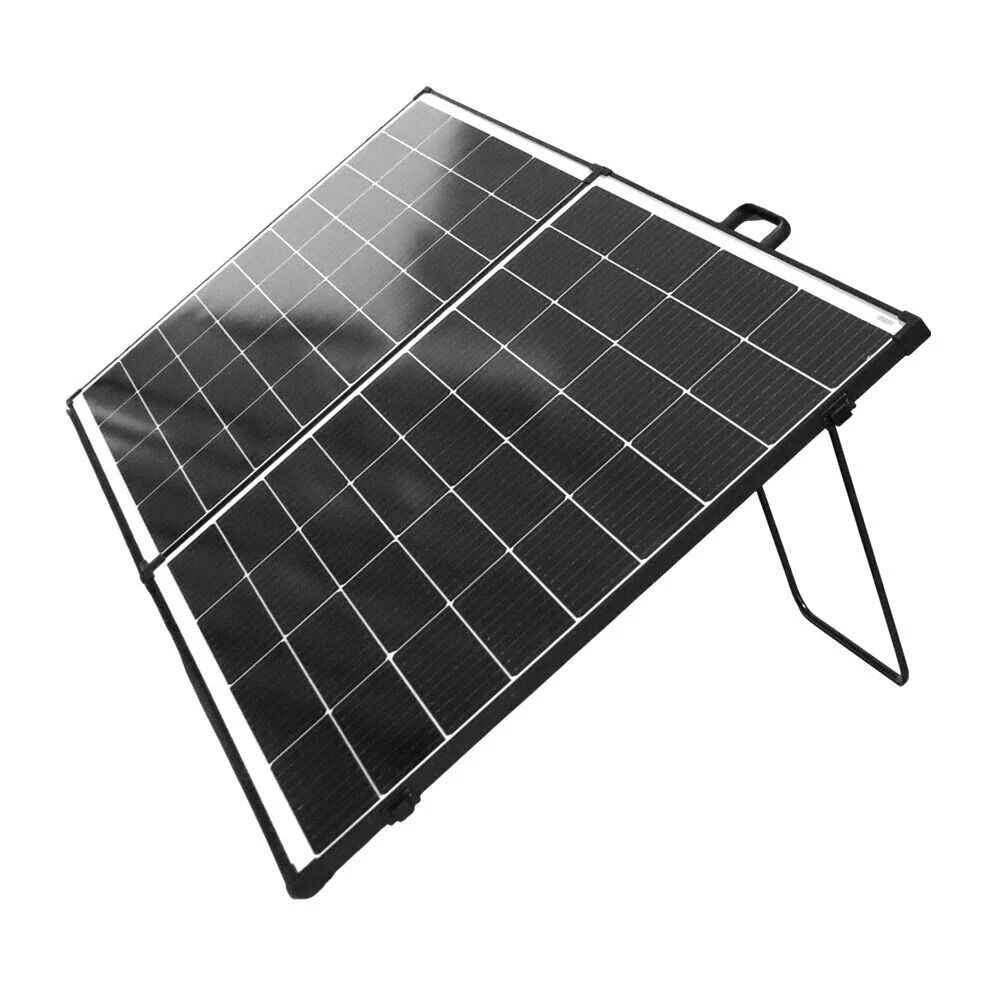

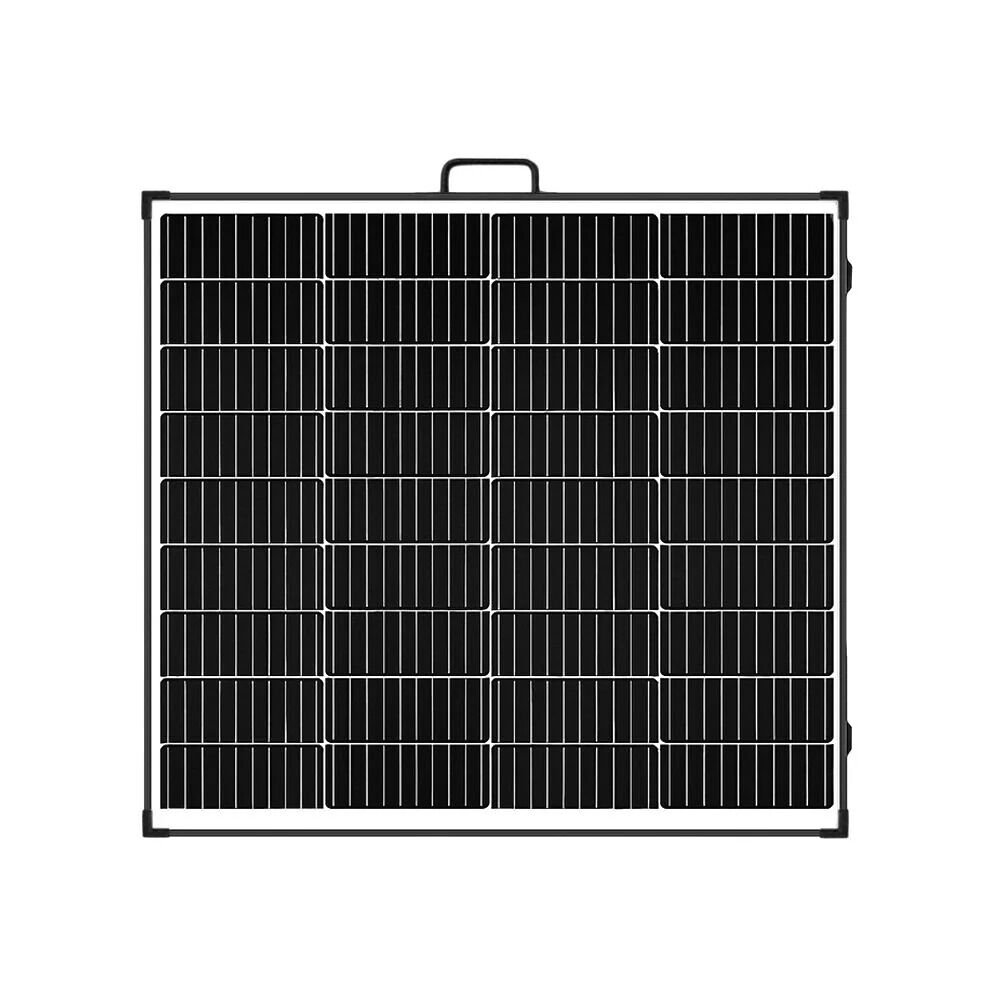

Weighing only 11.2kg, the unit features a sturdy black anodized aluminium frame equipped with protective corner bumpers and integrated fold-away legs for precise sun alignment. When it is time to pack up, the panels fold neatly into the included padded canvas bag, which features a heavy-duty carry handle and a dedicated pocket for safe storage of your cables and controller.

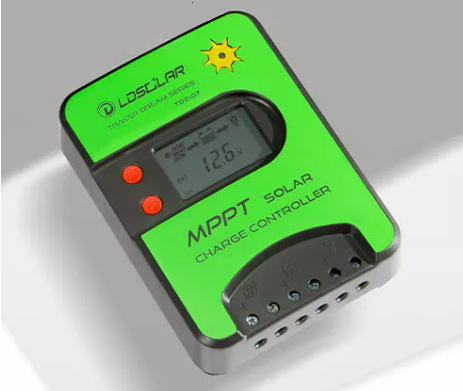

Exotronic Tracer Dream 75V Bluetooth MPPT

The included 20A Maximum Power Point Tracking (MPPT) solar controller ensures every available watt is transferred to your battery bank. Featuring a 32-bit CPU and Synchronous Rectifier Technology, the Tracer Dream series achieves up to 98.5% circuit transfer efficiency and 99.5% tracking accuracy. This allows the controller to rapidly adjust to fluctuating sunlight, maximizing yield.

For the best system performance and safety, install the controller close to your battery. This placement reduces voltage drop along the cable run and prevents ambient heat transfer from the solar panels to the controller electronics. The system is fully compatible with 12V and 24V setups and includes specialized charging profiles for Sealed, Gel, Flooded, and Lithium batteries.

Real-Time System Monitoring

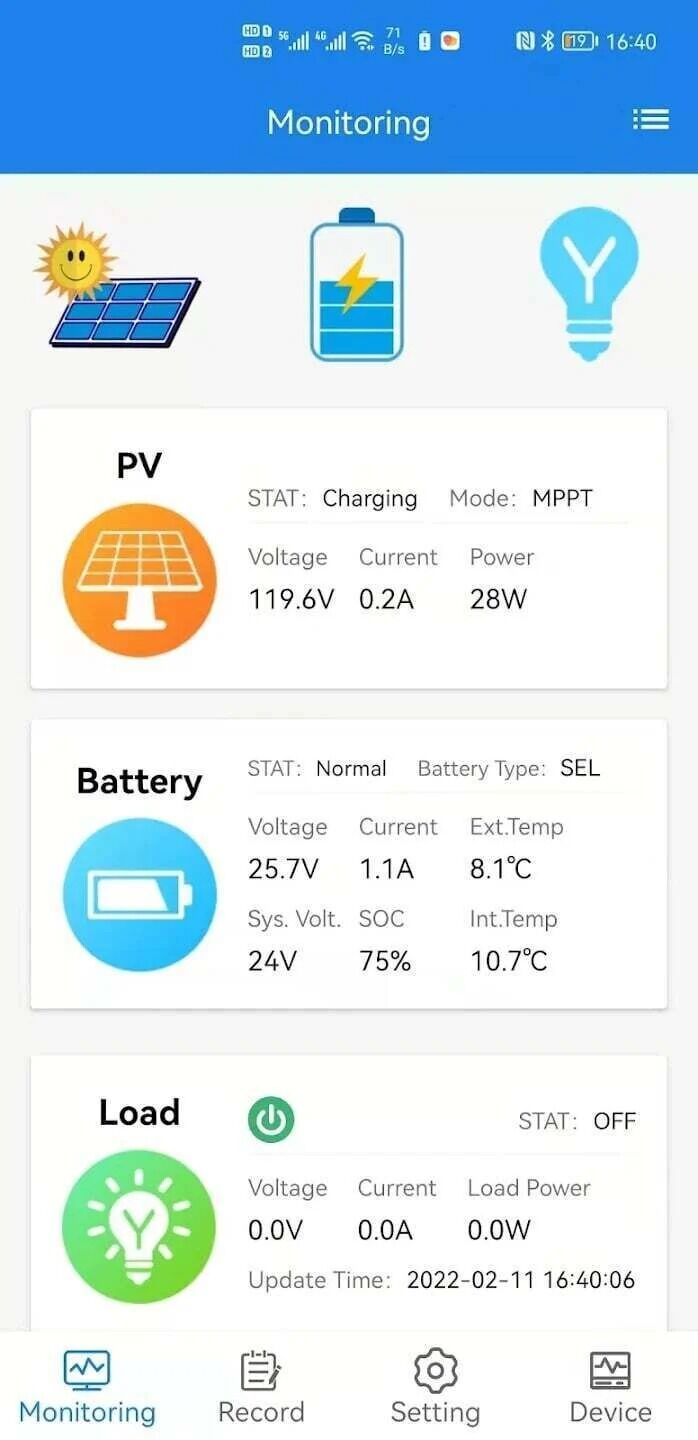

Take full control of your solar yield via the integrated Bluetooth module. By downloading the LD iConnect application on your Apple or Android device, you can monitor live voltage, charging current, and historical generation data directly from your smartphone.

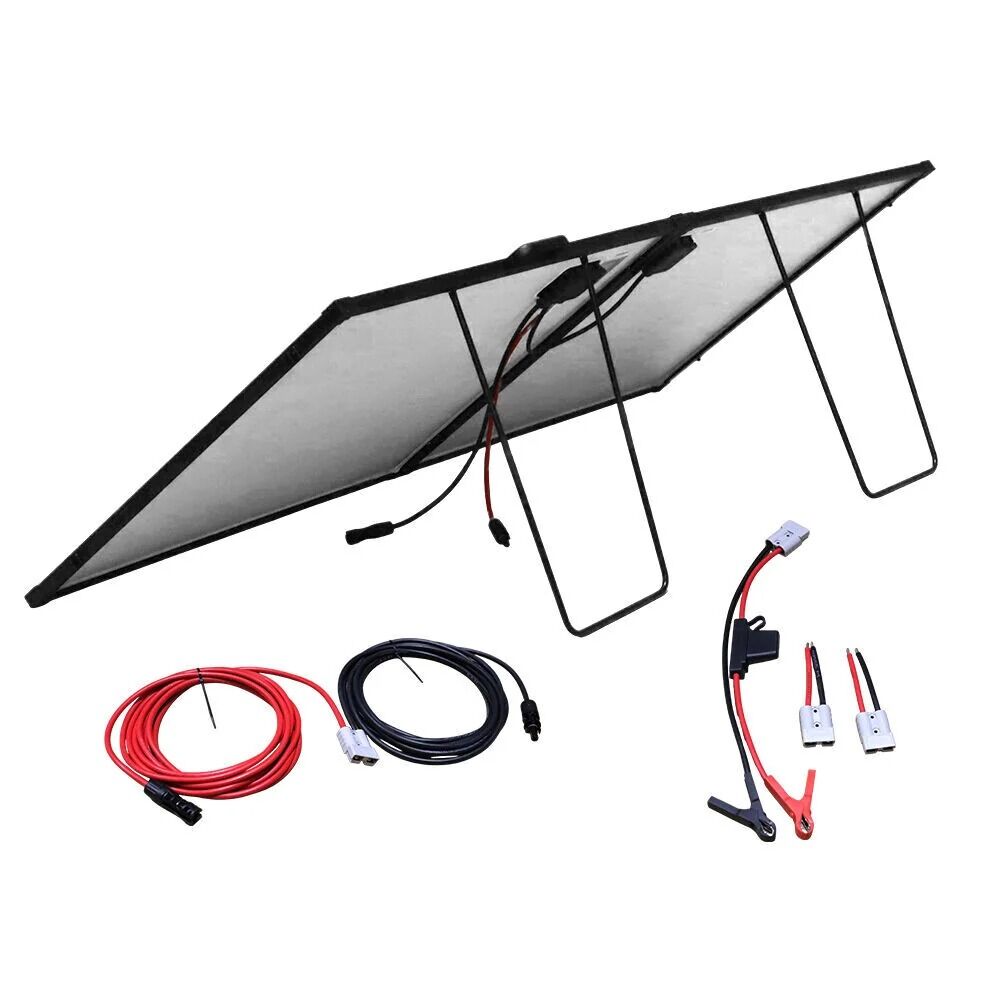

Comprehensive Connection Kit

This portable solar system is ready to deploy right out of the box, supplied with a premium wiring kit tailored for marine and off-grid use:

• 5m heavy-duty extension cable: 4mm2 PV1-F tinned copper marine-grade wire featuring MC4 to 50A grey Anderson connectors. *Note typical de-rating factors apply for maximum current handling.
• Anderson tails: Two 50A grey Anderson tails for seamless integration with existing PWM or MPPT controllers.
• Fused alligator clips: Connects to a 50A grey Anderson with an inline 30A fuse, ideal for direct battery attachment, jump-starting a lithium BMS, or maintaining a starter battery.

Key System Features:

• High-yield mono-PERC cells for superior low-light power generation
• Independent dual-panel wiring to maintain output during partial shading
• Advanced MPPT algorithm with up to 99.5% tracking efficiency
• Bluetooth app connectivity for real-time performance monitoring
• Heavy-duty 12V and 24V compatible charging system
• Extensive digital protections against overcharging, reverse polarity, and short circuits

Upgrade Your Off-Grid Energy Setup

Maintain your battery banks and keep your essential electronics running smoothly with this versatile portable power solution. Equip your camper trailer, caravan, or 4WD with the Exotronic 200W Folding Solar Panel kit today and secure reliable, highly efficient off-grid power for your next journey.

Specifications:

• Power: 200 W
• No. of Cells: 2 × 36 (4 × 9)
• Dimensions (Folded): 770 × 675 × 38 mm (excluding handle)

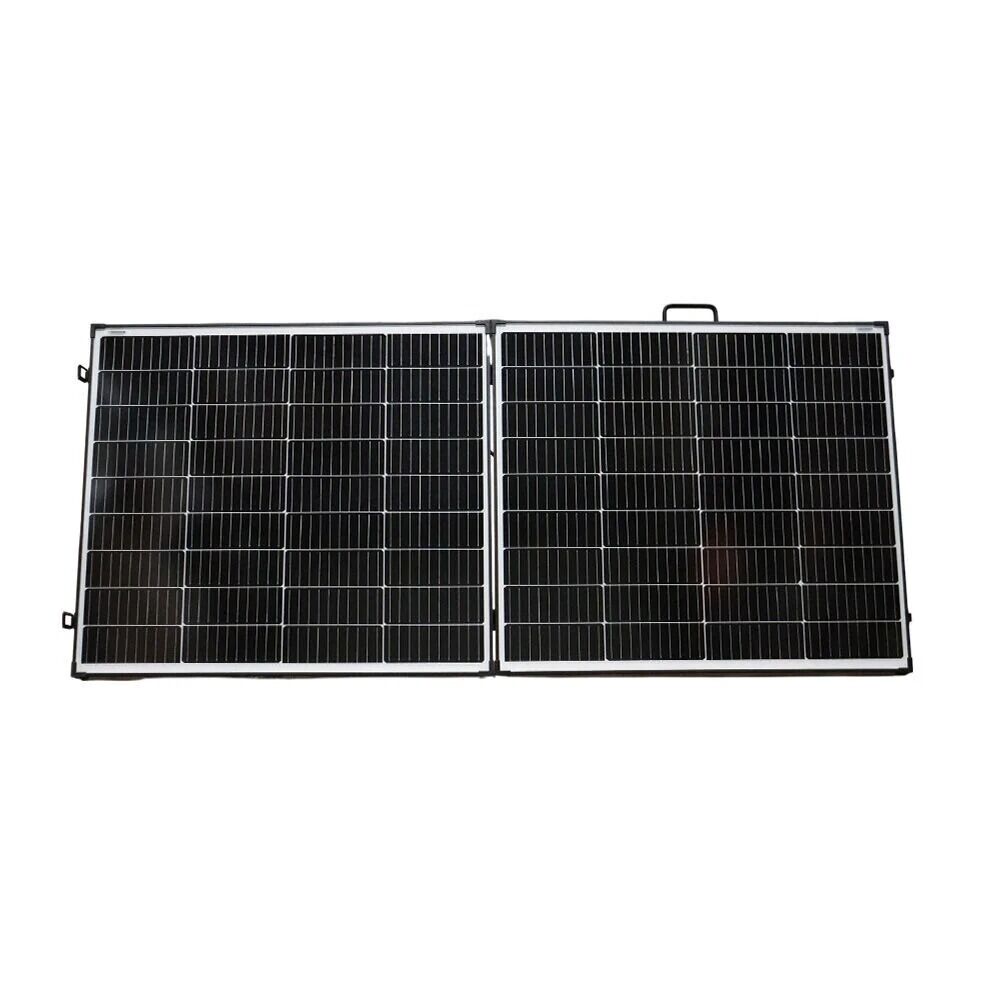

• Dimensions (Unfolded): 770 × 1350 × 19 mm (excluding handle)
• Weight: 11.2 kg
• Maximum Power Voltage (Vmp): 19.8 V
• Maximum Power Current (Imp): 10.12 A
• Open-Circuit Voltage (Voc): 24.1 V
• Short-Circuit Current (Isc): 10.5 A
• Module Efficiency: 19.3%
• NMOT: 41°C ±3°C
• Temperature Coefficient of Pmax: -0.37%/°C
• Temperature Coefficient of Voc: -0.29%/°C
• Temperature Coefficient of Voc: 0.05%/°C
• Operating Temperature: -40°C to +85°C
• Maximum System Voltage: 1000 V DC
• Maximum Fuse Rated Current: 15 A
• Front: 3.2 mm Tempered Glass
• Frame: Black Anodized Aluminium Alloy
• Junction Box: IP65/IP67
• Connectors: MC4 Compatible

Solar Charge Controller Specifications:

• System Voltage: 12 V/24 V DC auto
• Working Voltage Range: 8–32 V
• Max. PV Open-Circuit Voltage: 75 V (min. working temperature); 70 V (25°C)
• MPP Voltage Range: (Battery voltage + 2 V)–65 V
• Discharge Circuit Voltage Drop: ≤0.25 V
• Self-Consumption: <23 mA
• Rated Charge Current: 20 A
• Rated Discharge Current: 20 A
• Max. PV Input Power: 260 W/12 V; 520 W/24 V
• Grounding: Common positive
• Battery Type: Sealed/Gel/Flood/Lithium (Default: Lithium)
• LVD*: 11.0 V ADJ 9–12 V; ×2/24 V
• LVR*: 12.6 V ADJ 11–13.5 V; ×2/24 V
• Float Voltage*: 13.8 V ADJ 13–15 V; ×2/24 V (Default: 13.5 V)
• Boost Voltage*: 14.4 V ADJ 13–17 V; ×2/24 V battery voltage less than 12.6 V, auto boost for 2 hours (Default: 14.2 V)
• Battery Over-Voltage Protection: 16.5 V; ×2/24 V
• USB Output: 2 × 5 V DC/2 A
• Temperature Compensation#: For 12 V system: -24 mV/°C; ×2/24 V
• Relative Humidity: ≤95%, N.C.
• Working Temperature: -20°C to +50°C (Controller can work continuously at full load)
• LCD Temperature Range: -20°C to +70°C
• Waterproof Grade: IP32 (Not waterproof) – Install close to the battery with weather protection for best life and charging efficiency
