Quick Overview

Elecbrakes Brake Controller, 2 Year Warranty

Product Description

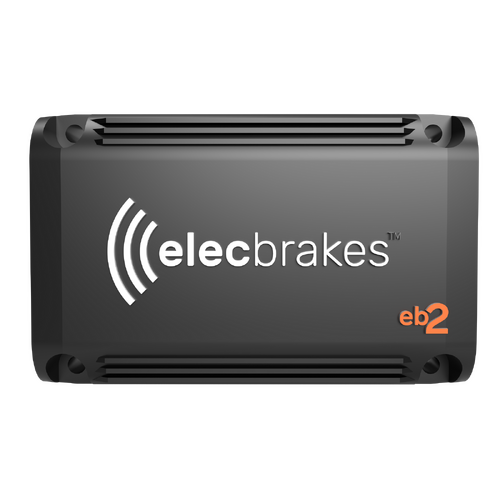

Elecbrakes Brake Controller, 2 Year Warranty. Elecbrakes is a trailer mounted proportional trailer brake controller, wired directly into the trailers electrical circuit. Elecbrakes draws power from the taillight circuit as well as the brake light circuit ensuring sufficient power is available for up to two braked axles.

Braking is triggered by positive voltage being applied to the brake light circuit. Once braking is triggered Elecbrakes uses Microprocessors and Accelerometers to calculate and provide precise brake response.

Elecbrakes connects wirelessly to the in-car remote control (see accessory list above) and the user's smartphone. This enables intuitive adjustments while driving as well as access to a manual override. The smartphone app allows the user to set brake responses according to trailer load or driving conditions by calibrating five preset programs.

All of the preset programs are stored within the device on the trailer, ensuring any user can download their own copy of the smartphone app and will still have access to the Elecbrakes' preconfigured settings.

Proportional Braking System

Elecbrakes employs a high-speed microprocessor and various sensors which continuously sample the operating parameters over 1,000 times per second.

For communication, the device uses the widely adopted Bluetooth 4.0 standard, and the hardware selections yield a Bluetooth device that has long range capability ensuring high connection reliability and no dropouts under typical operating conditions. This means the device can be mounted anywhere on the trailer's draw bar with no detriment to the wireless connection.

Features:

  • 'Plug & Play' - Installed in 10 minutes
  • Trailer-mounting for multi tow vehicle use
  • Smooth proportional braking
  • 5 Preset Braking Programs
  • Device stored settings for multi user access
  • Urethane resin encased electronics
  • Waterproof and shockproof
  • Easily connects to existing trailer circuits
  • Optional auxiliary power connection

Installation Option: (See accessory list above)

  • Hard Wired

The wired variant of Elecbrakes is the ELBC 2000. The unit comes with a small cable and plug connected to the electronics and secured in a resin core.

This unit will then be connected to a specially designed loom that can be wired into the trailers electrical circuit. Typically used by manufacturers or installers, the ELBC 2000 must be wired into the trailers electrical circuit to operate. This can be done in several ways from piggybacking into the trailers plug or splicing into the trailers loom.

The Elecbrake unit can be mounted facing in any direction and should be within reach of the trailers loom for ease of wiring.

All the settings are programmed by the in-car controller. Once set up, these settings are stored in the Elecbrake unit ready for operation. Anyone who chooses this version should consider having it installed by a qualified auto electrician or technician.

  • Plug & Play
The Elecbrakes controller (ELBC2000-PS) can be purchased with a user specified adapter allowing the user to mount the unit, connect the adapter plugs to the tow vehicle, trailer and elecbrakes device and be on the road with proportional brake control in 10mins
.
This plug and play option of the elecbrakes device has identical functionality to the hardwired option, the difference being that it comes with waterproof connecters and the adapters are prewired, taking away any requirement for the user to splice Elecbrakes into the trailer existing circuits.

The Elecbrake controller requires a user specified adapter to operate, the adapter configuration takes into consideration the tow vehicles socket and the trailers plug to suit the needs of the user. Adapters are available in all common combinations using flat 7 and 12 sockets and plugs and well as 7 pin round small and large combinations. Additional user specified adapters are available on request.

The Elecbrake plug and play option allows a fully featured proportional electric brake controller to be installed on your trailer and ready to go within 10 minutes.

Using the plug and play accessory the elecbrake is a fuss free option saving you time and money of a full install, without compromising on functionality or capabilities.

Providing precise proportional brake control, with multiple users defined braking programs and settings for forward, reverse and minimum brake responses. Allowing the user to dial in brake response perfectly synchronise with the tow vehicle. All without hard wiring to the trailers electrical loom!!

Plug & Play, Elecbrakes

Product Card

Installation Guide

Product Guide

Specifications

Short Description

Elecbrakes Brake Controller, 2 Year Warranty

SKU ELBC2000-PS
Brands Elecbrakes
Product Category Boat & Trailer Accessories
Manufacturers Warranty 2 Years
