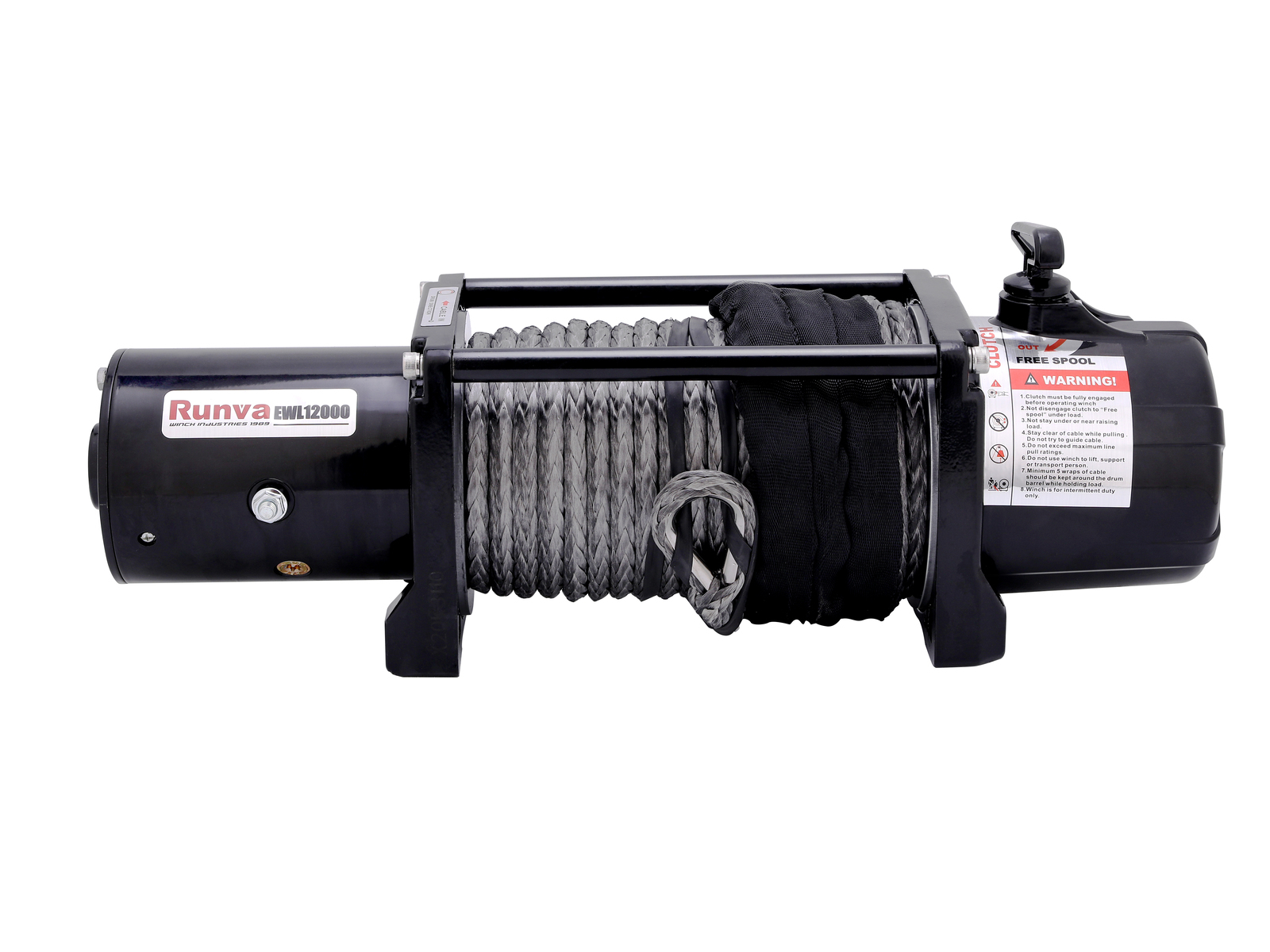

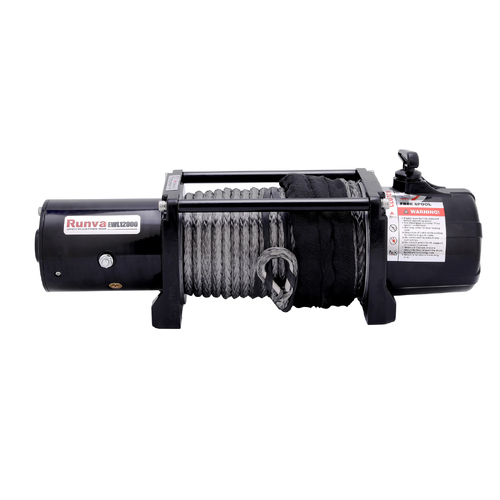

Runva EWL12000 12V Winch with Synthetic Rope

SKU: EWL12000-VD Learn MoreĀ»




Learn MoreĀ»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Runva EWL12000 Winch with Synthetic Rope, Limited Lifetime Warranty. The Runva 4X4 Electric Series offers a very extensive range of products. Runva have solutions for every application and every vehicle.

The Runva EWL12000 fits all 4x4 winch bars and an affordable quality winch. This product comes with a steel cable of 12V.

Winch Voltage:

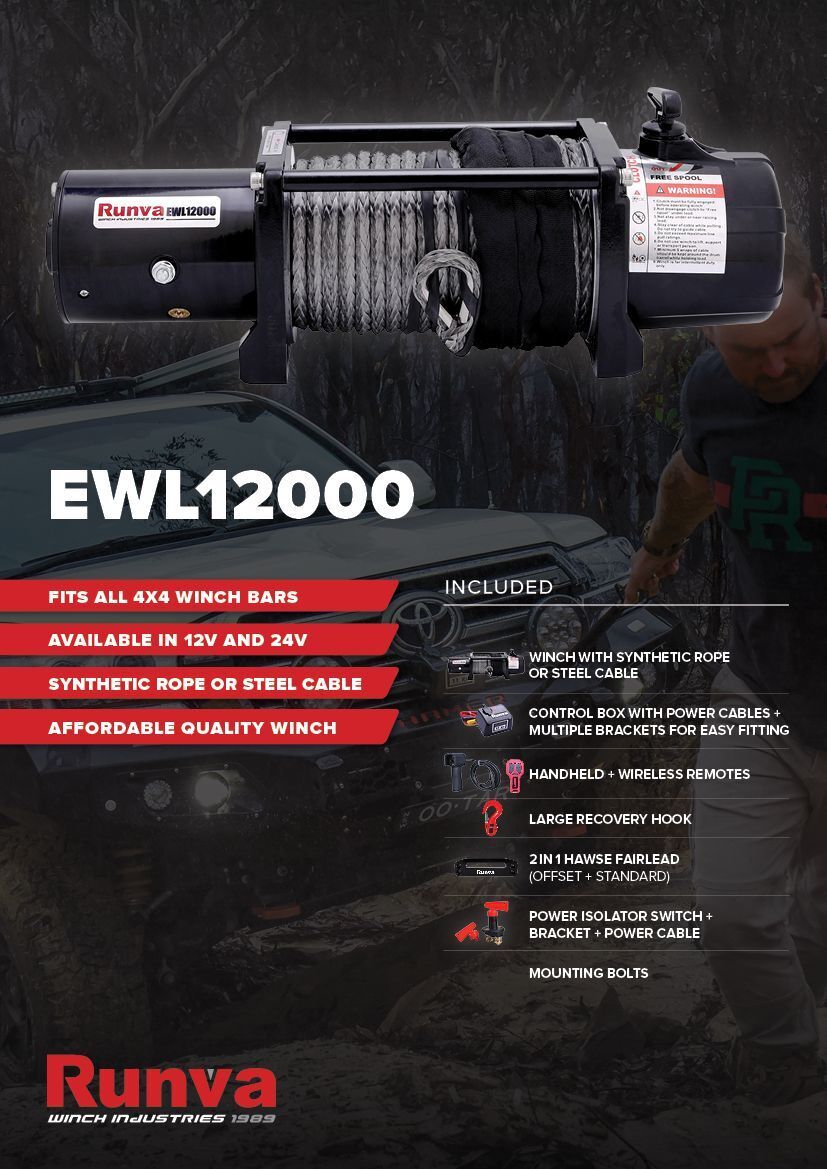

  • Runva EWL12000 12V with Synthetic Rope - EWL1200012VD
  • Winch with sythetic rope
  • Control box with power cabled plus multiple brackets for easy fitting
  • Handheld remote & wireles remotes
  • Large Recovery hook
  • 2in1Hawse Fairlead (offset + standard)
  • Power Isolator Switch + Bracket + Power Cable
  • Mounting bolts



Brand Runva

Warranty Period: Limited Lifetime

Product Category 4WD Parts and Extras

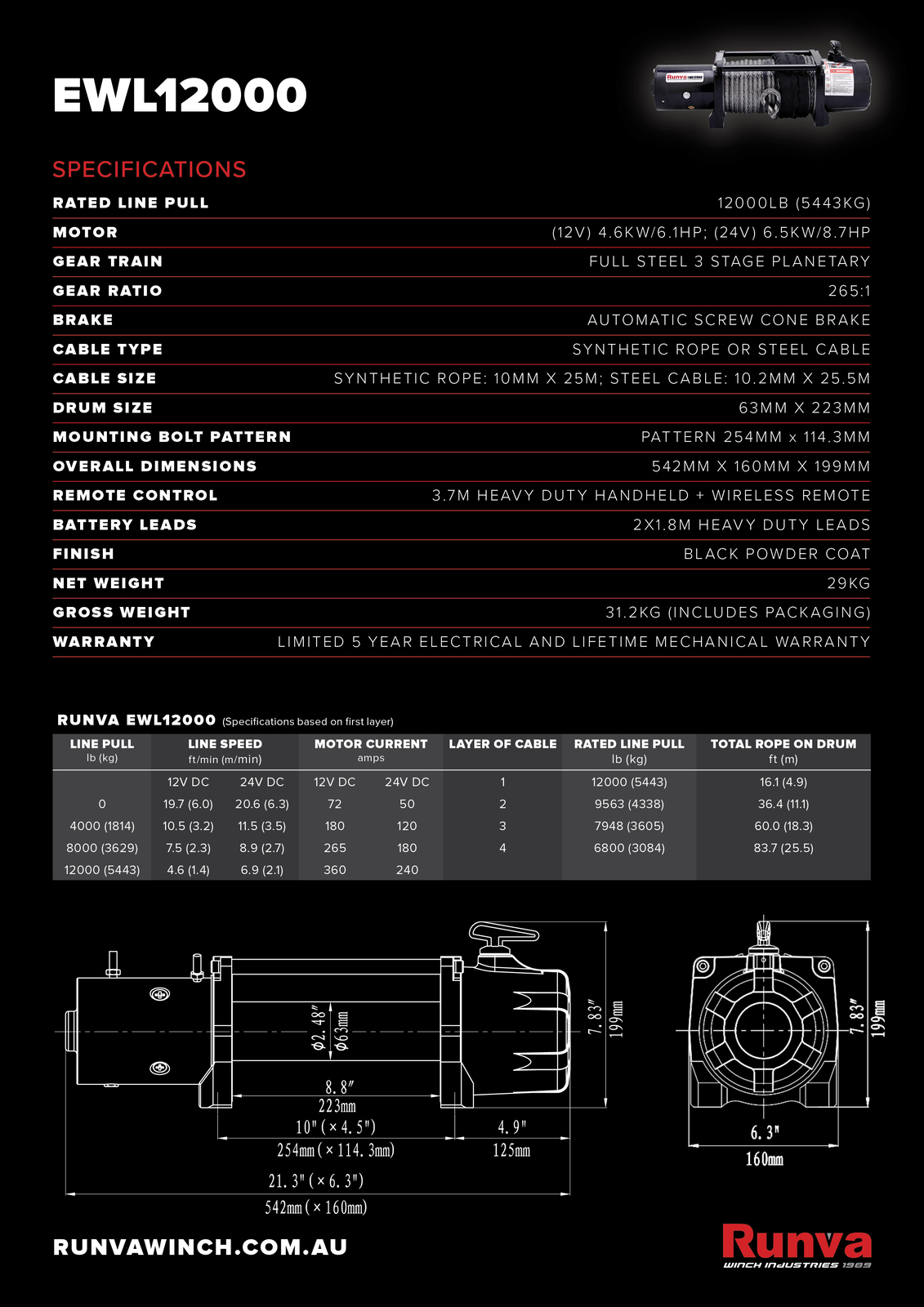

Motor Permanent Magnet (12V) 4.6kW/6.1HP (12V model)

Rated Line Pull 12000lb (5443 Kg)

Drum Diameter (mm) 63mm X 223mm

Remote control 3.7m Heavy Duty Handheld Remote + Wireless Remote

Dimensions 542mm x 160mm x 199mm

Net Weight (kg) 31.5

Brake Automatic Load Holding

Synthetic Rope / Steel Cable 10mm X 25m (12V model)

Mounting Options Mounting Bolt Pattern - 254mm X 114.3mm (4x M10 Bolts)

Finish Black Powder Coat

Winch Capacity (Kg) 5443

Battery Leads 2 x 1.8m Leads (200A)

Gear Train Full Steel 3 Stage Planetary

Gear Ratio 265:1

Weight (kg) 31.5 kg

Product Q&A

Ask Us a Question
  • What size battery should I use with the Runva winches?

    Runva states that the ATV Series models can run off an ATV/UTV battery. For other applications a small car battery would be sufficient.

    The minimum requirement for the Compact Series, Electric Series and Lifting Series is 750CCA. Using a too small battery can damage your winch.

    The minimum requirement for the Competition Series is a battery setup of no less than 1000CCA.

  • Which Runva Winch should I choose?

    It depends on your individual needs. Some factors to consider are:

    • Which features you are looking for in a winch
    • The rating of the winch bar or plate you are planning to use it on
    • The size of the winch you are considering - you need to make sure it will fit the application. Some models state that they would fit all bars so they would be a good choice if you do not want to measure prior to buying a winch
  • Are the Runva Winches all IP67 Ingress Tested?

    No, all models are not IP67 rated. The 'Premium' models are the only ones that are IP67 Ingress tested, along with a select other models. Runva states that their quality engineering is a standard across all of their products and only the Premium range is tested, but that does not mean the rest of the ranges are any less watertight.
