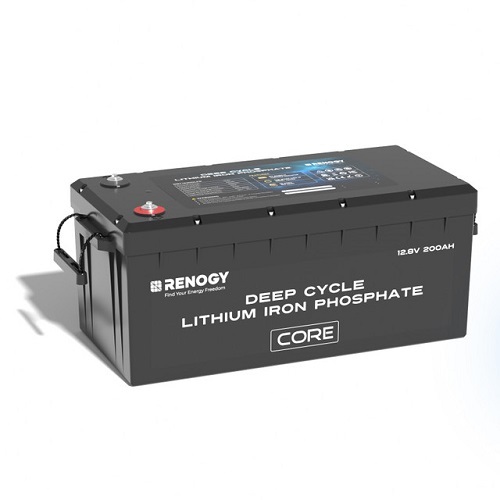

Renogy 12V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery

$1,100

FREE SHIPPING

Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Renogy 12V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery, 5 Year Warranty. Meet Renogy 12V 200Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery delivers a seamless upgrade experience without any compatibility issues.

With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring that you're covered during outages, hurricane season, and other emergencies. Connect multiple batteries in series-parallel to keep your system running longer and it can be used in trolling motor.

Off-grid living can be challenging, but the Renogy 12V 200Ah Core Battery offers a true 200A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles.

Whether you are planning an upgrade from old lead-acid batteries, or starting to build your first-ever off-grid power system, the Renogy 12V 200Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way.

Features:

  • True All-Round BMS Protection. Built in with a reliable 200A battery management system (BMS) for regulating high discharge current of up to 200A. The included low-temperature cut-off makes for safer charging in winter and consistent performance in the long run.
  • One-Stop Upgrade Solutions. Get solar panels, solar charge controllers, inverters, and accessories while upgrading from lead-acid batteries here at Renogy. No more worries about compatibility between each component. Have your system built up easier & faster in one go.
  • Max. 6% More Capacity. Renogy 12V 200Ah Core Series Battery provides max. 6% more power compared with the rated capacity, ramping the usable capacity up to 212Ah.
  • Versatile & Seamless Connection. Set up your system in the way you want, be it series, parallel, or series-parallel connection. Expandable up to 16 in series-parallel for maximum power up to 40.96kWh (4P4S, 51.2V 800Ah).
  • True All-Round BMS Protection. Built in with a reliable 200A battery management system (BMS) for regulating high discharge current of up to 200A. The included low-temperature cut-off makes for safer charging in winter and consistent performance in the long run.
  • Find Your Spot in Our Community. Register your products, share experiences, learn new knowledge, and connect with like-minded people all in one place-Renogy Power Plus Community. More benefits await your exploration.

Specifications

SKU RBT12200LFP

Brand Renogy

GTIN 00840315210349

Warranty Period: 5 Years

Product Category Batteries

Battery Voltage 12V

Amp Hours (ah) 200

Battery Length (mm) 522

Battery Width (mm) 240

Battery Height (mm) 219

Battery Weight (kg) 21.4

Nominal Voltage 12.8V

Cycle Life (DOD – 80% under controlled conditions) 8000 Cycles

Storage Range (temp) -25°C to 65°C

Operating temperature range 0°C to 55°C (charge) | -20°C to 60°C (discharge)

Maximum Discharge Current @ 10s 400A@10s

Operating Humidity 10% to 95%

Blow Energy 2560Wh

Max. Continuous Discharge 200A

Maximum Continuous Charge Current 100A

Certifications MSDS, UN38.3, FCC, PSE, CE, UKCA

Rated Capacity 200 Ah

Maximum Charge Voltage 14.4V


Videos

Introducing Renogy 12V 100Ah/200Ah Core LiFePO4 Battery



Product Q&A

Ask Us a Question
  • Does this battery include a battery tray?

    Unfortunately it does not include a battery tray, however Renogy recommend installing with a battery tray for stability.

  • Is the battery 24V?

    The Renogy 12/24/48V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery is a 12v battery that can be installed in series to achieve 24v or 48v system.
