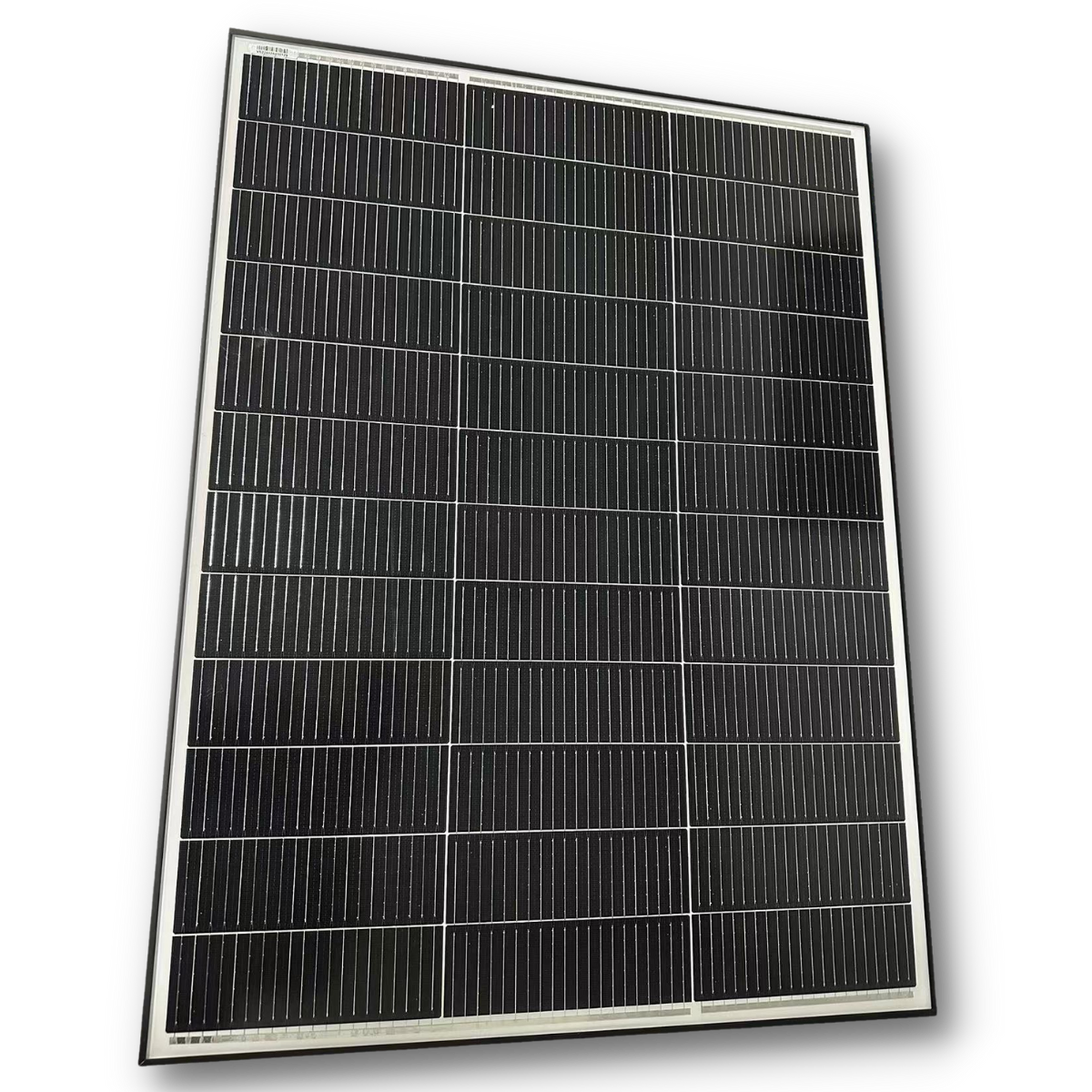

Exotronic 120W Fixed Monocrystalline Solar Panel

SKU: Exo-SP-F3-120 Learn More»
Exotronic 120W Fixed Monocrystalline Solar Panel
Free Shipping


This item is sent via Express Courier. All freight is fully insured.

Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

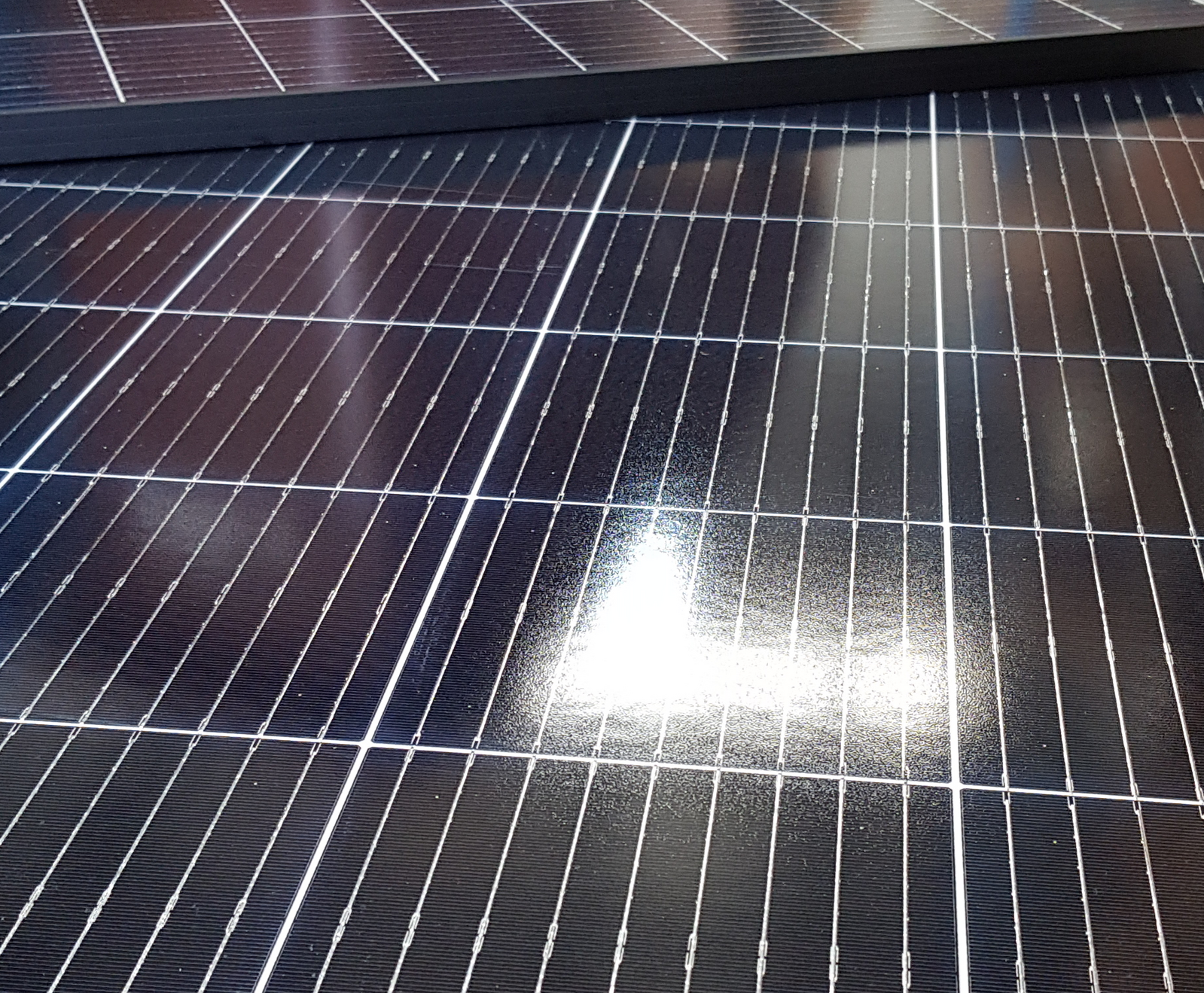

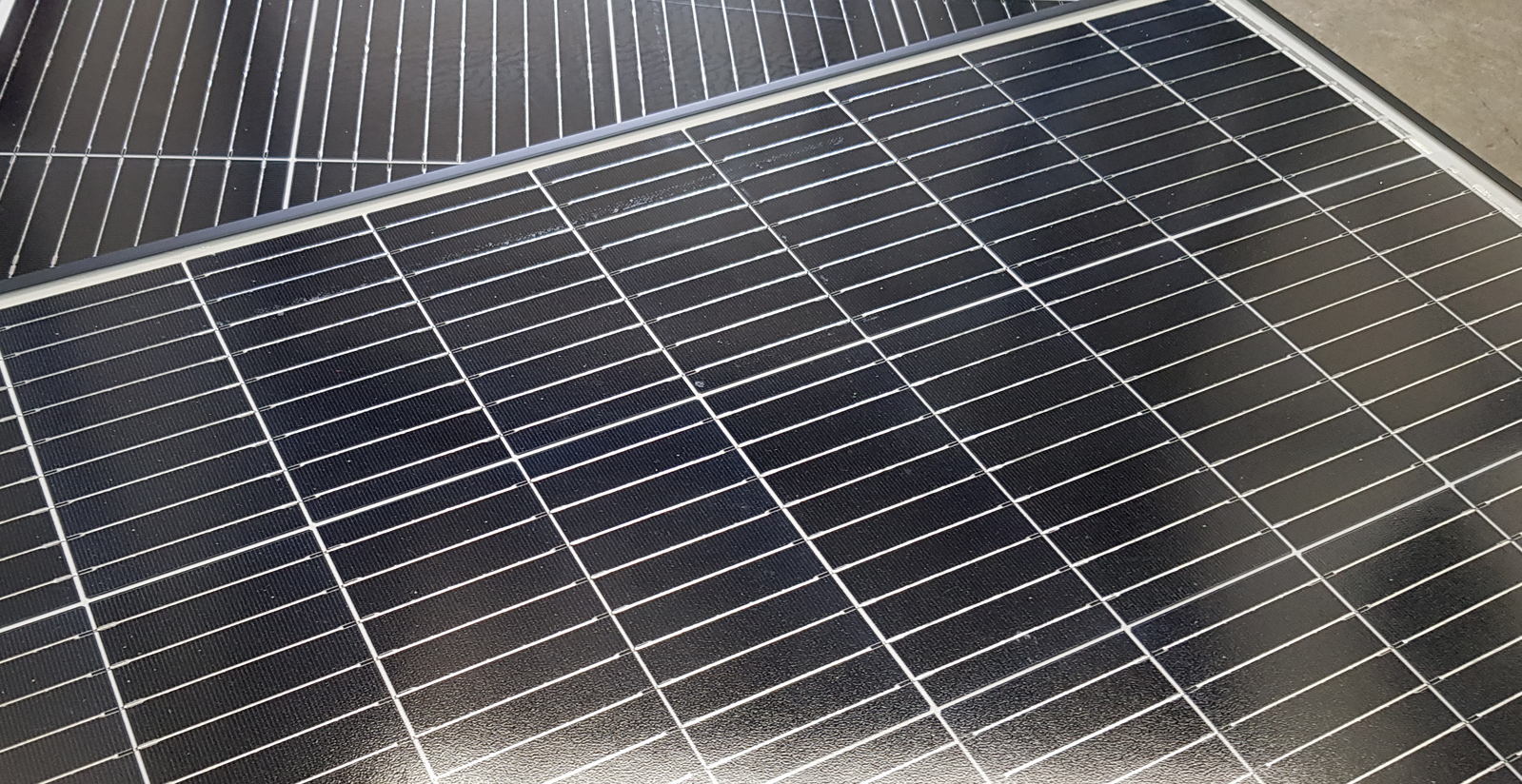

Exotronic 120W Fixed Monocrystalline Solar Panel, 5 Year Warranty.Using 23% efficient M6 monocrystalline passivated emitter rear contact (mono-PERC) square cut cells and the latest 9-wire bus-bar low-loss design, these panels achieve a high efficiency with a positive power tolerance.

PERC cells provide better performance in low light applications compared to traditional monocrystalline silicone designs as some of the light that passes through the cell is bounced back and converted into electricity.

The 9-wire busbar decreases the resistance of the module and carries current evenly over the whole surface of the cells to ensure that all there are minimal power losses within the module and significantly reduces uneven cell heating and hot spots.

The Exotronic range of panels has been designed so that all panels have closely matching votlages, therefore all sizes can be wired in parallel.

The anodised aluminium frame is further protected by a black protective coating and is only 25mm thick to assist a low-profile design and reduce the weight of the module while still giving good rigidity to protect the module from vibrational and torsional stresses.  The tempered glass provides high resistance to impact damage.  Low-iron high transmissivity glass is used to provide excellent low light performance.

  • Salt mist  and ammonia resistant
  • Wind load resistant - 2400 Pascal
  • Snow load resistant - 5400 Pascal



SKU Exo-SP-F3-120

Brand Exotronic

Warranty Period: 5 Years

Product Category Portable Solar Panels

Solar Panel Type Fixed Solar Panels

Solar Panel Cell Type Monocrystalline

Watts (W) 120

No. of Cells 36 (3x12)

Junction Box IP65/IP67

Open Circuit Voltage Voc(V) 23.2

Frame Black Anodized Aluminium Alloy

Front 3.2mm Tempered Glass

NMOT 47C +/-2C

Voltage at Pmax (VMP) 19.6V

Maximum System Voltage 1000VDC

Power 120W

Weight 6.3 Kg

Dimensions 900 x 670 x 25mm

Maximum Fuse Rated Current 15A

Temperature Coefficient of Voc -0.4%/C

Temperature Coefficient of Voc 0.065%/C

Operating Temperature -40 - +85C

Module Efficiency (%) 19.9

Short Circuit Current Isc(A) 6.89

Temperature Coefficient of Pmax -0.5%/C

Current at Pmax(Imp) 6.13
